Model # SC3683A Official Eureka sanitaire commercial mighty mite

Here are the diagrams and repair parts for Official Eureka SC3683A sanitaire commercial mighty mite, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Shield 39028
#6

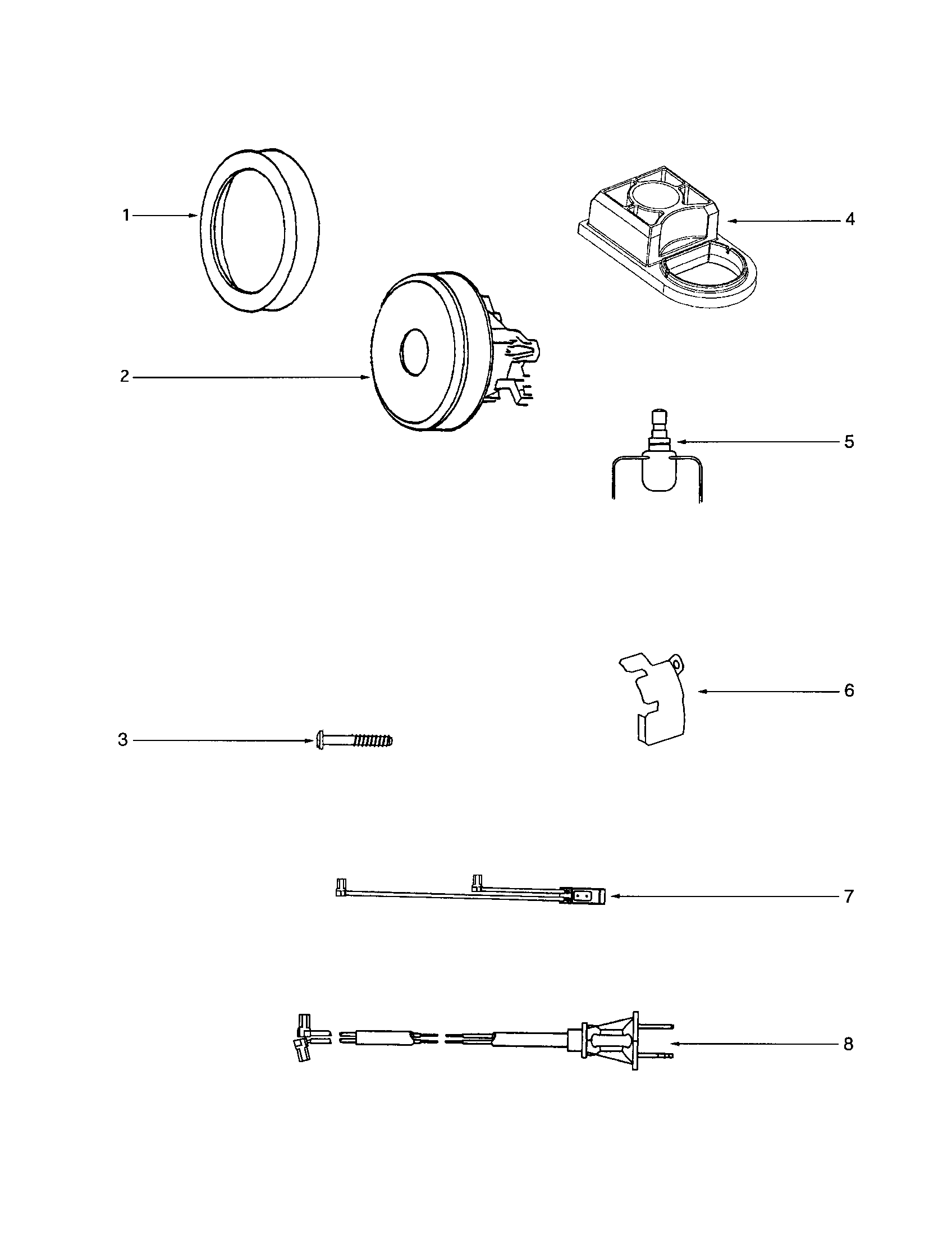

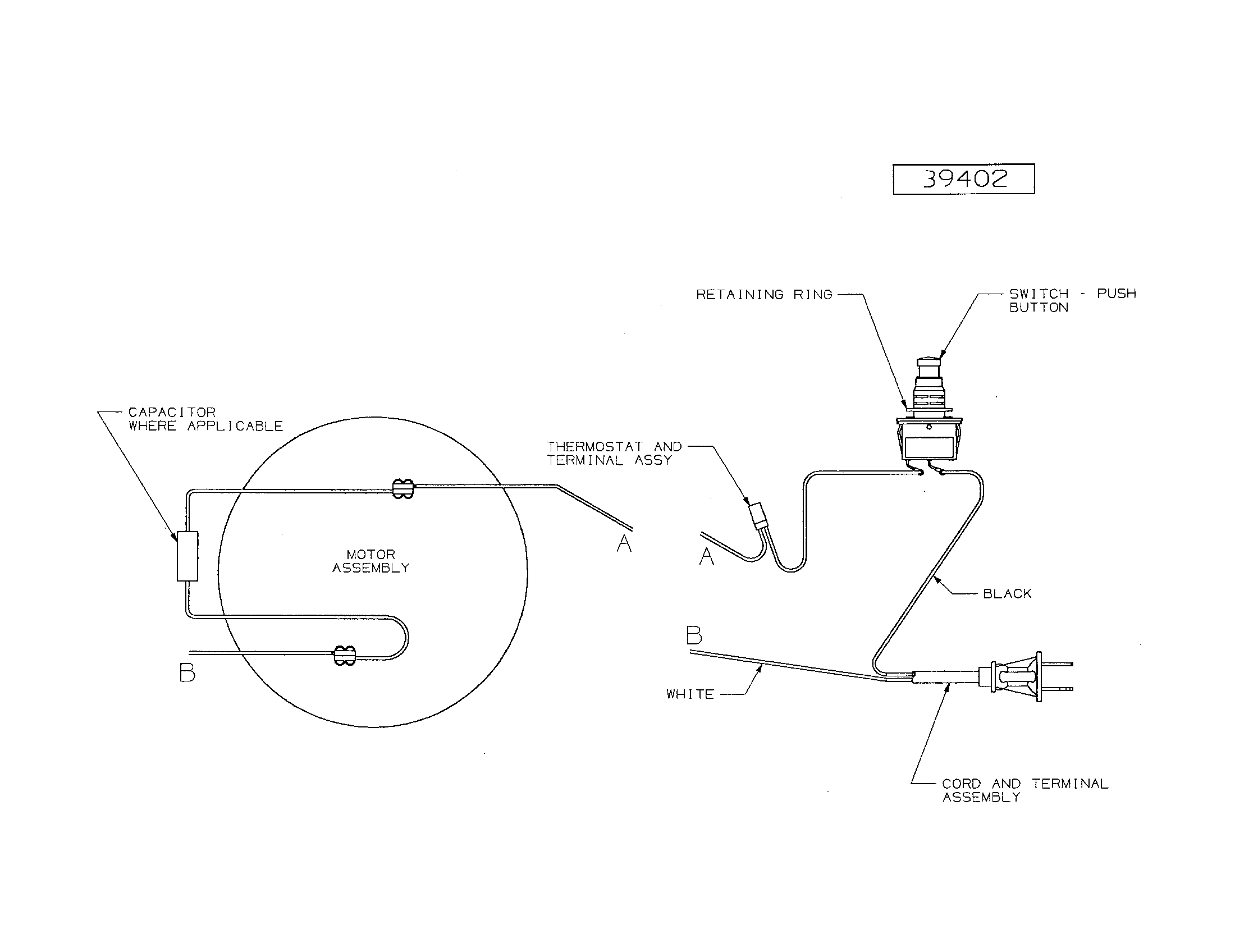

Motor/cord/terminal diagram

Shield

Part #39028

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 60487-27
#1

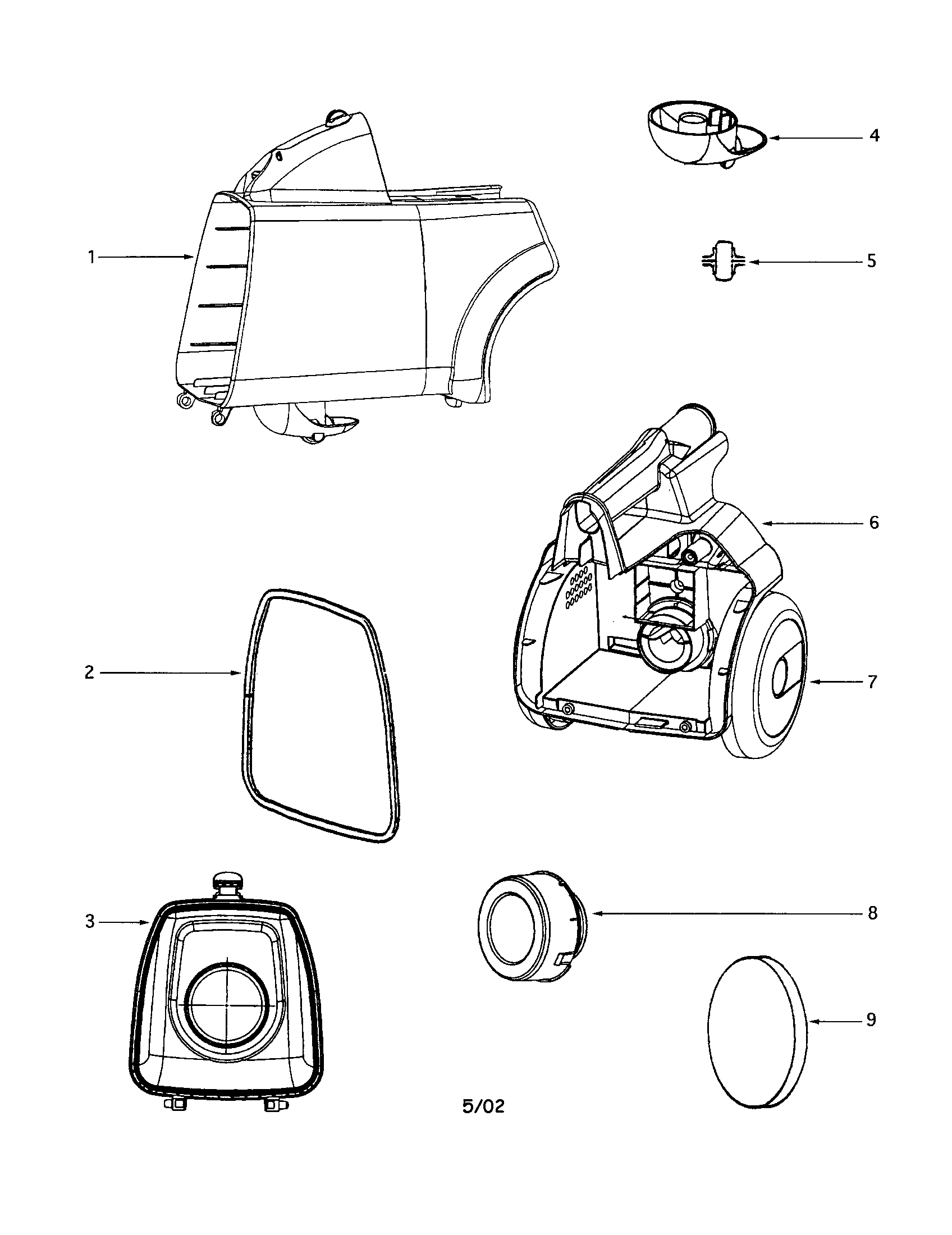

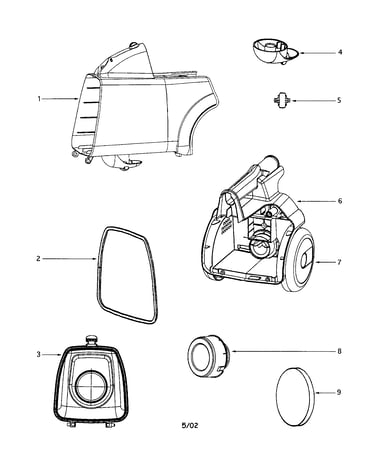

Housing/caster diagram

Housing assembly

Part #60487-27

The manufacturer no longer makes this part, and there's no substitute part

Gasket 28261
#1

Motor/cord/terminal diagram

Gasket

Part #28261

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 26193-3
#7

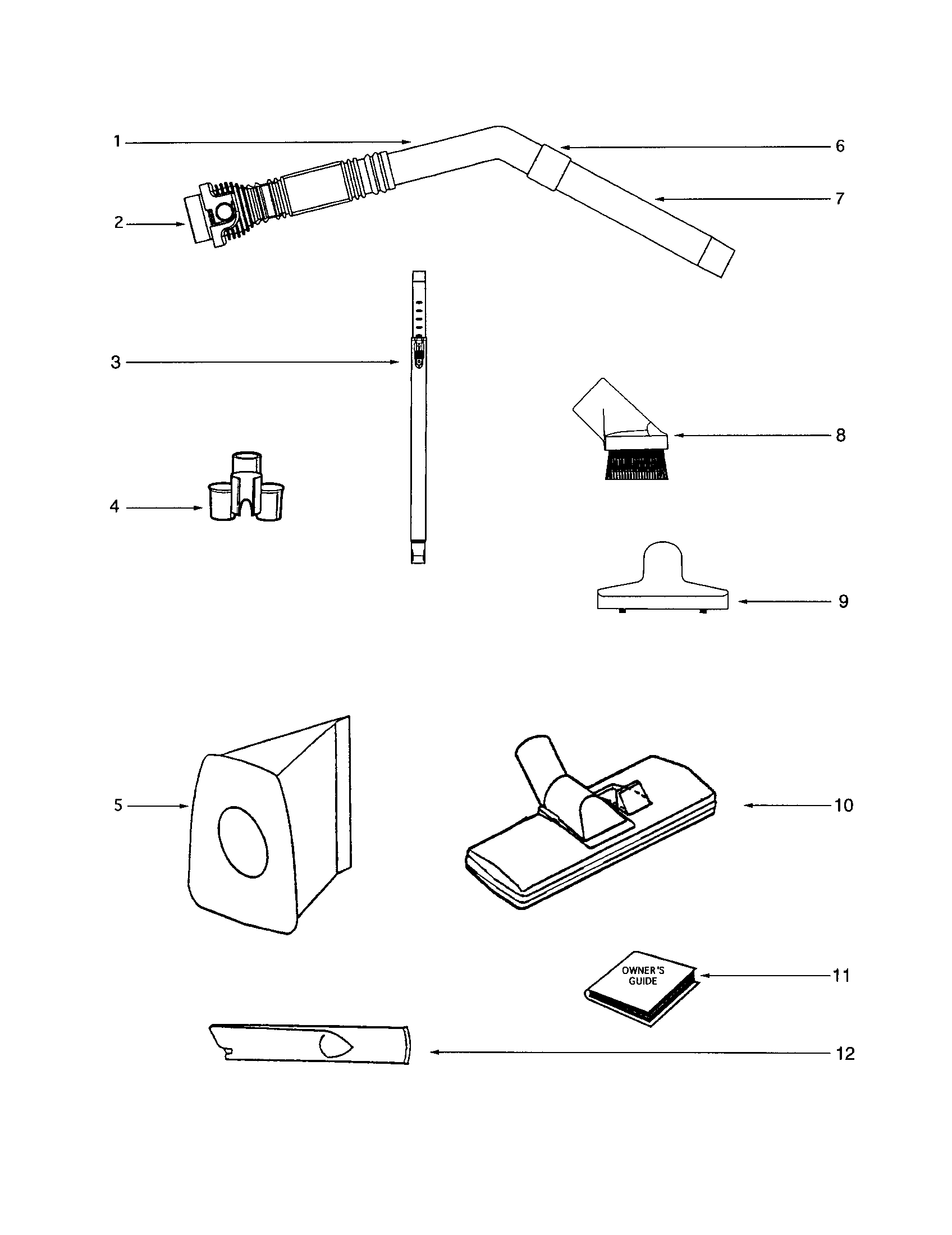

Hose diagram

Vacuum handle

Part #26193-3

The manufacturer no longer makes this part, and there's no substitute part

Gasket 59046-1
#2

Housing/caster diagram

Gasket

Part #59046-1

The manufacturer no longer makes this part, and there's no substitute part

Coupling 15355-119N
#2

Hose diagram

Coupling

Part #15355-119N

The manufacturer no longer makes this part, and there's no substitute part

Brush-flr 38702-2
#10

Hose diagram

Brush-flr

Part #38702-2

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 38333
#9

Housing/caster diagram

Vacuum motor safety filter

Part #38333

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 27237-3
#12

Hose diagram

Vacuum crevice tool

Part #27237-3

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Switch 28304A-2
#5

Motor/cord/terminal diagram

Vacuum switch

Part #28304A-2

The manufacturer no longer makes this part, and there's no substitute part
