Kenmore
Canister Vacuum

Model #11622980 Kenmore vacuum cleaner & attachment parts

Here are the diagrams and repair parts for Kenmore 11622980 vacuum cleaner & attachment parts, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 74 parts

Machine Screw, 8-pack

#21

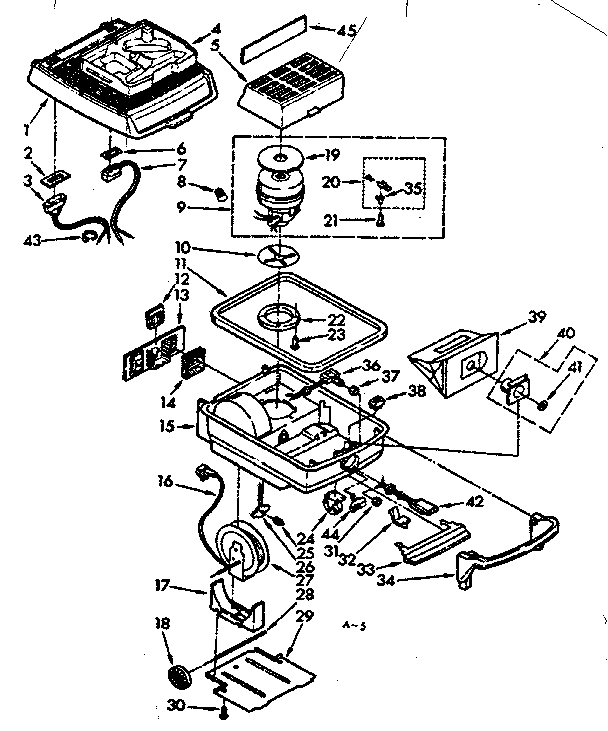

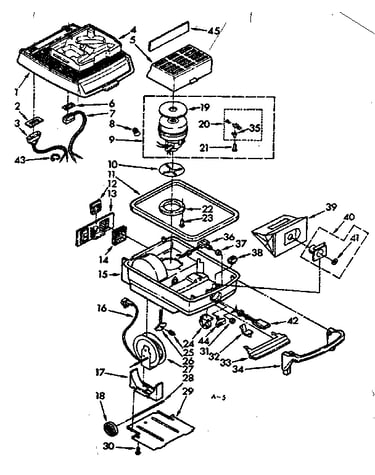

Base assembly Diagram

Machine screw, 8-pack

Part #STD510803
?
Manufacturer substitution
This part replaces 674038. Substitute parts can look different from the original.
This part replaces 674038
This item is not returnable
$2.43

Back Order

Vacuum Upholstery Nozzle

#15

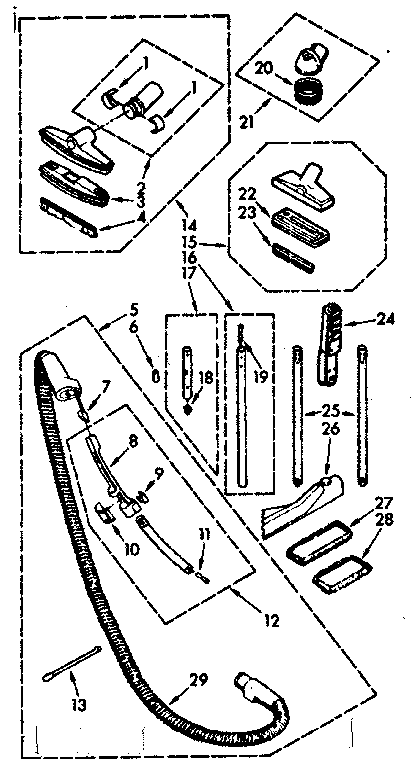

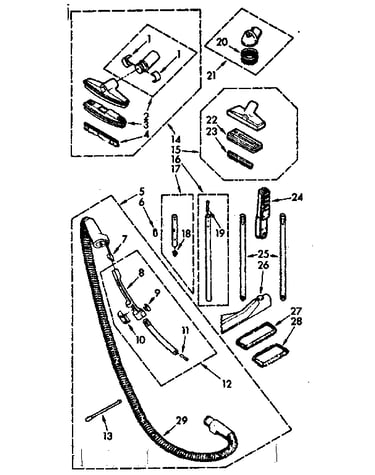

Attachment parts Diagram

Vacuum upholstery nozzle

Part #5265
?
Manufacturer substitution
This part replaces 722381. Substitute parts can look different from the original.
This part replaces 722381
$11.89

In Stock

Vacuum Wand Assembly

#25

Attachment parts Diagram

Vacuum wand assembly

Part #4370489
?
Manufacturer substitution
This part replaces 701353. Substitute parts can look different from the original.
This part replaces 701353
$20.40

In Stock

Vacuum Wand Lock Spring Set, 2-pack

#19

Attachment parts Diagram

Vacuum wand lock spring set, 2-pack

Part #569318
?
Manufacturer substitution
This part replaces 720900. Substitute parts can look different from the original.
This part replaces 720900
This item is not returnable
$6.71

In Stock

Vacuum Wand Lock Spring Set, 2-pack

#11

Attachment parts Diagram

Vacuum wand lock spring set, 2-pack

Part #569318
?
Manufacturer substitution
This part replaces 569318. Substitute parts can look different from the original.
This part replaces 569318
This item is not returnable
$6.71

In Stock

Vacuum Floor Brush

#14

Attachment parts Diagram

Vacuum floor brush

Part #5268
?
Manufacturer substitution
This part replaces 722791. Substitute parts can look different from the original.
This part replaces 722791
$14.40

In Stock

Thread-Forming Screw, 8-pack

#30

Base assembly Diagram

Thread-forming screw, 8-pack

Part #STD610805
?
Manufacturer substitution
This part replaces 680642. Substitute parts can look different from the original.
This part replaces 680642
This item is not returnable
$2.55

In Stock

Vacuum Twist-On Wire Connector

#8

Base assembly Diagram

Vacuum twist-on wire connector

Part #KS4154460
?
Manufacturer substitution
This part replaces 596564. Substitute parts can look different from the original.
This part replaces 596564
This item is not returnable
$2.49

In Stock

Washer Cable Tie

#43

Base assembly Diagram

Washer cable tie

Part #WPW10339879
?
Manufacturer substitution
This part replaces 596668. Substitute parts can look different from the original.
This part replaces 596668
This item is not returnable
$3.89 |
8% OFF MSRP:$4.21

In Stock

Brush Clamp

#35

Base assembly Diagram

Brush clamp

Part #568924

The manufacturer no longer makes this part, and there's no substitute part

Symptoms common to all vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
Main causes: lack of power, bad power cord, drive motor failure, wiring failure
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
