GE
Dishwasher

Model #PDW7880N20SS Official GE dishwasher

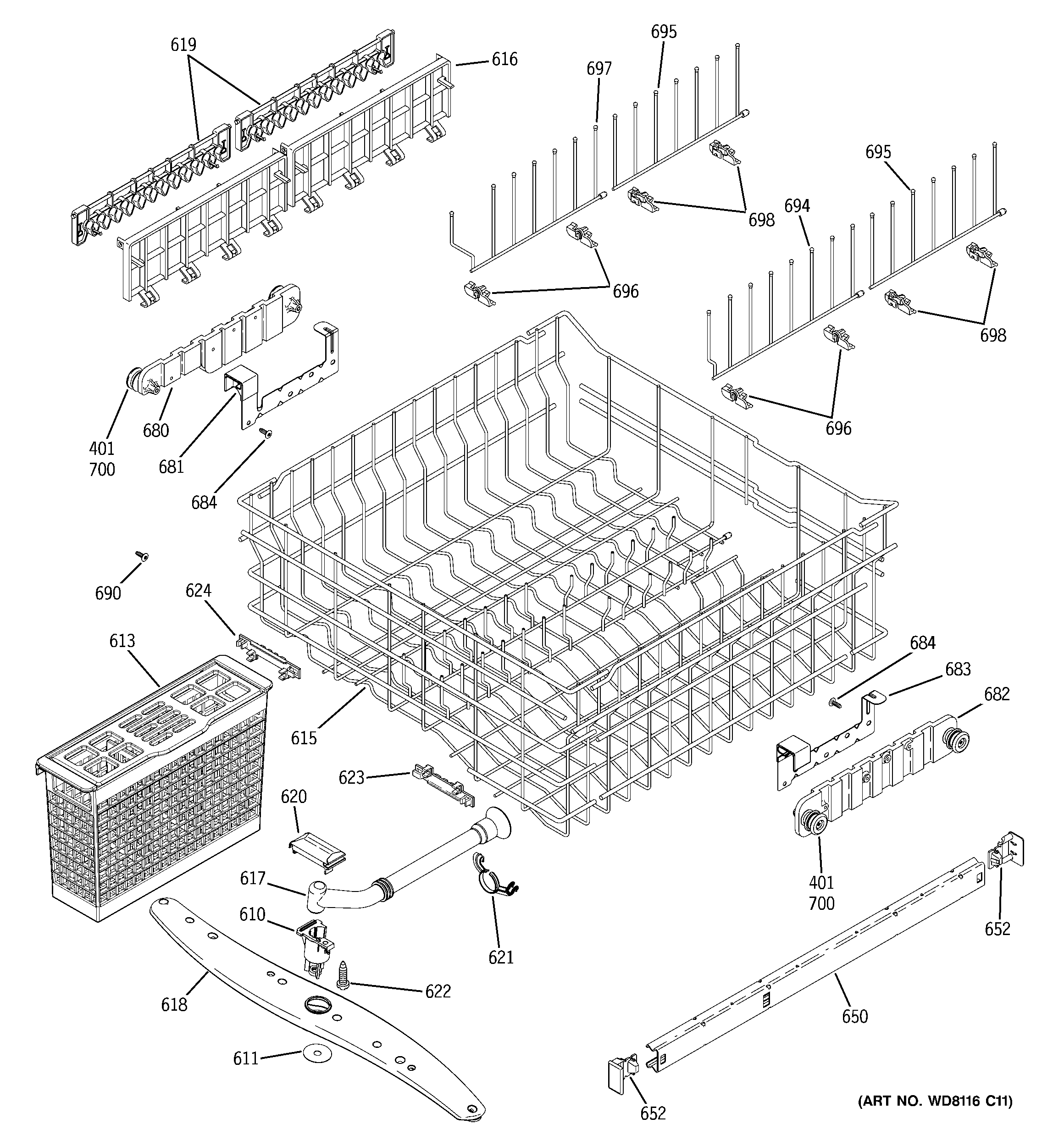

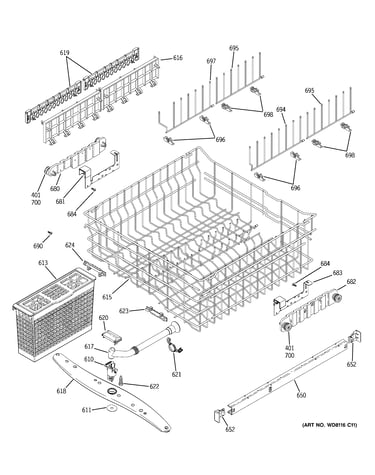

Here are the diagrams and repair parts for GE PDW7880N20SS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 137 parts

    Dishwasher Spray Arm#501

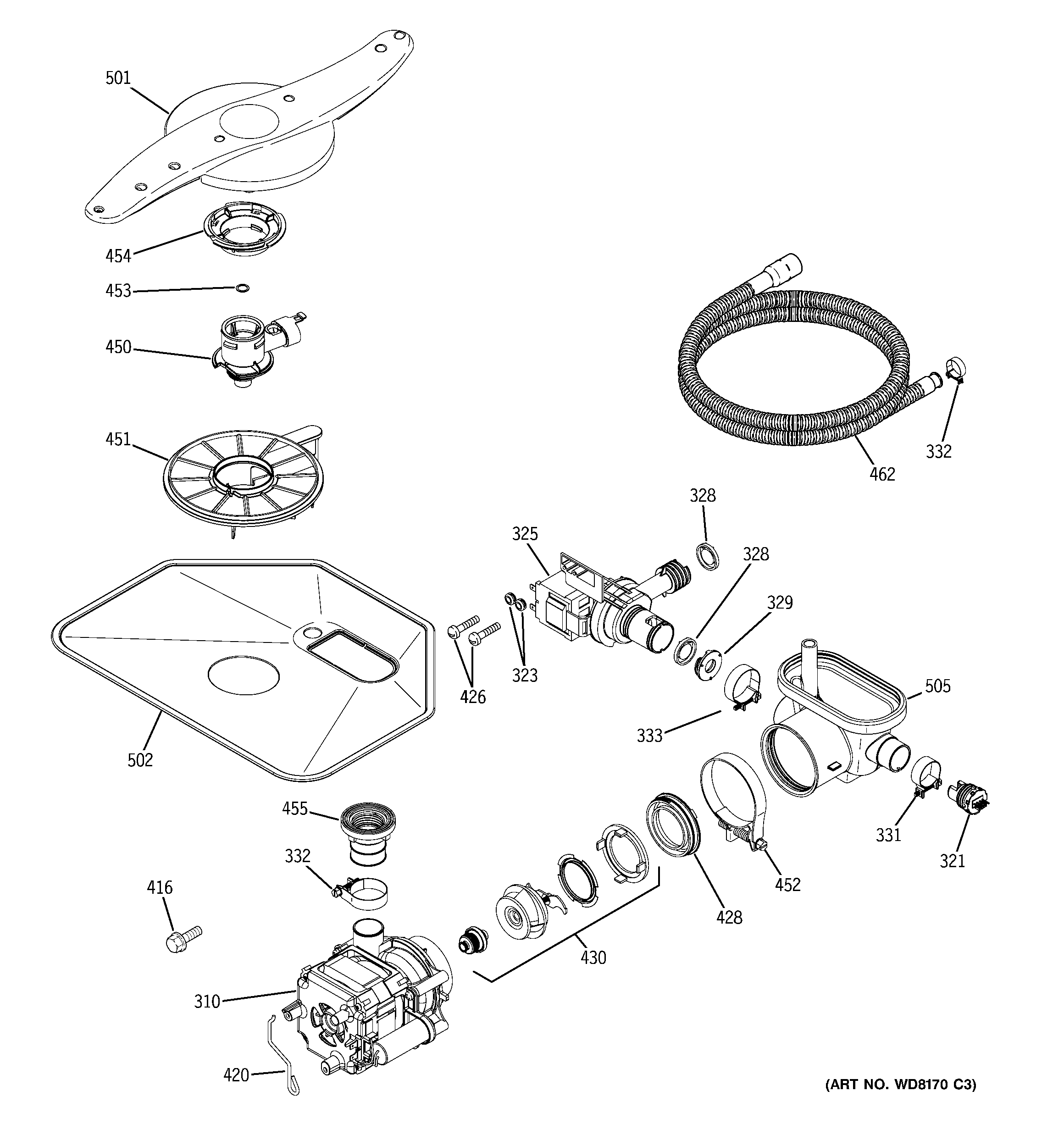

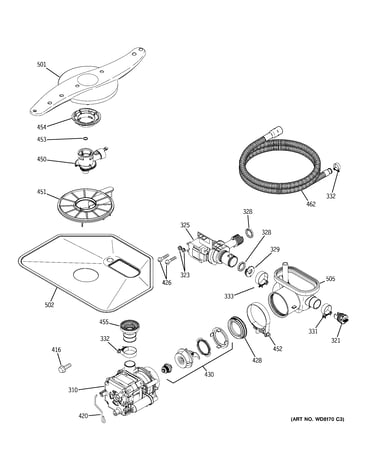

    Motor-pump mechanism Diagram

    Dishwasher spray arm

    Part #WD22X10044

    The manufacturer no longer makes this part, and there's no substitute part

    Dishwasher Door Hinge Arm Link#716

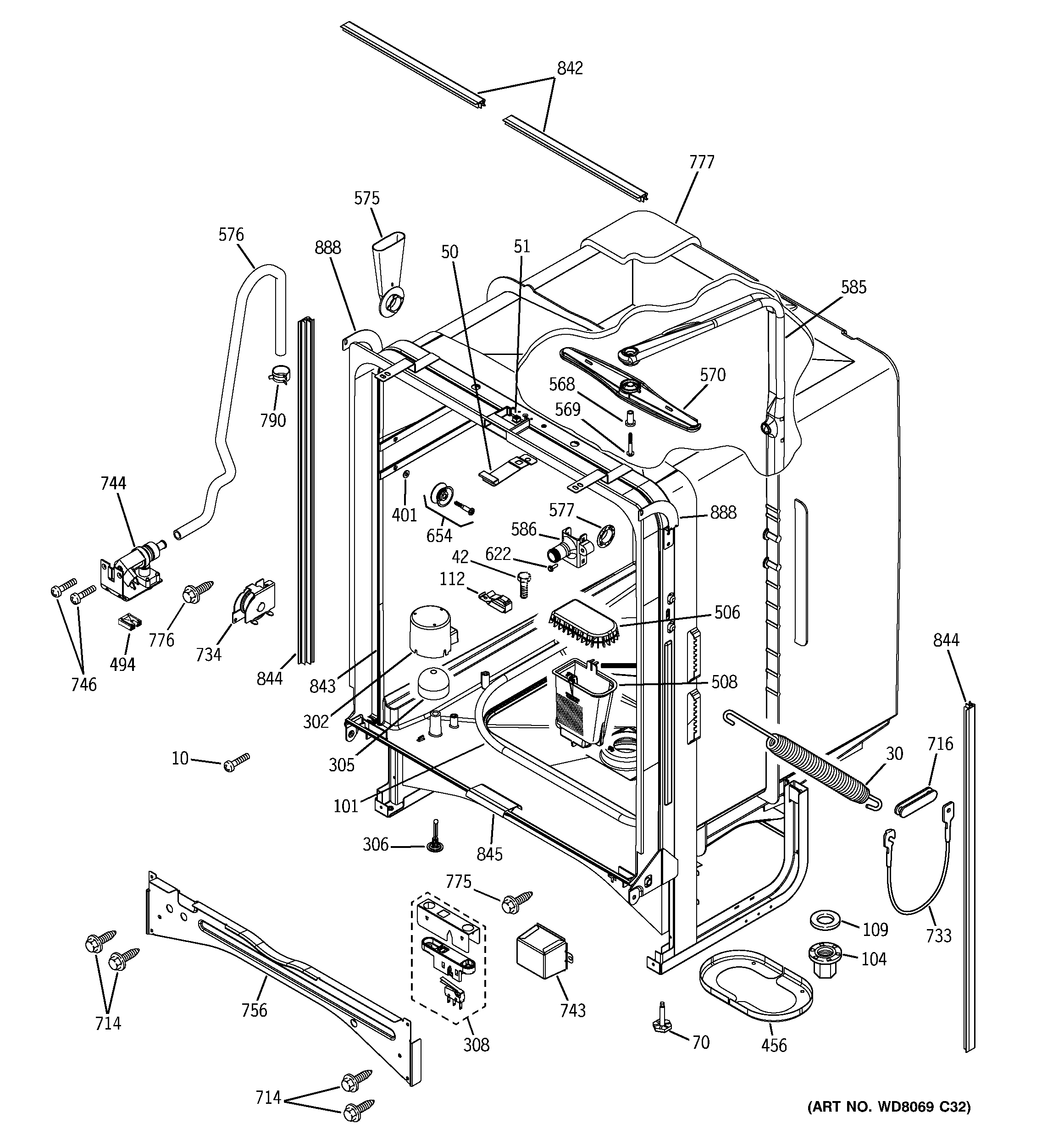

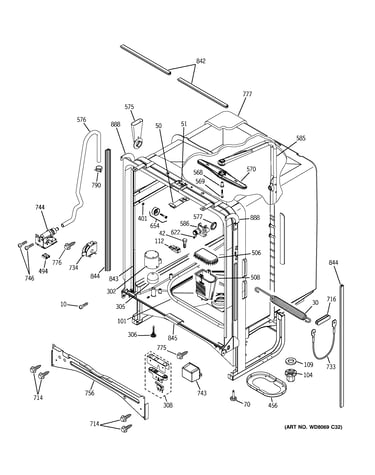

    Body parts Diagram

    Dishwasher door hinge arm link

    Part #WD14X10009
    BEST SELLER
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Dishwasher Door Latch Actuator#804

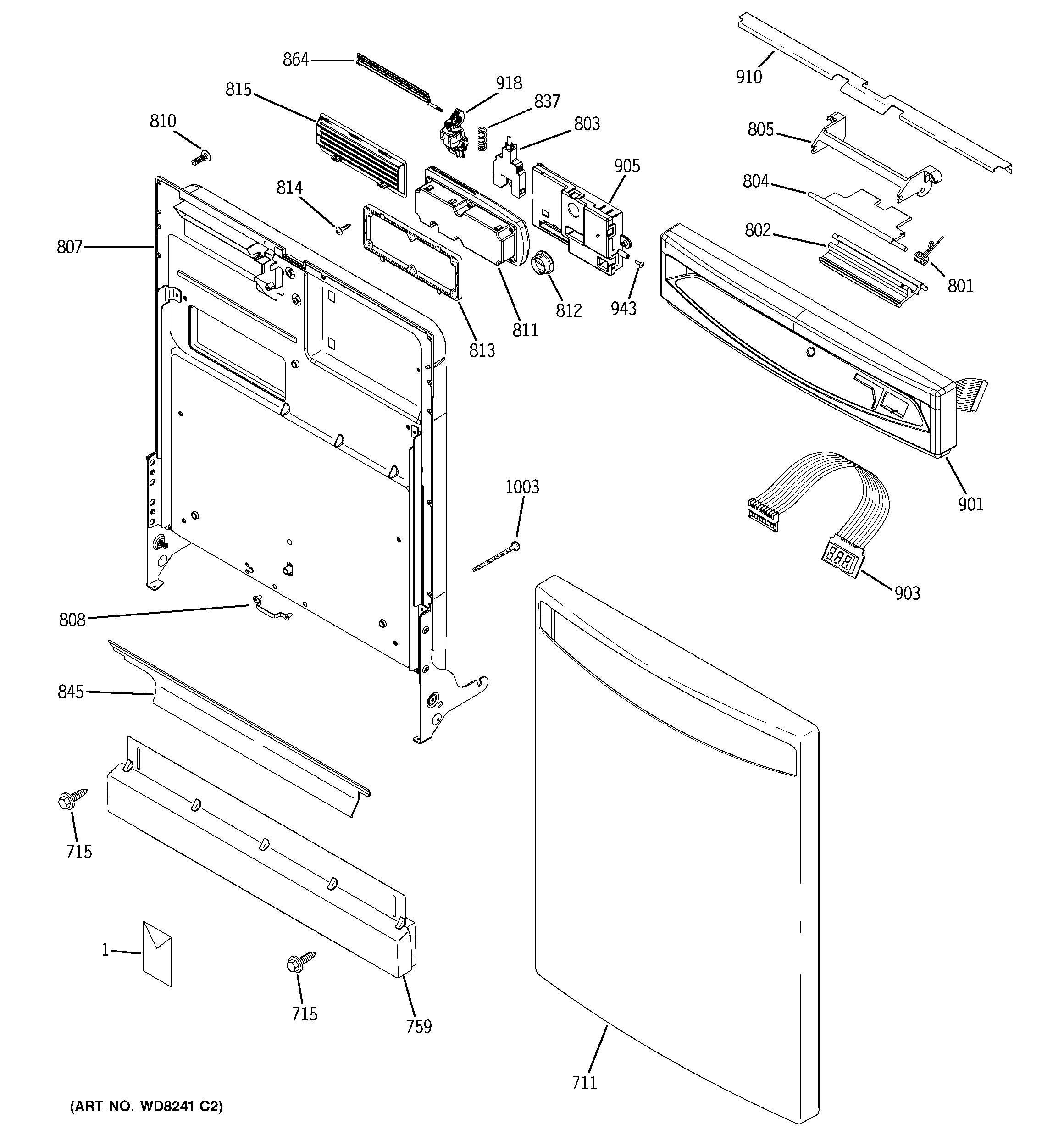

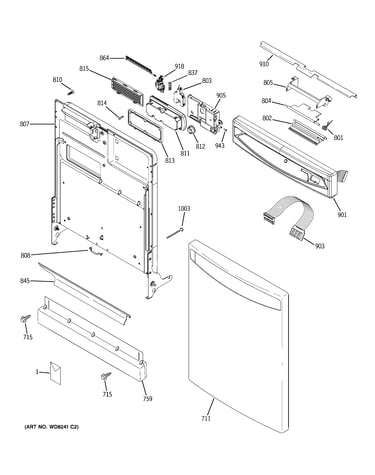

    Escutcheon & door assembly Diagram

    Actuator handle

    Part #WD13X10008
    Replaced by #WD13X10045
    ?
    Manufacturer substitution
    This part replaces WD13X10008. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $21.99 |
    19% OFF
    Phone Price: $26.99
    Refrigerator Dispenser Lever Spring#801

    Escutcheon & door assembly Diagram

    Recess sprng

    Part #WR02X10585
    Replaced by #WR02X10585
    ?
    Manufacturer substitution
    This part replaces WR02X10585. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $8.79 |
    10% OFF
    Phone Price: $9.79
    Low Roll Rack#701

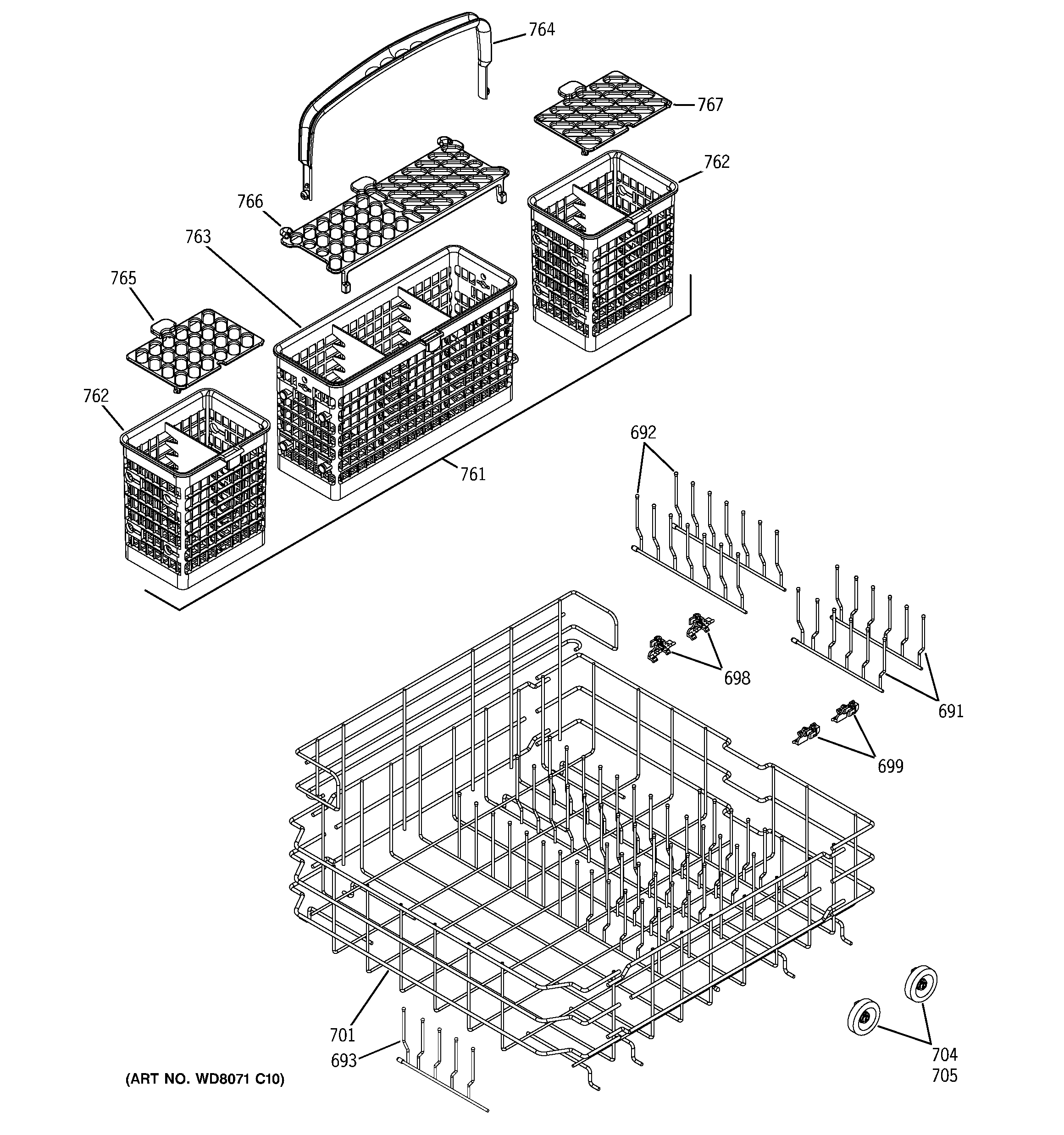

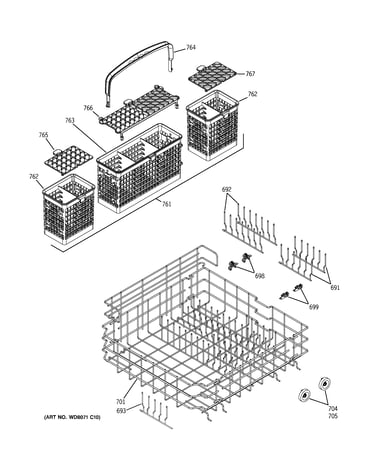

    Lower rack assembly Diagram

    Low roll rack

    Part #WD28X10138

    The manufacturer no longer makes this part, and there's no substitute part

    Dishwasher Spray Arm#570

    Body parts Diagram

    Dishwasher spray arm

    Part #WD22X10045
    Replaced by #WD22X10084
    ?
    Manufacturer substitution
    This part replaces WD22X10045. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.39 |
    12% OFF
    Phone Price: $8.39
    Dishwasher Tub Gasket#843

    Body parts Diagram

    Dishwasher tub gasket

    Part #WD08X10018
    In Stock
    $32.19 |
    13% OFF
    Phone Price: $37.19
    Dishwasher Screw

    See All Related Diagrams

    Dishwasher screw

    Part #WD02X10067
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Dishwasher Upper Spray Arm Bearing#568

    Body parts Diagram

    Dishwasher upper spray arm bearing

    Part #WD01X10209
    Replaced by #WD01X10410
    ?
    Manufacturer substitution
    This part replaces WD01X10209. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.69 |
    12% OFF
    Phone Price: $8.69
    Dishwasher Pump and Motor Assembly#310

    Motor-pump mechanism Diagram

    Mechanism assembly

    Part #WD26X10033
    Replaced by #WD26X10053
    ?
    Manufacturer substitution
    This part replaces WD26X10033. Substitute parts can look different from the original.
    In Stock
    $244.29 |
    6% OFF
    Was: $260.69

    Symptoms common to all dishwashers

    Choose a symptom to see related dishwasher repairs.

    Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
    Main cause: damaged rack height adjuster
    Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
    Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
    Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
    Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
    Main causes: broken door spring, damaged or broken door hinge
    Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
    Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
