Model #917252731 Official Craftsman tractor
Here are the diagrams and repair parts for Craftsman 917252731 tractor, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

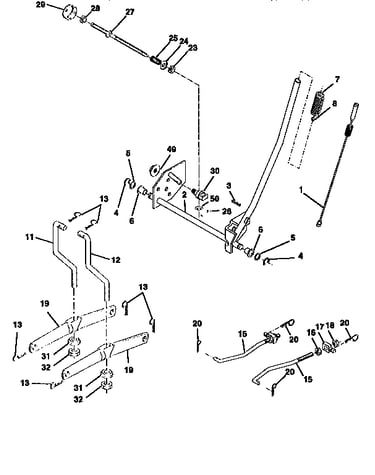

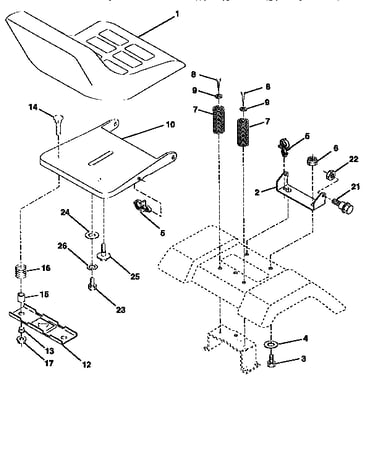

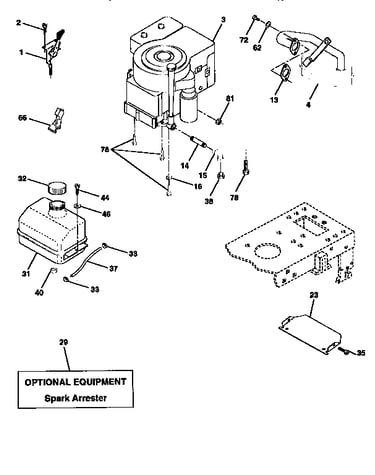

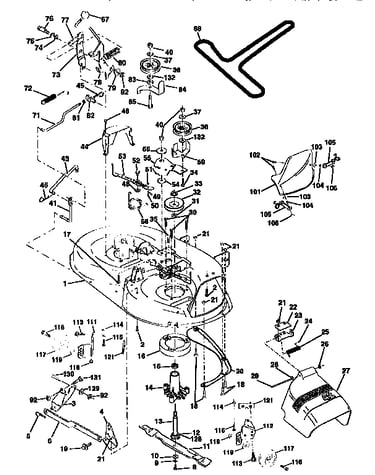

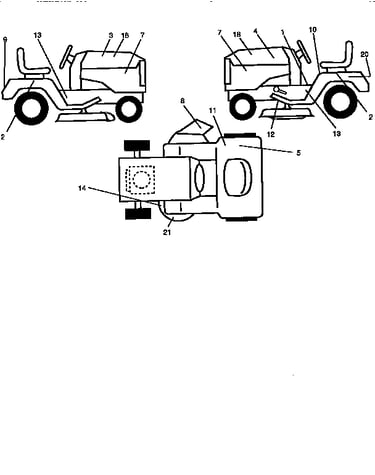

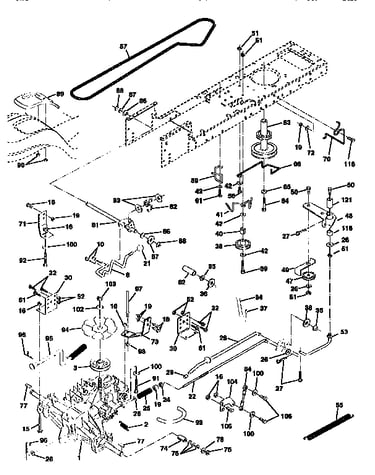

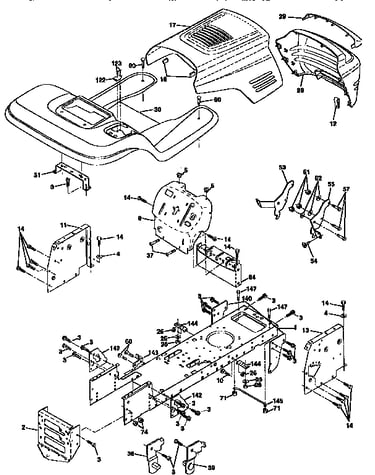

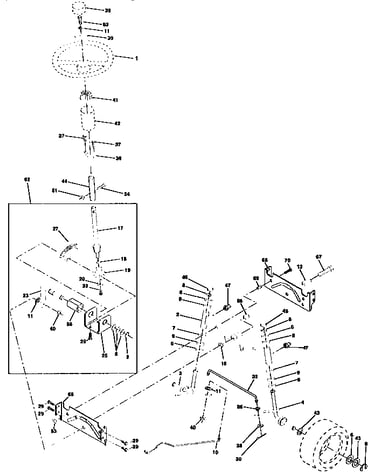

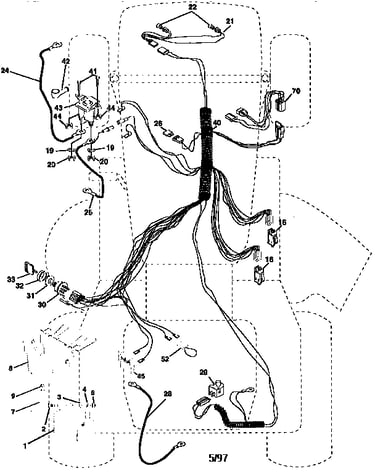

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 427 parts
Lawn tractor mulching blade
Part #134149
Replaced by #532134149
?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
In Stock
$14.05 |
26% OFF
MSRP: $19.00
Washer head thread rolling screw
Part #157722
Replaced by #584953901
?
Manufacturer substitution
This part replaces 157722. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.37 |
23% OFF
Phone Price: $4.37
Lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)
Part #9040H
This item is not returnable
In Stock
$5.48 |
40% OFF
MSRP: $9.09
Lawn tractor deflector shield
Part #130968
Replaced by #532130968
?
Manufacturer substitution
This part replaces 130968. Substitute parts can look different from the original.
In Stock
$33.51 |
13% OFF
Phone Price: $38.51
Latch assembly
Part #130758
Replaced by #597000601
?
Manufacturer substitution
This part replaces 130758. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.09 |
25% OFF
MSRP: $6.80
Lawn tractor mandrel pulley
Part #153535
Replaced by #173436
?
Manufacturer substitution
This part replaces 153535. Substitute parts can look different from the original.
Back Order
$9.96 |
60% OFF
MSRP: $24.76
Lawn tractor flat blade idler pulley
Part #131494
Replaced by #532173438
?
Manufacturer substitution
This part replaces 131494. Substitute parts can look different from the original.
Back Order
$17.74 |
19% OFF
MSRP: $22.00
Lawn tractor ground drive belt, 1/2 x 82-in
Part #140294
Replaced by #532140294
?
Manufacturer substitution
This part replaces 140294. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
Back Order
$35.95 |
12% OFF
Phone Price: $40.95
