Kenmore Elite 11047797800 washer Parts

Kenmore washer model numbers are structured so you can identify who built the washer and which design family it belongs to. For Kenmore Elite model 11047797800, the first 3 digits (110) indicate the manufacturer, and the remaining digits narrow down the exact series and feature variations; use this format to match the correct parts and manual information.

What each section of a Kenmore model number means

Most Kenmore washer model numbers follow this pattern:

• Prefix (first 3 digits): identifies the manufacturer behind the Kenmore brand
• Base model digits (middle group): identifies the core platform or series
• Suffix digits (ending group): identifies version changes such as color, control updates, or production revisions

For your washer, 11047797800 breaks down like this:

Section	Example from 11047797800	What it tells you	Why it matters
Manufacturer prefix	110	Who built the unit	Helps match service and parts families
Base model	47797	Core design series	Points to the correct parts diagrams
Variation suffix	800	Specific revision/variant	Prevents ordering the wrong part

Where to find the model number on the washer

We recommend checking the model tag before ordering parts or using troubleshooting steps.

• Open the washer door and check around the door opening area
• Look along the door frame or front panel near the opening
• Write the model number exactly as shown, including all digits
• Use the full model number when referencing the owner's manual

Why it matters for parts and troubleshooting

Kenmore washers often share similar styling across multiple models, but internal parts can differ by series and suffix. Using the full model number helps you:

• Match the correct replacement parts (for example, a door boot or door lock)
• Avoid fit issues caused by small design revisions
• Use the right cycle and feature information (such as Steam Sanitize settings)

Common example: when the suffix changes the part you need

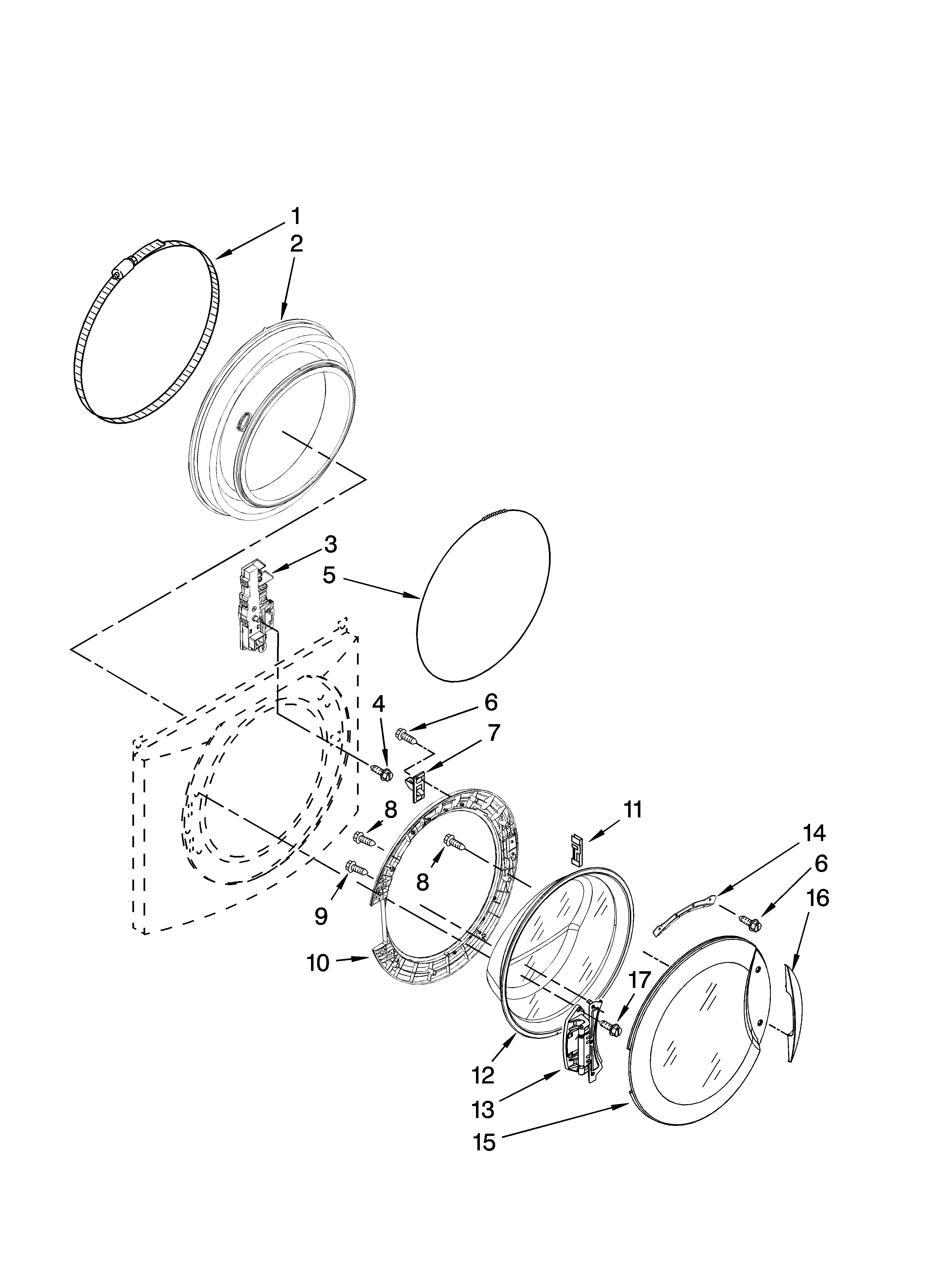

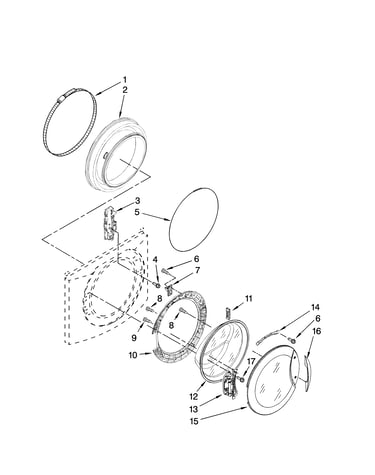

If you are troubleshooting leaks or door sealing issues, the correct door boot and clamps can vary by model variation.

• Door boot style and mounting can differ by series
• Clamp sizes can differ by revision
• Door hinge and latch designs can change across variants

If you are replacing the door boot on this model, a common related part is the bellow WP8182119.

Last updated: February 2026

Yes. The Kenmore Elite 11047797800 is positioned as a premium Kenmore washer line; it typically includes higher-end build and features than standard Kenmore models, and the manual for this model also highlights upgraded components such as a stainless steel drum and extended tub coverage. See the owner's manual for the exact features and care guidance for your specific unit.

What “high end” means for this model

For the Kenmore Elite 11047797800, “high end” usually shows up in a few practical ways:

• More robust core components (for example, stainless steel wash drum coverage is called out in the warranty section)
• More cycle and option flexibility than entry-level washers
• Better vibration control and overall performance when properly installed and leveled
• Higher repair-part cost when major components wear out (common for premium front-load designs)

Quick comparison: Kenmore lines (typical positioning)

Kenmore line	Typical market position	What you usually get
Kenmore (standard)	Value to mid-range	Core cycles, fewer premium materials
Kenmore Elite	Upper-mid to premium	More features, upgraded materials, stronger performance
Kenmore PRO	Pro-style premium	Pro-focused design and feature sets

How to confirm your exact Elite features

Because “Elite” can vary by year and configuration, we recommend checking the model-specific documentation and your control panel options.

• Match the model number on the rating label to 11047797800
• Review the cycle guide, options, and warranty sections in the owner's manual
• Compare your console buttons to the cycle descriptions (this confirms what your unit actually supports)

Why it matters

Knowing whether your washer is “high end” helps set expectations for maintenance and parts. Premium front-load washers often rely on tight door sealing and precise water-level control; when issues come up, parts like the door seal and latch are common wear items.

If you are troubleshooting leaks or door-closing problems on this model, parts often involved include the bellow WP8182119 and the latch WPW10253483.

Last updated: February 2026

To force your Kenmore Elite washer model 11047797800 to drain, we recommend using the control-panel Drain & Spin cycle: press STOP twice, press POWER, choose DRAIN & SPIN, then press and hold START for about 1 second. See the steps in the owner's manual.

Fast steps (manual drain using the controls)

• Press STOP twice to cancel the current cycle.
• Press POWER.
• Select DRAIN & SPIN.
• Press and hold START (about 1 second) to begin draining.
• Wait for the cycle to finish; the door unlocks after the spin completes.

If it still will not drain

A drain problem is usually caused by a restriction in the drain path or a failed drain component. Check these common items first:

• Make sure the drain hose is not kinked, crushed, or routed too tightly.
• Do not force excess drain hose down into the standpipe; leave an air gap to prevent backflow.
• If the washer is installed at a laundry tub, do not lay excess hose on the bottom of the tub.
• Inspect hoses for bulges, cuts, wear, or leaks and replace if needed.

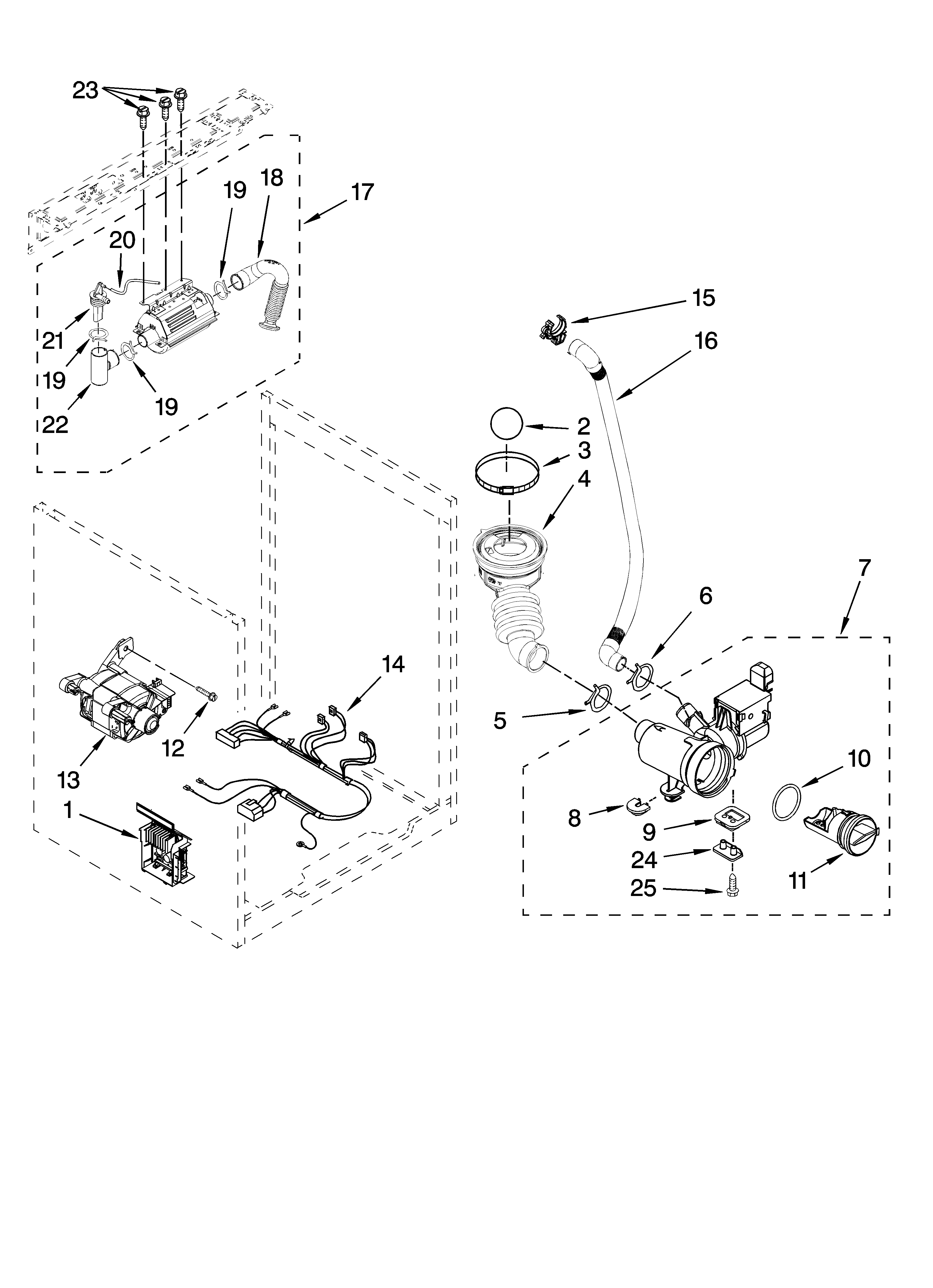

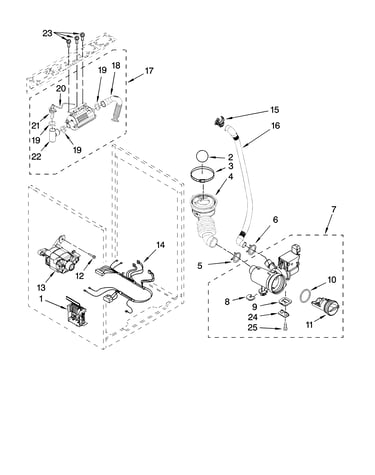

• If draining is slow and you suspect a restriction between the tub and pump, inspect the tub-to-pump hose; the correct replacement for this model is the hose WPW10467168.

Drain hose routing quick check

What to check	What “good” looks like	What causes drain issues
Standpipe insertion	Hose is secure but not jammed tight	Excess hose forced into standpipe
Air gap	Small gap for air at standpipe	Airtight fit that can cause siphoning/backflow
Hose condition	No kinks, bulges, cuts, or leaks	Kinked or damaged hose restricting flow

Why it matters

When the washer cannot drain, it may keep the door locked until water level and temperature are safe. Proper drain hose routing also helps prevent leaks and dirty water from flowing back into the drum.

Last updated: February 2026

Yes, it’s usually worth repairing a Kenmore Elite washer like model 11047797800 when the fix addresses a clear failure (leak, no-fill, no-drain, excessive vibration) and the total repair cost is less than replacing the washer. This model is built for long-term use, and many common failures are straightforward part replacements.

Quick way to decide: repair vs. replace

Use these checkpoints to make a practical decision:

• Repair it when the washer is otherwise in good shape and the problem is isolated (leak at the door boot, won’t fill, won’t lock).
• Repair it when the issue is a wear part you can replace once and be done (hose, clamp, door latch).
• Consider replacing when multiple major systems are failing at once (control plus motor plus tub issues).
• Consider replacing when the outer tub or structural parts are damaged and labor is high.
• Always confirm the symptom using the troubleshooting and error-code info in the owner's manual.

Common repairs that are often “worth it” on this model

These are frequent, fixable problems on front-load Kenmore Elite washers:

Symptom	Likely area	Example part on this model page
Water leaking from door area	Door boot and clamps	Bellow WP8182119, washer door boot spring clamp WP8182210

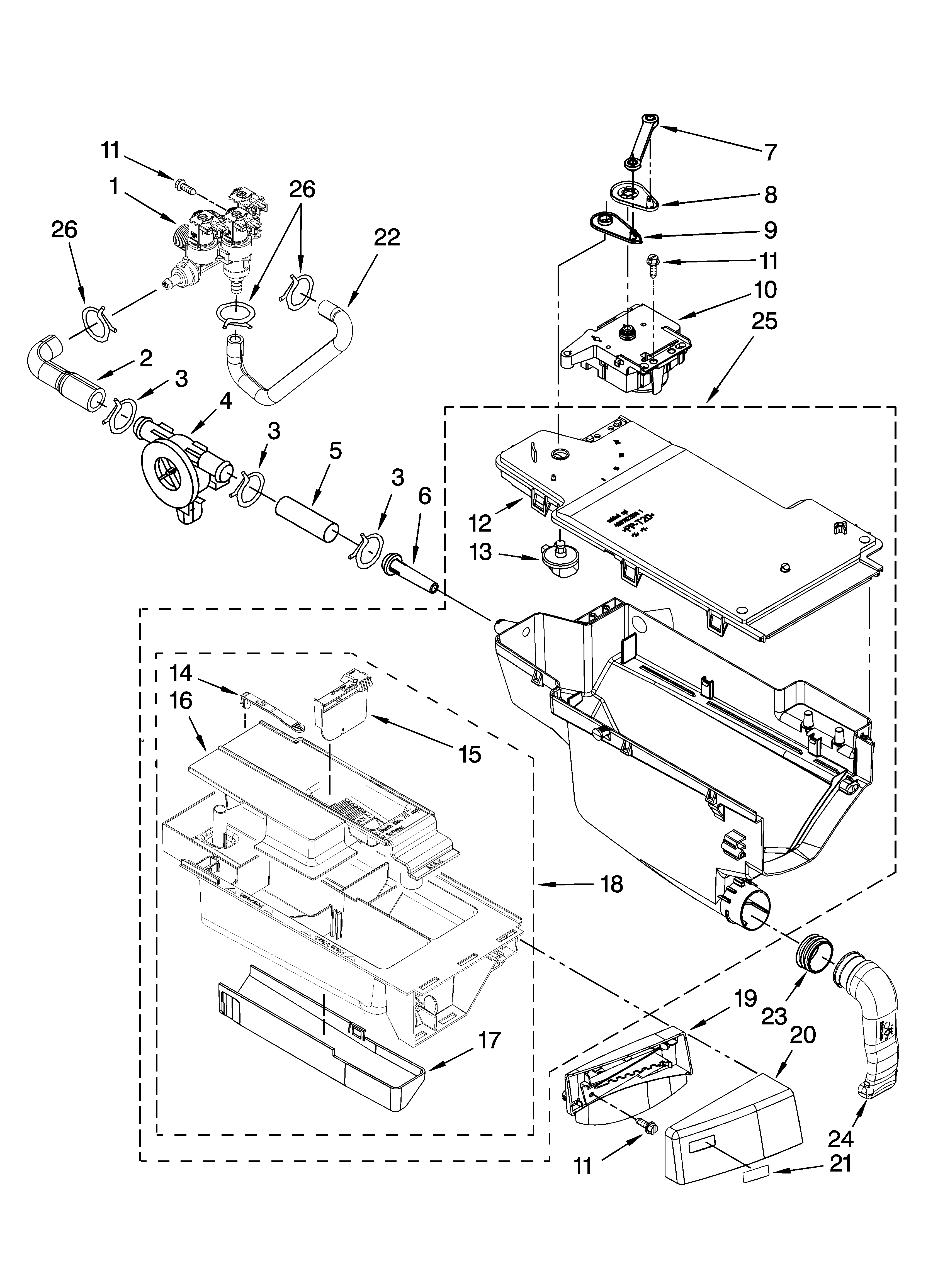

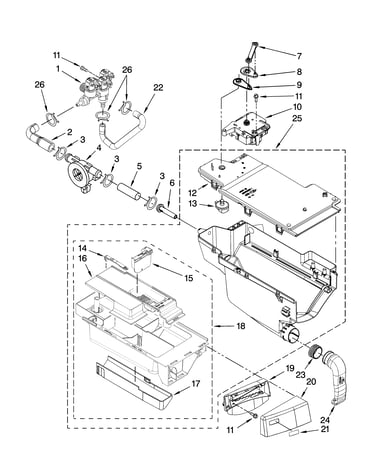

Won’t fill or fills slowly	Inlet valve or flow sensing	Washer water inlet valve WPW10156253, washer inlet flow meter WPW10110225
Door won’t lock or won’t start	Door lock/latch	Latch WPW10253483
Shaking, banging, “walking”	Suspension	Washer shock absorber W10822553

Why it matters

A correct diagnosis prevents repeat repairs. For example, oversudsing or an unbalanced load can extend cycle time and mimic a “problem,” so confirming settings, load size, and detergent type (HE detergent) can save you from replacing parts you do not need.

What we recommend before buying parts

• Unplug the washer for safety, then inspect for visible leaks around the door boot and hoses.
• Run a rinse and spin cycle and watch for vibration or drain/fill delays.
• Check for HE detergent use and avoid overfilling the drum.
• Match parts by model 11047797800 and symptom, then verify steps in the owner's manual.

Last updated: February 2026

The Kenmore Elite washer model 11047797800 is a front-load, high-efficiency (HE) washer with a 4.5 cu. ft. capacity. For the full specifications and feature details tied to your exact model series, use the 11047797800 owner's manual.

Quick specs snapshot

Item	Value
Model	11047797800
Washer type	Front-load HE
Capacity	4.5 cu. ft.

What 4.5 cu. ft. means for everyday loads

A 4.5 cu. ft. front-load washer is built for larger loads and bulky items while still needing room for proper tumbling.

• Wash full-size mixed loads without packing the drum tight
• Wash bulky items (comforters, blankets) more easily than smaller-capacity tubs
• Use less water than many older top-load designs because it relies on tumbling
• Avoid overfilling; clothes must tumble to rinse and spin correctly

Why it matters

Capacity directly affects cleaning and spin performance. When the drum is overloaded, items cannot tumble; that leads to poor rinsing, oversudsing, and out-of-balance spinning that can extend cycle time.

Tips to protect performance on this model

• Use HE detergent only and measure carefully to prevent excess suds
• Load loosely; keep items below the door opening so the load can tumble
• For vibration or banging, reduce load size and redistribute items
• If shaking persists, inspect suspension parts such as the washer shock absorber W10822553

Last updated: February 2026
