Kenmore 11620911 vacuum cleaner Parts
Here are the diagrams and repair parts for Kenmore 11620911 vacuum cleaner, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 11620911 Vacuum Cleaners

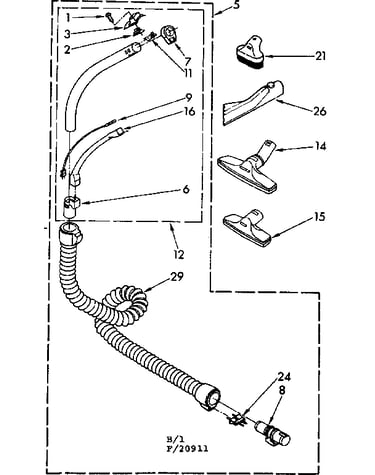

Attachment parts diagram
Cover
Part #741096
The manufacturer no longer makes this part, and there's no substitute part

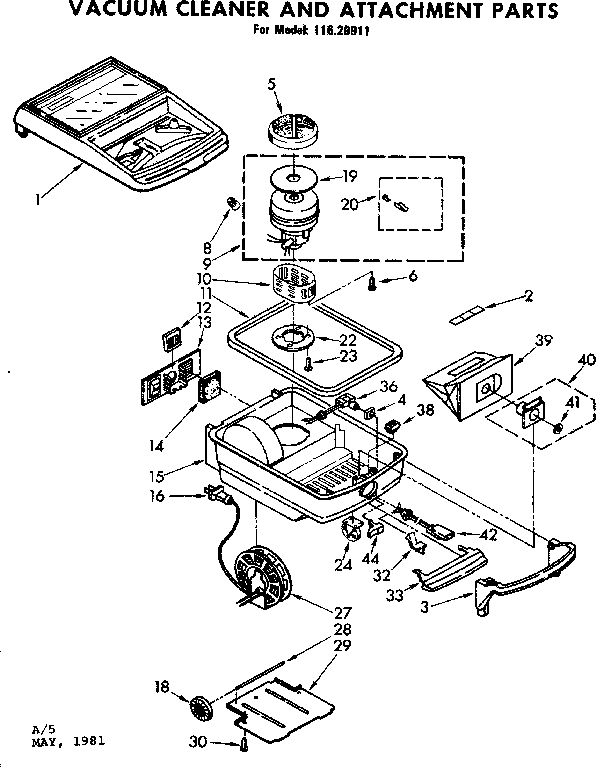

Base assembly diagram
Catch
Part #764182
The manufacturer no longer makes this part, and there's no substitute part

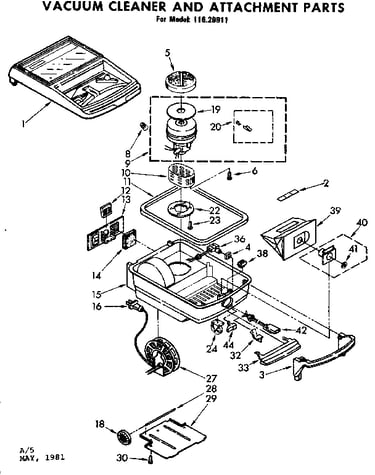

Base assembly diagram
Pedal
Part #764173
The manufacturer no longer makes this part, and there's no substitute part
Attachment parts diagram
Plug
Part #741428
The manufacturer no longer makes this part, and there's no substitute part
Attachment parts diagram
Suction Control
Part #722419
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Seal
Part #764546
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Scent Pak
Part #741345
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Brush Kit
Part #588867
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Cord
Part #703886
The manufacturer no longer makes this part, and there's no substitute part
Base assembly diagram
Base
Part #704214
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your vacuum cleaners
Choose a symptom to see related vacuum cleaner repairs.
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring fail…
Main causes: lack of power, bad power cord, drive motor failure, wiring failure…
Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor…
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose…
Repair guides for canister vacuums
How to replace a vacuum beater bar
Replace the brush roll if the bristles ares worn or the cylinder is damaged.…
Repair time and Difficulty
 30 minutes or less
How to replace a vacuum suction motor
The suction motor on a vacuum creates the draw of air at the cleaning head that picks up dirt. If the vacuum won't run, …
Repair time and Difficulty
 15 minutes or less
How to replace a vacuum power head ribbed drive belt
Some canister vacuums have a ribbed drive belt that spins the brush roll on a power brush attachment. If the brush roll …
Repair time and Difficulty
 30 minutes or less
Effective articles & videos to help repair your vacuum cleaners
Use the advice and tips in these articles and videos to get the most out of your vacuum.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Follow this advice to keep your vacuum in good working order.…
Find the answers to frequently asked questions about vacuum cleaners.…
