Amana LEM547L-P1176706WL electric dryer Parts
Here are the diagrams and repair parts for Amana LEM547L-P1176706WL electric dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

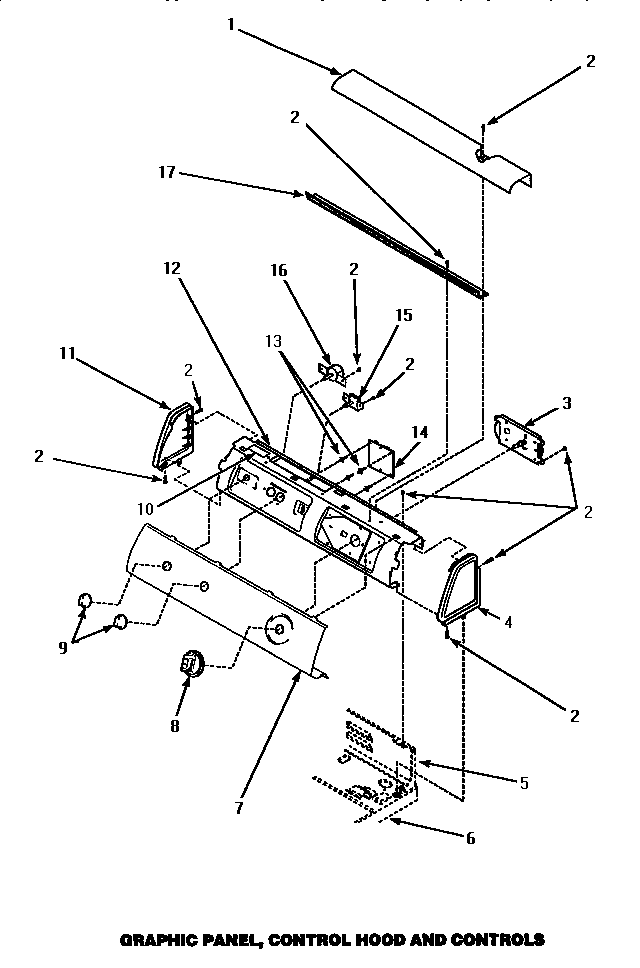

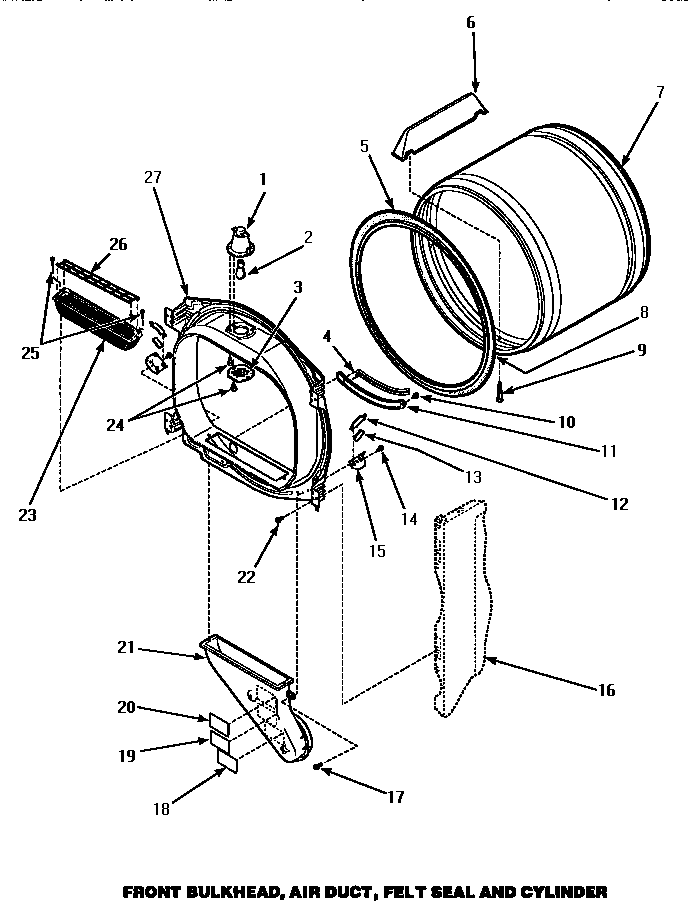

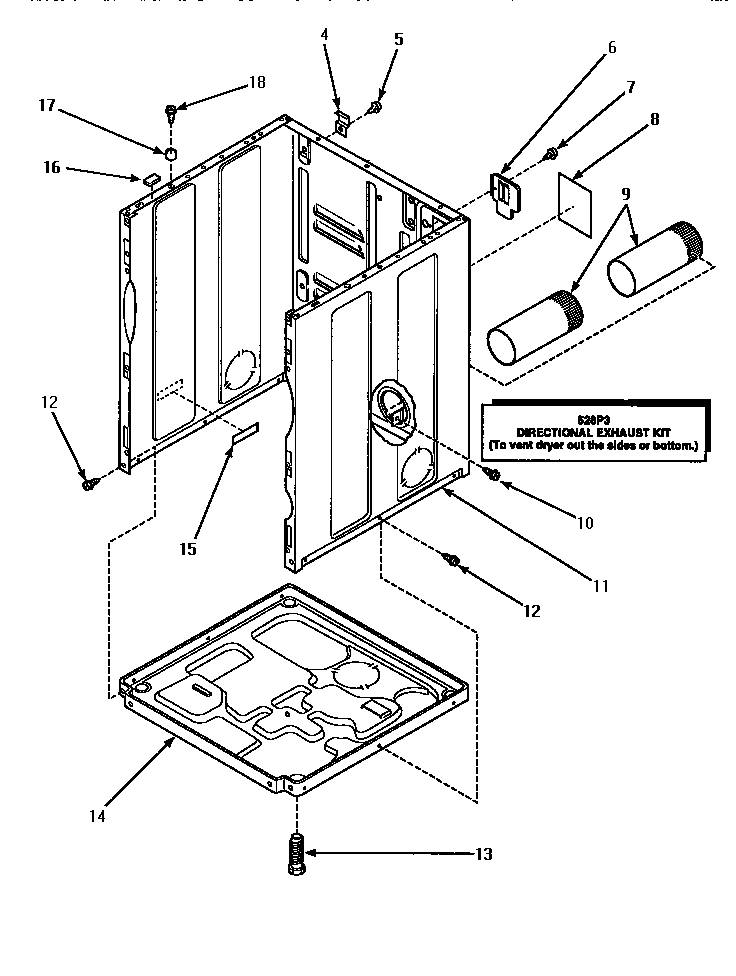

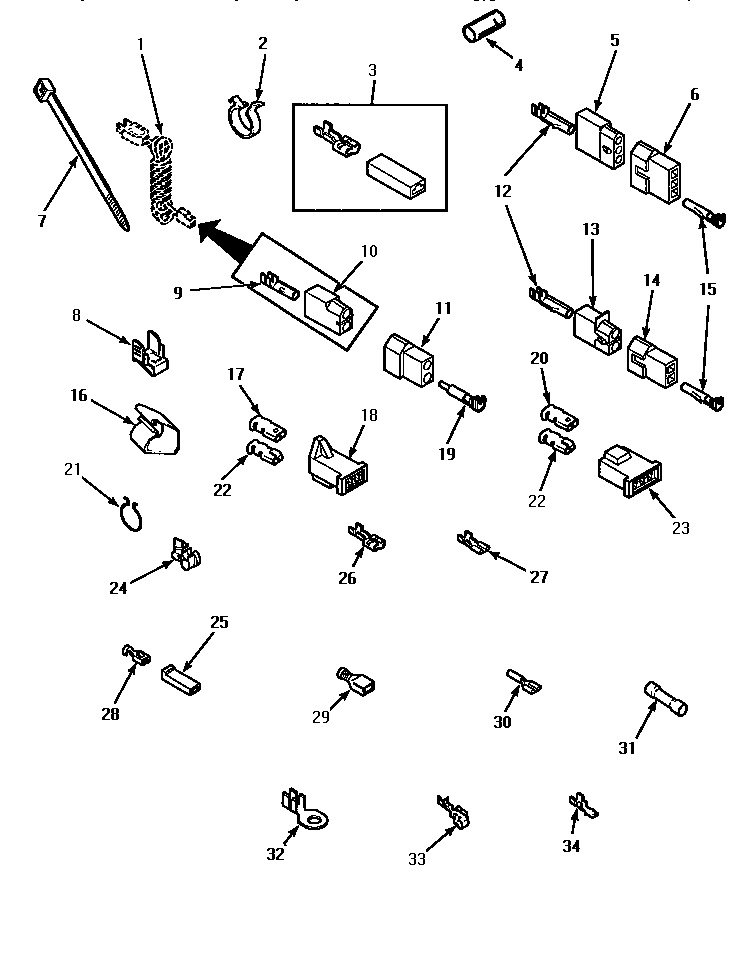

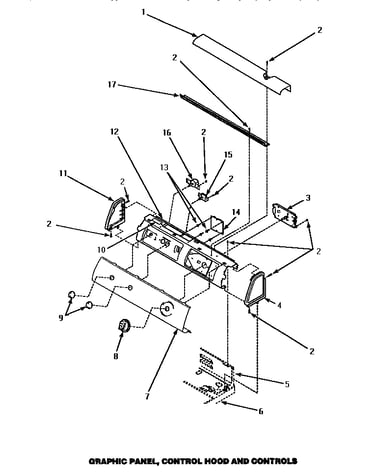

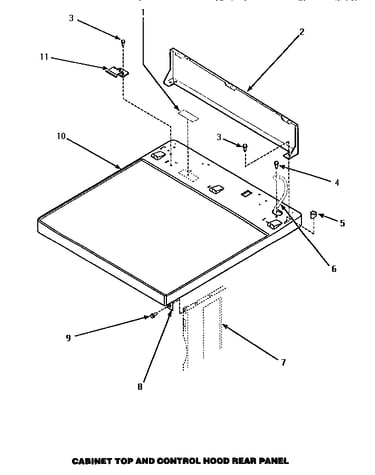

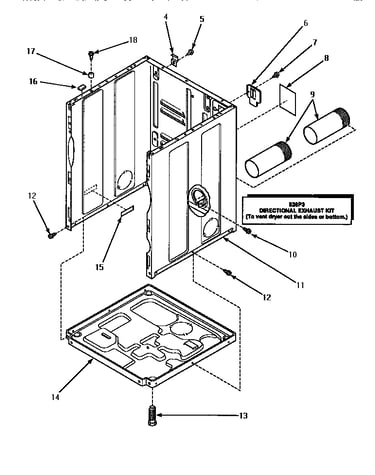

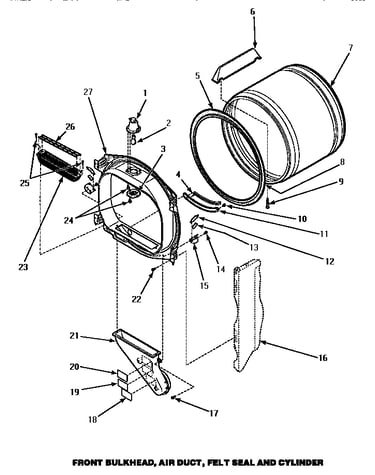

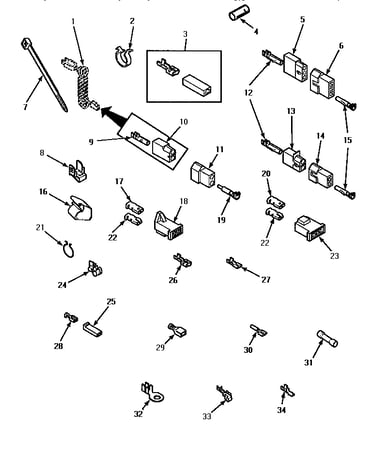

Browse Parts for LEM547L-P1176706WL Electric Dryer

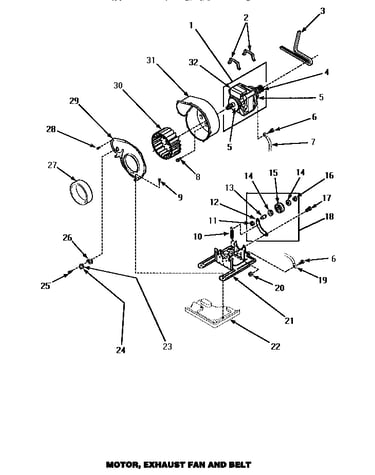

Motor, exhaust fan & belt diagram
Belt
Part #59174
The manufacturer no longer makes this part, and there's no substitute part
Motor, exhaust fan & belt diagram
Pulley
Part #54414Replaced by #WPY54414
Manufacturer substitutionThis part replaces 54414. Substitute parts can look different from the original.In Stock$15.3712% OFF Phone Price : $17.37
Qty

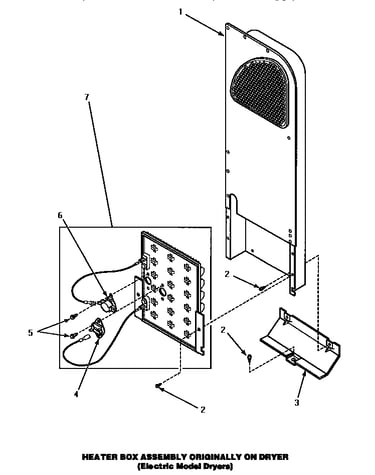

Heater box assy (original) diagram
Fuse
Part #62600Replaced by #WP40113801
Manufacturer substitutionThis part replaces 62600. Substitute parts can look different from the original.In Stock$15.0812% OFF Phone Price : $17.08QtyScrew
Part #501086Replaced by #WP90767

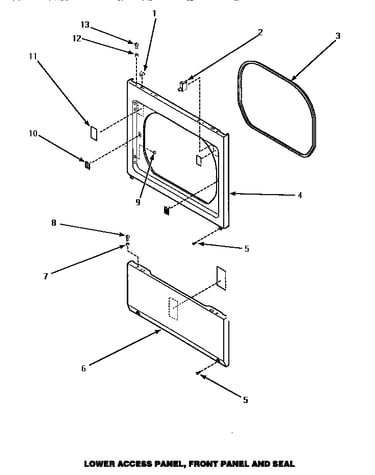

Manufacturer substitutionThis part replaces 501086. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyLower access panel, front panel & seal diagram
Door Switch
Part #62872
The manufacturer no longer makes this part, and there's no substitute part
Seal
Part #501801
The manufacturer no longer makes this part, and there's no substitute part

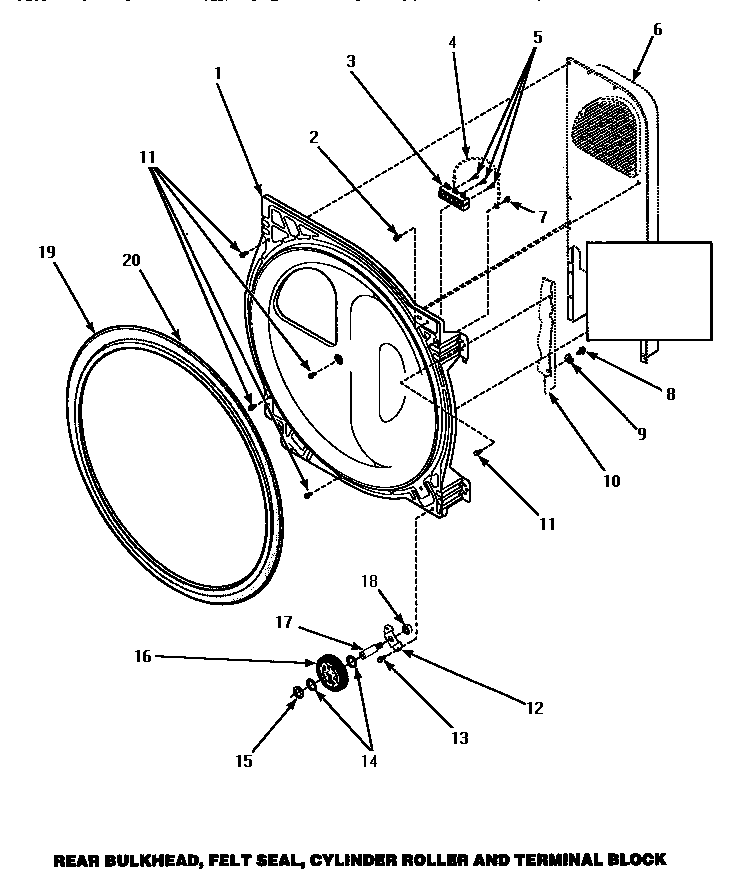

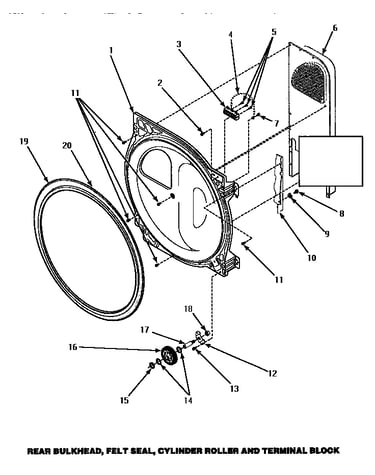

Bulkhead/felt seal/cyl roller & term blk diagram
Screw
Part #502120Replaced by #WP489069
Manufacturer substitutionThis part replaces 502120. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyLower access panel, front panel & seal diagram
Door Catch
Part #54660Replaced by #LA-1003
Manufacturer substitutionThis part replaces 54660. Substitute parts can look different from the original.This item is not returnableIn Stock$24.5420% OFF Phone Price : $30.54QtyBulkhead/felt seal/cyl roller & term blk diagram
Bracket
Part #500062Replaced by #WP40113601

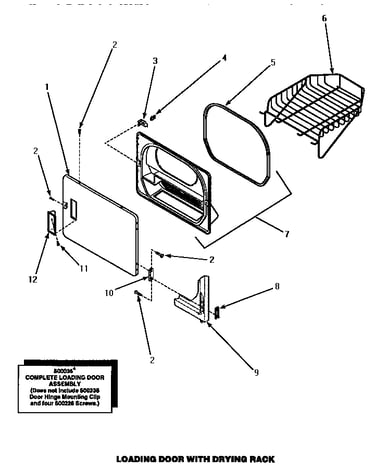

Manufacturer substitutionThis part replaces 500062. Substitute parts can look different from the original.In Stock$46.5511% OFF Phone Price : $52.55QtyLoading door with drying rack diagram
Strike
Part #500039Replaced by #LA-1003
Manufacturer substitutionThis part replaces 500039. Substitute parts can look different from the original.This item is not returnableIn Stock$24.5420% OFF Phone Price : $30.54Qty
