Maytag MER6872BAB range Parts

A range is a single appliance that combines a cooktop (surface burners or elements) and an oven in one unit. For the Maytag MER6872BAB electric range, that means you cook on top and bake or broil in the oven below (and some versions include multiple oven compartments).

Range vs. oven vs. cooktop

A range is the all-in-one appliance; an oven is only the enclosed baking/broiling cavity; a cooktop is only the surface cooking area.

Appliance type	What it includes	Typical install location
Range	Cooktop + oven in one chassis	Freestanding or slide-in between cabinets
Wall oven	Oven only	Built into a cabinet cutout
Cooktop	Surface cooking only	Mounted into a countertop

What you can do with a range

• Boil, simmer, and sauté on the cooktop surface elements
• Bake and roast in the oven cavity
• Broil using the broil element
• Use oven lights and indicator lights to monitor cooking (varies by model)

Why it matters

Knowing the difference helps you order the right parts and follow the right troubleshooting steps. For example, an “oven not heating” issue points to oven components (like a bake or broil element), while a “burner not heating” issue points to cooktop components (like a surface element or control switch).

Helpful model-specific reference

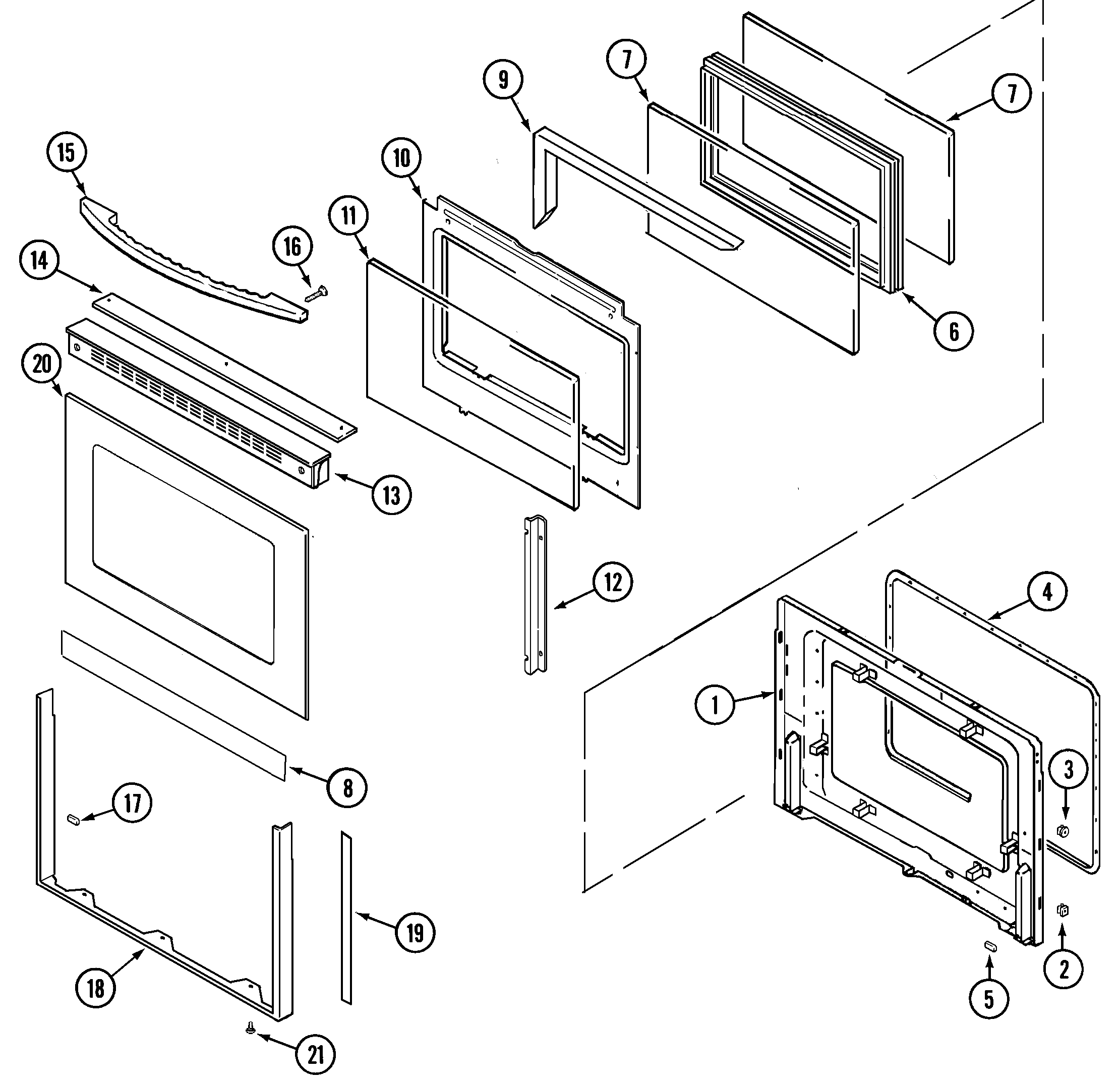

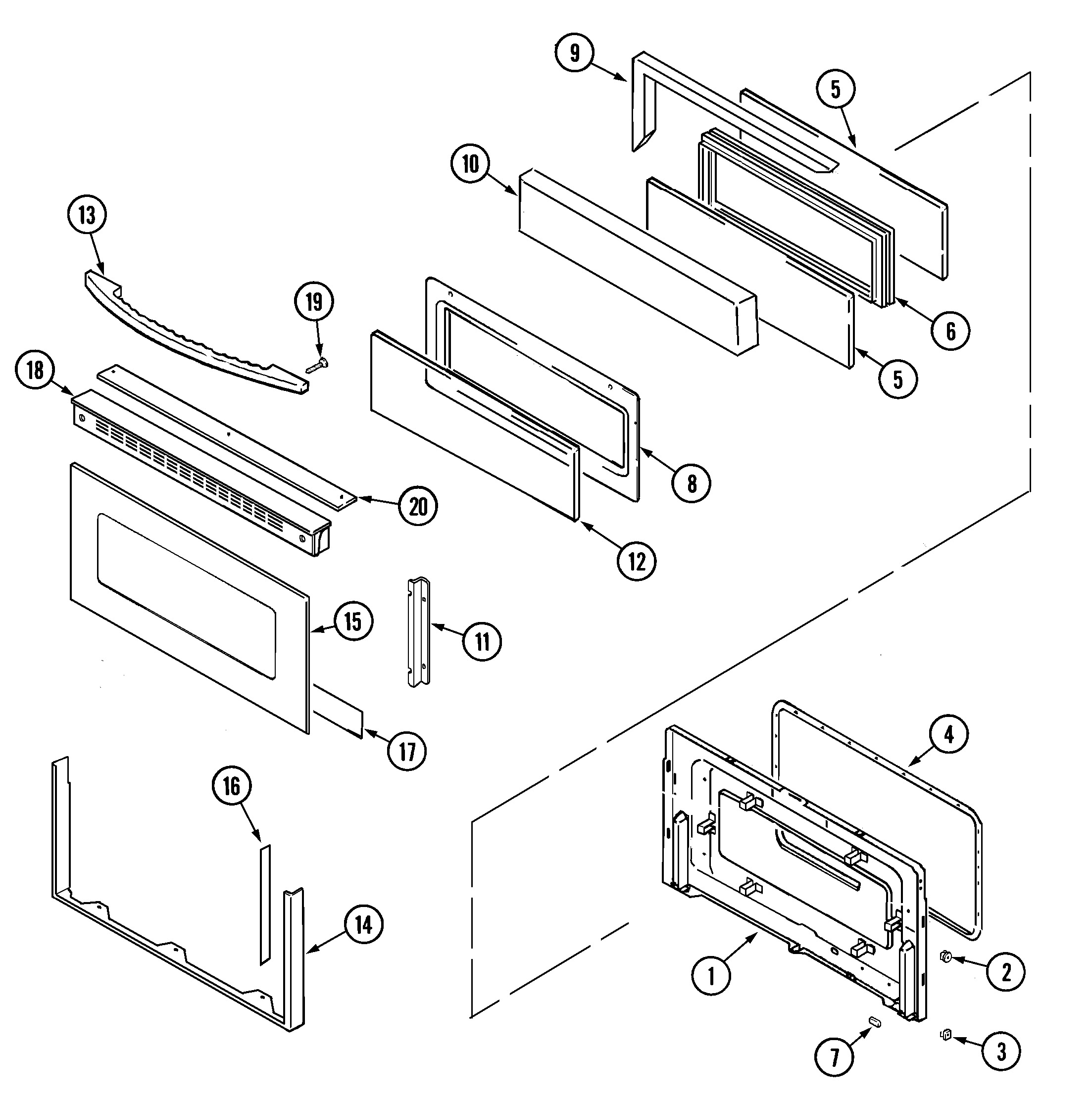

For MER6872BAB operating features, safety guidance, and care instructions (including oven door removal and oven light replacement steps), use the MER6872BAB owner's manual.

Last updated: February 2026

On the Maytag MER6872BAB electric range, you clear most error (fault) codes by pressing CANCEL to stop the beeping and clear the display. If the code returns, reset power to the range for a few minutes, then restore power and recheck.

Quick steps to clear an error code

• Press CANCEL once to silence the alarm and clear the fault code.
• Wait 30 seconds and try a normal bake or broil cycle.
• If the code comes back, turn power off at the breaker (or unplug if accessible).
• Wait 3 to 5 minutes, then restore power.
• If the code returns immediately, stop using the oven and follow the service guidance in the MER6872BAB owner's manual.

What the code usually means

Maytag displays an “F” plus a number as a fault code. The control is detecting a problem such as a temperature sensing issue, a stuck key, or a problem that can happen during self-clean if the oven is heavily soiled.

Common situations and what to do

Situation	What to do first	What to do next
“F” code appears and beeps	Press CANCEL	Reset power 3 to 5 minutes
Code happens during self-clean	Press CANCEL	Let oven cool completely, then restart clean
Code returns after power reset	Stop the cycle	Arrange service per manual guidance

Why it matters

Clearing the code correctly helps you confirm whether it was a one-time control glitch or an ongoing problem that can affect heating performance, temperature accuracy, or safe operation during self-clean.

Last updated: February 2026

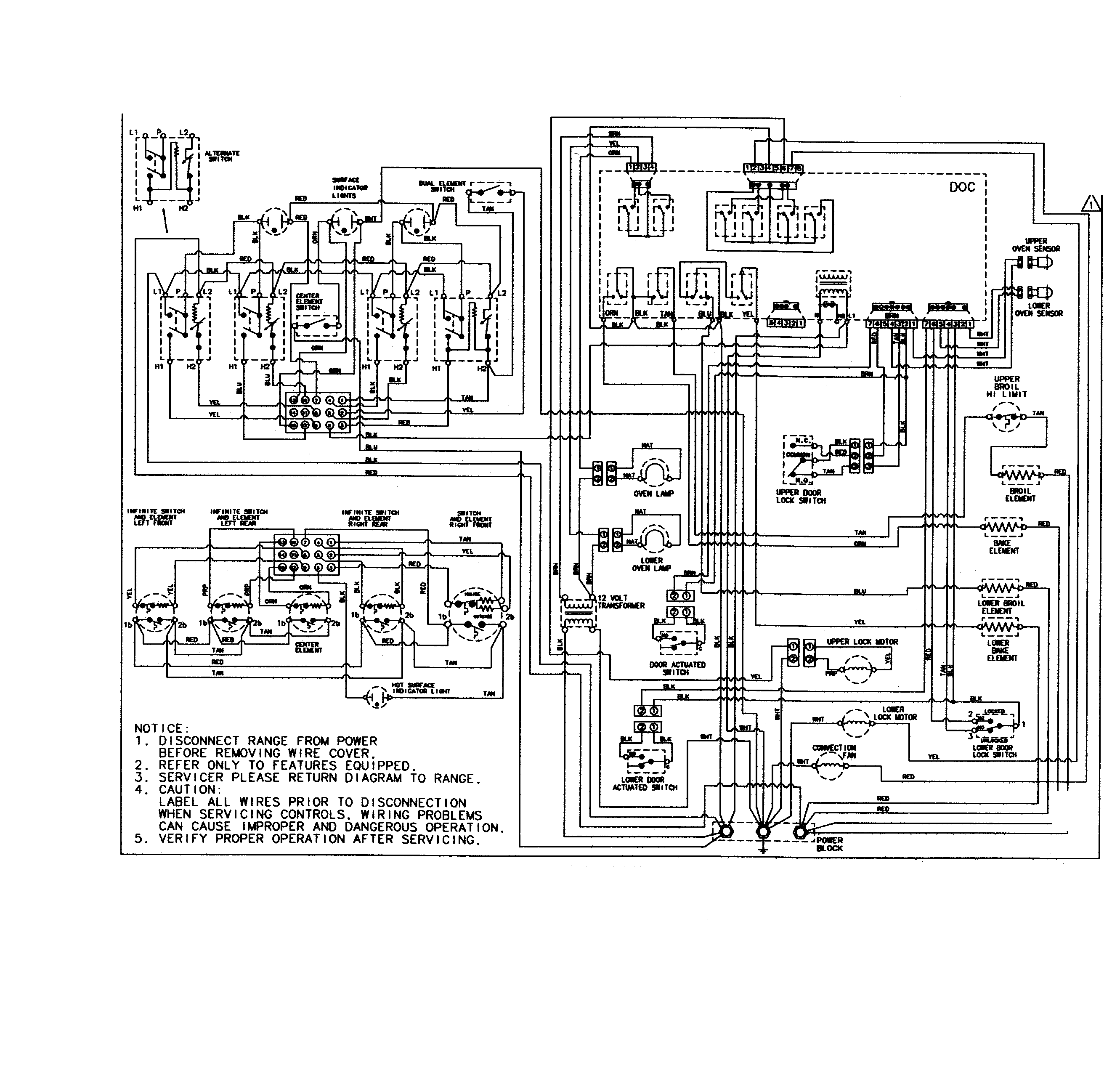

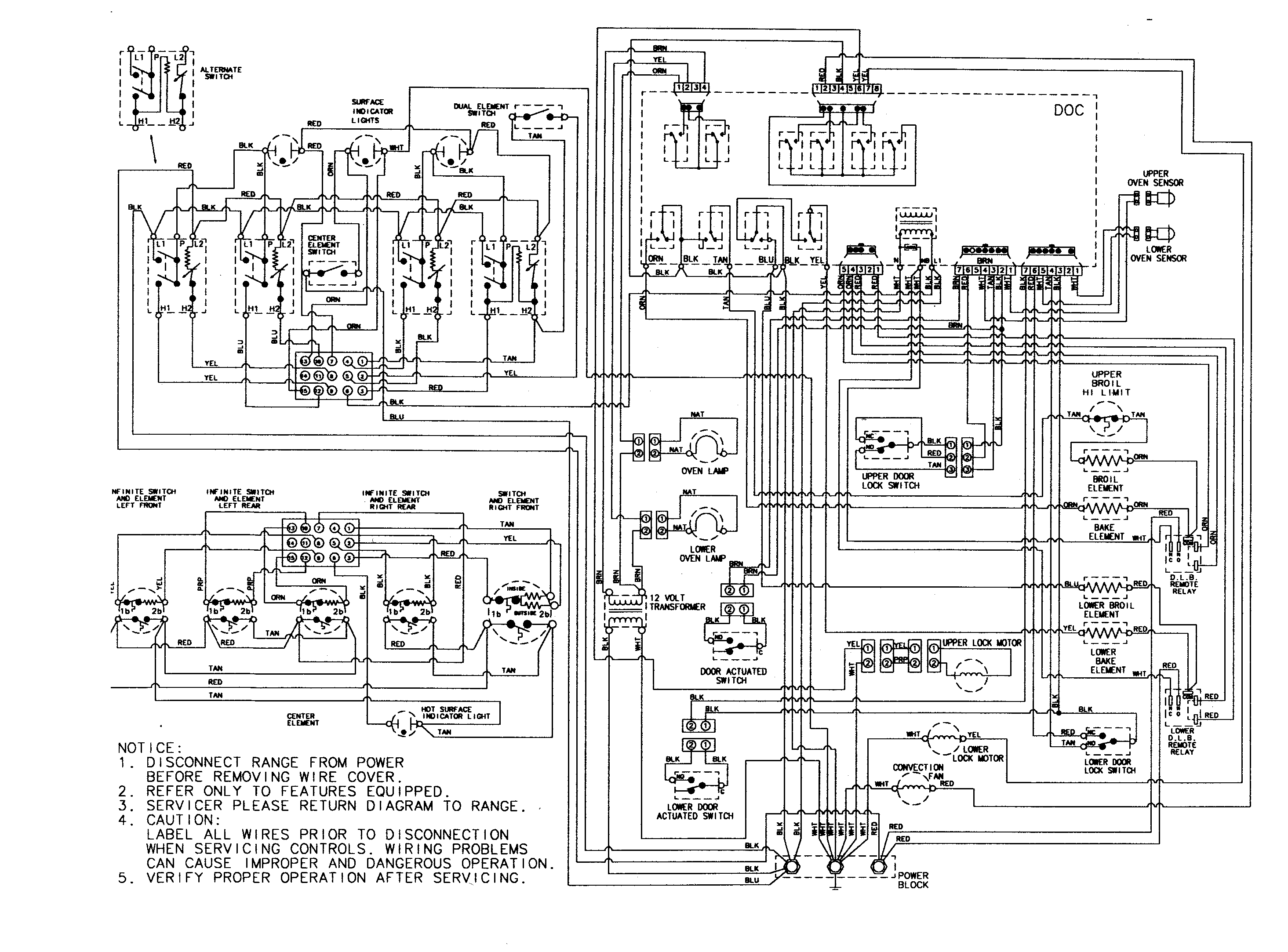

Most electric ranges, including the Maytag MER6872BAB, are designed to run on a 240-volt household circuit (often listed as 120/240V). Some components like the clock and oven light use 120V, but the heating elements need 240V for proper cooking performance. See the MER6872BAB owner's manual for electrical and safety details.

What you should expect at the outlet

In most U.S. homes, an electric range uses a dedicated 240V circuit with a range receptacle and a properly sized breaker.

• Dedicated 240V circuit (not a standard 120V countertop-appliance outlet)
• Correct breaker size and wiring for a range
• Proper cord connection at the range terminal block
• Power issues can show up as no heat, weak heat, or a dead control panel

Quick troubleshooting if the range seems underpowered

If the display works but the oven or surface elements will not heat correctly, one “leg” of the 240V supply may be missing.

• Check or reset the double-pole circuit breaker for the range
• Confirm the plug is fully seated in the receptacle
• If hardwired, check for a loose or burned connection at the terminal block (power off first)
• If only one surface element misbehaves, the issue is often a control switch or the element itself

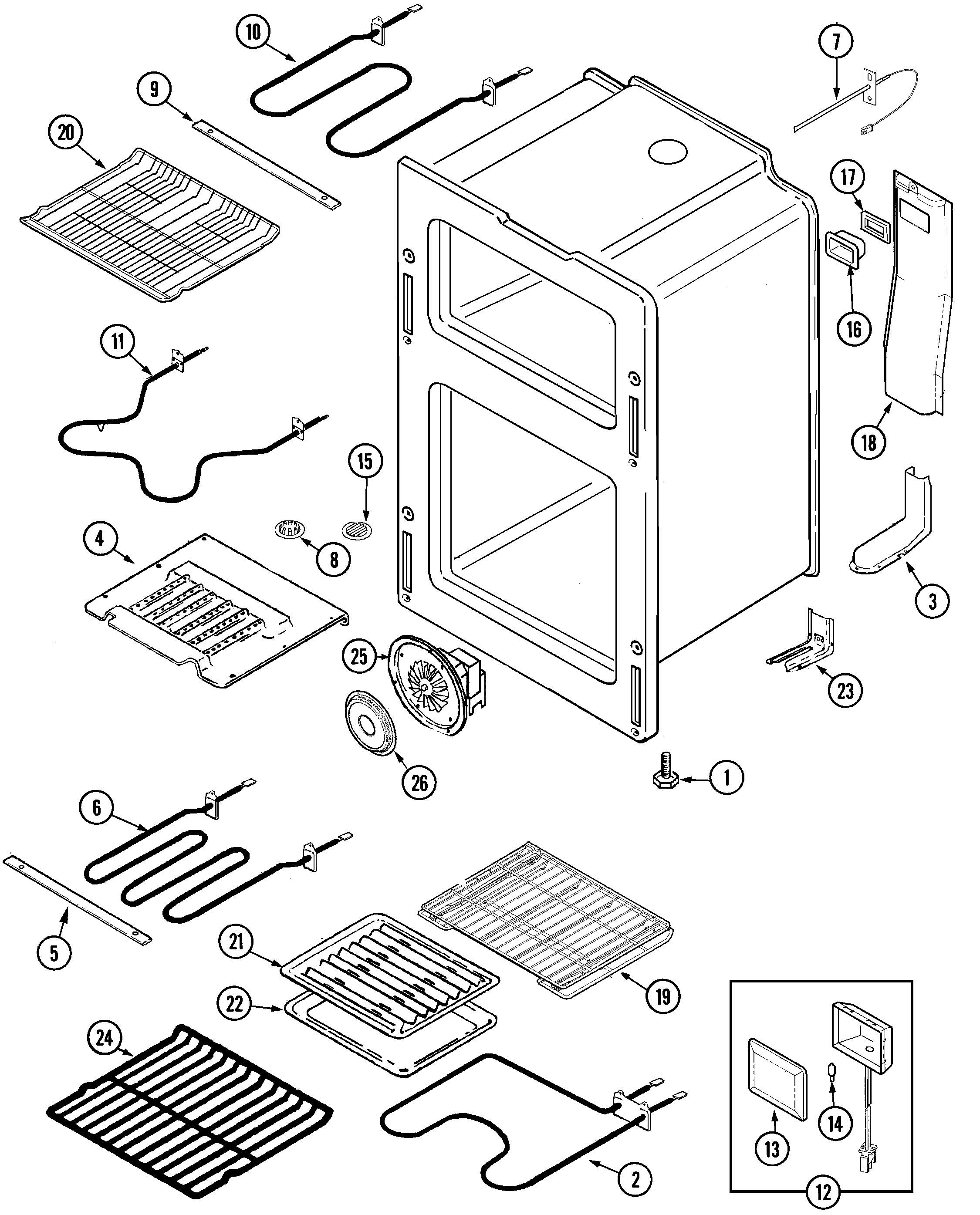

• If the oven will not heat, check common causes like bake element, broil element, or temperature sensor

Common symptoms and what they usually mean

Symptom	What it often indicates	What to check first
Clock/display works but no heat	Lost half of 240V (only 120V present)	Breaker, cord, terminal connections
Surface works, oven does not	Oven heating circuit problem	Bake/broil element, sensor, wiring
One burner not heating	Single-element issue	Switch, element, receptacle

Why it matters

A range that is not getting full 240V can cook slowly, fail to preheat, or stop heating entirely. Correct voltage and solid terminal connections also reduce overheating at the power connection point.

Related part (power connection): If you find heat damage or loose lugs at the power hookup, the terminal block WPW10245259 is the correct replacement part for this model.
