Dacor
Side-By-Side Refrigerator

Model #EF42BNDBSS Dacor refrigerator

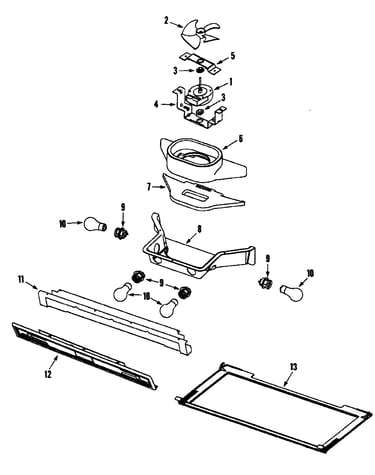

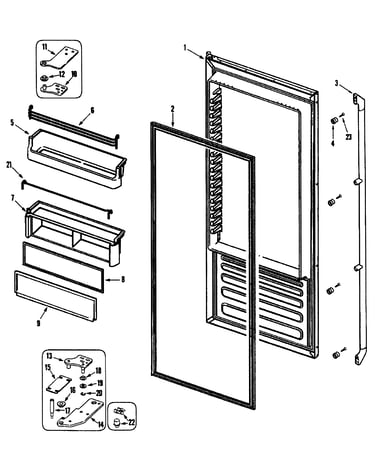

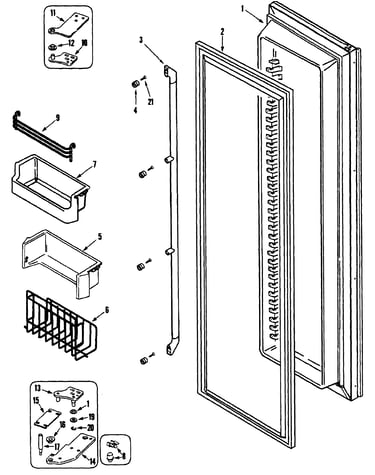

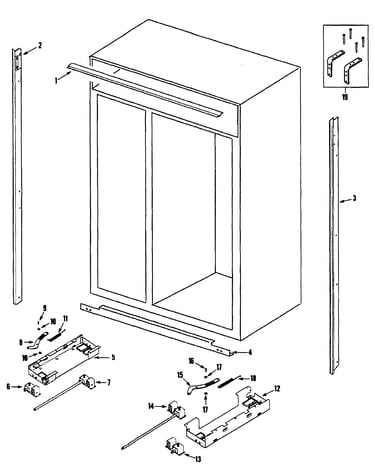

Here are the diagrams and repair parts for Dacor EF42BNDBSS refrigerator, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 226 parts

Refrigerator Water Inlet

#3

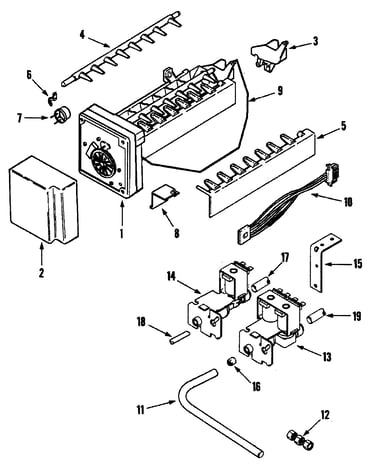

Ice maker Diagram

Refrigerator water inlet

Part #102843

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Motor Bracket

#8

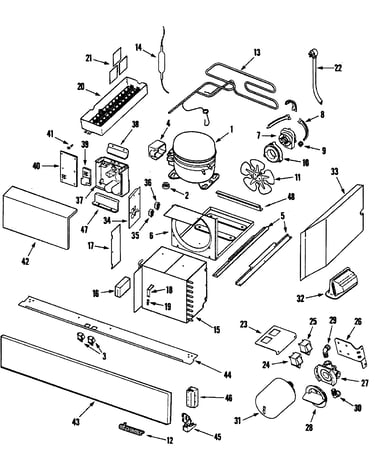

Compressor Diagram

Refrigerator motor bracket

Part #102891

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Retainer

#6

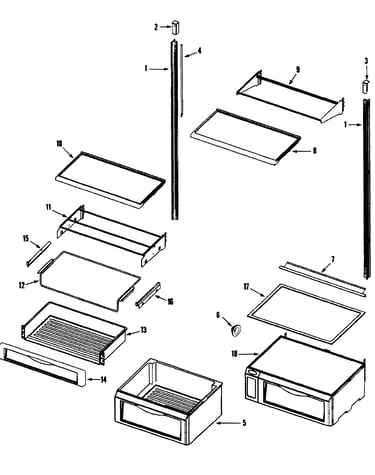

Refrig shelves Diagram

Refrigerator retainer

Part #102900

The manufacturer no longer makes this part, and there's no substitute part

Pan Compre

#6

Compressor Diagram

Pan compre

Part #102920

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Baffle

#16

Compressor Diagram

Refrigerator baffle

Part #102922

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermistor

#19

Compressor Diagram

Refrigerator thermistor

Part #102925

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bracket Screw

#26B

Compressor Diagram

Refrigerator bracket screw

Part #102929

The manufacturer no longer makes this part, and there's no substitute part

Shelf Support Rail

#1

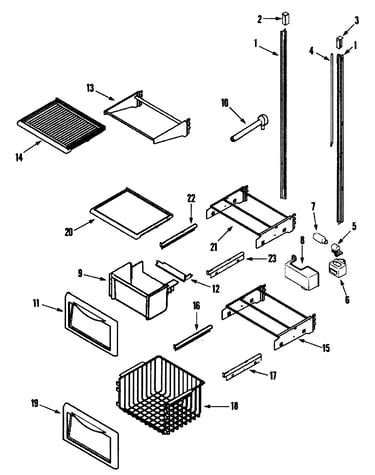

Freezer shelves Diagram

Shelf support rail

Part #102951

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Rail Screw, Front

#1B

Refrig shelves Diagram

Refrigerator rail screw, front

Part #102952

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Gasket

#15B

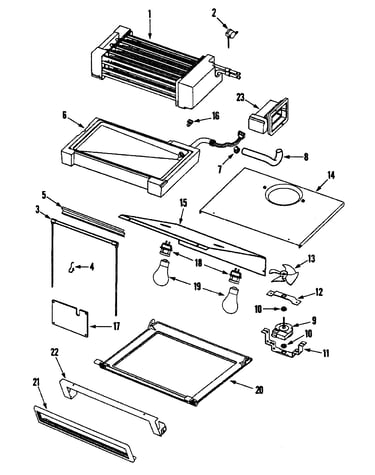

Evaporator Diagram

Refrigerator gasket

Part #102970

The manufacturer no longer makes this part, and there's no substitute part
