On the GE GNE25JMKNFES bottom-mount refrigerator, the bottom grille (base grille or toe grille) typically pulls off after you release a few retaining tabs or remove a couple of screws, depending on the exact grille style. Once it is free, it slides forward and away from the cabinet.

Before you start

• Unplug the refrigerator or switch off power at the breaker (recommended when working near wiring and the condenser fan).
• Protect the floor with cardboard or a towel to prevent scratches.
• Use a flashlight; the release points are usually underneath the grille.
• Keep screws in a cup so they do not roll under the appliance.

Steps to remove the bottom grille

1. Look for screws first: Check the left and right ends of the grille for Phillips-head screws.
2. If screws are present: Remove them, then pull the grille straight toward you.
3. If there are no screws: Grip the grille near the ends and pull outward to pop it off the retaining clips (pull firmly but evenly).
4. If it feels stuck: Press along the top edge to release tabs, then pull forward.
5. Set the grille aside and avoid bending it; warped grilles can rattle after reinstall.

Reinstall tips (so it fits and does not rattle)

• Line up the grille tabs with the slots in the cabinet frame.
• Push until you feel the clips seat.
• Reinstall any screws snugly (do not overtighten).

What you see	What it usually means	What to do
Screws at both ends	Screw-mounted base grille	Remove screws, pull grille forward
No screws, grille snaps in	Clip-mounted base grille	Pull evenly to release clips
Grille won’t release	Tabs still engaged or grille flexing	Press tabs along top edge, then pull

Why it matters

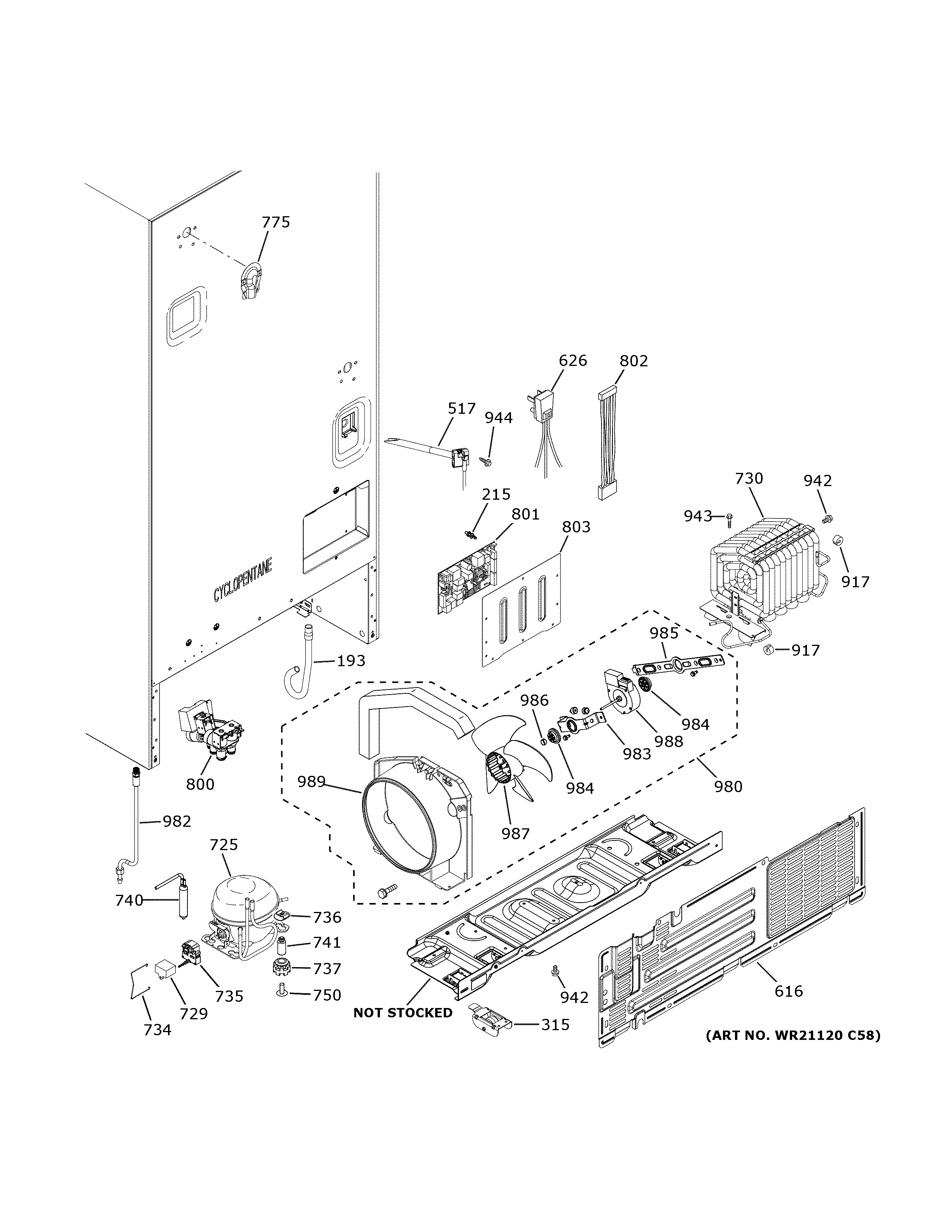

Removing the bottom grille gives you access to the condenser area for cleaning and inspection. Keeping that area clear helps airflow, improves cooling performance, and can reduce compressor run time.

For related GE guidance, use our DIY article how to reset the door alarm on a GE refrigerator.

Last updated: February 2026

The most common GE refrigerator complaint is cooling trouble (warm fresh food section, weak airflow, or temperature swings). On the GE GNE25JMKNFES, the usual causes are airflow restrictions, a failing evaporator fan system, or a temperature-sensing/control issue that keeps the compressor and fans from running correctly.

Most common symptoms we see

• Fresh food section warm but freezer still cold
• Frost buildup on the back wall or inside the freezer
• Fridge runs a lot (or cycles on and off too often)
• Loud humming, buzzing, or fan noise
• Water dispenser or ice maker performance drops after filter issues

Quick checks that fix many “not cooling” calls

1. Confirm settings: Set fresh food to about 37°F and freezer to about 0°F.
2. Check airflow: Do not block vents; leave space around the air tower and shelves.
3. Clean condenser area: Dust on coils and the condenser fan area can raise temps.
4. Look for frost patterns: Heavy frost often points to a defrost or airflow problem.
5. Listen for the evaporator fan: If the freezer is cold but you do not hear airflow, the fan system is a prime suspect.

Parts that commonly relate to these problems

If your symptoms match, these model-specific parts are often involved:

Problem you notice	Common system involved	Example part for GNE25JMKNFES
Warm fridge, freezer OK	Airflow/damper	Refrigerator air damper WR60X27396
Temp swings, odd readings	Temperature sensing	GE profile refrigerator temperature sensor WR55X10025
Frost buildup, warm temps	Defrost control	Refrigerator defrost bi-metal thermostat WR50X10069

Why it matters

Cooling problems usually get worse over time. Catching an airflow restriction, a failing sensor, or a defrost issue early helps protect food, reduces compressor run time, and prevents ice buildup that can block vents.

Helpful DIY guidance

• Use GE refrigerator error codes if your display shows a code or you suspect a control issue.
• If the issue is water or ice related, follow how to replace the water filter in a GE refrigerator and confirm you are using the correct filter for this model.

Last updated: February 2026

A GE GNE25JMKNFES bottom-mount refrigerator typically lasts 12 to 16 years with normal household use. Keeping airflow clear, cleaning the condenser area, and fixing cooling or defrost issues early are the biggest factors in reaching the upper end of that range.

Typical lifespan and what changes it

Most modern refrigerators fall into a predictable window; how hard the unit works day-to-day determines where yours lands.

• Typical range: 12 to 16 years
• Often shorter when: coils are clogged, doors do not seal, or the unit runs in a hot/tight space
• Often longer when: temperatures stay stable and maintenance is consistent
• Biggest wear items: evaporator fan, defrost components, control boards, door gaskets

Maintenance that adds years (and prevents expensive failures)

These steps reduce compressor run time and help the sealed system avoid overheating.

• Vacuum dust from the condenser area (and around the compressor compartment) every 6 to 12 months
• Keep at least a small gap behind and above the refrigerator for airflow
• Set temps to common targets: 37°F fresh food, 0°F freezer
• Replace the water filter on schedule if you use the dispenser or ice maker (see GE refrigerator water filter XWFE)
• Fix door sealing issues quickly (warm edges, sweating, frost, or the door popping open)

Quick “is it aging or is it a fixable problem?” checklist

Many “old fridge” symptoms are caused by a single serviceable part.

Symptom	Common cause	Part on this model that often relates
Warm fresh food, freezer OK	Airflow/damper issue	Refrigerator air damper WR60X27396
Temps swing, food freezing then warming	Sensor or control issue	GE profile refrigerator temperature sensor WR55X10025
Frost buildup, warm temps after a few days	Defrost problem	Refrigerator defrost bi-metal thermostat WR50X10069

Why it matters

Once a refrigerator starts running longer to hold temperature, energy use goes up and key components (like the compressor and control board) see more heat and electrical stress. Addressing airflow, sealing, and temperature control early is the simplest way to extend the life of your GE GNE25JMKNFES.
