Kenmore 10657409600 side-by-side refrigerator Parts

Most Kenmore side-by-side refrigerators are about 32 to 36 inches wide; for Kenmore model 10657409600, use the cabinet width listed in the 10657409600 owner's manual to confirm the exact measurement for your kitchen opening.

Side-by-side refrigerators commonly fall into these width groups:

• 32 to 33 inches: space-saving models
• 35 to 36 inches: most common full-size width
• 42 inches: built-in style (less common)

When we help customers size a refrigerator, we use two measurements: the cabinet width and the space needed for doors and airflow.

• Measure the cabinet (box) width at the widest point
• Confirm the door swing clearance so doors open fully
• Leave ventilation space: the manual calls for 1/2 inch on each side and at the top
• If installed next to a fixed wall, allow 2 inches minimum (depending on model) for door swing
• If you have an ice maker, allow extra room at the back for the water line connection

A refrigerator that is “the right width” can still bind on a wall, scrape cabinets, or run warmer if airflow is tight. Planning for door swing and ventilation helps your Kenmore 10657409600 cool properly and prevents installation headaches.

Last updated: February 2026

Your Kenmore side-by-side refrigerator model 10657409600 has a total capacity of about 21.9 cubic feet. This is the combined storage volume of the fresh food (refrigerator) and freezer compartments.

Capacity is a helpful comparison number, but usable space depends on shelves, bins, and airflow needs.

• It is the total of refrigerator + freezer space
• Shelves, ice maker parts, and door bins reduce “open” space
• Overpacking can block vents and cause uneven temperatures
• Keeping some clearance around vents helps maintain steady cooling

We recommend checking the product literature for your exact configuration and any capacity notes tied to accessories or internal layout. Use the 10657409600 owner's manual for the most reliable model-specific reference.

Knowing the cubic feet helps when you are comparing replacement refrigerators, planning kitchen space, or troubleshooting storage and cooling complaints (for example, when airflow is restricted by tightly packed food).

Last updated: February 2026

Kenmore model numbers are read left to right; the first 3 digits identify the manufacturer source, and the remaining digits narrow down the exact design and version. For your Kenmore side-by-side refrigerator model 10657409600, the 106 prefix is the key identifier we use to match the correct parts and documentation in the 10657409600 owner's manual.

On most Kenmore side-by-side refrigerators, the model and serial tag is typically located:

• Inside the fresh food compartment on a side wall
• On the ceiling of the refrigerator compartment near the light
• Behind the crisper drawers (on the liner wall)
• Along the door frame (hinge side)
• Occasionally on the back exterior panel

Kenmore model numbers usually follow a consistent pattern.

• Prefix (first 3 digits): manufacturer source code (most important for parts lookup)
• Middle digits: base platform or design family
• Last digits: engineering revisions, color/feature variations, or production changes

Using the full model number (not just the 106 prefix) prevents mismatches when ordering common refrigerator parts such as:

• Water inlet valve (controls water to the ice maker and dispenser)
• Ice maker assembly
• Defrost heater and defrost thermostat (bi-metal)
• Door cam and door gaskets
• Thermostat or electronic control

If you are troubleshooting water or ice issues on this model, the how to prevent water dispenser and ice maker problems guide is a solid starting point before replacing parts.

• Model number (10657409600): identifies the refrigerator
• Part number/part ID (example: W10408179): identifies a specific replacement part

Why it matters: A single Kenmore “106” platform can use different valves, ice makers, or controls depending on the full model string.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10657409600, the model number is printed on the appliance identification label. We use that label to match the correct parts, diagrams, and troubleshooting steps in the 10657409600 owner's manual.

Look for a paper or foil label in one of these spots:

• Inside the fresh food compartment on a side wall near the top
• Inside the fresh food compartment near the crisper drawers
• Along the door frame (hinge side) when the refrigerator door is open
• Inside the freezer compartment on a side wall
• Behind the base grille (kick plate) area on some installations

The label typically lists both a model number and a serial number. Use the model number for parts lookup and the serial number for date and production details.

• Use a flashlight and check the door frame edges first; labels are often easiest to spot there.
• Wipe dust or condensation off the label gently so the numbers are readable.
• If the label is damaged, compare the model number shown in your paperwork to the 10657409600 installation guide.

Kenmore side-by-side refrigerators can look similar across multiple model series. Using the exact model number (like 10657409600) prevents ordering the wrong items such as an ice maker, water inlet valve, or door gasket.

Last updated: February 2026

A bad compressor in your Kenmore side-by-side refrigerator model 10657409600 usually shows up as poor cooling with the unit running a lot, repeated clicking as it tries to start, or unusual compressor noises. Some compressor sounds can be normal, so we confirm by checking temperatures and the start components before replacing the compressor.

• Refrigerator and freezer are both warm (food soft, ice melting)
• Compressor is very hot to the touch after running (use caution)
• Repeated clicking every few minutes (start attempt then shutoff)
• Fridge runs constantly but temperatures do not improve
• You hear a high-pitched or pulsating sound that is new and persistent (some is normal)
• Condenser fan runs but cooling does not recover

Before condemning the compressor, we rule out airflow and defrost problems that can mimic compressor failure.

• Verify the freezer is near 0°F and the fresh food section near 37°F
• Listen for the evaporator fan; it should run with the door switch held closed
• Check for heavy frost on the freezer back wall (points to a defrost issue)
• Clean condenser coils and confirm the condenser fan is running
• If you have an ice maker, remember you may hear buzzing when the water valve fills (normal)

Helpful references for normal vs. abnormal sounds and basic troubleshooting are in the 10657409600 owner's manual.

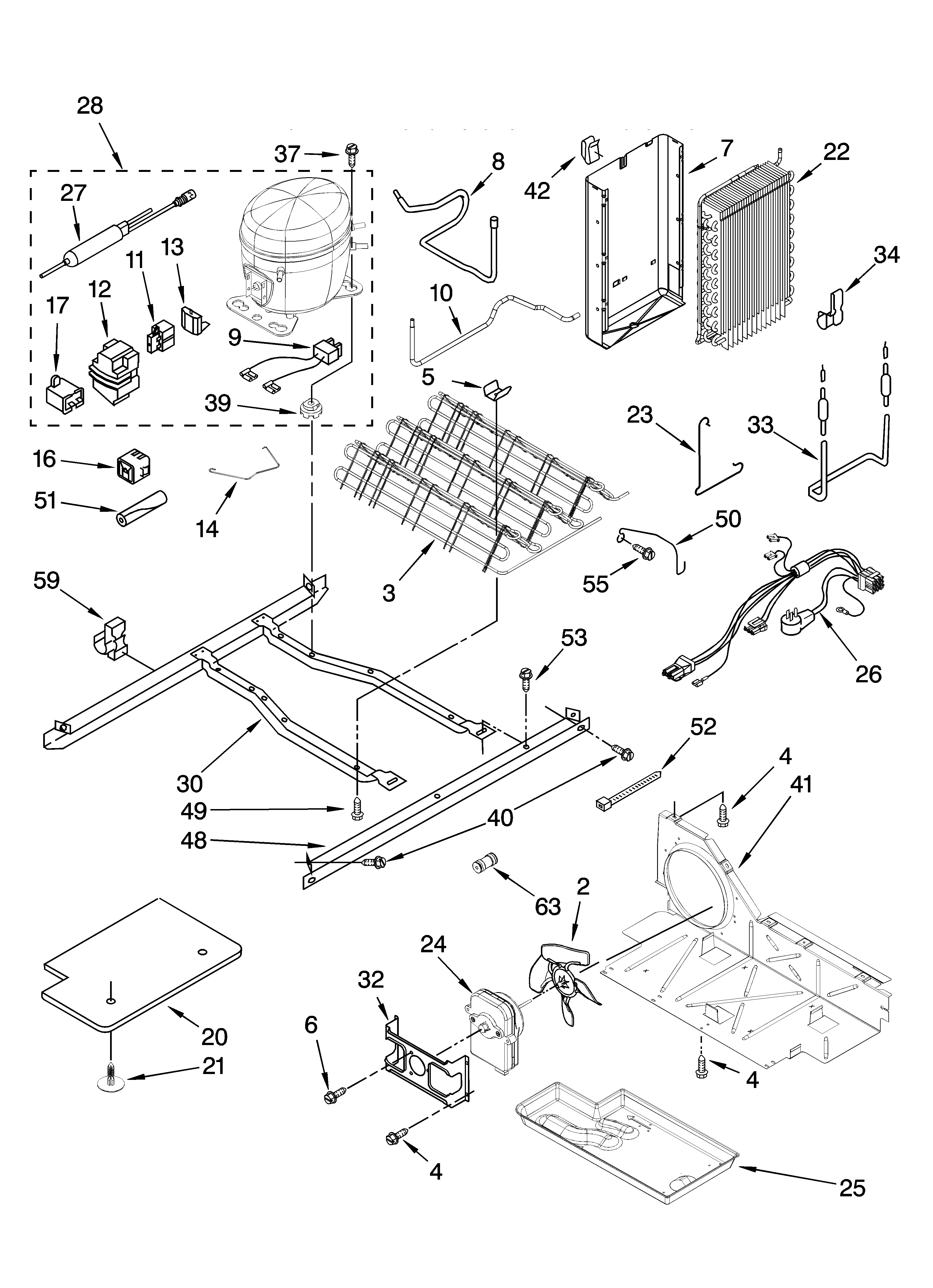

If you reach the point where replacement is confirmed, the model-listed compressor is refrigerator compressor W10309994.

Replacing a compressor is one of the highest-cost refrigerator repairs. Checking fans, frost patterns, and start components first prevents unnecessary parts replacement and gets cooling restored faster.

Last updated: February 2026

On Kenmore model 10657409600, the ER IF code points to a problem with the ice maker fan (ice fan) or airflow in the freezer area. We focus on clearing ice buildup and checking the fan and related wiring so the ice maker compartment can cool correctly; see the 10657409600 owner's manual for control reset and troubleshooting guidance.

• Power-cycle the refrigerator: unplug for 2 minutes, then restore power.
• Make sure the freezer door closes completely and seals well.
• Clear blocked vents and avoid overpacking the freezer (airflow matters).
• Look for frost or ice buildup around the ice maker area that could jam the fan.
• If your model has digital controls, turn the unit OFF then ON to reset (a common first step in the manual).

If ER IF returns after you clear ice and reset, we typically move to component checks (fan circuit, connectors, and control). On this model, these parts are often part of the overall cooling and ice-making system diagnosis:

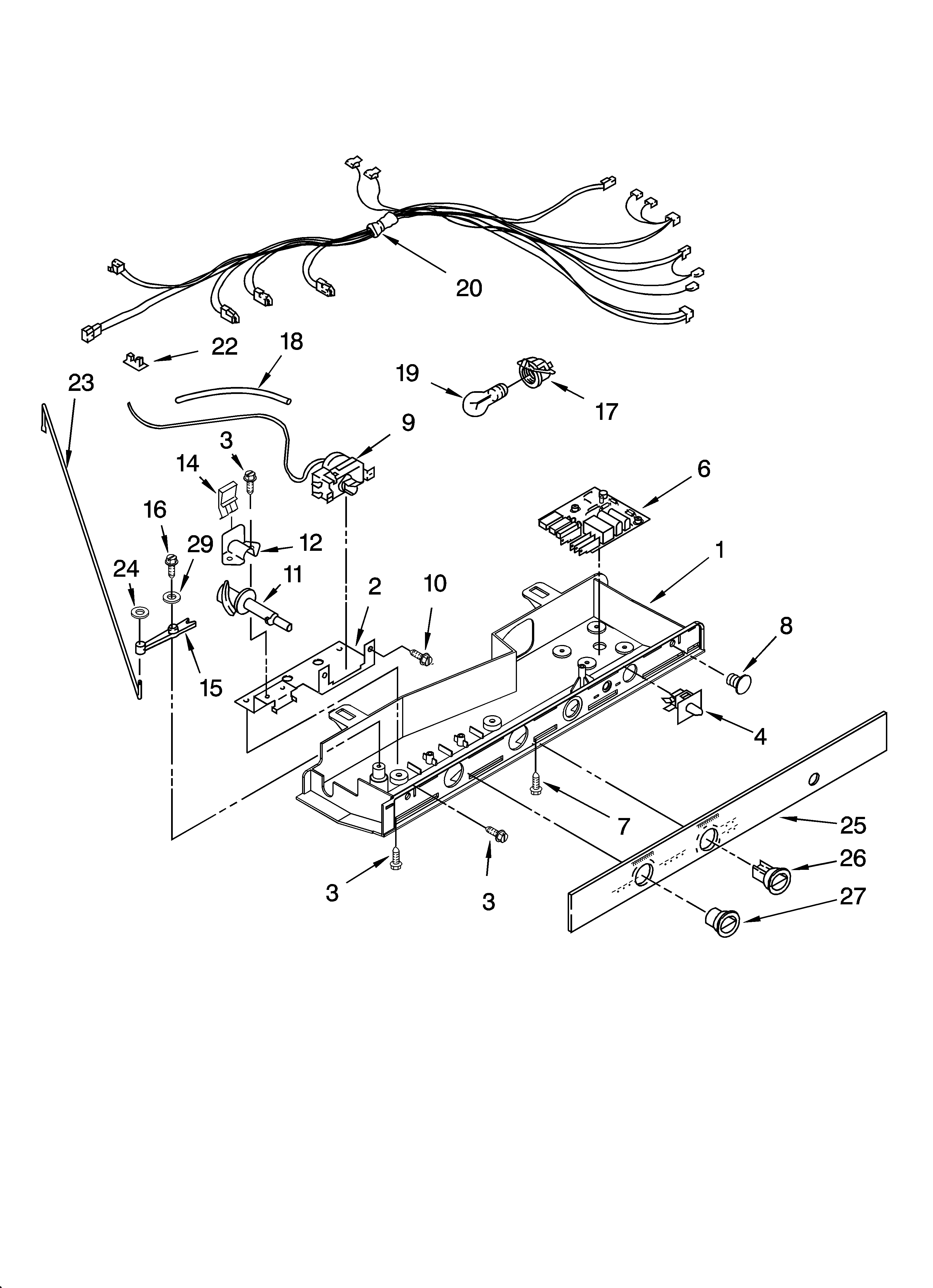

• Refrigerator electronic control 4388932 (can affect fan operation and defrost timing)
• Refrigerator defrost bi-metal WPW10225581 (helps protect the defrost circuit)
• Refrigerator heater WP2323198 (defrost heater that clears frost from evaporator area)

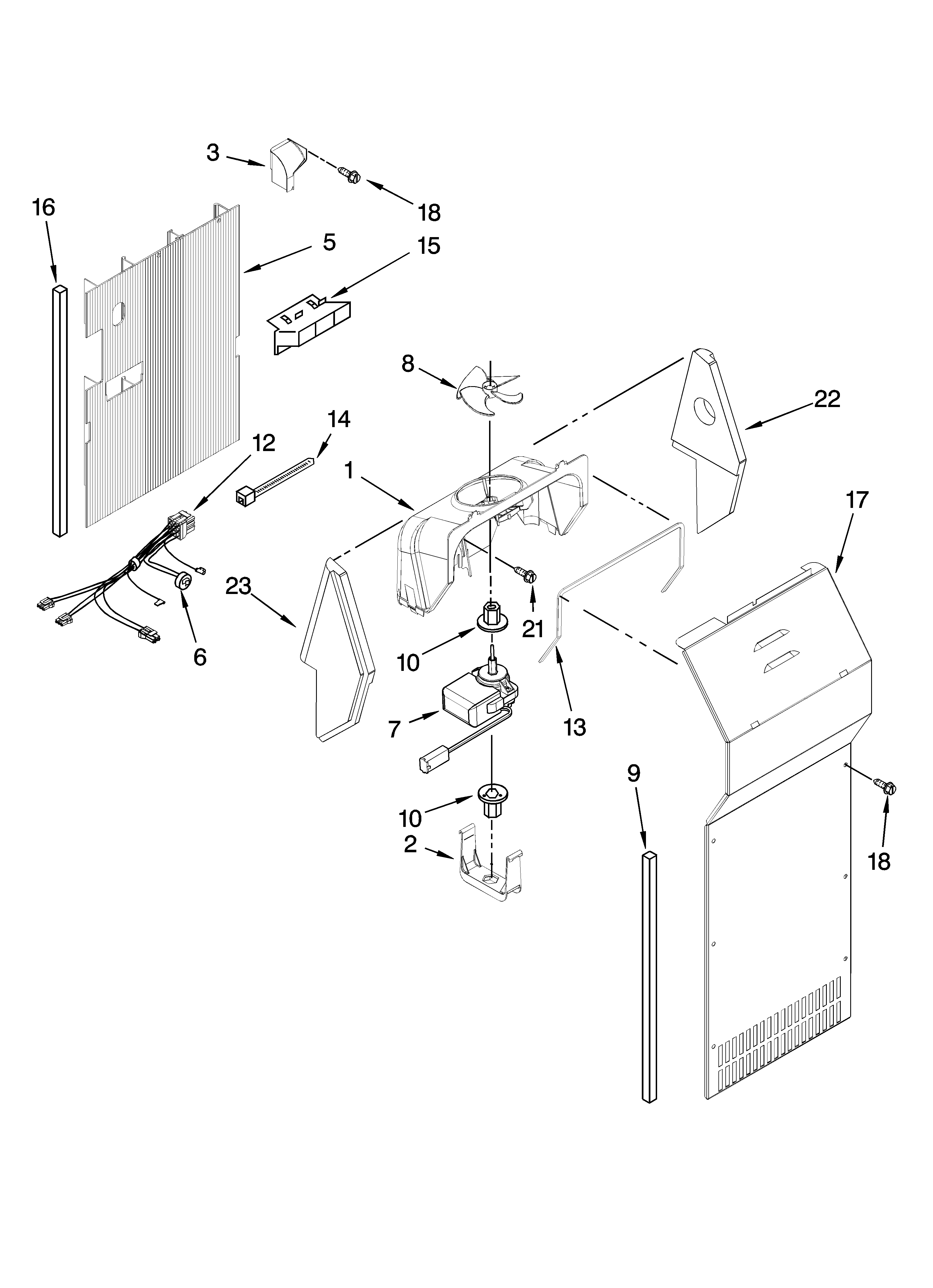

The ice maker fan moves cold air to the ice maker compartment. When airflow is blocked by frost or the fan circuit fails, temperatures rise around the ice maker and the refrigerator flags ER IF to prevent ongoing ice-making and cooling problems.

Last updated: February 2026

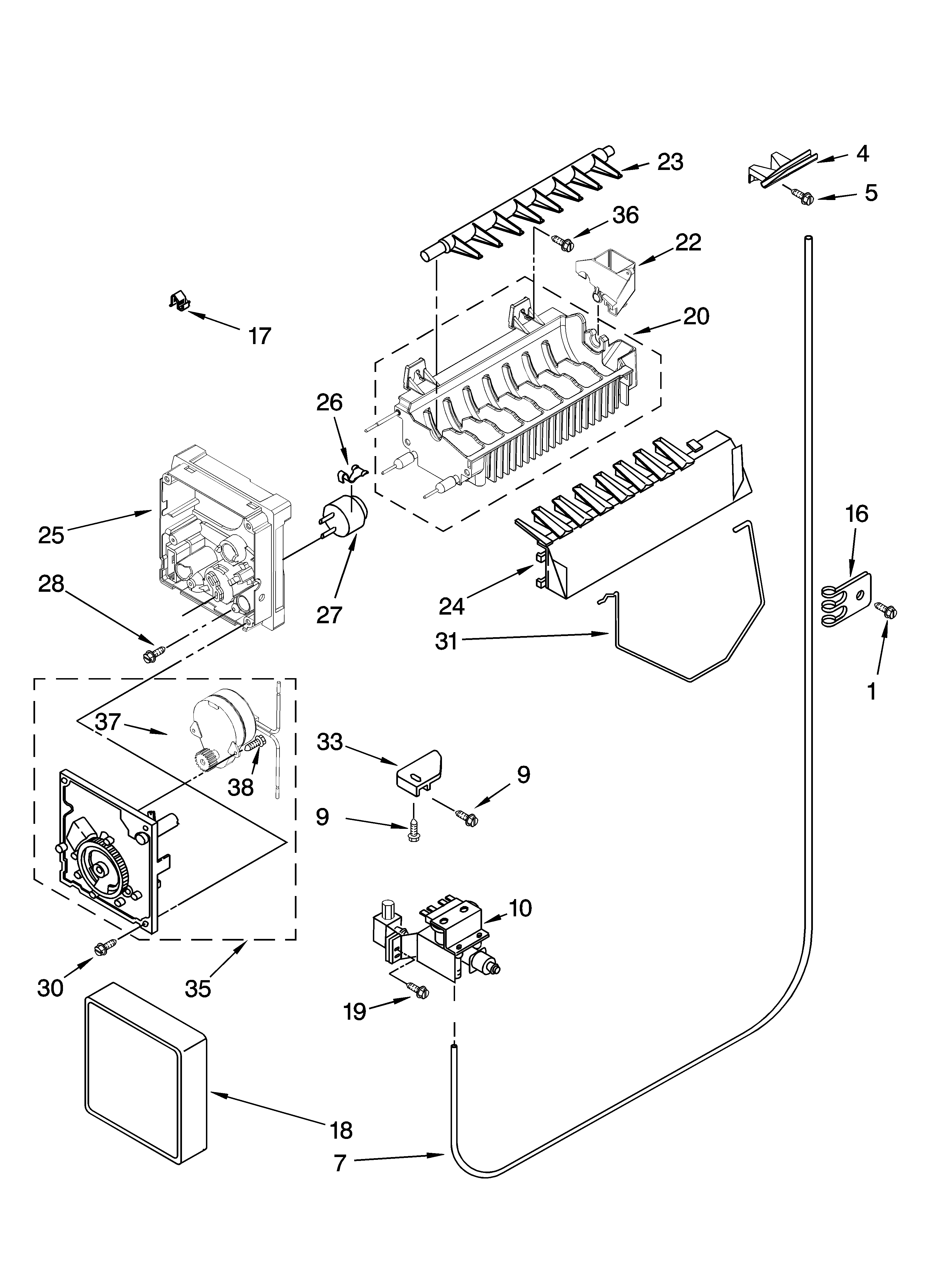

To replace the ice maker in your Kenmore side-by-side refrigerator model 10657409600, we shut off power and the water supply, remove the ice bin and mounting screws, swap the wiring harness to the new unit, then reinstall and turn the wire shutoff arm back on. Use the 10657409600 owner's manual for model-specific access and shutoff details.

• Unplug the refrigerator or disconnect power at the breaker.
• Turn OFF the main water supply; run the nearest faucet briefly to relieve pressure.
• If the refrigerator was turned on before the water line was connected, keep the ice maker OFF until water is connected.
• Empty the ice bin and clear cubes from the chute.
• Protect floors with a towel; keep screws in a cup so nothing drops behind the base grille.

1. Turn the ice maker OFF by lifting the wire shutoff arm (arm up).
2. Remove the ice bin.
3. Remove the ice maker mounting screws.
4. Pull the ice maker forward slightly and unplug the wiring harness connector.
5. Transfer any bracket/stripper pieces from the old ice maker to the new one if they match exactly.
6. Plug in the harness, set the ice maker on the mounting points, and tighten screws.
7. Lower the wire shutoff arm to turn the ice maker ON.
8. Restore water supply and power; allow time for the first harvest.

• Confirm the wire shutoff arm is down (ON).
• Make sure the freezer temperature is cold enough; adjust colder in small steps.
• Check for low water flow or a slow fill; the refrigerator inlet valve W10408179 is a common cause.
• Look for frozen or kinked supply tubing; the refrigerator water tube W10823511 can be involved.
• If cubes are small or hollow, focus on water supply and valve operation.

A correct ice maker swap prevents leaks, protects the fill system, and restores normal ice production without overfilling the ice bin or starving the mold for water.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life; a well-maintained Kenmore 10657409600 side-by-side refrigerator often reaches the upper end of that range when routine care in the 10657409600 owner's manual is followed.

• Clean the condenser coils regularly to reduce compressor run time and heat stress.
• Keep door gaskets clean so doors seal and open smoothly (the manual specifically calls out cleaning sticky gaskets).
• Maintain stable temperatures (avoid frequent warm-ups from long door openings).
• Fix water and ice issues early to prevent leaks and ice buildup.
• Use correct replacement parts when a failure starts (water, cooling, and defrost parts are common wear items).

When symptoms start, these are frequent culprits on Kenmore side-by-side units like model 10657409600:

• Water not dispensing or ice maker not filling: refrigerator inlet valve W10408179
• Ice production problems: refrigerator ice maker WPW10190965
• Frost buildup or warm freezer: refrigerator defrost bi-metal WPW10225581 and refrigerator heater WP2323198
• Temperature control complaints: refrigerator thermostat WP2198202

A refrigerator that is running hot, leaking, or building frost can shorten the life of major components (especially the compressor). Basic maintenance and timely part replacement usually cost far less than replacing the refrigerator.

Last updated: February 2026
