Craftsman
Wet/Dry Vacuum

Model # 75817931 Official Craftsman double insulated wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 75817931 double insulated wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Extension Hose 9-17866

#NI

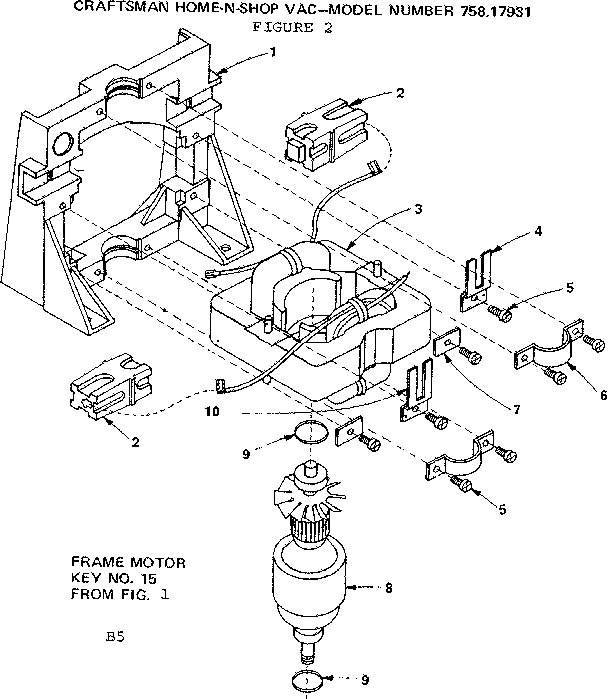

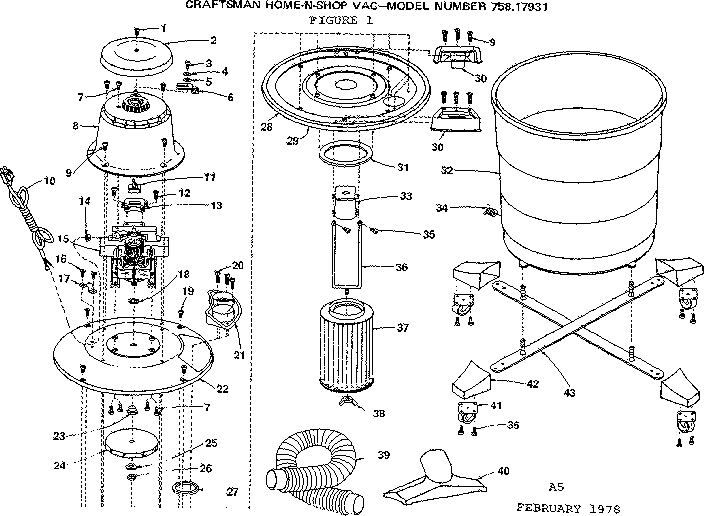

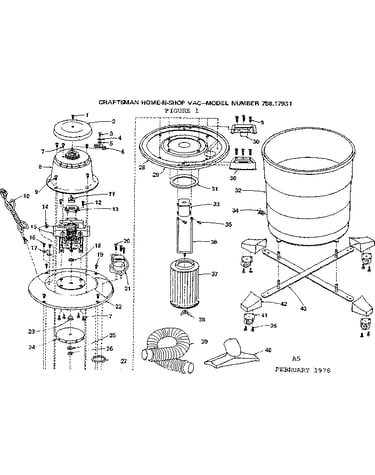

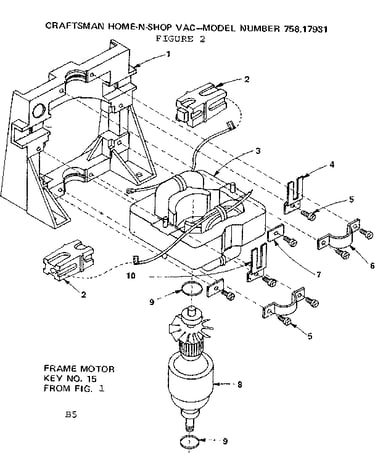

All parts diagram

Extension hose

Part #9-17866

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 9-17863

#NI

All parts diagram

Crevice tool

Part #9-17863

The manufacturer no longer makes this part, and there's no substitute part

Ext Handle 9-16964

#NI

All parts diagram

Ext handle

Part #9-16964

The manufacturer no longer makes this part, and there's no substitute part

Round Brush 9-17862

#NI

All parts diagram

Round brush

Part #9-17862

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 20557-01
#40

Base assembly diagram

Nozzle

Part #20557-01

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551006
#4

Base assembly diagram

Washer

Part #STD551006

The manufacturer no longer makes this part, and there's no substitute part

Ext Handle 9-17861

#NI

All parts diagram

Ext handle

Part #9-17861

The manufacturer no longer makes this part, and there's no substitute part

Car Nozzle 9-16978

#NI

All parts diagram

Car nozzle

Part #9-16978

The manufacturer no longer makes this part, and there's no substitute part

Gasket 20866
#27

Base assembly diagram

Gasket

Part #20866

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610807
#20

Base assembly diagram

Screw

Part #STD610807

The manufacturer no longer makes this part, and there's no substitute part
