Craftsman 917273062 tractor Parts

To find the right Craftsman parts for model 917273062, match your model number first, then use the parts diagrams and parts list to identify the exact replacement by name and part ID. For part locations, maintenance intervals, and exploded views, use the owner's manual.

Step-by-step: how we recommend finding the correct part

• Confirm the full model number on the tractor’s model tag: 917273062.

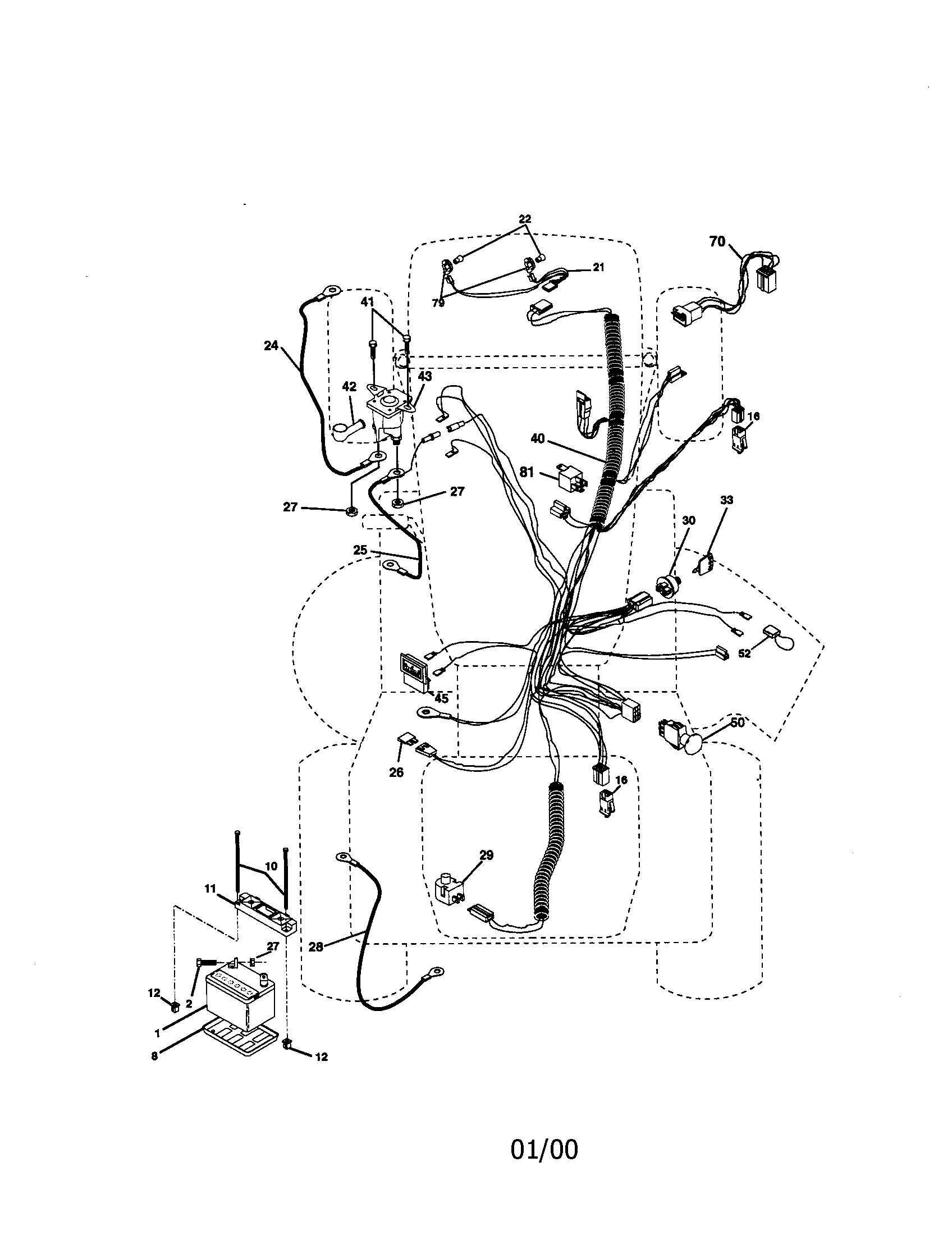

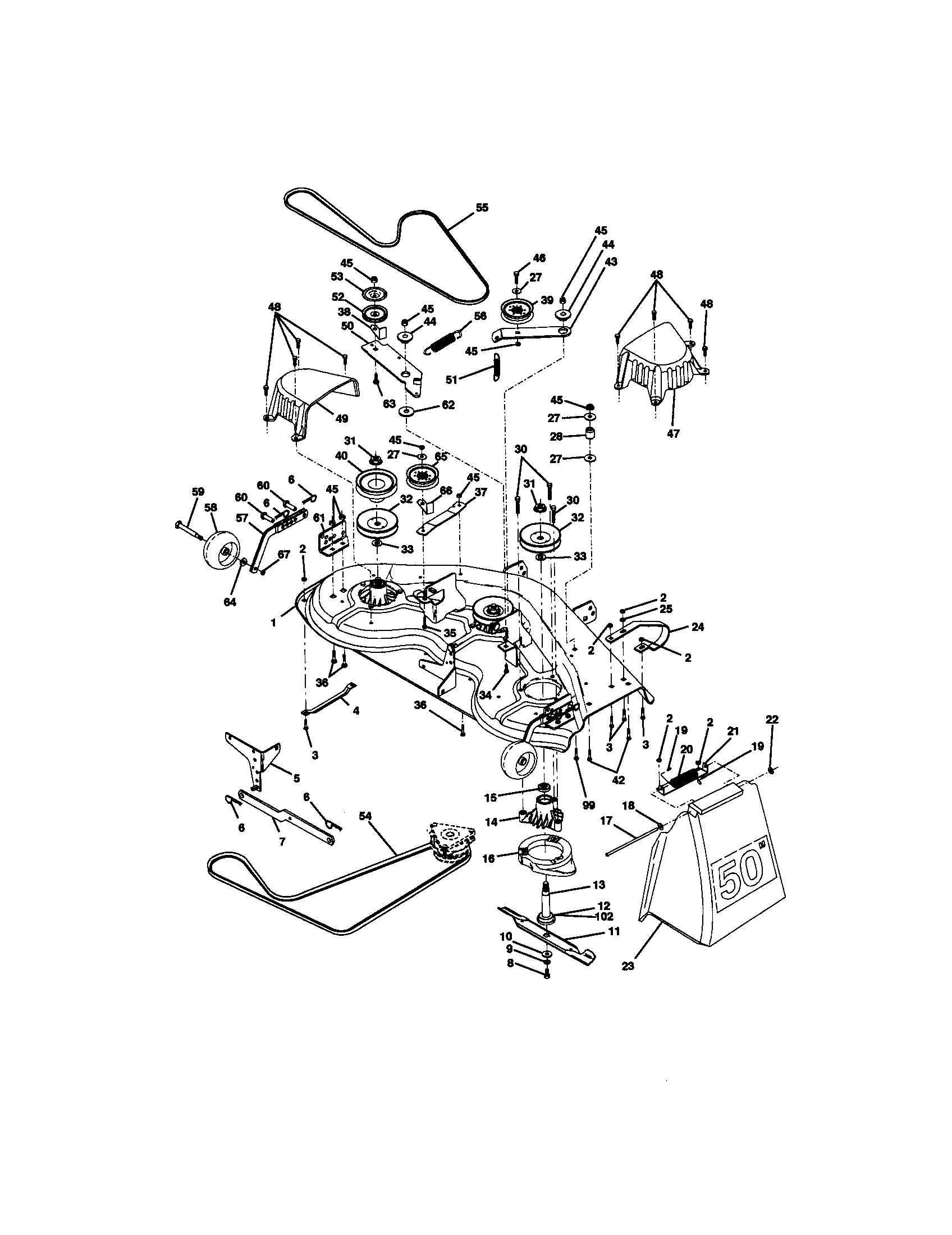

• Look up the part in the diagrams by the system you’re repairing (mower deck, steering, electrical, fuel).
• Match the diagram callout to the parts list description.
• Verify fit by comparing the part name and part ID before ordering.
• If you are replacing a fastener or hardware, match size and thread type (for example, 3/8-in lock nuts).

Common parts customers replace on this model

These are examples of parts available for Craftsman 917273062 that often come up during repairs:

Repair area	Example part	What it does

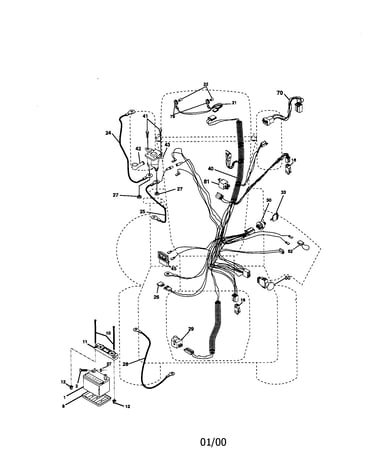

Starting / electrical	Solenoid 532146154	Sends battery power to the starter when you turn the key
PTO / deck engagement	Switch 582107601	Turns the electric PTO clutch circuit on and off

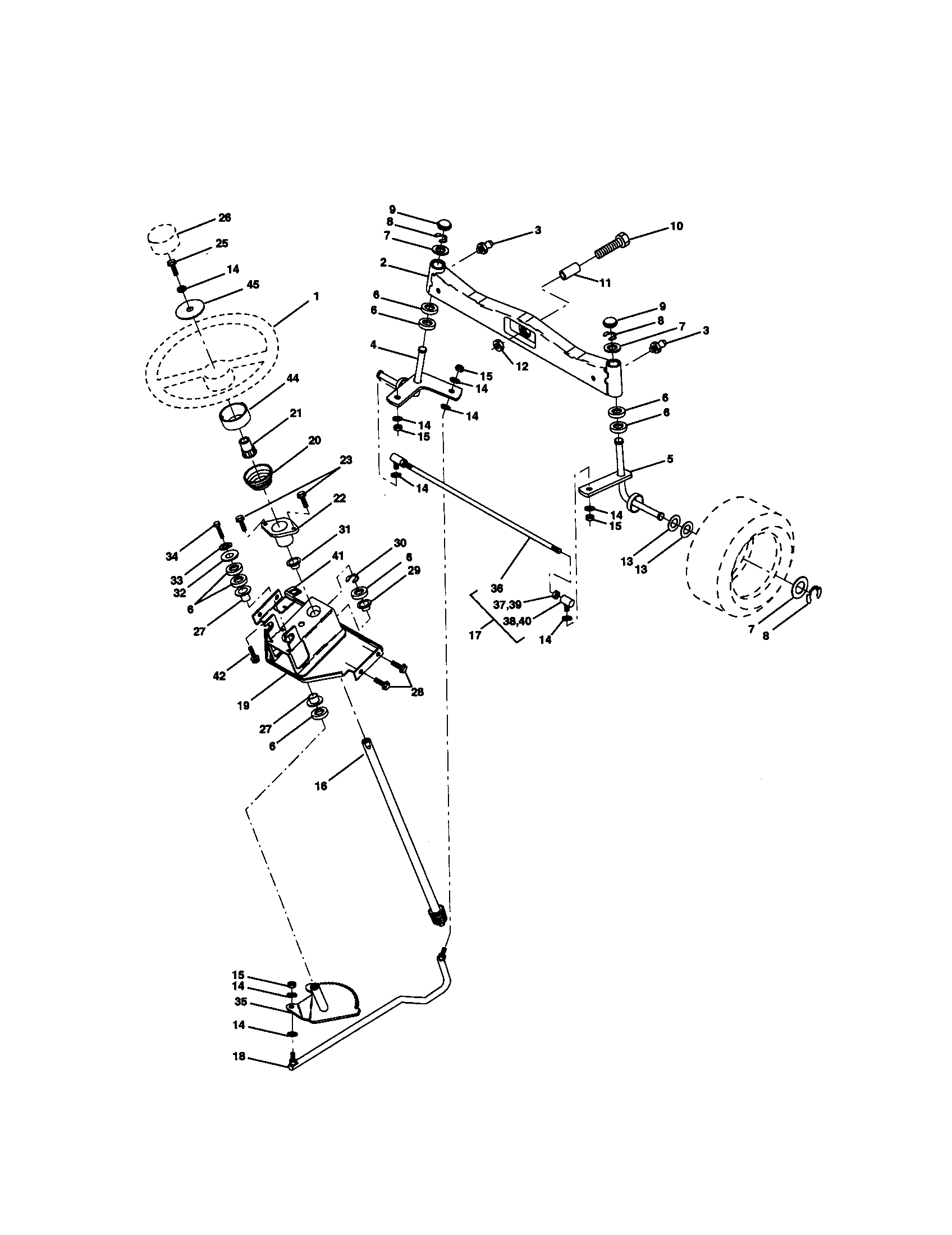

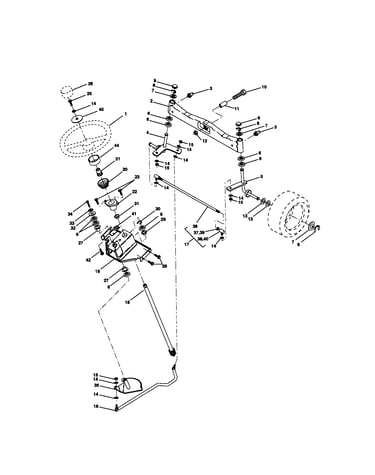

Steering	Drag link 532175572	Connects steering motion to the front wheels

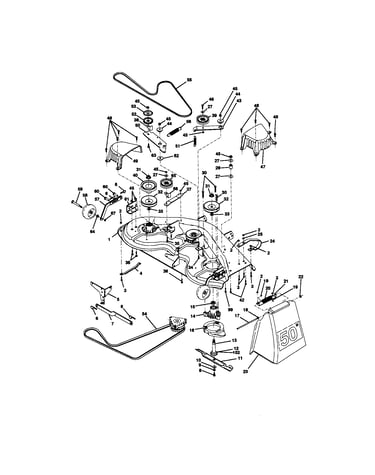

Deck drive	Lawn tractor idler pulley 532139245	Maintains belt tension for blade drive

Why it matters

Ordering by brand name alone often leads to the wrong fit because Craftsman tractors share similar-looking parts across multiple series. Using the model number and diagram callouts helps ensure you get the correct OEM-style replacement the first time.

Quick tips before you order

• If the tractor will not crank, check battery connections and safety interlocks first; then consider the starter circuit parts.
• If the blades will not engage, confirm the PTO switch function and wiring condition.
• If steering feels loose, inspect the drag link and tie rod ends for wear.

Last updated: February 2026

Yes; replacing the engine on your Craftsman 917273062 front-engine lawn tractor is worth it when the deck and chassis are structurally sound, the tractor still drives and steers well, and the total engine-swap cost stays well below the cost of replacing the entire tractor.

Quick decision checklist

• Deck is not rusted through, cracked, or badly bent
• Tractor moves normally (no slipping or loss of drive)
• Steering and front axle have no severe play
• You can complete the swap safely (engine off and cooled)
• You can still get the wear parts you need for upkeep

Cost and effort: what to compare

Compare	Replace the engine when	Replace the tractor when
Total cost	Engine swap is clearly less than a replacement unit	Cost approaches the price of a replacement unit
Condition	Frame, deck, and mounts are solid	Deck/chassis are damaged or heavily corroded
Other repairs	Only minor wear items remain	Multiple major systems also need work

What to inspect before you buy an engine

These checks prevent spending engine money on a tractor that still will not operate correctly:

• Deck and mandrels: vibration or rumbling points to deck hardware or mandrel wear.
• Belt and pulley system: frozen or worn pulleys can cause slipping and poor blade engagement.
• Safety interlocks: the manual stresses checking safety devices regularly; a bad switch can cause no-start or stalling.
• Fuel and ignition basics: the manual calls out seasonal items like spark plugs and in-line fuel filters as routine maintenance.

For maintenance intervals and safety steps specific to this tractor, use the owner's manual.

Parts that commonly get replaced during no-crank or no-engage complaints

• Solenoid 532146154 (clicking, no-crank starter circuit)
• Switch 582107601 (PTO/blade engagement issues)
• Push-in interlock switch 532176138 (no-start or dies when controls change)

Why it matters

An engine swap restores power and reliability, but it does not fix deck vibration, belt path problems, or faulty safety switches. A quick inspection first keeps the repair cost aligned with the tractor’s remaining life.

Last updated: February 2026

On the Craftsman 917273062 front-engine lawn tractor, the most common problems are no-start or weak-crank issues (battery, wiring, solenoid), loss of power (air filter, fuel, spark plug, oil), excessive vibration (loose or bent blade/mandrel), and blades not turning (belt, idler pulley, mandrel). For model-specific checks and adjustments, use the owner's manual.

Common symptoms and what usually causes them

• Engine clicks but won’t turn over: weak battery, dirty battery terminals, loose wiring, bad solenoid or starter
• Engine cranks but won’t start: stale fuel, dirty fuel system, fouled spark plug, restricted air flow
• Loss of power while mowing: dirty air filter, low or dirty oil, stale fuel, clogged muffler, carburetor out of adjustment
• Excessive vibration: worn, bent, or loose blade; bent blade mandrel; loose hardware
• Poor or uneven cut: deck not level, grass buildup under deck, low tire pressure, worn/bent blade
• Blades won’t rotate: obstruction, worn/damaged mower drive belt, frozen idler pulley, frozen blade mandrel

Quick checks we recommend first (fast, high-impact)

1. Park on a flat surface, set the parking brake, remove the key, and let hot parts cool.
2. Check battery cables for tight, clean connections; clean terminals if corroded.
3. Verify fresh fuel and correct oil level.
4. Inspect under the deck for packed grass and debris; clean buildup.
5. Look for obvious belt damage and pulley binding.

Parts that commonly fix these issues on model 917273062

Problem you see	Common fix area	Example part on this model page
Clicks, no crank	Starting circuit	Solenoid 532146154
Engine dies when you release brake or won’t stay running	Safety interlock circuit	Push-in interlock switch 532176138
Blades won’t engage or cut is inconsistent	Deck drive system	Lawn tractor idler pulley 532139245
Uneven cut, vibration	Spindle/mandrel area	Lawn tractor mandrel assembly 532143651

Why it matters

Most “big” mower failures start as small maintenance or safety-interlock problems. Catching issues early helps prevent belt damage, mandrel wear, and hard-start conditions that can strain the starter system.

Last updated: February 2026

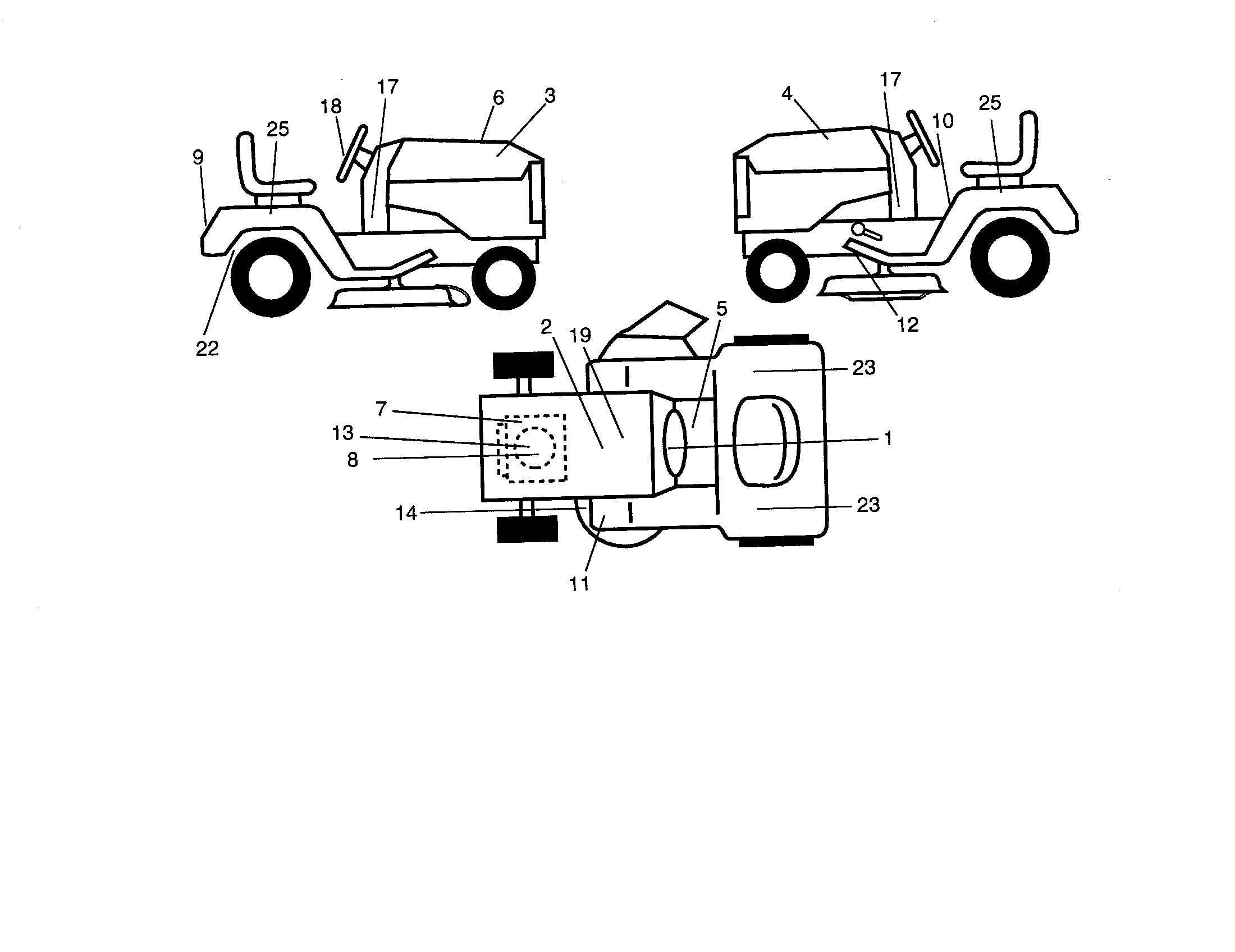

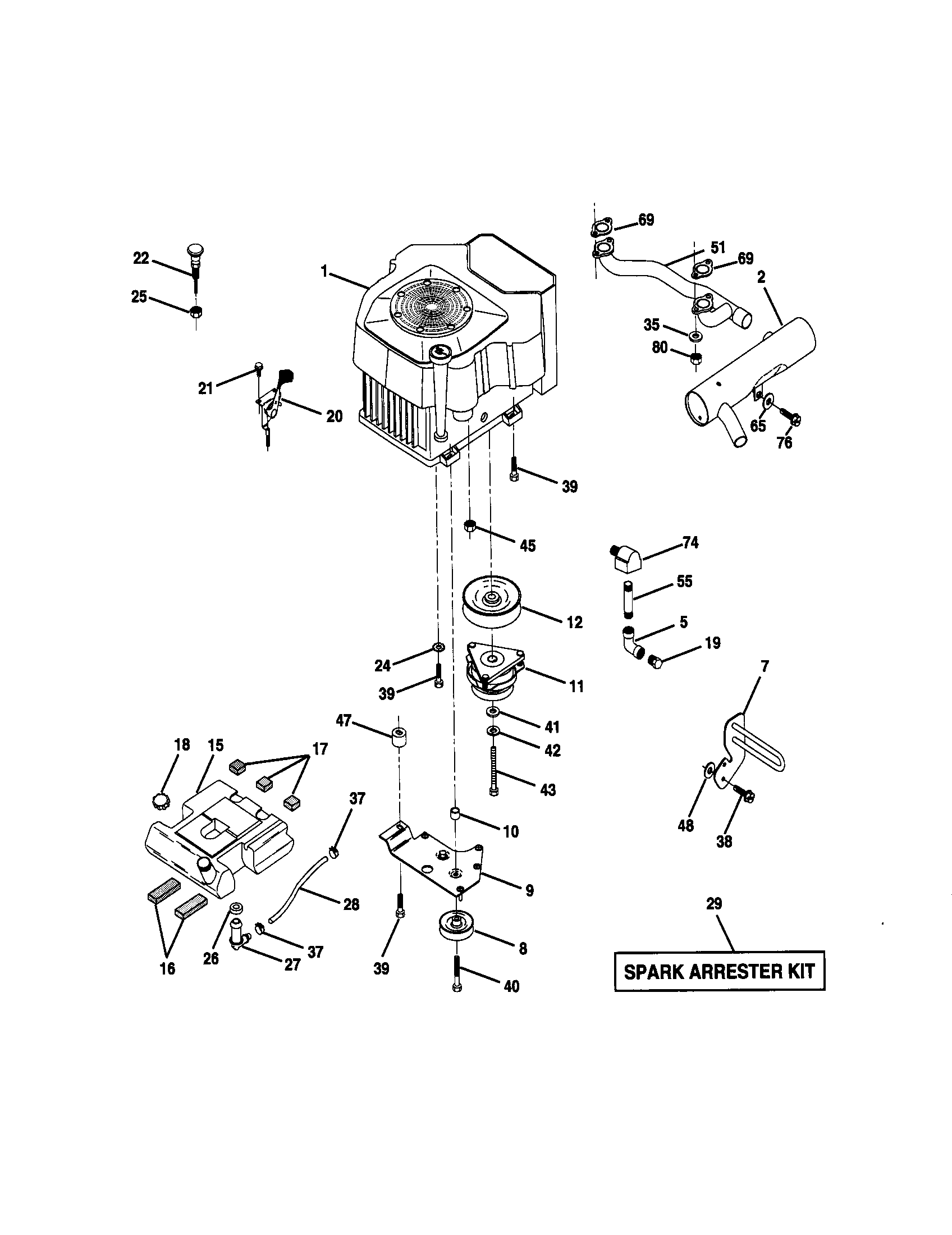

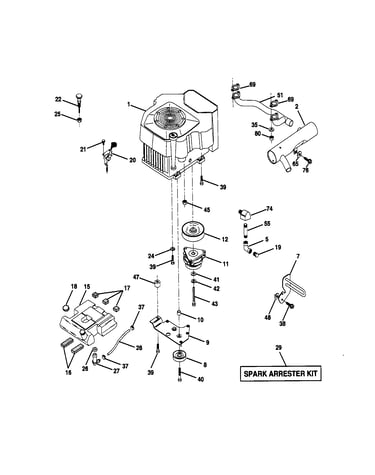

Craftsman riding mowers and lawn tractors use engines from several manufacturers depending on the specific model and production year. For Craftsman model 917273062, the owner's manual indicates this tractor uses a Kohler engine (the manual’s decals list includes “Decal Blower Hsng Kohl”).

What you’ll see on Craftsman tractors

Common engine brands used across Craftsman lawn tractors include:

• Briggs & Stratton (very common on many Craftsman models)
• Kohler (common on many garden tractors)
• Kawasaki (used on some higher-end models)
• Other OEM engines depending on the tractor series and year

How to confirm the engine brand on your 917273062

Use these quick checks (no disassembly needed):

• Look for the engine ID label on the blower housing or valve cover (brand name is usually printed there).
• Check the decals and parts listings in the owner's manual.
• Match the engine brand when ordering tune-up and fuel-system parts (filters, plugs, belts, etc.).

Fast ID guide

Where you check	What it tells you	What to write down
Engine label/sticker	Brand and engine model	Engine model and spec numbers
Manual decals/parts pages	Brand clues and tractor configuration	Tractor model 917273062
Hood or shroud markings	Brand family (often)	Brand name shown

Why it matters

Engine brand affects the correct maintenance parts and procedures (oil type, spark plug, air filter style, and fuel system setup). Confirming “Kohler” on the 917273062 helps you avoid ordering mismatched parts.

Last updated: February 2026
