Upright Freezer

Model # 2539284014 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 2539284014 freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for2539284014 Freestanding Freezers

  • Filter Drier 216634500
    #4

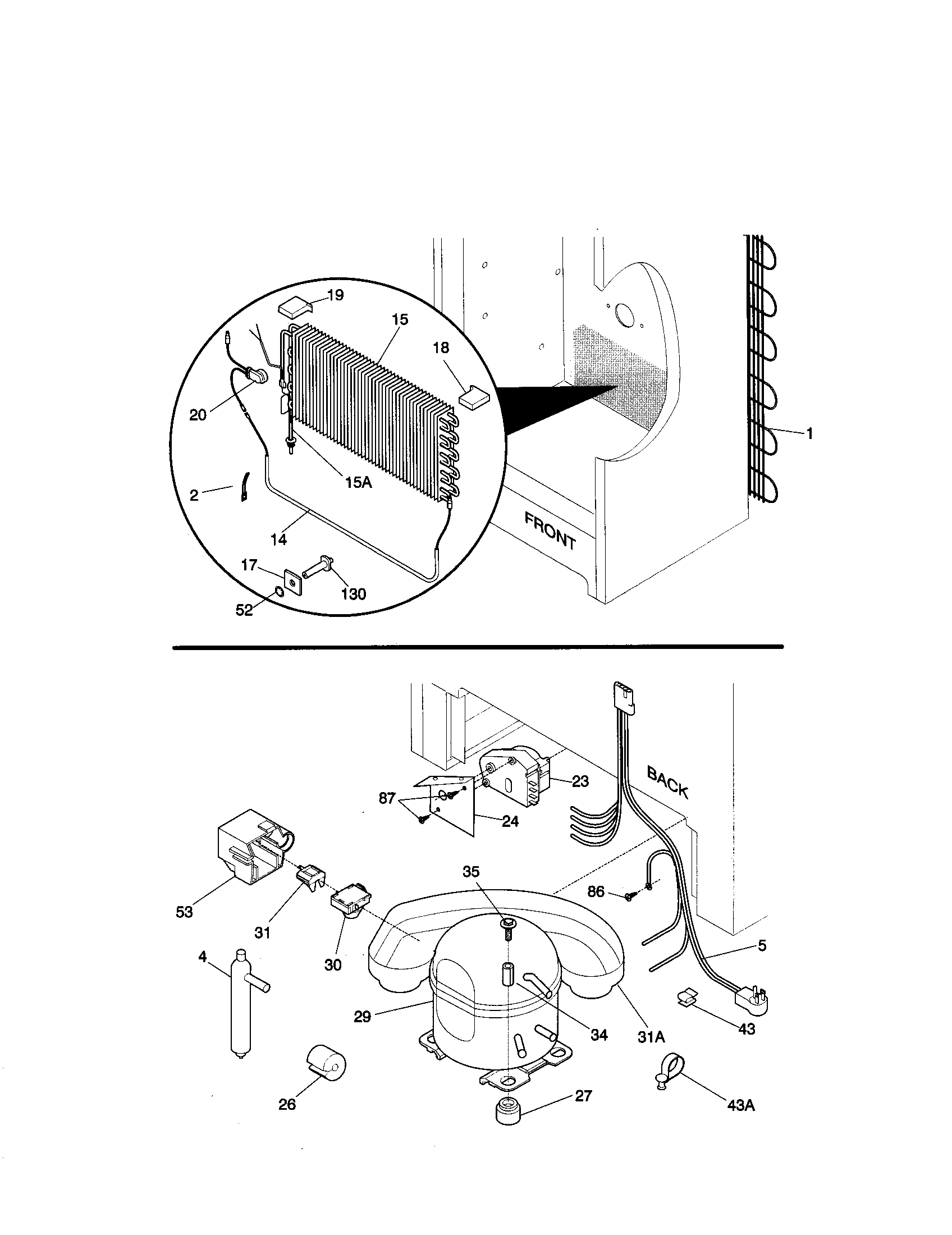

    System diagram

    Filter drier

    Part #216634500

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 216634500. Substitute parts can look different from the original.
    BEST SELLER
    $20.18 |
    23% OFF Phone Price : $26.18
    In Stock
  • Blade 216325600
    #5

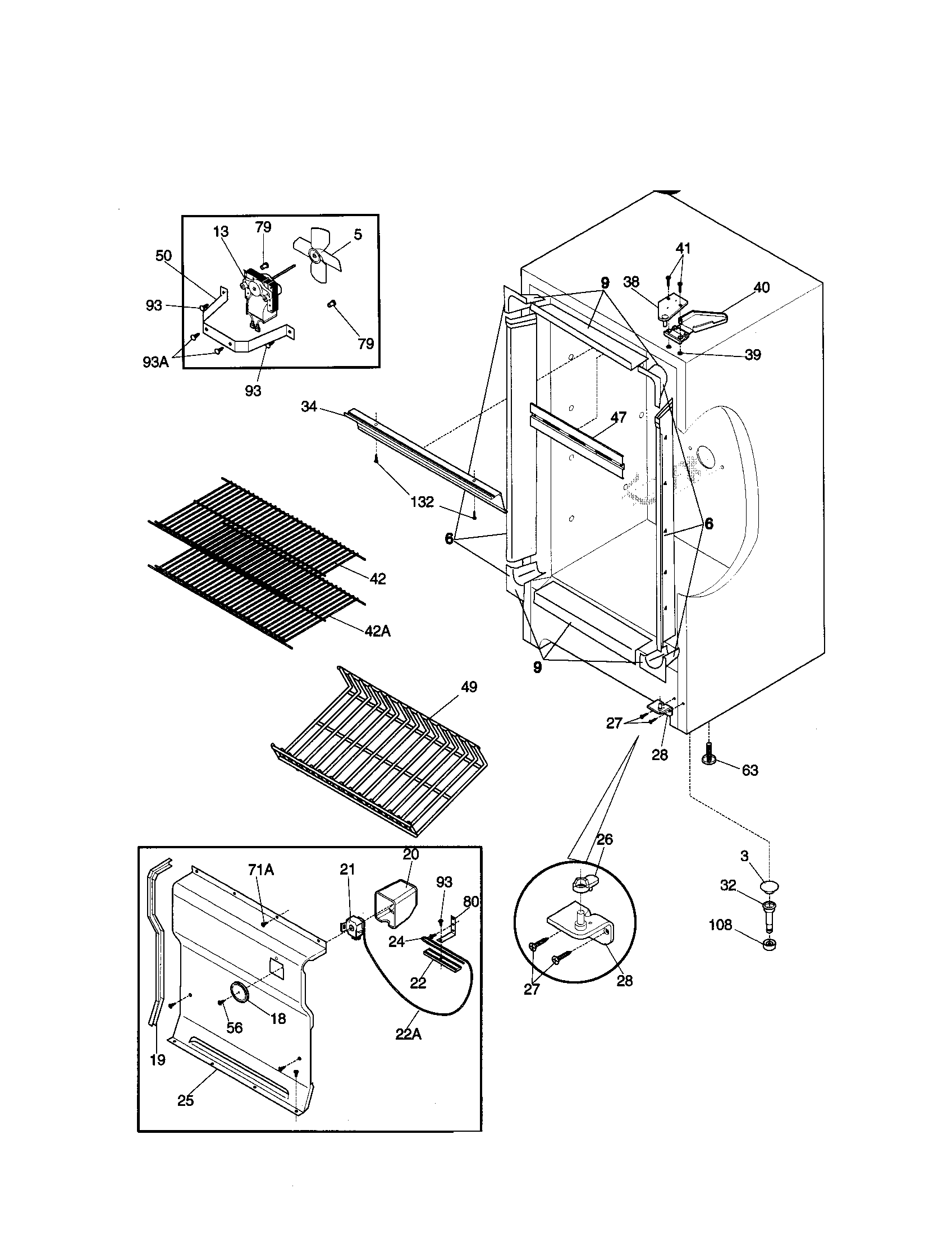

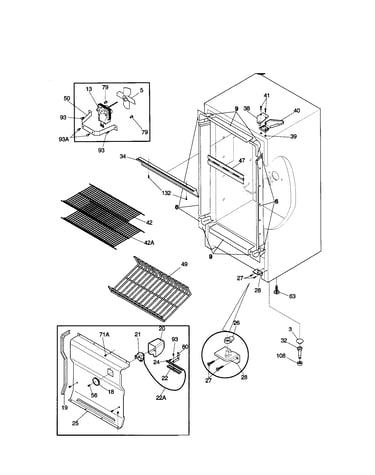

    Cabinet diagram

    Blade

    Part #216325600

    Replaced by #5308000010

    ?
    Manufacturer substitution
    This part replaces 216325600. Substitute parts can look different from the original.
    BEST SELLER
    $43.26 |
    12% OFF Phone Price : $49.26
    In Stock
  • Upright Freezer Defrost Timer 216517400
    #23

    System diagram

    Upright freezer defrost timer

    Part #216517400

    Replaced by #5304518034

    ?
    Manufacturer substitution
    This part replaces 216517400. Substitute parts can look different from the original.
    BEST SELLER
    $35.26 |
    15% OFF Phone Price : $41.26
    In Stock
  • Compressor 216557000
    #29

    System diagram

    Compressor

    Part #216557000

    Replaced by #5304507765

    ?
    Manufacturer substitution
    This part replaces 216557000. Substitute parts can look different from the original.
    BEST SELLER
    $420.99 |
    5% OFF Was : $443.15
    In Stock
  • Defrost Thermostat 5304404743
    #20

    System diagram

    Defrost thermostat

    Part #5304404743

    Replaced by #297216600

    ?
    Manufacturer substitution
    This part replaces 5304404743. Substitute parts can look different from the original.
    BEST SELLER
    $19.72 |
    9% OFF Phone Price : $21.72
    In Stock
  • Heat Exchange 216565700
    #15A

    System diagram

    Heat exchange

    Part #216565700

    Replaced by #297348500

    ?
    Manufacturer substitution
    This part replaces 216565700. Substitute parts can look different from the original.
    BEST SELLER
    $93.29 |
    6% OFF Phone Price : $99.29
    In Stock
  • Appliance Leveling Leg 216396900
    #63

    Cabinet diagram

    Appliance leveling leg

    Part #216396900

    $29.59 |
    17% OFF Phone Price : $35.59
    In Stock
  • Freezer Drain Hose Adapter 5308005500
    #32

    Cabinet diagram

    Freezer drain hose adapter

    Part #5308005500

    Replaced by #5304511843

    ?
    Manufacturer substitution
    This part replaces 5308005500. Substitute parts can look different from the original.
    This item is not returnable
    $13.52 |
    13% OFF Phone Price : $15.52
    In Stock
  • Freezer Inner Door Panel Rivet 5303212828
    #27

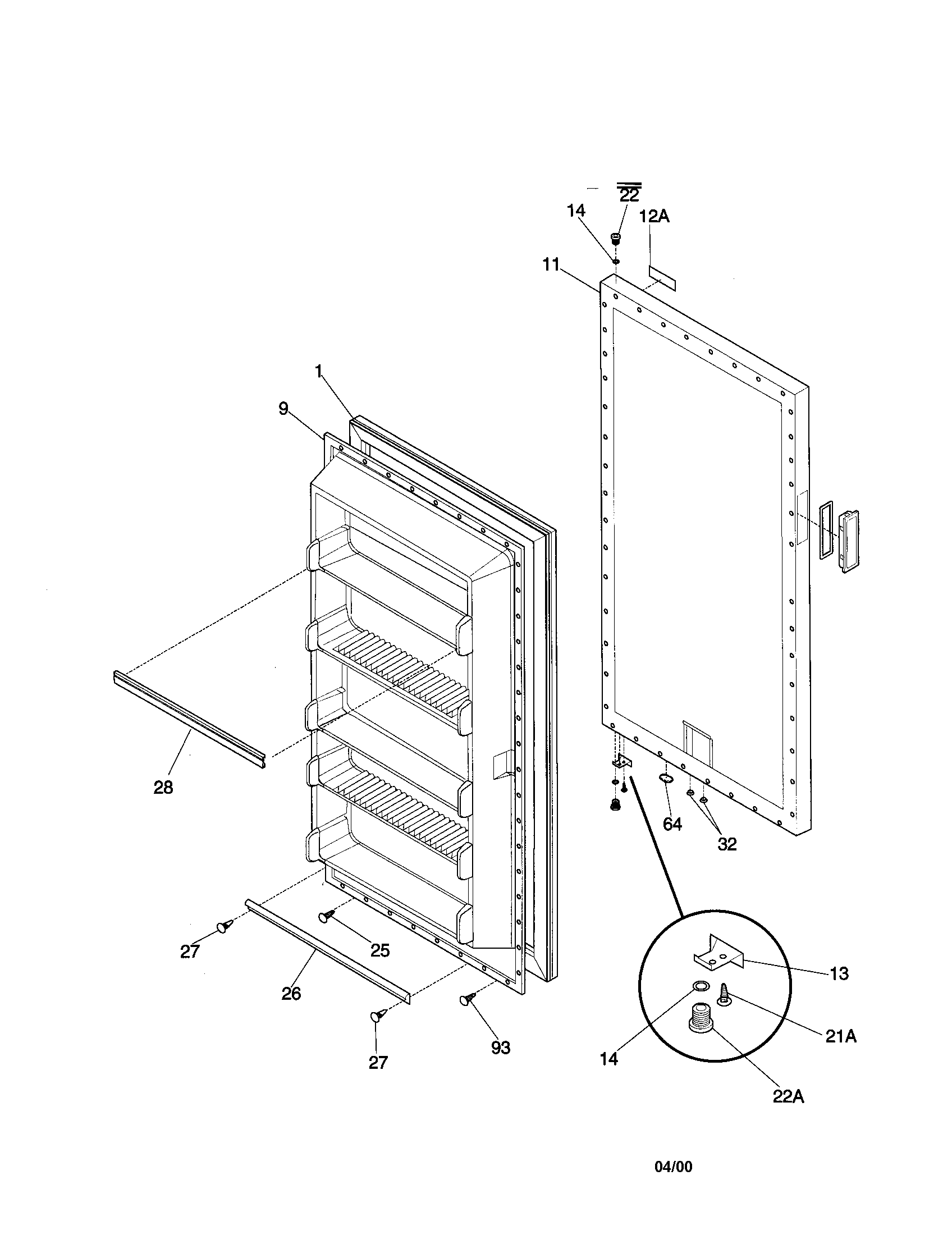

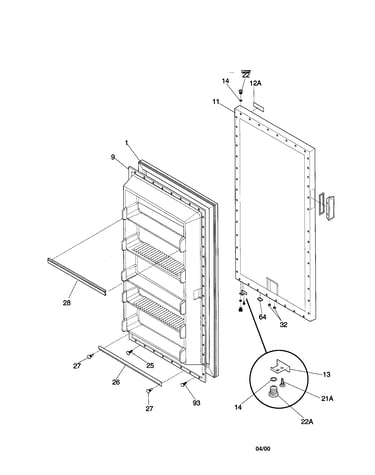

    Door diagram

    Freezer inner door panel rivet

    Part #5303212828

    $18.88 |
    10% OFF Phone Price : $20.88
    In Stock
  • Screw (i 216036600
    #86

    System diagram

    Screw (i

    Part #216036600

    Replaced by #216036601

    ?
    Manufacturer substitution
    This part replaces 216036600. Substitute parts can look different from the original.
    $14.74
    In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

Read more

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Read more

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Read more

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Read more

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Read more

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Read more

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Read more

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …

Read more
