Model # 919165612 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919165612 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

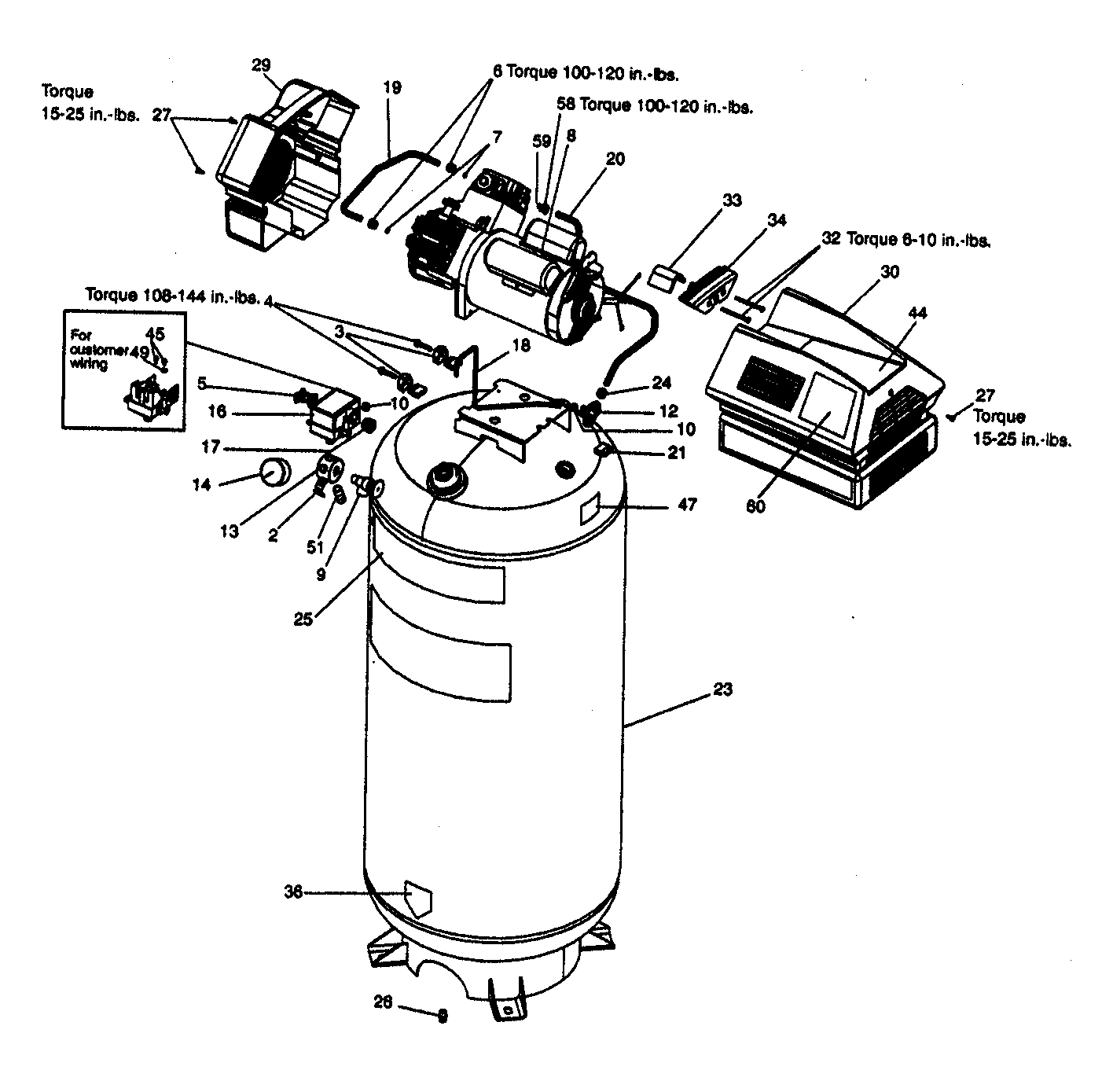

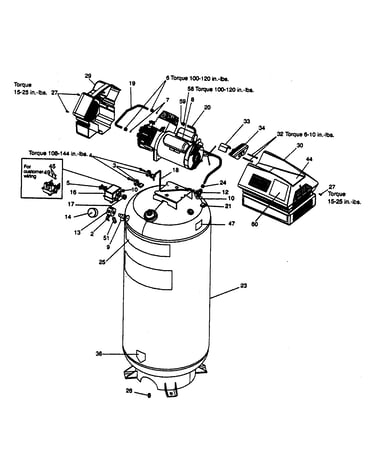

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 57 parts |

Air Compressor High-pressure Connecting Rod Kit D24958

#NI

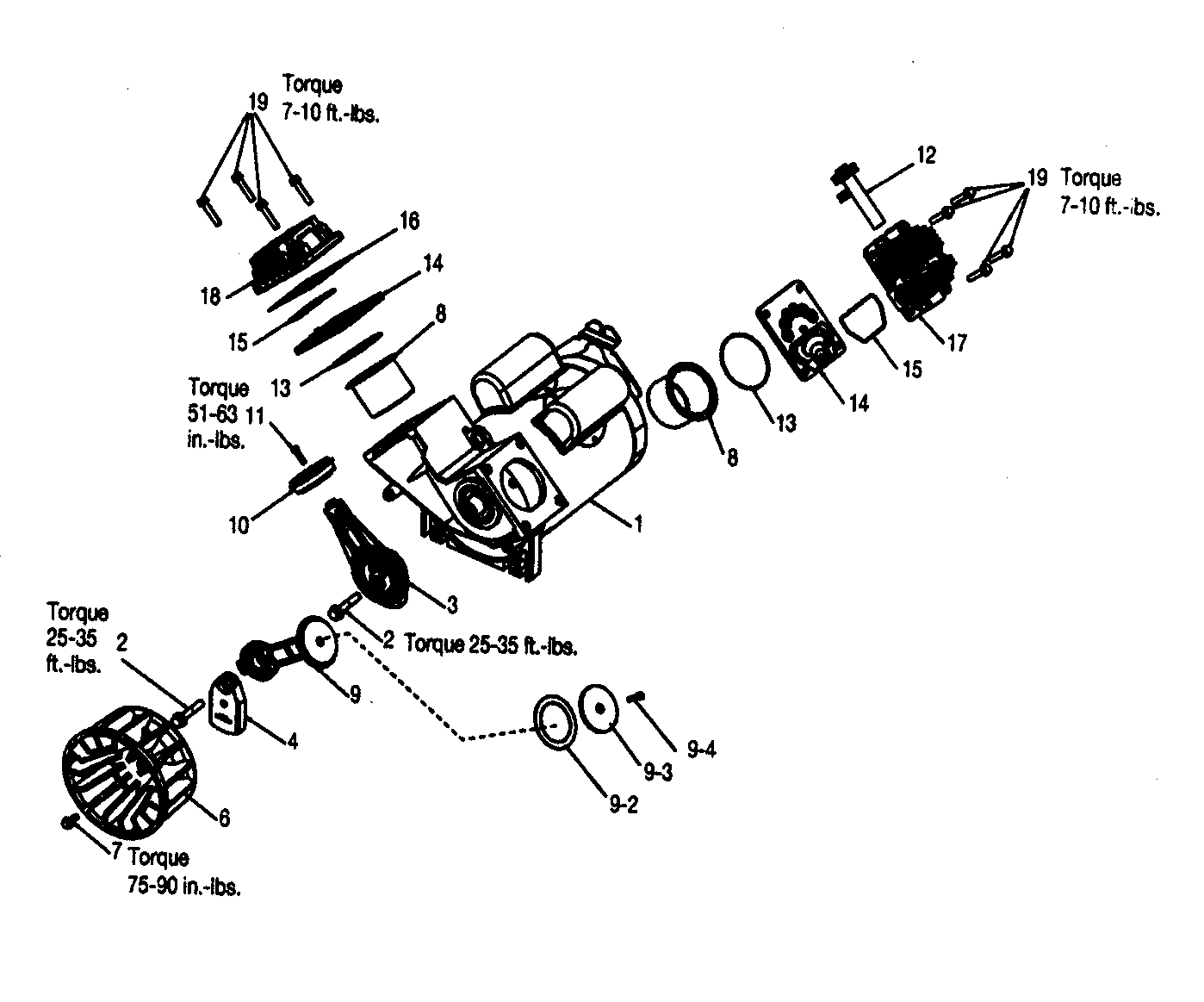

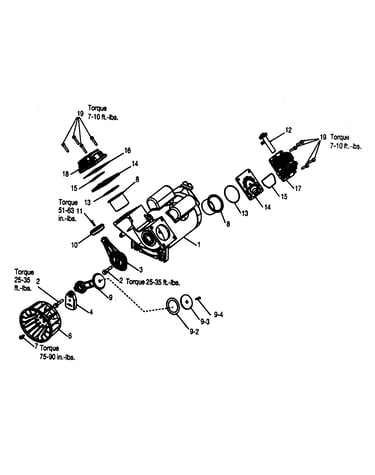

Pump assy diagram

Air compressor high-pressure connecting rod kit

Part #D24958

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Weg Motor Start Capacitor D29144

#NI

Pump assy diagram

Air compressor weg motor start capacitor

Part #D29144

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Vibration Isolator Pad ACG-19

#20

Compressor diagram

Air compressor vibration isolator pad

Part #ACG-19

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Compression Ring Service Kit K-0648

#NI

Pump assy diagram

Tower air compressor compression ring service kit

Part #K-0648

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Air compressor power cord strain relief

Part #SSW-7482

The manufacturer no longer makes this part, and there's no substitute part

Tower air compressor connecting rod screw

Part #SSF-3158-1

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Air compressor shroud screw mount

Part #ACG-18

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Intake Muffler ACG-11

#12

Pump assy diagram

Tower air compressor intake muffler

Part #ACG-11

The manufacturer no longer makes this part, and there's no substitute part

#10

Compressor diagram

Air compressor nut and sleeve

Part #SSP-7811

The manufacturer no longer makes this part, and there's no substitute part

Pump assy diagram

Tower air compressor screw

Part #39124607

The manufacturer no longer makes this part, and there's no substitute part
