If the dryer drum on your GE GTUP270EM3WW laundry center is not rotating, the most common causes are a failed drive belt, a seized drum support (glides or bearing), or a motor issue. Start with simple checks like load size and door closure, then inspect the drum support and drive components.

• Make sure the dryer door closes fully and latches; a door switch problem can stop the motor from running.
• Try a different cycle and confirm you are starting the dryer correctly.
• Reduce the load; an overloaded drum can strain the drive system and stop rotation.
• Listen for symptoms:
  • Motor hums but drum does not move: belt or drum support is often the issue.
  • No motor sound at all: door switch, timer/control, or motor circuit is more likely.

On stacked laundry centers like the GTUP270EM3WW, drum support wear is a frequent reason the drum stops turning or binds.

• Worn drum glides or bearing support: the drum can drag, bind, or sit too low.
  • Check the dryer drum glide bearing (green) WE03X37317 and dryer drum front glide pad WE03X37318.

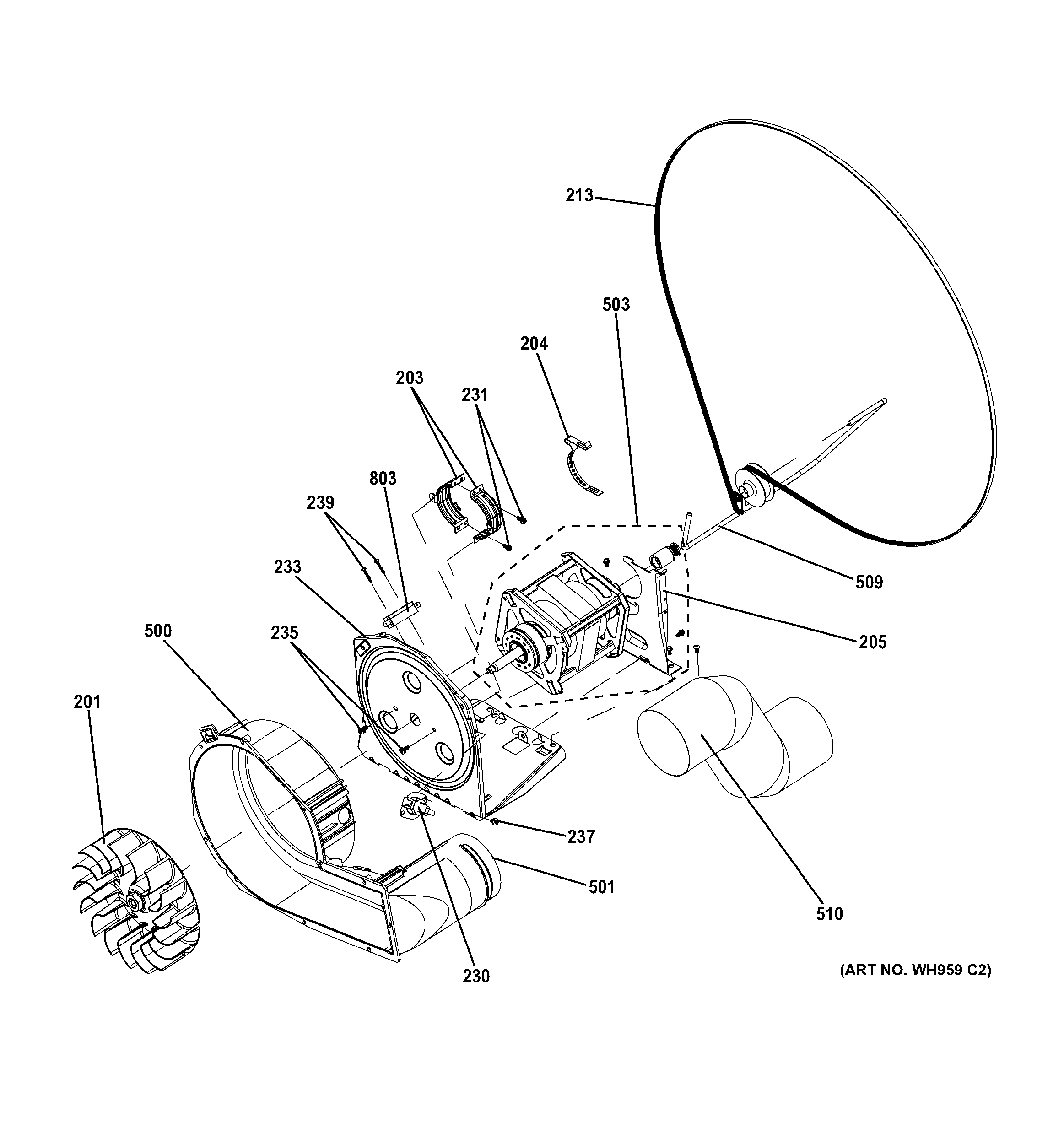

• Drive motor problem: if the motor will not start or cannot turn under load.
  • If needed, the matching part is dryer drive motor with pulley WE17X22217.

1. Unplug the laundry center before servicing.
2. Open the cabinet and check for drum drag (hard to turn by hand).
3. Inspect glides and bearing support for wear, missing material, or scoring.
4. Check for signs of overheating or lint buildup around the blower housing.
5. If the drum turns freely but will not run, move to motor and switch diagnostics.

A non-rotating drum is not just a convenience issue; continued attempts to run the dryer can overheat components, damage the drum support surfaces, and shorten motor life. Correcting drag and airflow issues helps the dryer heat and dry safely and efficiently.

For model-specific access steps and safety notes, follow the installation guide.

Last updated: February 2026

For your GE GTUP270EM3WW laundry center, the most reliable way to get the right GE part number is to match the exact model number first, then use the parts diagram and part list for that model so the part ID and manufacturer part number line up with your specific washer or dryer section.

• Confirm the model number is GTUP270EM3WW (use the model tag on the unit).
• Use the model’s parts breakdown to identify the exact component name and location.
• Match the part by part name + part ID (this avoids ordering a similar-looking part).
• Cross-check the symptom to the most common wear parts for that area.
• Verify any electrical or wiring-related part using the wiring diagram location noted for service (typically at an access panel); follow the safety labeling guidance in the installation instructions.

GE often uses similar-looking parts across multiple laundry centers, but mounting points, wiring connectors, and revisions can differ by model. Matching the part to GTUP270EM3WW prevents fit issues, repeat failures, and return delays.

Use the owner's manual for model identification guidance and operating details, and the installation guide for service and wiring safety notes before you disconnect or label wires.

Last updated: February 2026

For the GE GTUP270EM3WW laundry center, a “hard reset” is a power reset: unplug the unit (or switch the breaker off) for 1 minute, then restore power and start a cycle. This clears many temporary control glitches without replacing parts.

• Press Power/Off (if your control has it) to stop the cycle.
• Unplug the laundry center from the outlet (or turn the breaker OFF).
• Wait 60 seconds.
• Restore power.
• Wait 30 seconds for the control to fully reboot.
• Select a Rinse/Spin or Drain/Spin cycle and press Start.

A reset helps with a “stuck” control, but it will not correct a mechanical failure (belt, pump) or a failed safety device (lid lock). Check these common causes next:

• Washer will not start or won’t spin: lid lock not engaging

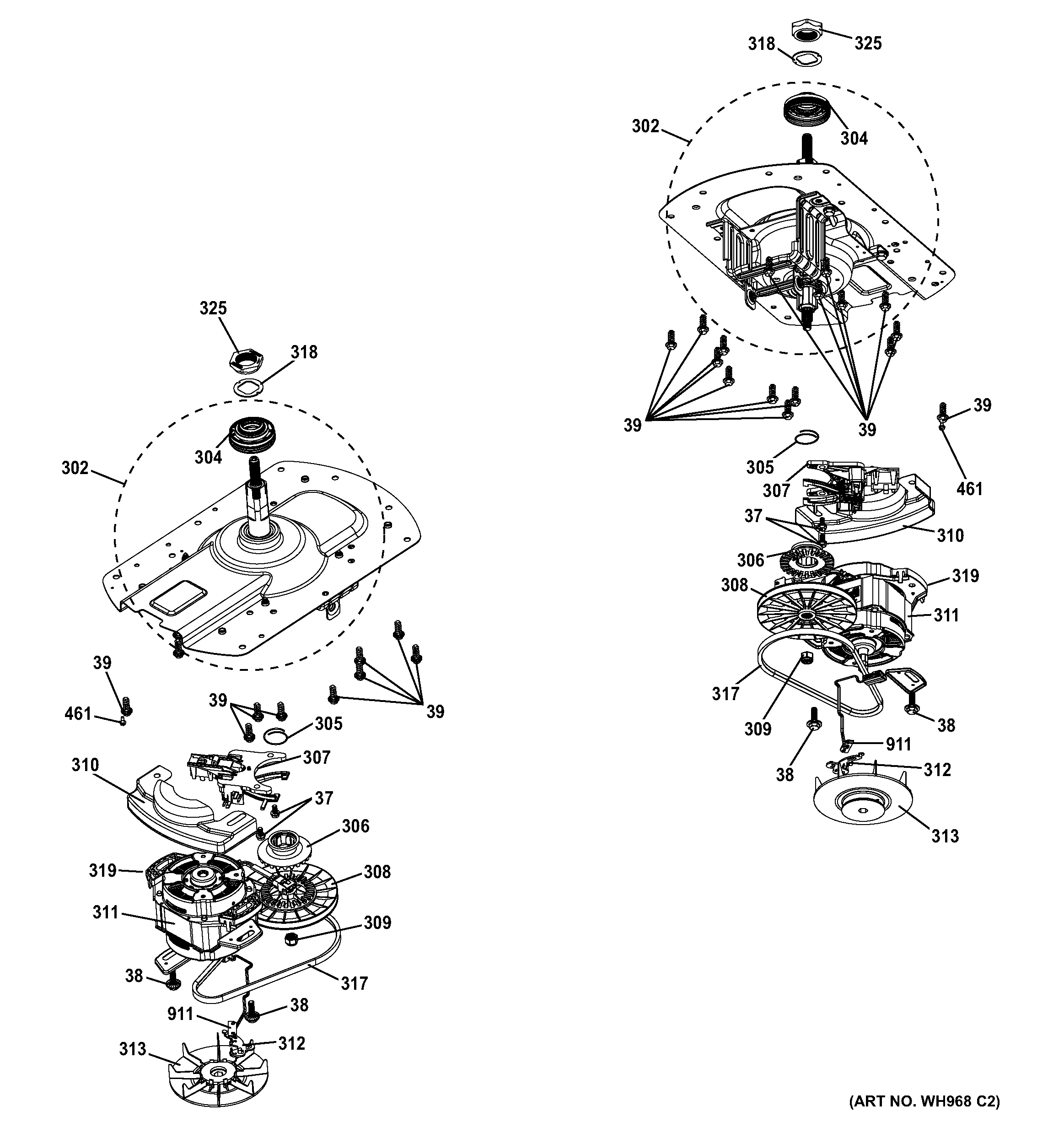

• Washer hums but won’t agitate/spin: worn or broken drive belt
• Washer won’t drain: drain pump issue or a blockage
• Intermittent operation: loose wiring connection at the control or motor area

Helpful parts for this model include the washer lid lock WH44X10288, washer drive belt WH01X20436, and washer drain pump WH23X10040.

Resetting power is the fastest way to clear a control-board “hang” after a power flicker or an interrupted cycle. If symptoms return quickly, focusing on the lid lock, drain system, or drive system prevents repeat shutdowns and incomplete loads.

For control locations, wiring diagram notes, and operating steps, use the installation guide.

Last updated: February 2026

You can order replacement parts for your GE GTUP270EM3WW stacked laundry center by using the parts list for this model and matching the part to your symptom, diagram location, and model number. For correct fit and safe installation, confirm requirements and procedures in the installation guide.

• Use the full model number GTUP270EM3WW when selecting parts.
• Compare the part name and part ID, not just the description.
• Check whether you are repairing the washer side or the dryer side.
• Review electrical and venting requirements before replacing electrical or heating parts.
• If you are unsure, verify the part location using the diagrams and instructions.

This laundry center must be connected to the correct electrical supply and properly vented. The installation instructions also emphasize securing internal duct joints with tape and disconnecting power before servicing; following those steps helps prevent repeat failures and unsafe operation.

• Confirm the symptom (noise, no heat, no drain, no spin)
• Identify the exact part by part ID and diagram position
• Verify compatibility with GTUP270EM3WW
• Gather basic tools and follow the safety steps in the installation guide
