Kenmore 10653203202 refrigerator Parts

Your Kenmore refrigerator model 10653203202 has a specific cubic-foot capacity, but the most reliable way to get the exact number is to read the model and serial label inside the fresh food compartment and then confirm the listed specifications in the owner's manual. This avoids guessing based on model-number patterns.

Where to find the capacity for model 10653203202

Check these spots in order:

• Model and serial label on the inside wall of the refrigerator compartment (this is the best starting point)
• Specifications section in the owner's manual
• If you are comparing fit or airflow clearances for installation, confirm spacing guidance in the installation guide

Quick identification checklist

Use this checklist so you record the right information before you look up specs:

• Write down the full model number: 10653203202
• Record the serial number from the same label
• Note whether the unit has an ice maker and water dispenser (features can affect configuration)
• Confirm it is a side-by-side refrigerator (not a top freezer or bottom freezer)

Why the rating label matters

Model numbers sometimes look like they include capacity, but that is not consistent across Kenmore refrigerator lines. The rating label and the manual specs give the exact cubic feet for your specific build.

When cubic feet matters most

What you are doing	Why capacity helps	What else to check
Replacing the refrigerator	Confirms comparable storage size	Cutout width, height, depth, door swing clearance
Planning kitchen layout	Helps estimate usable space	Ventilation clearances and water line space
Troubleshooting cooling complaints	Rules out overloading a smaller cavity	Air circulation and shelf/bin placement

Ordering parts while you check specs

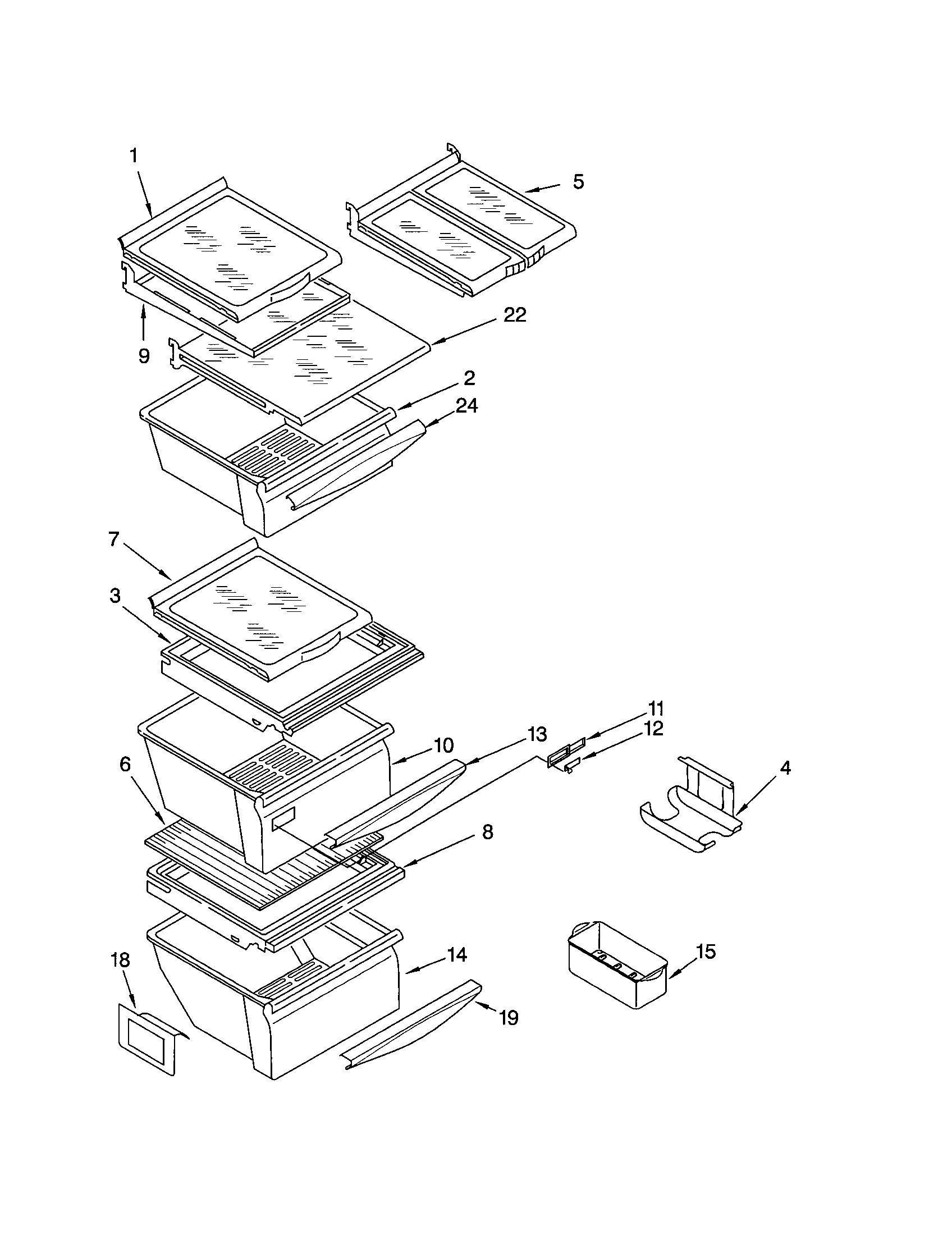

If you are measuring space or planning a refresh, you can order common replacement items for model 10653203202 from the parts list, or search by model on Sears PartsDirect. For example, storage parts like the refrigerator crisper pan WP2188656 are listed for this model.

Last updated: February 2026

The most common issues we see on Kenmore refrigerators like model 10653203202 are ice maker or dispenser problems, weak cooling, water leaks, unusual noise, and frost or moisture buildup. Many of these trace back to airflow blockages, water supply or filter restrictions, or a failing fan or valve.

Common problems and what to check first

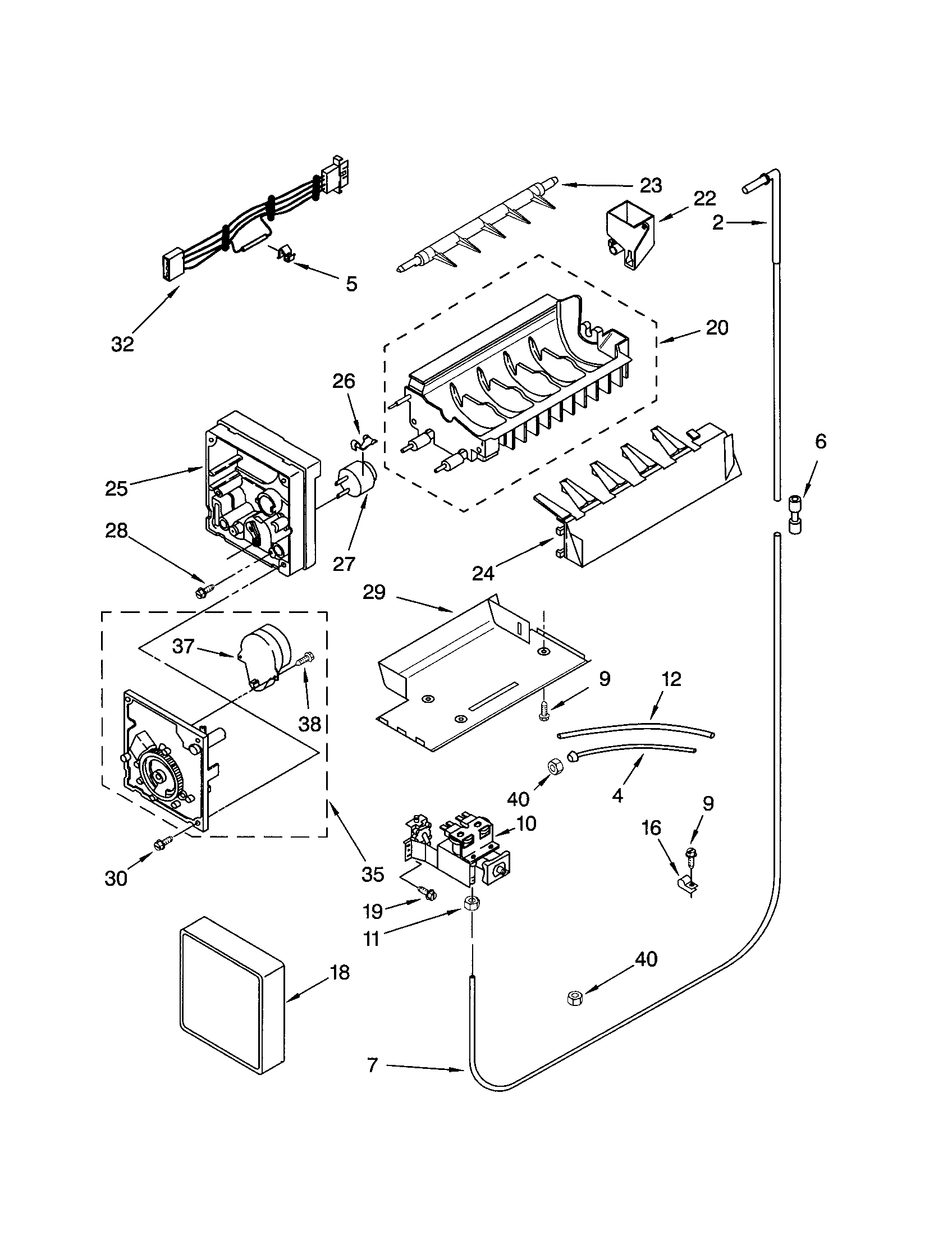

• Ice maker not making ice: confirm the freezer is cold enough, the ice bin is seated, and cubes are not clumped.
• Water dispenser slow or not dispensing: check for a kinked supply line and a clogged or misinstalled filter.
• Refrigerator not cooling well: make sure air vents are not blocked and doors are closing fully.
• Water leaking at the dispenser: use only cubes made by the current ice maker; clear any stuck ice in the chute.
• Interior moisture buildup: reduce door openings, wrap food tightly, and keep vents clear.
• Noisy operation: fan-related noise often points to an airflow or fan issue.

Quick troubleshooting by symptom (what it usually means)

Symptom	Most likely cause	Best first action
Warm fridge or freezer	Airflow blocked, controls need reset	Clear vents; for digital controls, turn OFF then ON
Slow water flow	Kinked line, clogged filter, shutoff issue	Inspect line; recheck filter install
Ice spilling or leaking	Glass removed too soon, chute obstruction	Hold cup 2 to 3 seconds after dispensing
Moisture inside	High humidity, frequent door opening	Organize food; open door less often

Parts that commonly relate to these problems

If troubleshooting points to a specific failure, these parts on this model are often involved:

• Water supply and dispensing: refrigerator inlet valve W10822681, refrigerator water tube 8201597, refrigerator water filter housing WP2186443

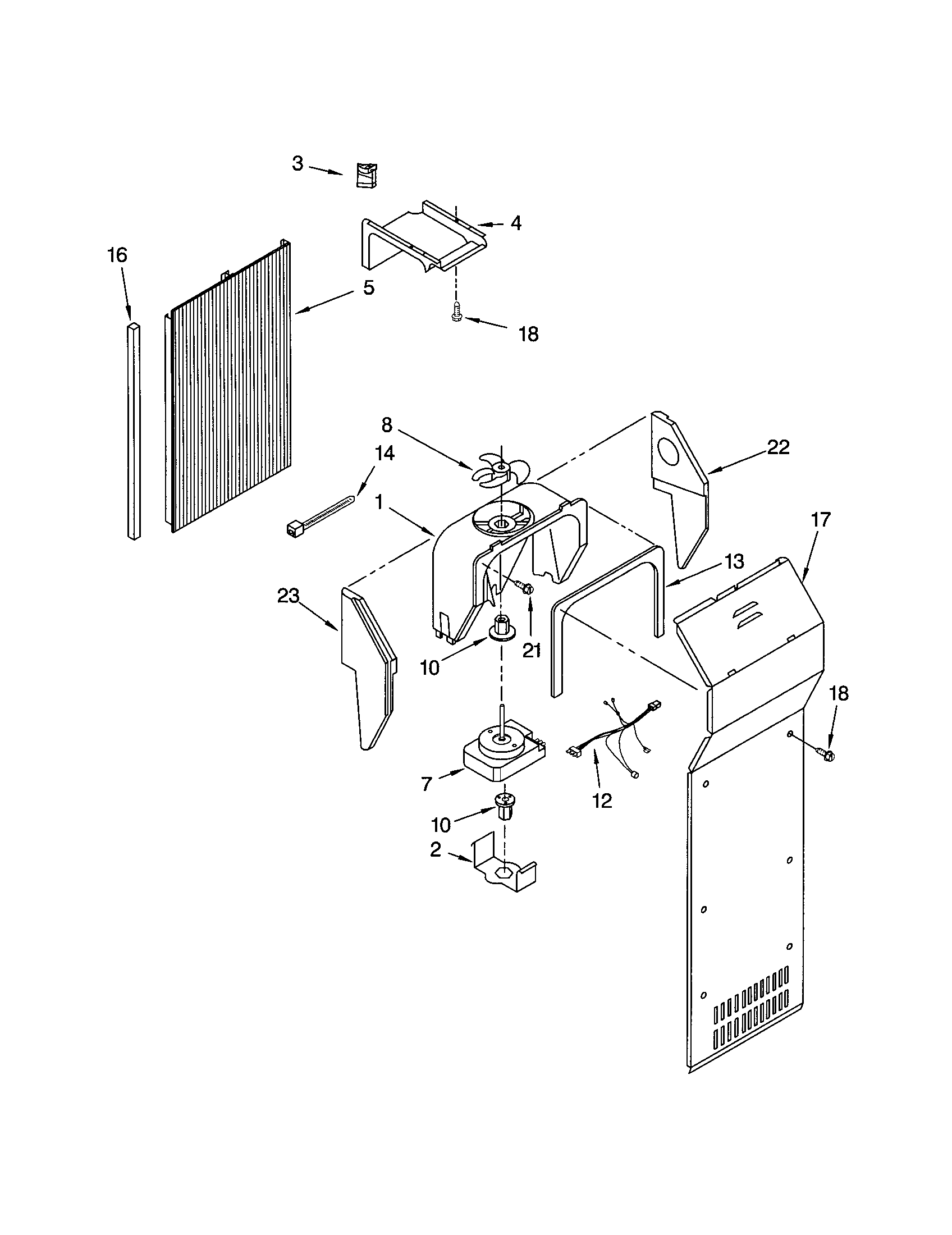

• Cooling airflow: refrigerator evaporator fan blade WP2169142, refrigerator air diffuser WP2216112, refrigerator condenser fan W10181323
• Defrost and frost buildup: refrigerator defrost bi-metal WPW10225581

Why it matters

Catching airflow restrictions and water supply issues early helps protect food temperatures, prevents puddles and ice jams, and reduces strain on major components like the compressor.

Helpful model-specific resources

• Use the owner's manual troubleshooting section for control settings, airflow guidance, and dispenser checks.
• For model-family diagnostics, see Kenmore 106 model refrigerator error codes.
• To order replacement parts for Kenmore 10653203202, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

On a Kenmore side-by-side refrigerator model 10653203202, a “not cooling” problem is usually caused by a power or control setting issue, blocked air vents that stop airflow between compartments, or a cooling-system problem such as a failed fan, defrost issue, or compressor start problem. Use the checks in the owner's manual first.

Quick checks we recommend first (fastest to rule out)

• Confirm the power cord is fully plugged into a grounded outlet.
• Check the house breaker or fuse and reset/replace if needed.
• Make sure the refrigerator and freezer controls are not set to OFF.
• Look for blocked air vents in either compartment; move food packages away from vent openings.
• If your model has digital controls, turn the unit OFF then ON to reset the controls.
• If the unit is in an automatic defrost cycle, wait 30 minutes and recheck cooling.

What “stopped cooling” usually means (symptom to cause)

What you notice	Most likely area to check	What to do next
Lights on, but temps rising	Airflow or defrost	Clear vents; listen for evaporator fan; check for frost buildup
Freezer cold, fresh food warm	Air diffuser or blocked vents	Clear vents; inspect diffuser operation
No fan sound, warmer than normal	Fan or control	Inspect evaporator fan area; verify doors close fully
Clicking/humming, then stops	Compressor start components	Check start/run components such as the capacitor

Parts that commonly relate to “not cooling” on this model

If your troubleshooting points to a specific failure, these parts on our list are commonly involved:

• Refrigerator evaporator fan blade WP2169142 (air circulation in the freezer and into the fresh-food section)
• Refrigerator defrost bi-metal WPW10225581 (helps protect the defrost heater circuit; failures can contribute to frost and airflow blockage)
• Refrigerator run capacitor WPW10662129 (supports compressor starting and running)
• Refrigerator compressor W10309990 (sealed-system component; replacement is typically a professional repair)

Why it matters

A side-by-side depends on steady airflow from the freezer to the refrigerator section. When vents are blocked or frost builds up, cold air cannot move properly, so temperatures rise even though the unit may still sound like it is running.

Ordering the right replacement part

We recommend matching parts by your full model number 10653203202 and comparing the part ID before ordering. You can order model-matched parts from the parts list for this refrigerator, or search by model on Sears PartsDirect.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 10653203202, the model number is printed on the model and serial number label located on the inside wall of the refrigerator (fresh food) compartment. Use that label anytime you’re ordering parts, checking the manual, or scheduling service.

What to look for on the label

The same label typically lists both identifiers you need:

• Model number (for example, 10653203202)
• Serial number (unique to your specific refrigerator)
• Purchase date (often written in by the owner)
• Brand name (Kenmore)

For the exact wording and “Product Record” section, check the owner's manual.

Quick steps to find it fast

1. Open the refrigerator door (not the freezer door).
2. Look along the inside side wall of the fresh food compartment.
3. Check near the crisper area or along the wall where shelves mount.
4. Wipe the area with a damp cloth if the label is dusty or hard to read.

Why it matters

Using the correct model number ensures you get parts that fit your exact Kenmore 106 series design. Even small model-number differences can change shelf supports, door hardware, water system routing, and electrical components.

Model vs. serial number (at a glance)

Item	What it identifies	Used for
Model number	The refrigerator’s design and parts list	Ordering the right replacement parts
Serial number	Your specific unit	Age tracking and service history

If you’re ordering common fit parts for this model (like storage bins and pans), match the model number first, then choose the part you need from the parts list or search on Sears PartsDirect.

Last updated: February 2026
