Model # ISD995-2WKM Official Genie garage door opener

Here are the diagrams and repair parts for Official Genie ISD995-2WKM garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Carriage Assembly 34107R
#11

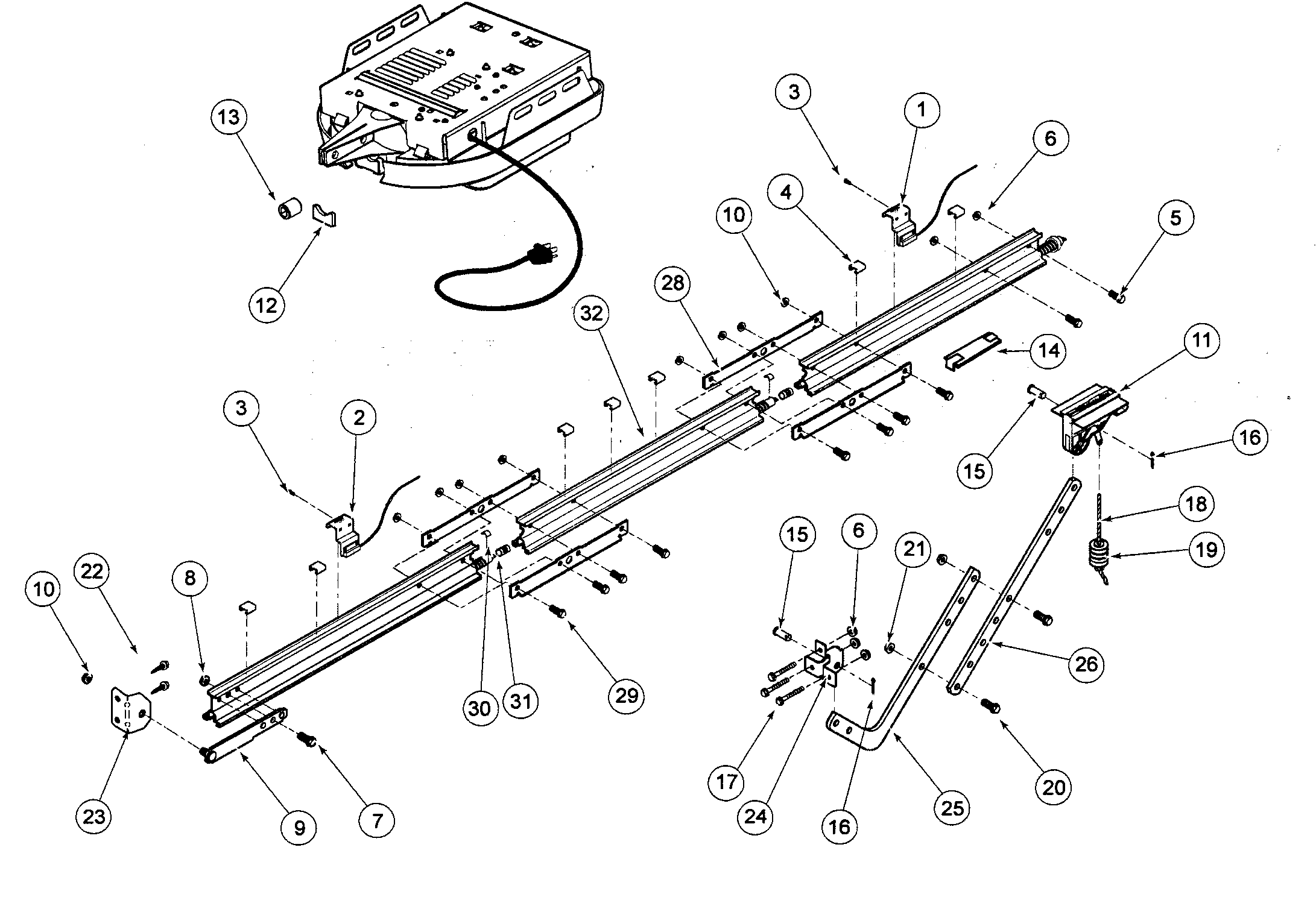

Rail assy diagram

Carriage assembly

Part #34107R

The manufacturer no longer makes this part, and there's no substitute part

Coupler 30257T
#13

Rail assy diagram

Coupler

Part #30257T

The manufacturer no longer makes this part, and there's no substitute part

Screw 8094G04
#3

Rail assy diagram

Screw

Part #8094G04

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Hex Nut 24121C05
#10

Rail assy diagram

Garage door opener hex nut

Part #24121C05

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Nut 24121B05
#6

Rail assy diagram

Garage door opener nut

Part #24121B05

The manufacturer no longer makes this part, and there's no substitute part

Antenna Kit 108035.0007
#NI

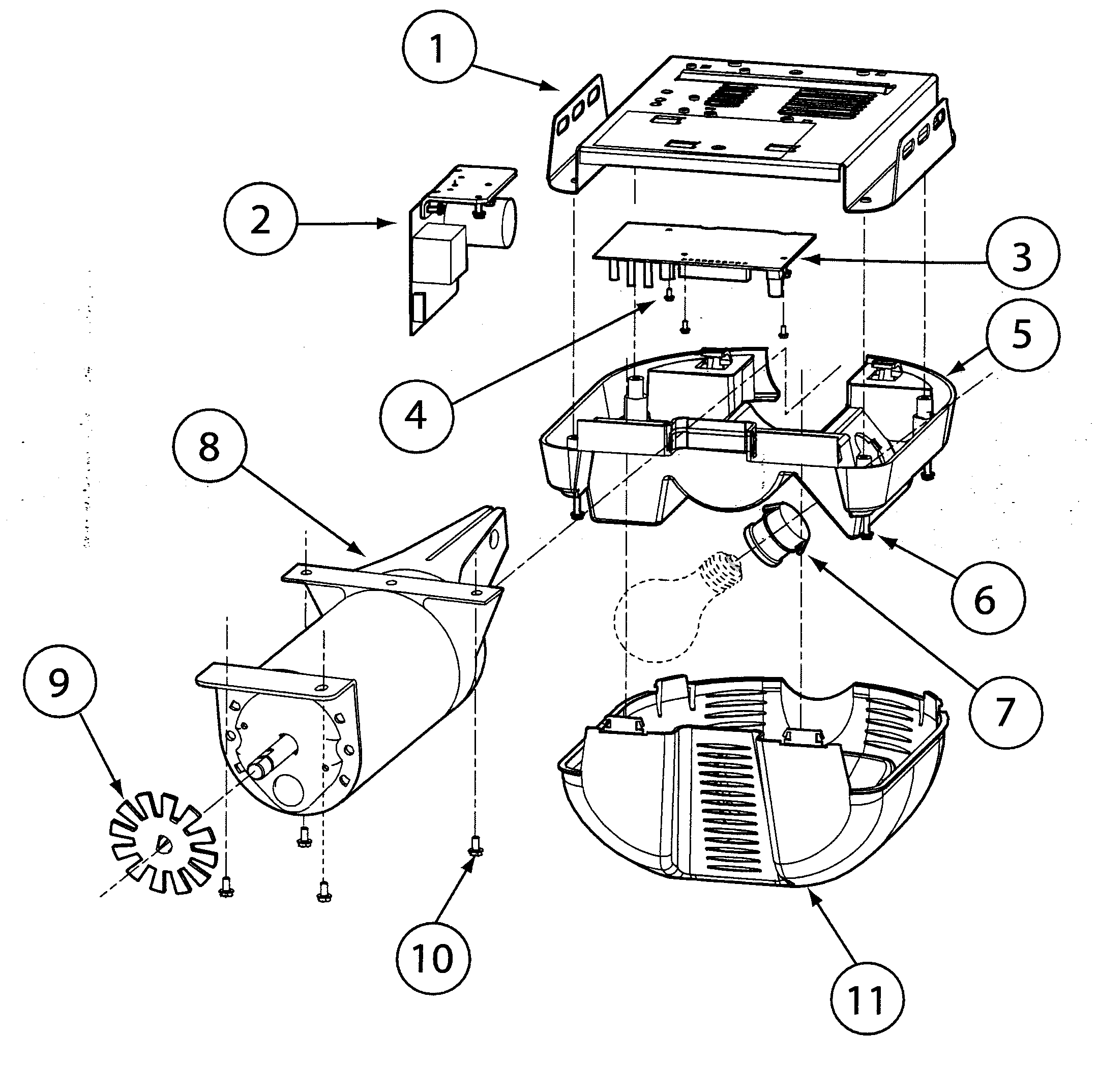

Motor assy diagram

Antenna kit

Part #108035.0007

The manufacturer no longer makes this part, and there's no substitute part

Nut 086480.1620
#8

Rail assy diagram

Nut

Part #086480.1620

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Bolt 8025E04
#7

Rail assy diagram

Garage door opener bolt

Part #8025E04

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 25585A
#NI

Motor assy diagram

Strain relief

Part #25585A

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Wire Clip 33905A
#4

Rail assy diagram

Garage door opener wire clip

Part #33905A

The manufacturer no longer makes this part, and there's no substitute part
