Kenmore 153330280 gas water heater Parts

A 50-gallon gas water heater typically costs about $600 to $2,000+ for the unit, and about $1,000 to $3,000+ installed, depending on efficiency (standard vs. power-vent/high-efficiency), warranty length, and local labor rates. For Kenmore models like the 153.330280/153.330290 family, confirm capacity and requirements in the 153330280 use and care guide.

What changes the price the most

• Venting type: atmospheric vent units usually cost less than power-vent models
• Efficiency level: higher efficiency usually means higher upfront cost
• Warranty length: longer warranties often raise the unit price
• Installation complexity: gas line changes, venting updates, or code-required upgrades add cost
• Location and access: tight closets, attic installs, or long vent runs increase labor

Typical cost ranges (unit vs. installed)

Type of 50-gal gas water heater	Typical unit price	Typical installed total
Standard atmospheric vent	$600 to $1,000	$1,000 to $2,200
High-efficiency / specialty venting	$1,200 to $2,000+	$2,000 to $3,000+

Model-specific notes that affect install cost

Your Kenmore Ultra Low NOx platform includes common safety and plumbing components that can influence install scope and parts needed:

• T&P relief valve and discharge piping routing
• Heat trap nipples on hot and cold lines
• Drain valve access for maintenance
• Draft hood and vent connector fit
• Combustion air and ventilation requirements

For example, if you are also budgeting for maintenance parts, an anode rod replacement can be a normal ownership cost over time; the correct part for this model family is the anode rod 100109594.

Why it matters

A water heater quote can look “high” because the installed price often includes safety-related updates (venting, gas shutoff, sediment leg, expansion control, and disposal of the old tank), not just the tank itself. Using the correct capacity and installation requirements helps you compare bids accurately.

Last updated: January 2026

To check the model on your Kenmore gas water heater, find the rating plate on the tank and read the model number and other identification details printed there. On Kenmore model 153330280, the manual identifies the rating plate location as part of the water heater’s labeled components in the 153330280 owner's manual.

Where to find the model number (rating plate)

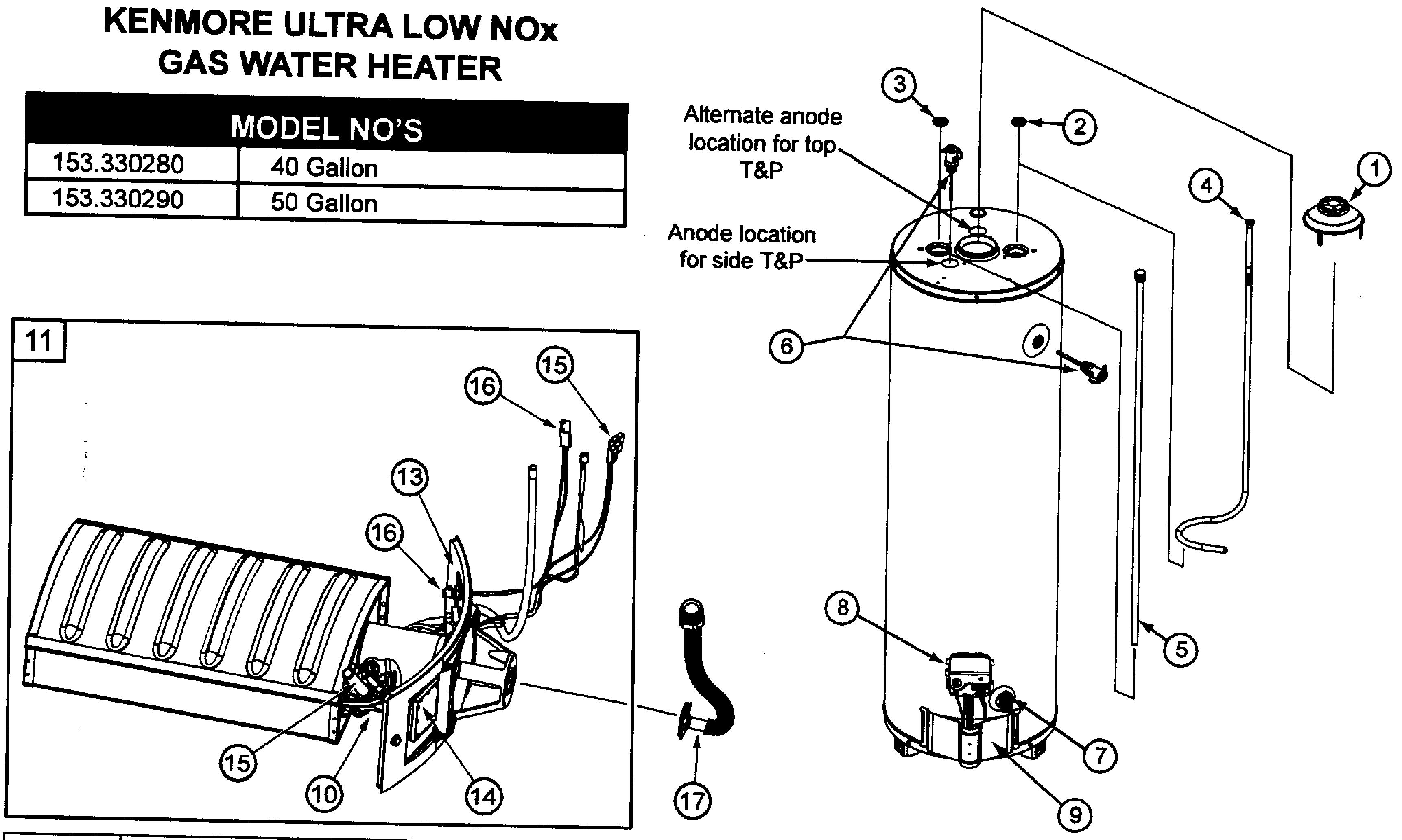

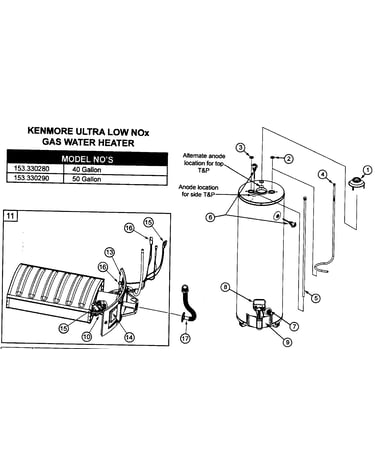

The model number is printed on the rating plate (also called the data plate). On this Kenmore gas water heater, the rating plate is shown as a labeled component in the manual’s “Get to know your water heater” diagram.

Use this quick checklist:

• Look for a rectangular label on the tank jacket (outer metal shell).
• Find the label marked Rating Plate.
• Record the model number (for parts lookup) and serial number (for age and service history).
• Also note fuel type (gas), input rating, and gas pressure information listed.
• If the label is dirty or faded, wipe gently with a damp cloth and re-check under good light.

What information to write down

For ordering parts and matching diagrams, we use the model number first.

What to capture	Why it matters
Model number (example: 153330280)	Ensures parts fit your exact Kenmore water heater
Serial number	Helps identify production run and service details
Gas type and input rating	Confirms correct burner and pilot components
Minimum inlet gas pressure	Helps diagnose supply and performance issues

Why it matters

Kenmore water heater parts can look similar across models, but items like the pilot, burner, and manifold components vary by series. Using the rating plate model number helps us match the correct diagrams and parts the first time.

Related parts you may match by model

If you are checking the model number because you need a repair part, these are common model-matched items for Kenmore 153330280:

• Water heater pilot assembly 100093972 (pilot and thermocouple assembly)
• Water heater burner assembly 100346612 (main burner door assembly)
• Anode rod 100109594 (corrosion protection rod)

Last updated: January 2026

Most Kenmore gas tank water heaters, including model 153330280, typically last 8 to 12 years with normal water quality and routine maintenance. Keeping the burner area clean, maintaining safe venting, and replacing wear items like the anode rod on schedule helps you get the full expected service life.

Typical lifespan and what affects it

A water heater’s life is mostly driven by corrosion inside the tank and how hard the unit has to work.

• Water quality: hard water and sediment shorten tank life
• Maintenance: periodic flushing and anode checks extend life
• Temperature setting: higher settings increase wear and scale
• Venting and combustion air: poor airflow can cause unsafe operation and early failure
• Usage level: larger households cycle the heater more often

Maintenance items that most impact longevity

For the Kenmore 153330280, these parts are commonly tied to performance and long-term reliability:

• Inspect and replace the anode rod 100109594 when it is heavily depleted
• Keep the burner compartment sealed properly; replace the water heater manifold door gasket 100112699 if it is damaged
• Address ignition or pilot issues promptly; the water heater pilot assembly 100093972 is a common service part
• Verify the draft hood and venting are intact and correctly installed

Item	What it protects	Typical service interval
Anode rod	Tank from corrosion	Check every 2 to 3 years
Burner/pilot components	Reliable heating and ignition	As symptoms appear
T&P relief valve	Overpressure safety	Test periodically; replace if leaking

Why it matters

Once the tank itself corrodes through, repairs usually shift from “fixable” to “replace the heater.” Staying ahead of corrosion (anode rod) and combustion issues (airflow, venting, burner condition) is the best way to reach the normal 8 to 12 year lifespan.

For model-specific safety, venting, and maintenance procedures, follow the 153330280 owner’s manual.

Last updated: January 2026

The most common gas water heater problem is no hot water because the pilot will not stay lit, often tied to combustion/venting conditions or a failing pilot system. On Kenmore model 153330280, the 153330280 owner's manual also notes that excessive condensation can drip onto the burner and cause pilot outage.

Quick checks we recommend first

• Confirm the tank is completely full before turning gas on; run a hot faucet until water flows steadily.
• Look for signs of condensation (water drops, sizzling sounds) during the first 1 to 2 hours after a cold refill.
• Verify the vent is drafting properly; poor venting can cause moisture and flue gas issues.
• If the pilot will not stay lit, inspect the pilot flame and pilot assembly condition.
• If you smell gas or suspect unsafe venting, stop and use a qualified technician.

Common causes and what they usually look like

Symptom	Most common cause	What you may notice
Pilot will not stay lit	Condensation dripping onto burner/pilot	Water droplets, sizzling/frying noise, pilot goes out during heavy hot water use
No hot water	Pilot system problem	Pilot flame not visible, burner never ignites
Rumbling or popping	Sediment or lime in tank	Noise during heating, slower recovery
“Leak” appearance	Condensation (not a tank leak)	Water appears early after startup, then fades as tank warms

Parts that are often involved

If the pilot keeps going out after venting and condensation checks, the pilot system is a common repair area for this model. A frequently replaced component is the water heater pilot assembly 100093972.

Why it matters

A stable pilot and proper venting keep the burner operating correctly and help prevent nuisance shutdowns. Condensation can mimic a leak and can also extinguish the pilot, so identifying it early saves time and avoids unnecessary part replacement.

Last updated: January 2026
