Whirlpool YGGE390LXQ00 30" electric freestanding range Parts
Here are the diagrams and repair parts for Whirlpool YGGE390LXQ00 30" electric freestanding range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

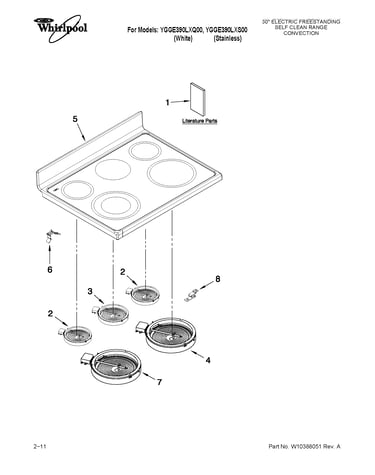

Browse Parts for YGGE390LXQ00 Ranges

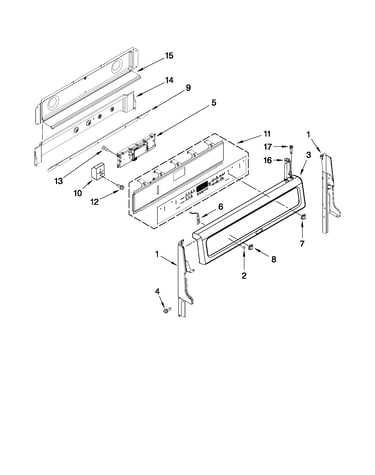

Control panel parts diagram
Receptacle
Part #W10203476Replaced by #W10849725
Manufacturer substitutionThis part replaces W10203476. Substitute parts can look different from the original.In Stock$105.38
Qty

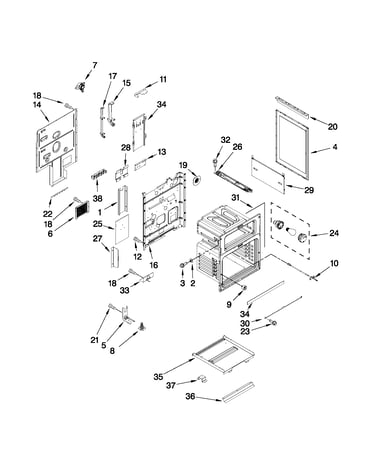

Chassis parts diagram
Screw 8ab
Part #7101P375-60Replaced by #74003975
Manufacturer substitutionThis part replaces 7101P375-60. Substitute parts can look different from the original.In Stock$18.6110% OFF Phone Price : $20.61
QtyMounting Bracket
Part #W10294695Replaced by #WPW10294695
Manufacturer substitutionThis part replaces W10294695. Substitute parts can look different from the original.In Stock$76.187% OFF Phone Price : $82.18QtyChassis parts diagram
Rear Cover
Part #W10260583Replaced by #W10668730
Manufacturer substitutionThis part replaces W10260583. Substitute parts can look different from the original.In Stock$131.658% OFF Phone Price : $143.65QtyChassis parts diagram
Insulation
Part #W10272326Replaced by #W11684900
Manufacturer substitutionThis part replaces W10272326. Substitute parts can look different from the original.In Stock$42.34QtyControl panel parts diagram
Screw (black)
Part #7101P309-60Replaced by #WP7101P309-60
Manufacturer substitutionThis part replaces 7101P309-60. Substitute parts can look different from the original.This item is not returnableIn Stock$33.56QtyControl panel parts diagram
Light- Ind
Part #7407P136-60Replaced by #WP74004153
Manufacturer substitutionThis part replaces 7407P136-60. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyLower door parts diagram
Door Liner
Part #W10272698Replaced by #WPW10272698
Manufacturer substitutionThis part replaces W10272698. Substitute parts can look different from the original.In Stock$252.91QtyChassis parts diagram
Insulation
Part #W10204079Replaced by #WPW10204079
Manufacturer substitutionThis part replaces W10204079. Substitute parts can look different from the original.In Stock$110.88QtyControl panel parts diagram
Screw
Part #7101P636-60Replaced by #WP98008544
Manufacturer substitutionThis part replaces 7101P636-60. Substitute parts can look different from the original.In Stock$33.46Qty
