Model # 11022032102 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 11022032102 washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for11022032102 Washer
- #5

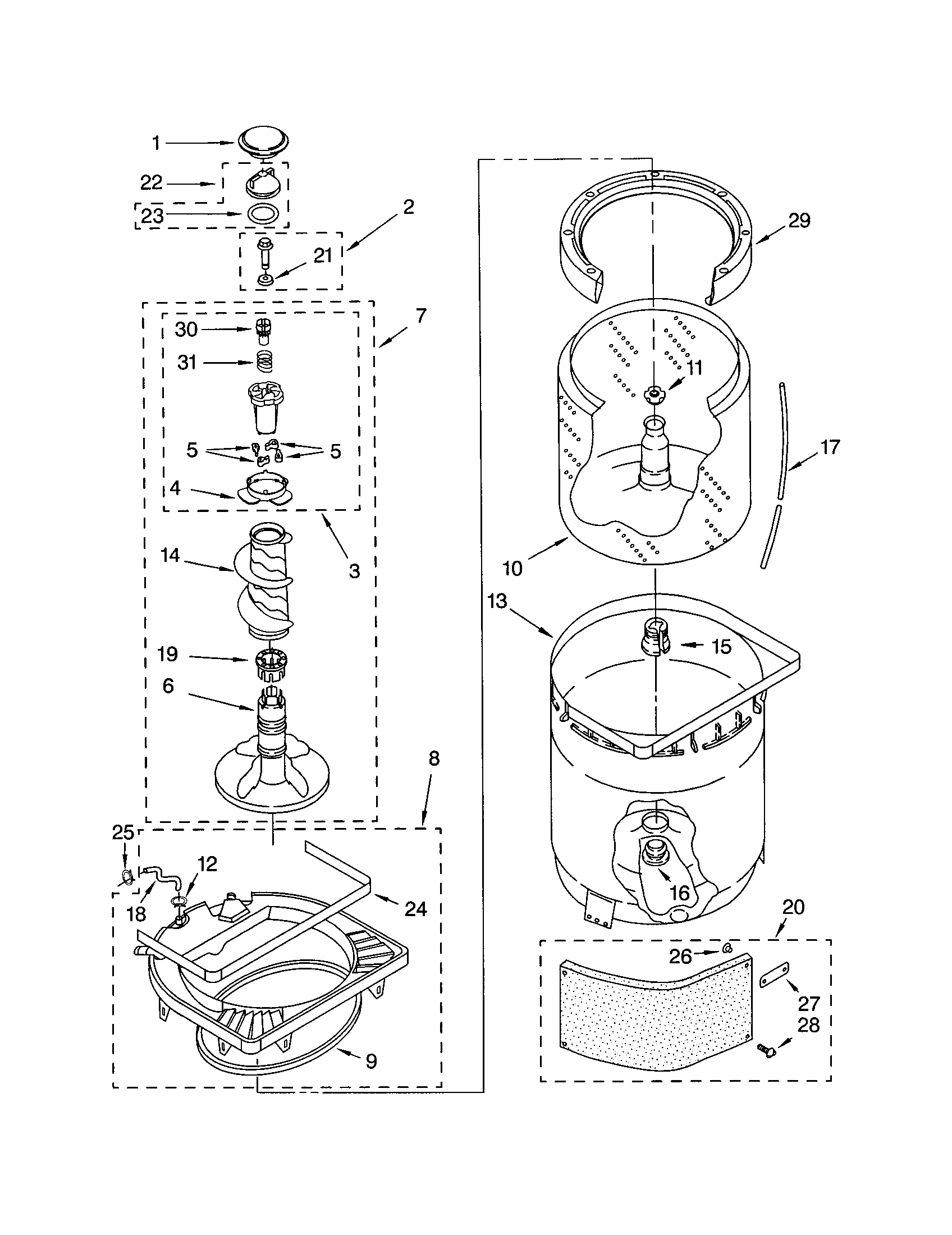

Agitator, basket and tub diagram
Agitator dogPart #3366877
Replaced by #80040
?Manufacturer substitutionThis part replaces 3366877. Substitute parts can look different from the original.$6.50 |13% OFF Phone Price : $7.50In Stock - #13

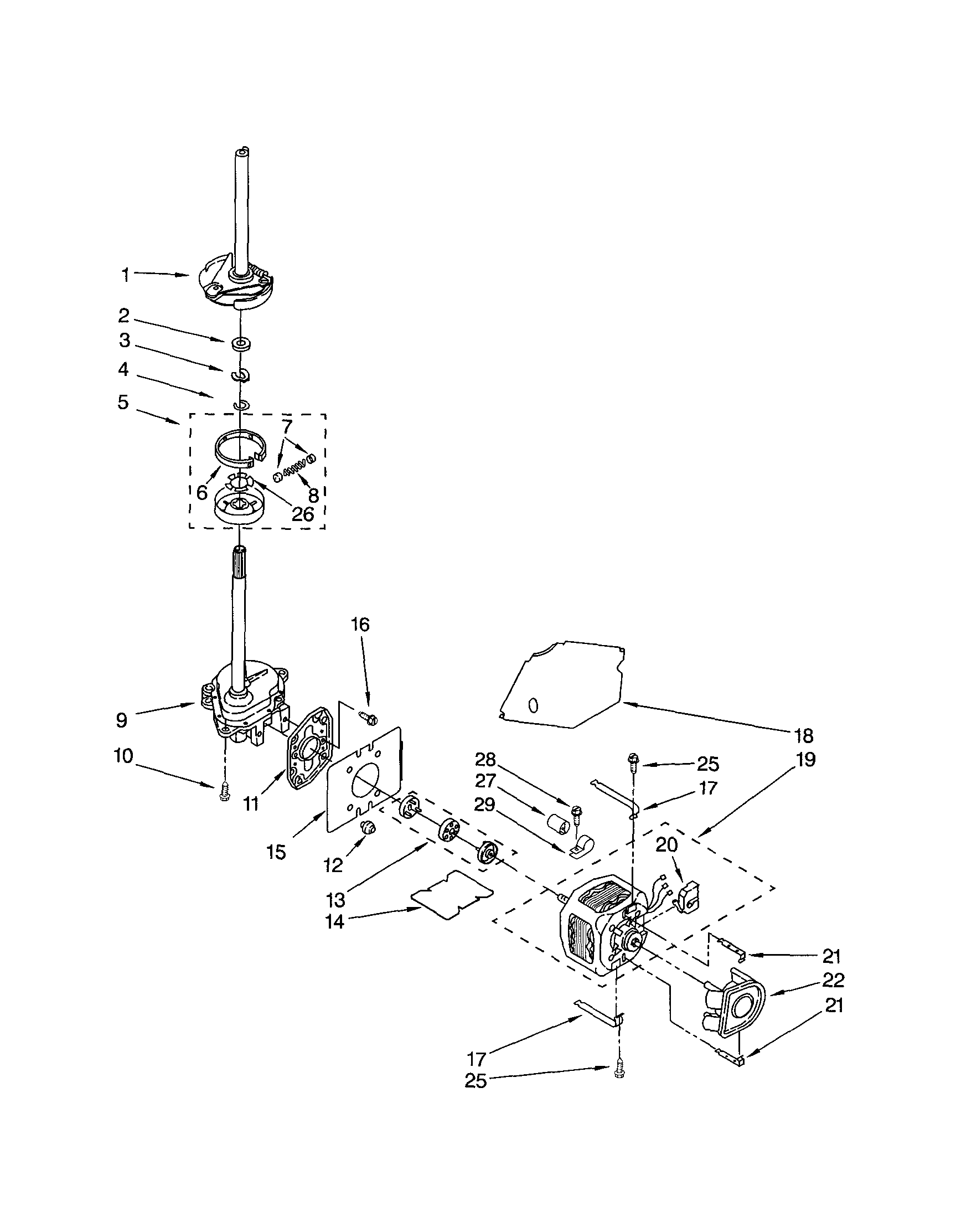

Brake/clutch/gearcase/motor/pump diagram
Washer motor couplingPart #285753
Replaced by #285753A
?Manufacturer substitutionThis part replaces 285753. Substitute parts can look different from the original.$19.80 |9% OFF Phone Price : $21.80In Stock - #9
Brake/clutch/gearcase/motor/pump diagram
Gear casePart #3360630
Replaced by #3360629
?Manufacturer substitutionThis part replaces 3360630. Substitute parts can look different from the original.$205.42 |6% OFF Phone Price : $217.42In Stock - Drive basket
Part #388952
Replaced by #W10820043
?Manufacturer substitutionThis part replaces 388952. Substitute parts can look different from the original.$116.98 |9% OFF Phone Price : $128.98In Stock - #11
Agitator, basket and tub diagram
Washer spanner nutPart #21366
Replaced by #WP21366
?Manufacturer substitutionThis part replaces 21366. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #2
Agitator, basket and tub diagram
Washer agitator boltPart #358237
Replaced by #WP358237
?Manufacturer substitutionThis part replaces 358237. Substitute parts can look different from the original.This item is not returnable$5.70 |15% OFF Phone Price : $6.70In Stock - #16
Agitator, basket and tub diagram
Washer tub gasketPart #383727
Replaced by #W10814296
?Manufacturer substitutionThis part replaces 383727. Substitute parts can look different from the original.This item is not returnable$3.69 |21% OFF Phone Price : $4.69In Stock - #3

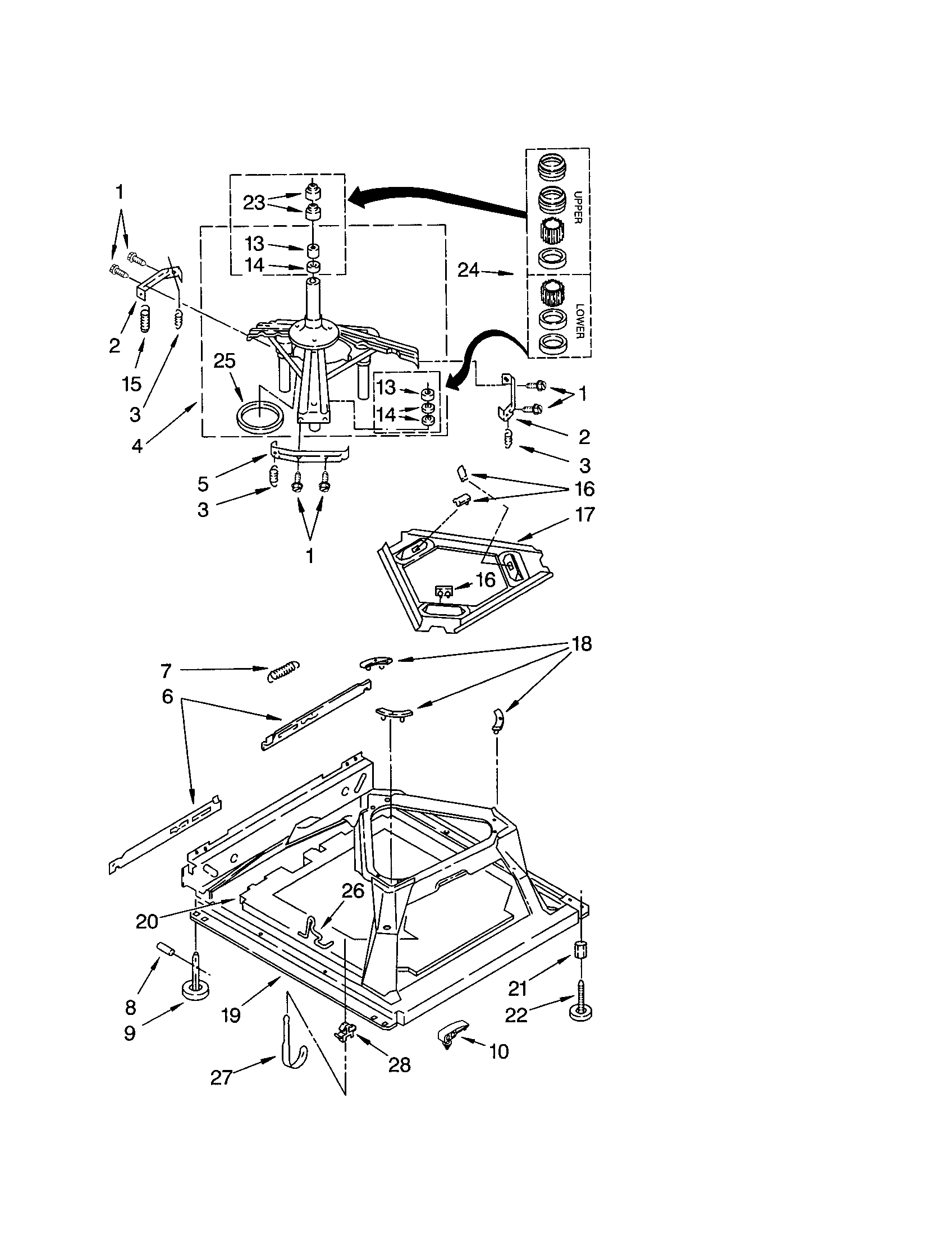

Machine base diagram
Washer suspension springPart #63907
Replaced by #WP63907
?Manufacturer substitutionThis part replaces 63907. Substitute parts can look different from the original.$6.77 |13% OFF Phone Price : $7.77In Stock - #5
Brake/clutch/gearcase/motor/pump diagram
Clutch washerPart #8299642
Replaced by #WP8299642
?Manufacturer substitutionThis part replaces 8299642. Substitute parts can look different from the original.$64.40 |9% OFF Phone Price : $70.40In Stock - #18
Machine base diagram
Suspension padPart #3363660
Replaced by #285744
?Manufacturer substitutionThis part replaces 3363660. Substitute parts can look different from the original.$8.77 |10% OFF Phone Price : $9.77In Stock
