Model # LWD27BW-PLWD27BW Official Amana top-loading washer

Here are the diagrams and repair parts for Official Amana LWD27BW-PLWD27BW top-loading washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

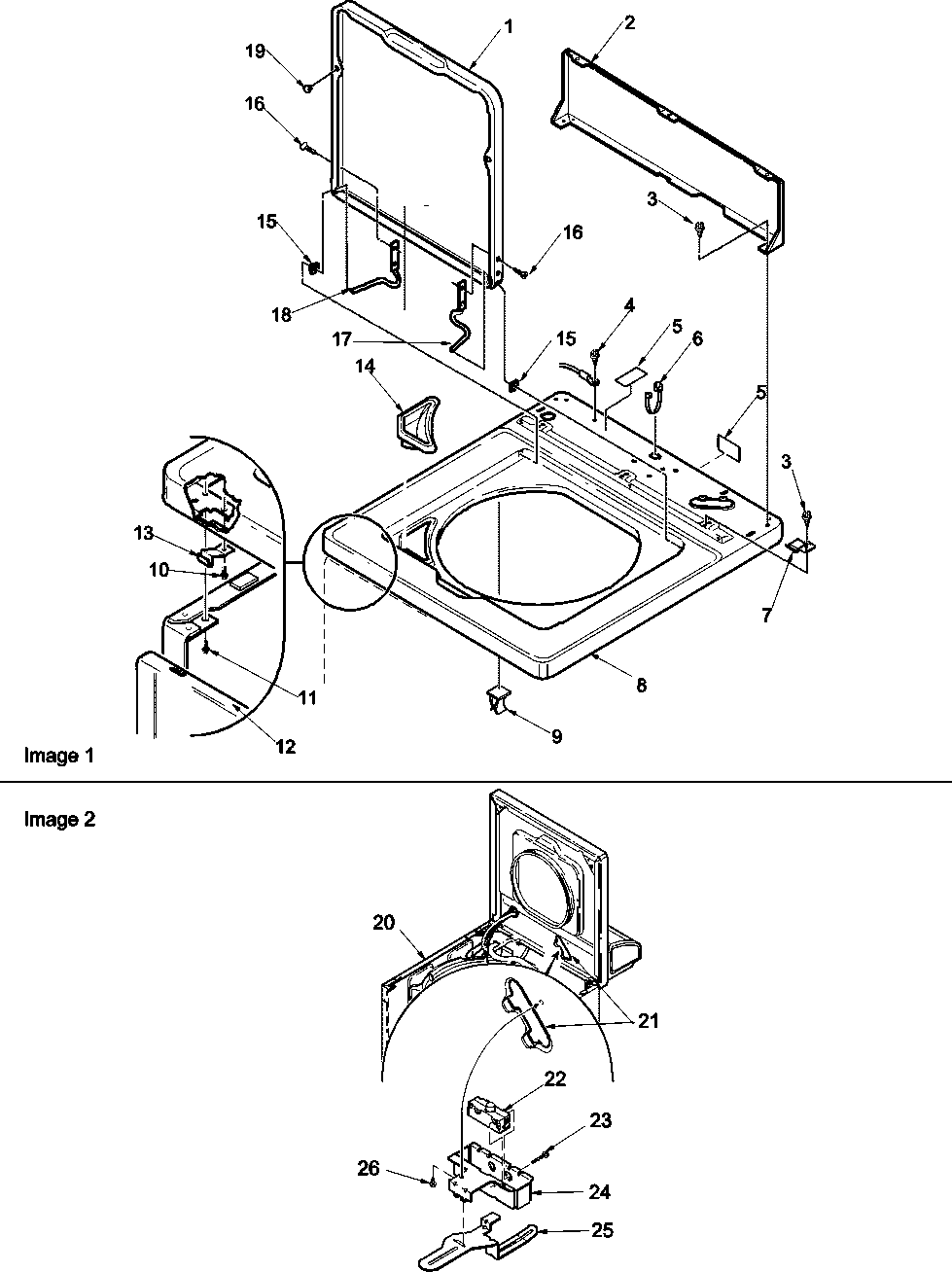

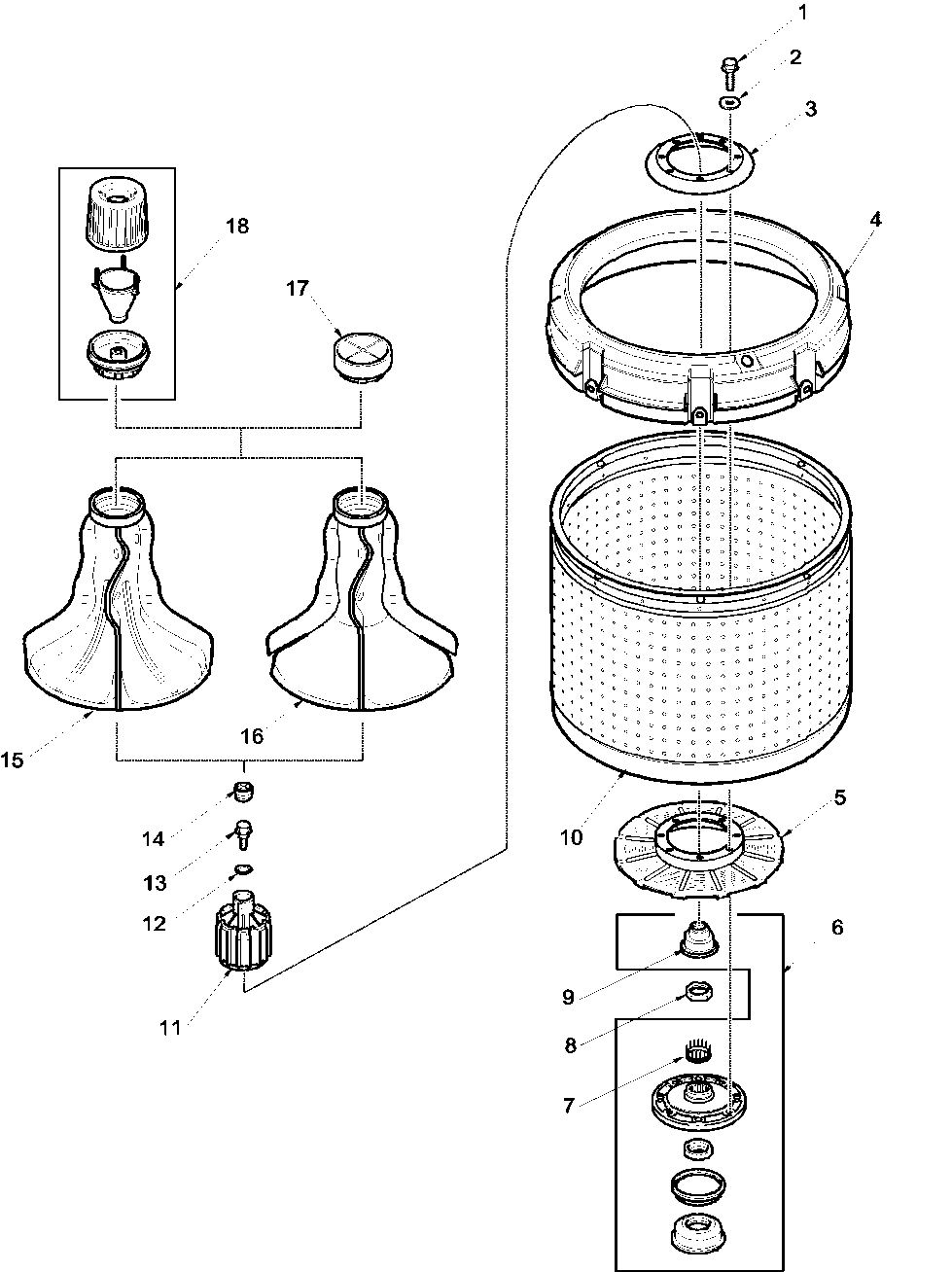

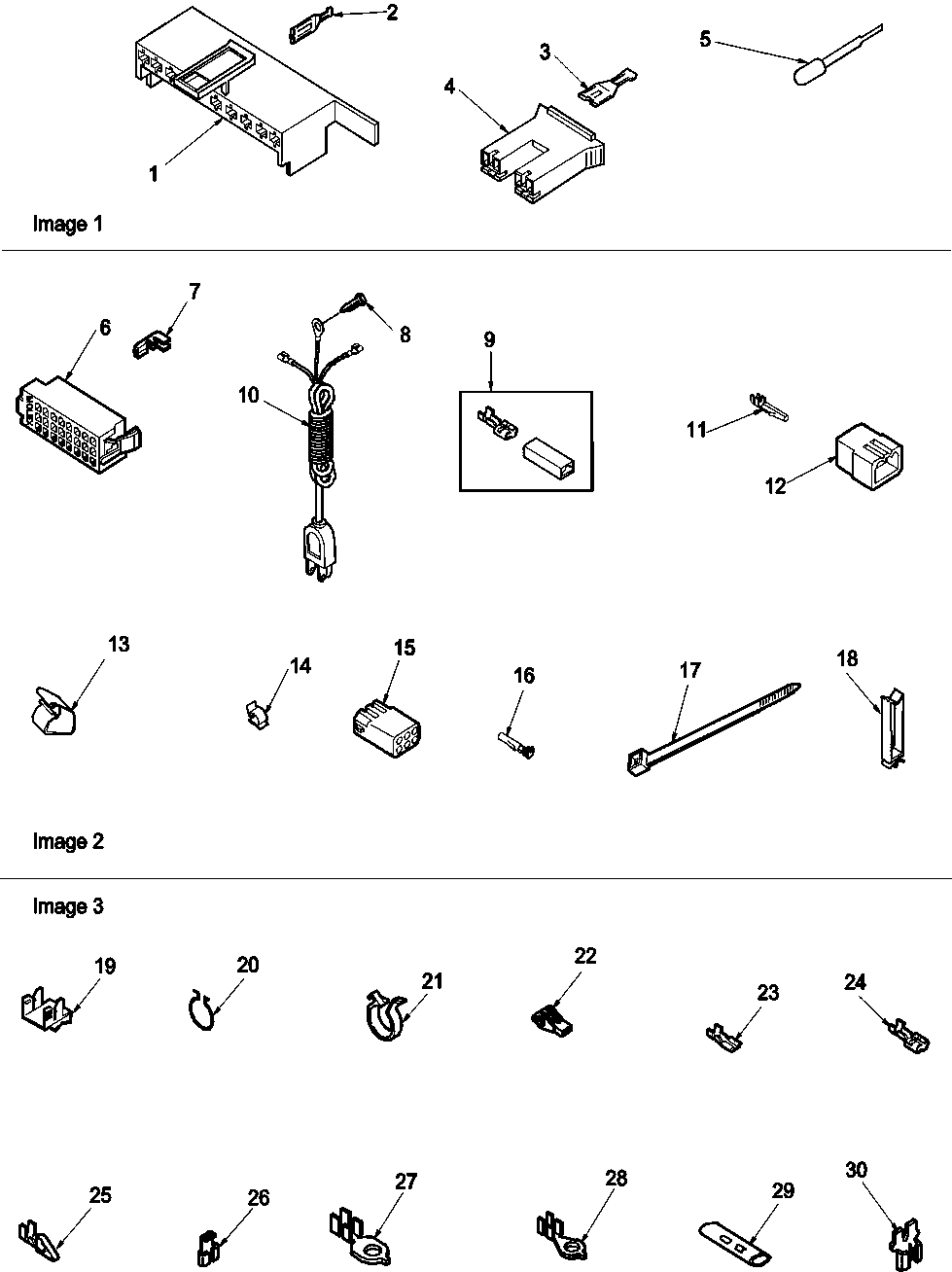

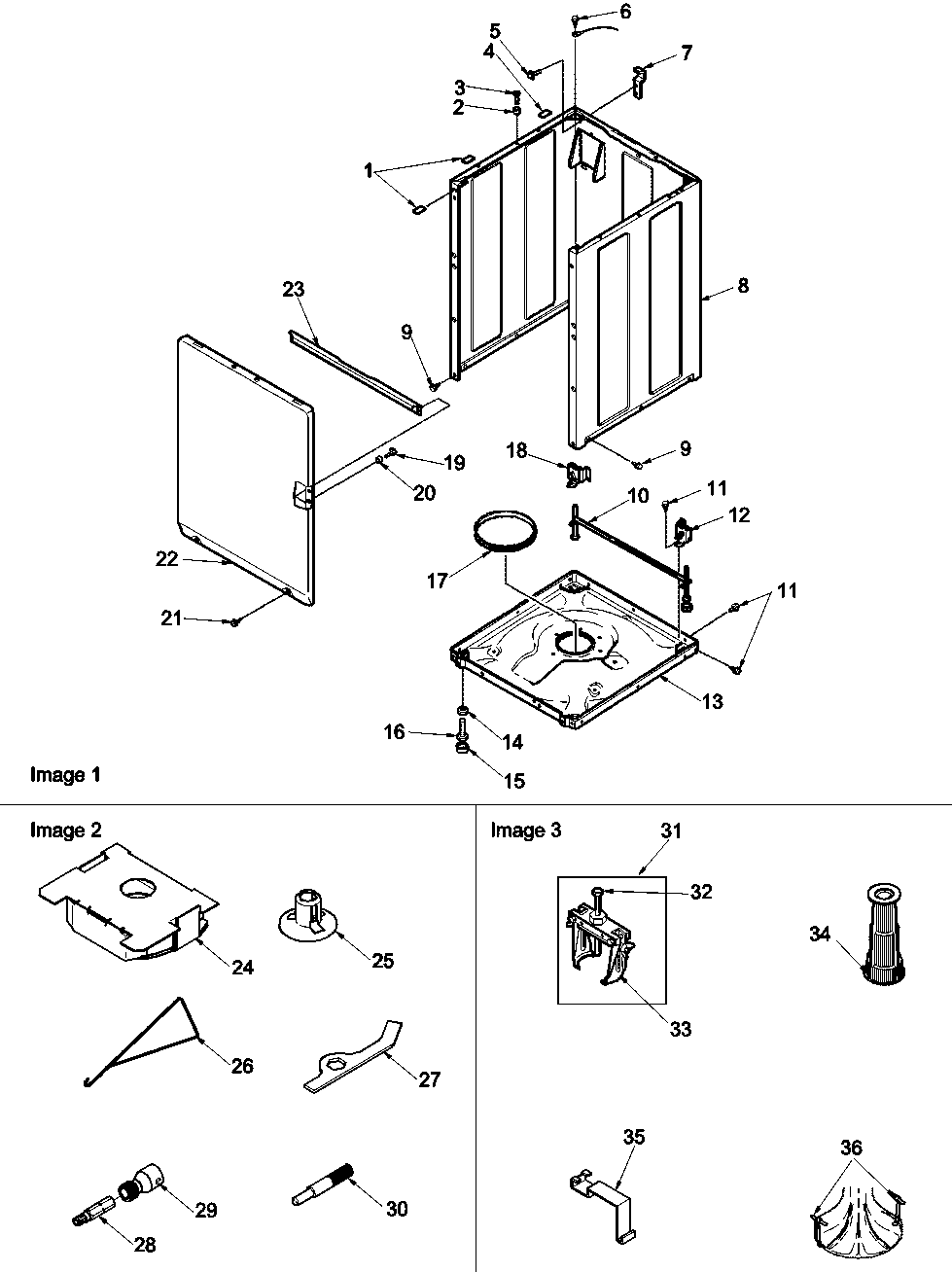

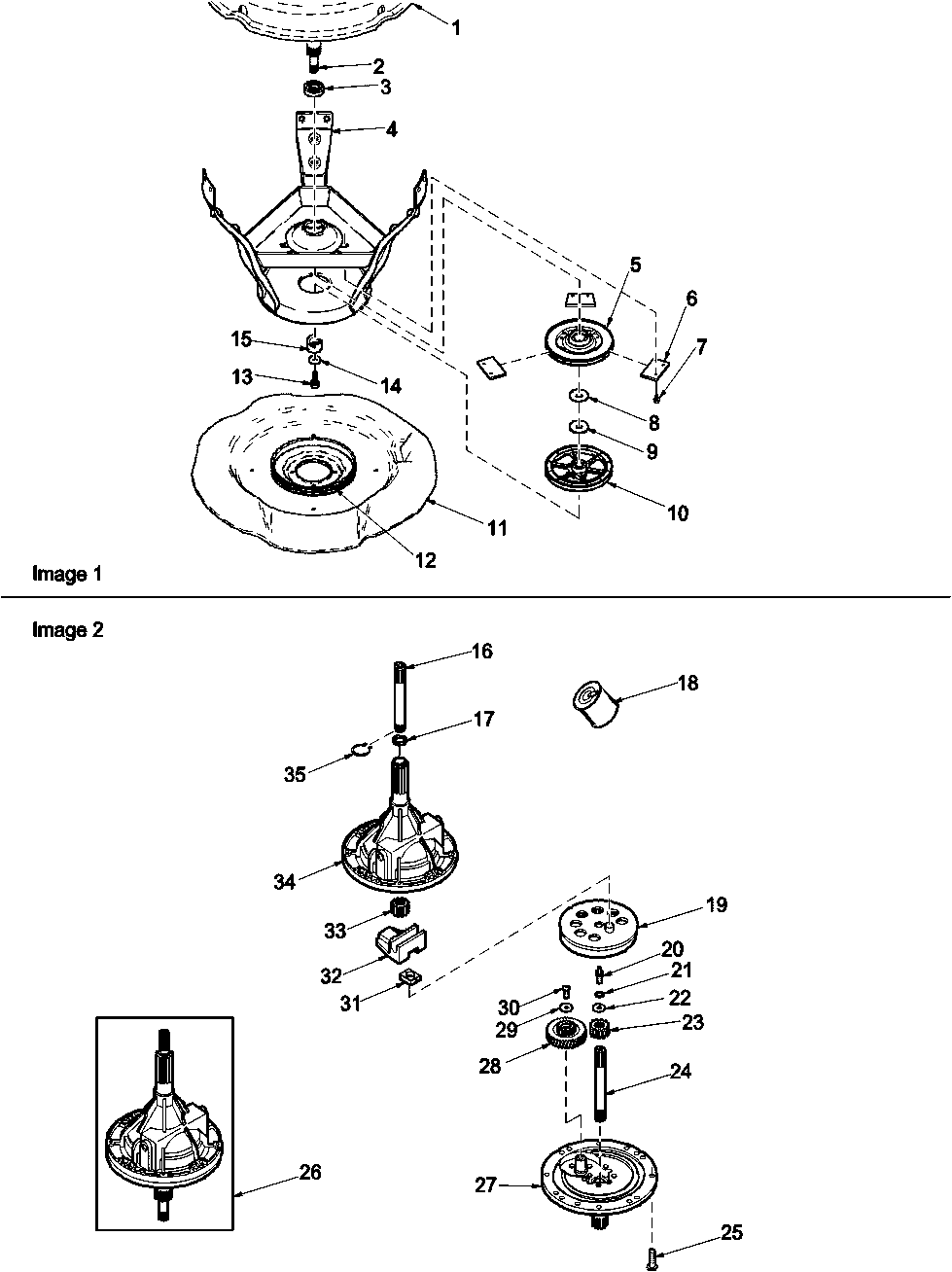

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 217 parts  |

Hose Clamp 22294
#19

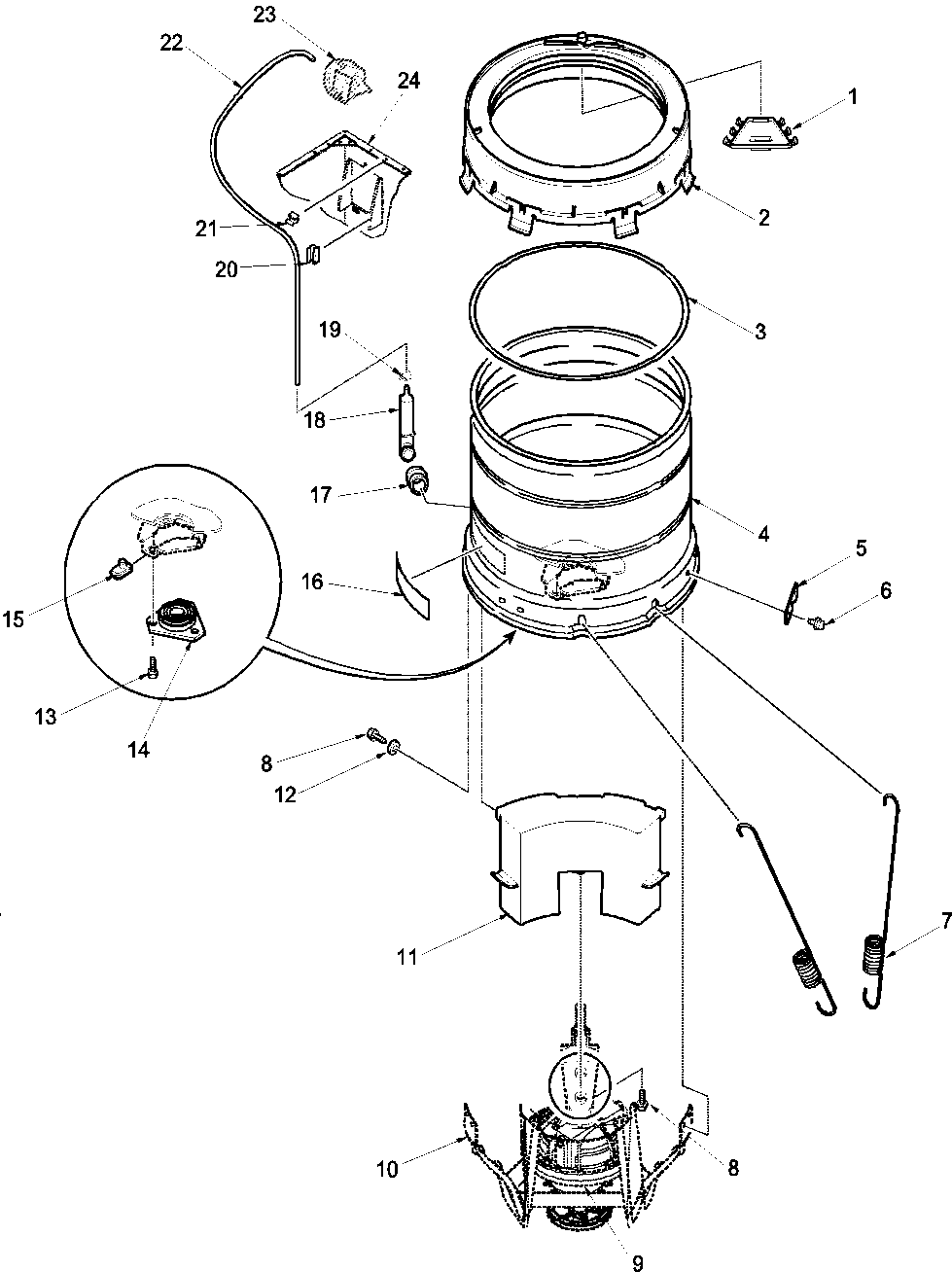

Outer tub, cover, pressure tube diagram

Hose clamp

Part #22294

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Hose Clamp 36801
#14

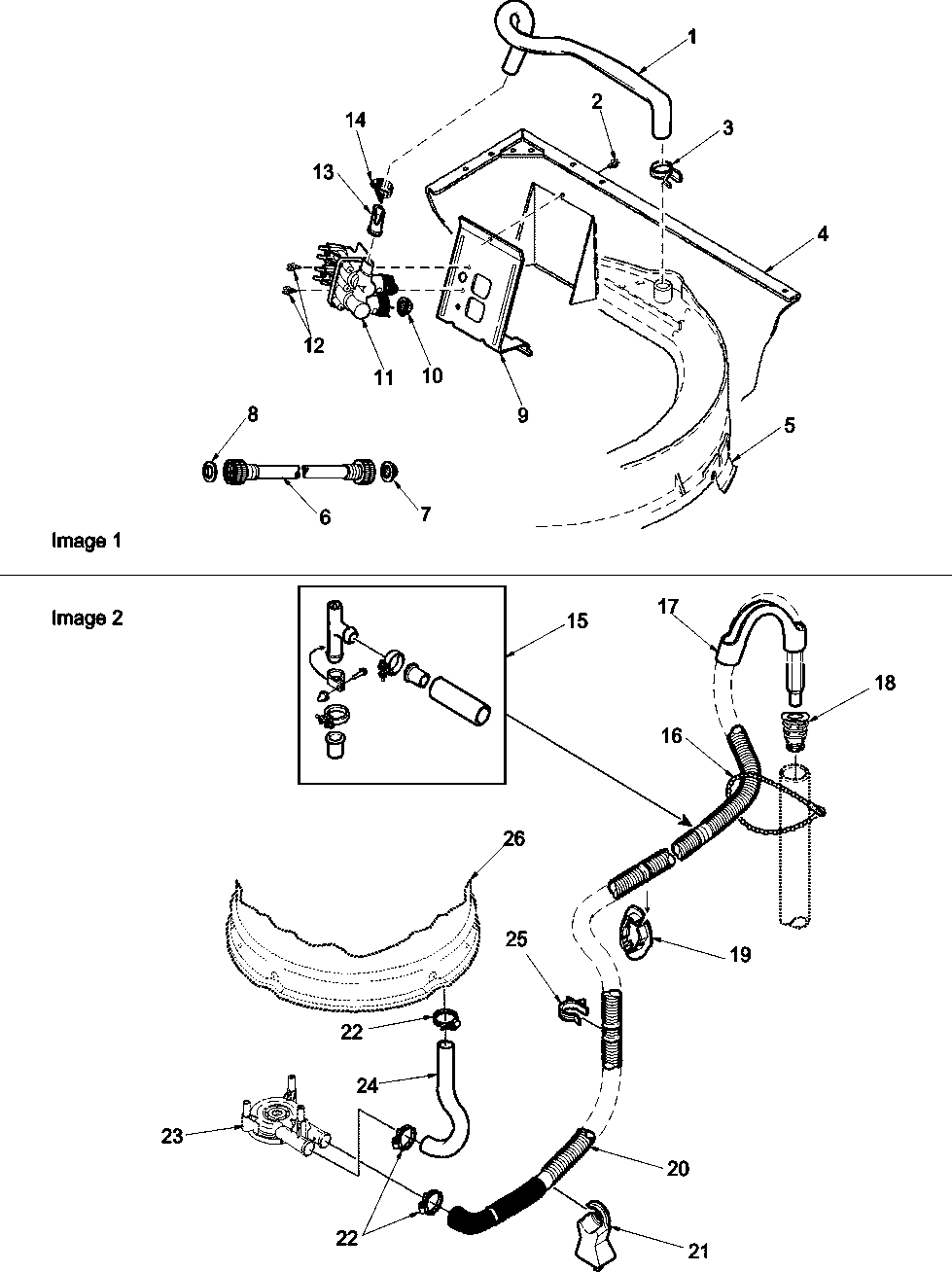

Mixing valve and hose diagram

Hose clamp

Part #36801

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 36801. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37
69% OFF MSRP : $14.00
In Stock
Hose Clamp 36802
#22

Mixing valve and hose diagram

Hose clamp

Part #36802

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 36802. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
59% OFF MSRP : $16.00
In Stock
Washer 52549
#12

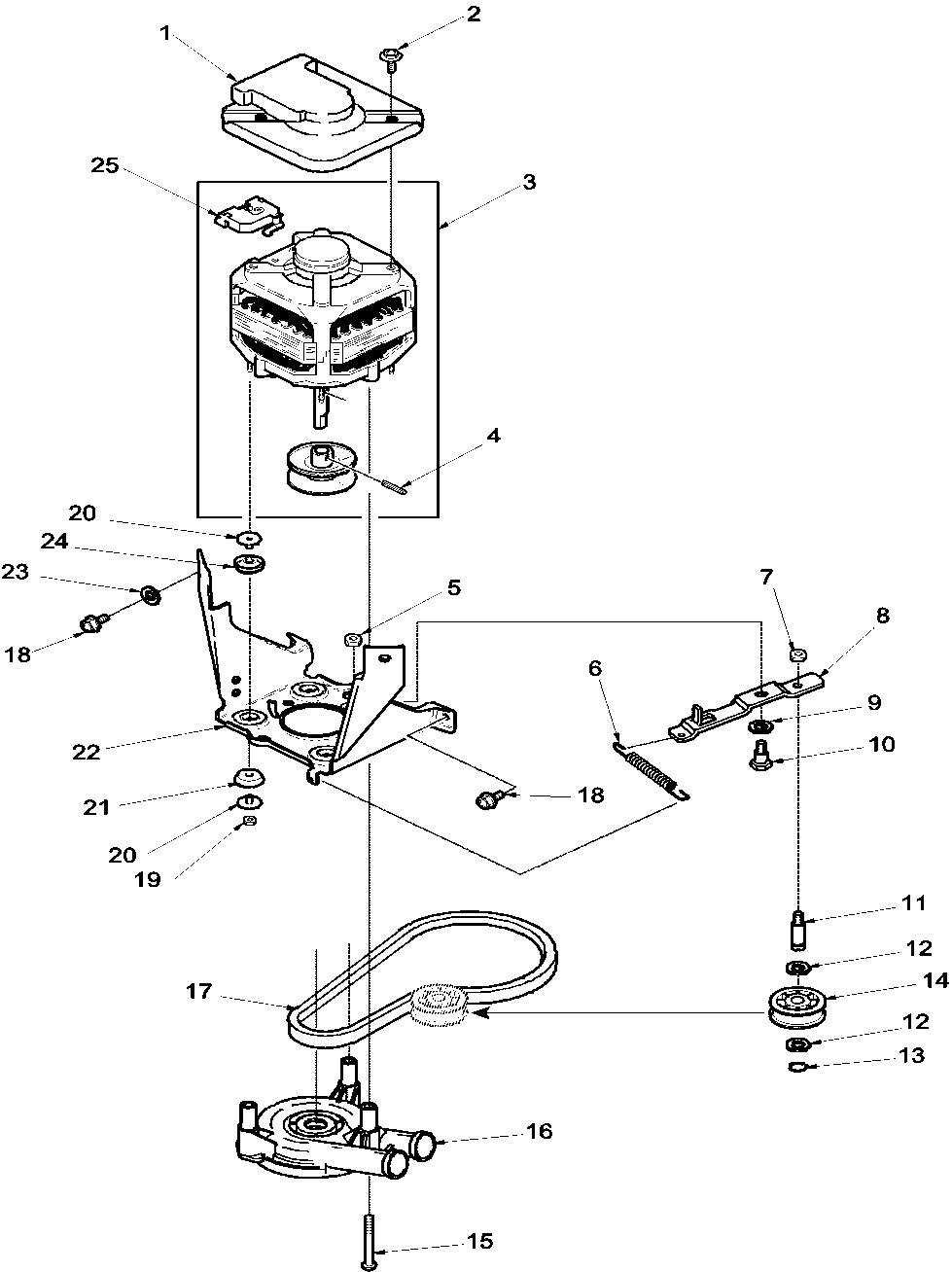

Motor, belt, pump, and idler assy diagram

Washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 34904
#8

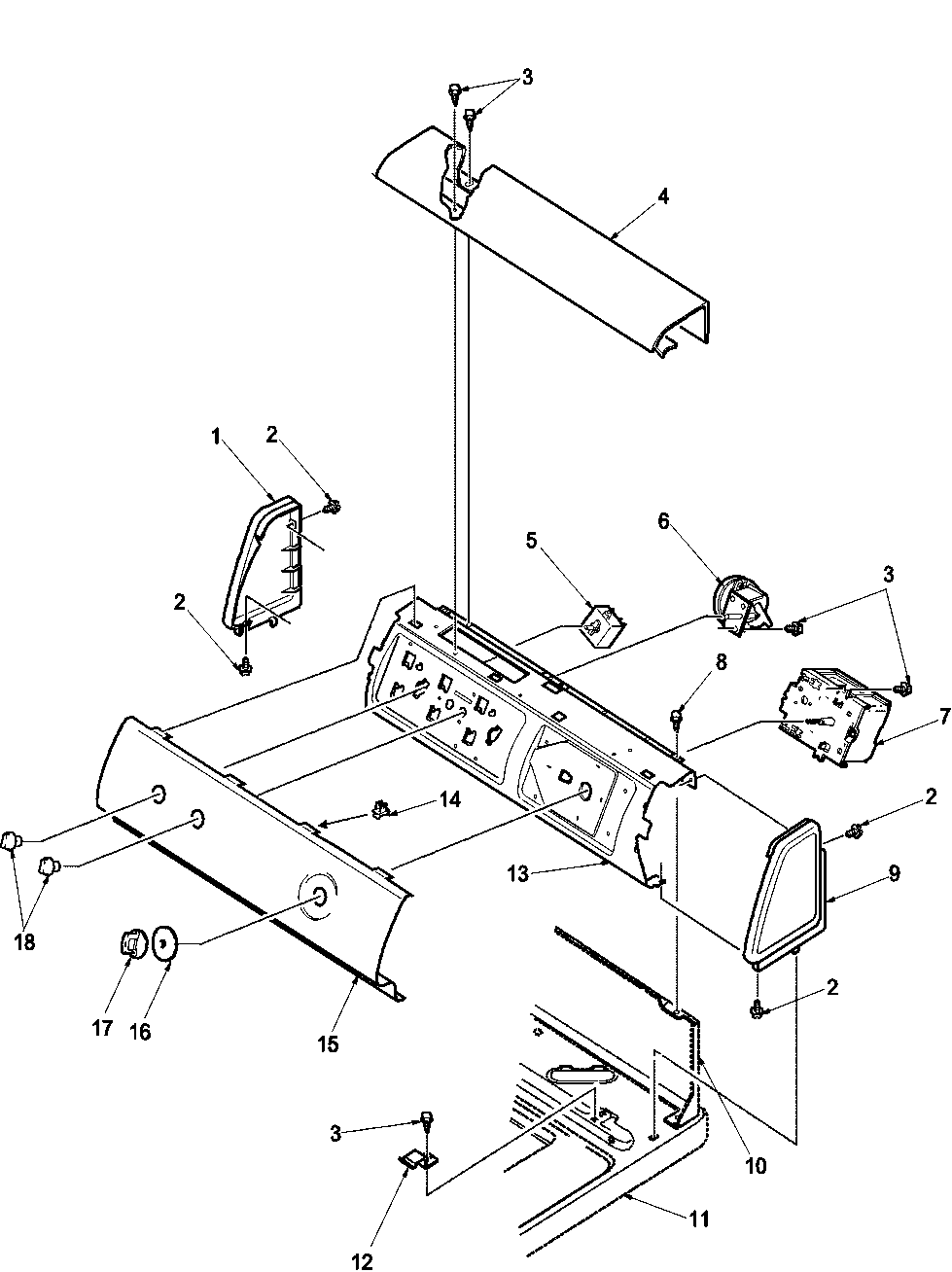

Control panel diagram

Screw

Part #34904

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 34904. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock
Bearing 27182
#14

Outer tub, cover, pressure tube diagram

Bearing

Part #27182

The manufacturer no longer makes this part, and there's no substitute part

Screw 32671
Screw

Part #32671

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 32671. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Idler Pulley 38225
#14

Motor, belt, pump, and idler assy diagram

Idler pulley

Part #38225

The manufacturer no longer makes this part, and there's no substitute part

Belt 37820
#17

Motor, belt, pump, and idler assy diagram

Belt

Part #37820

The manufacturer no longer makes this part, and there's no substitute part

Nut 35423
#19

Motor, belt, pump, and idler assy diagram

Nut

Part #35423

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 35423. Substitute parts can look different from the original.
This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
