Model # WFG525S0HS0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool WFG525S0HS0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

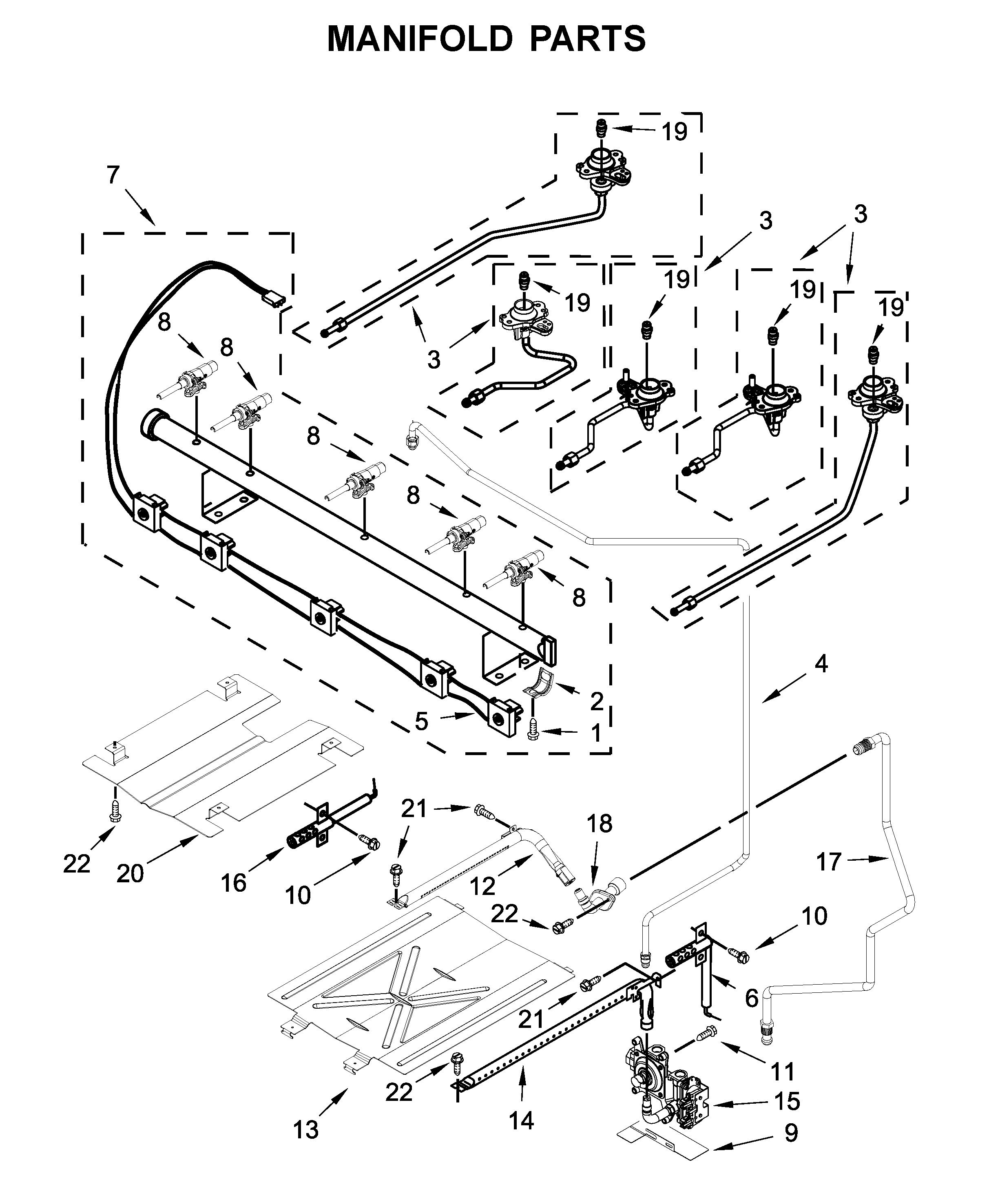

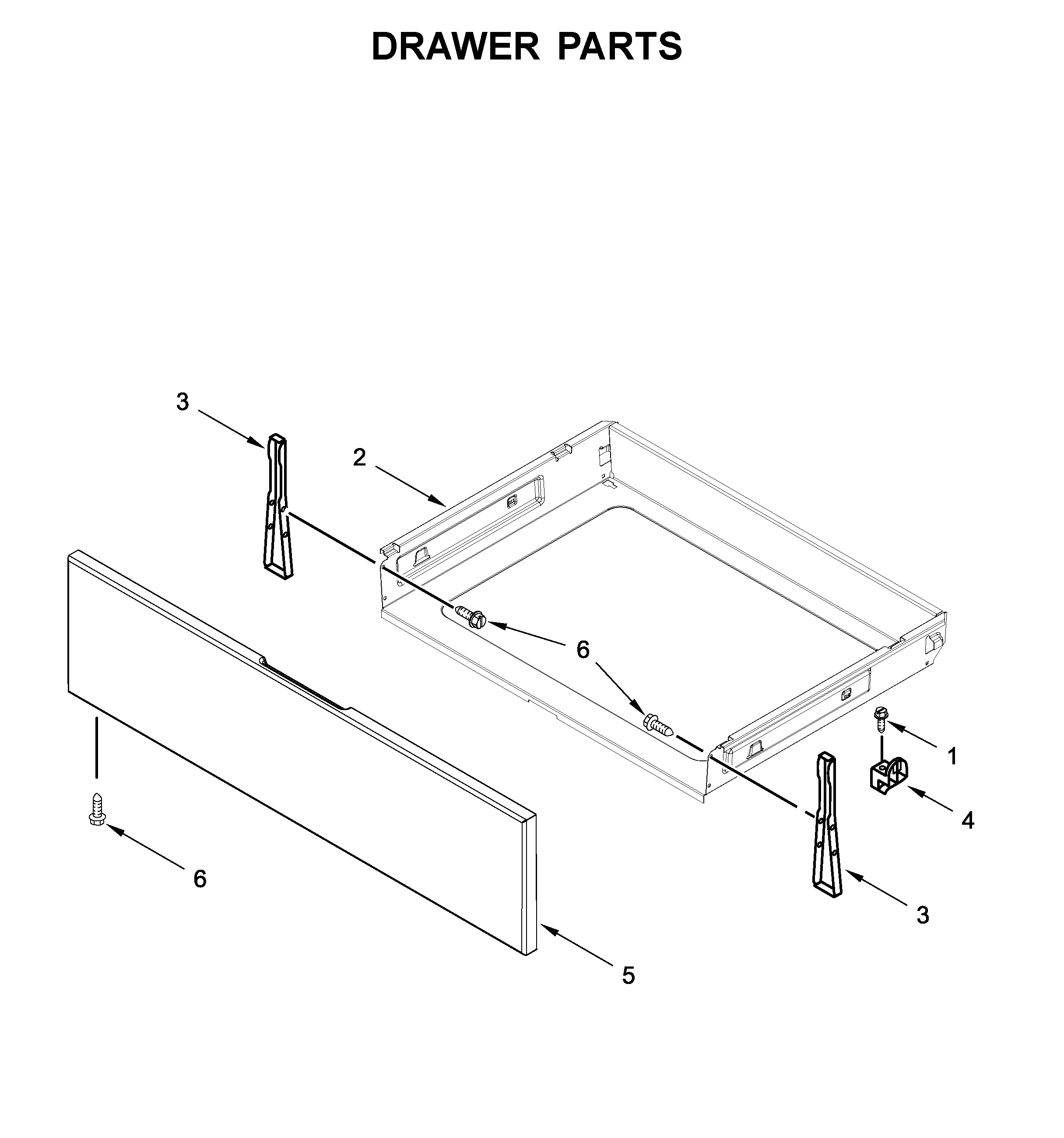

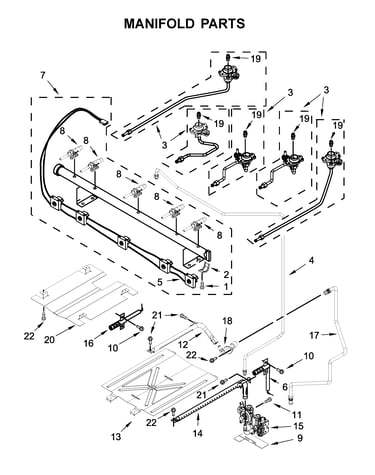

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |

Oven Sensor W10586204
#12

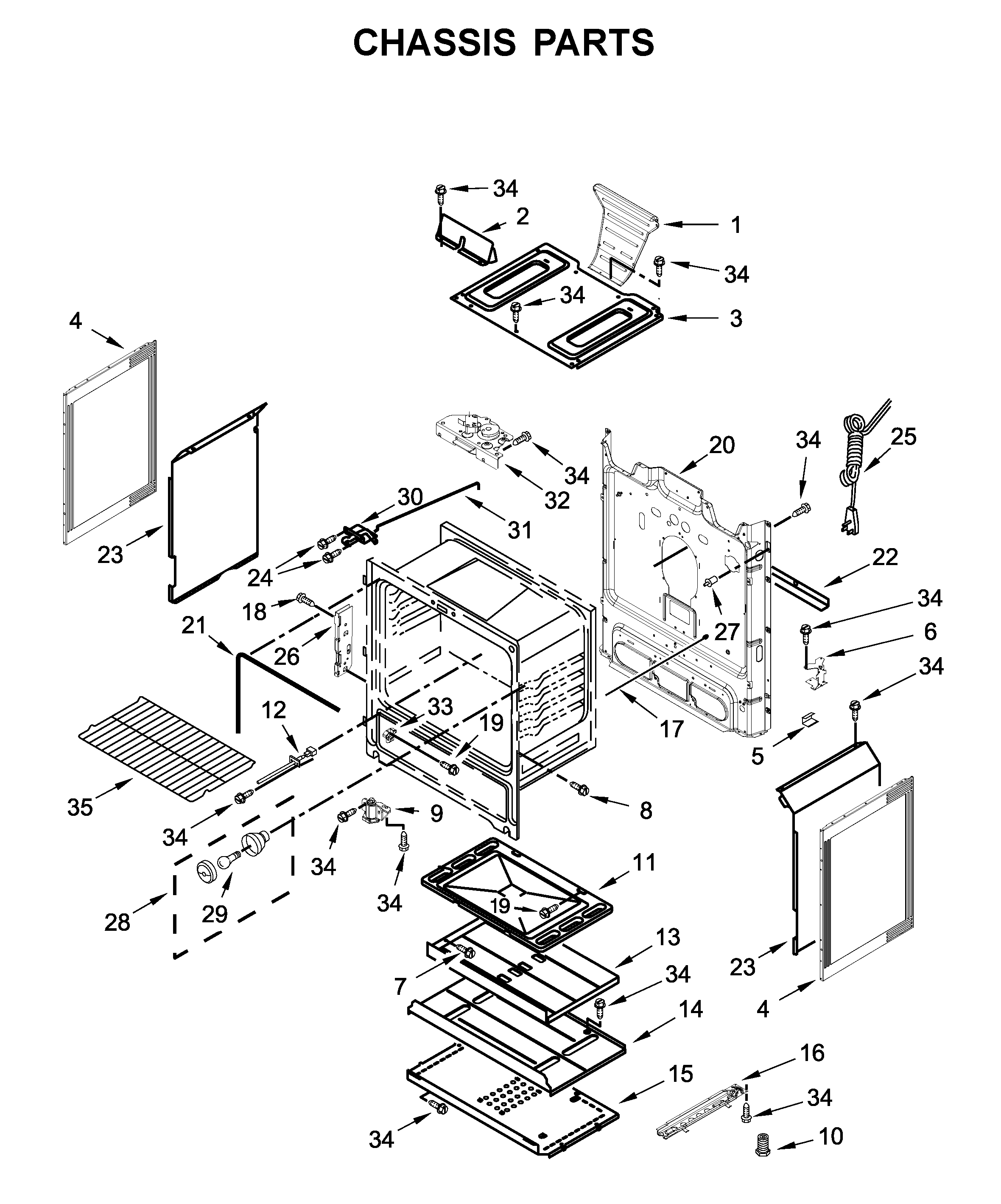

Chassis parts diagram

Oven sensor

Part #W10586204

Replaced by #W10833885

?
Manufacturer substitution
This part replaces W10586204. Substitute parts can look different from the original.
BEST SELLER
$95.40
20% OFF MSRP : $120.00
In Stock
Screw 3400701
#8

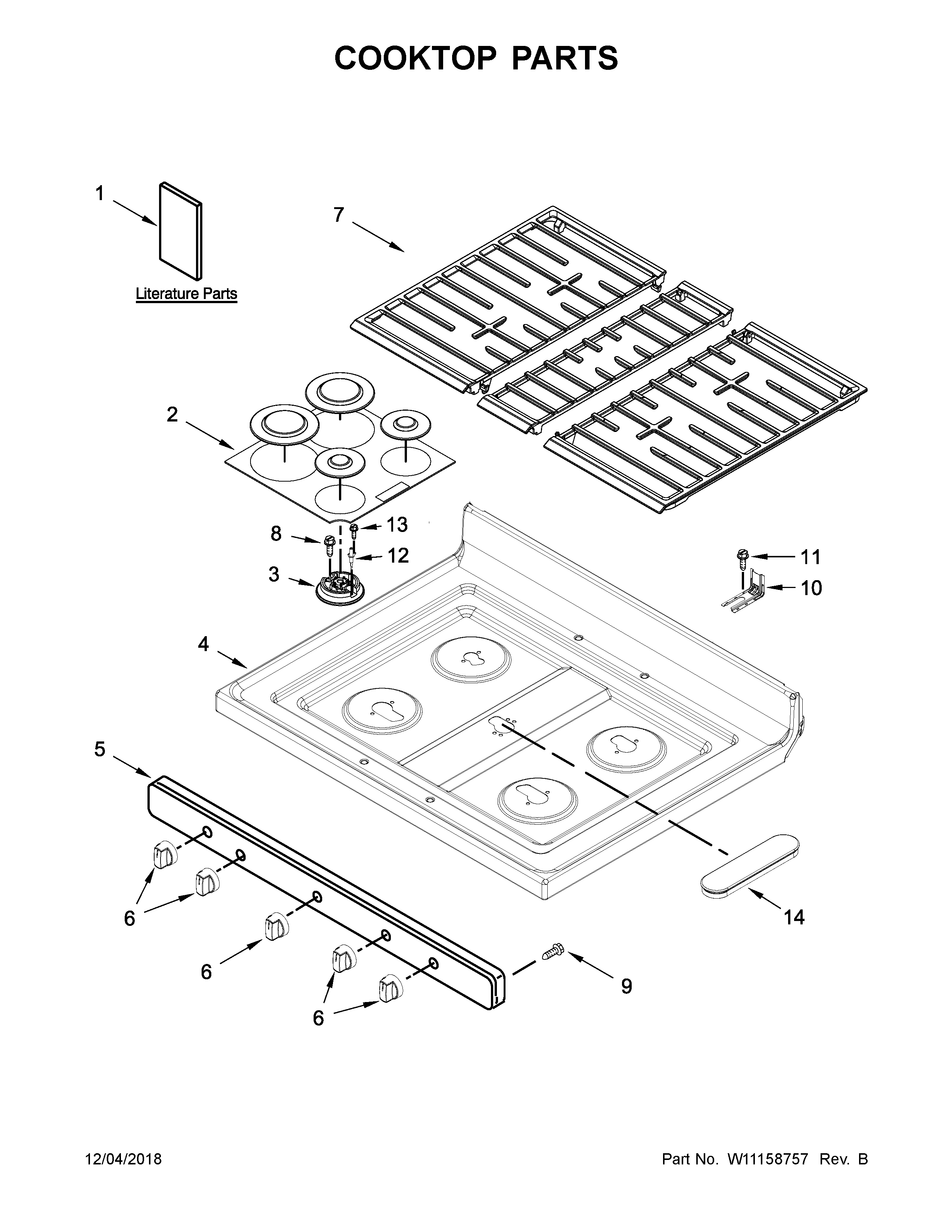

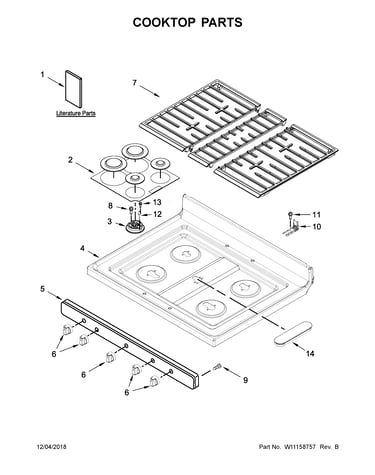

Cooktop parts diagram

Screw

Part #3400701

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3400701. Substitute parts can look different from the original.
BEST SELLER
$6.82
43% OFF MSRP : $12.00
In Stock
Appliance Touch-up Paint 72017
#NI

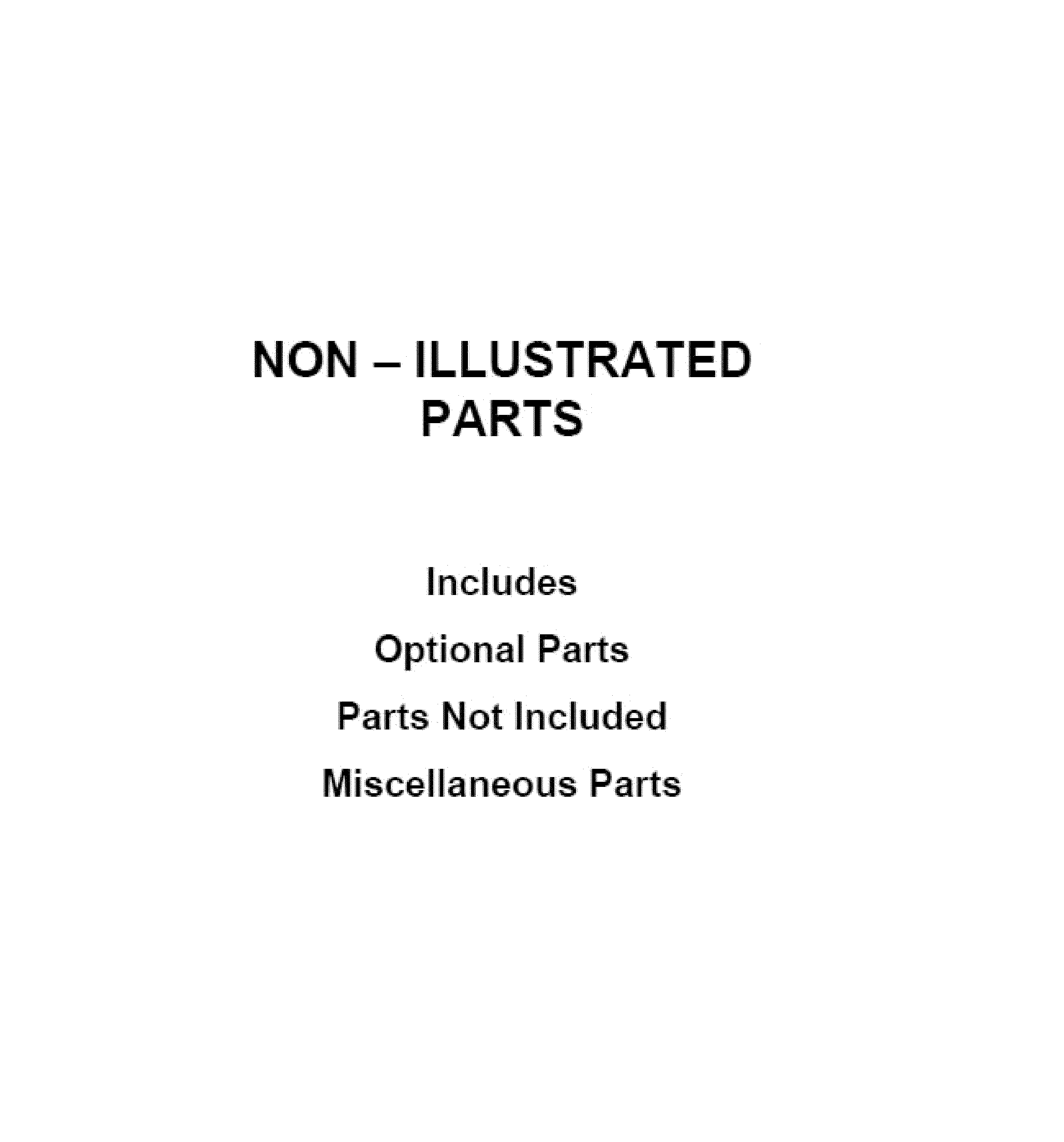

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69
11% OFF Phone Price : $17.69
In Stock
Oven Door Trim W10746435
#12A

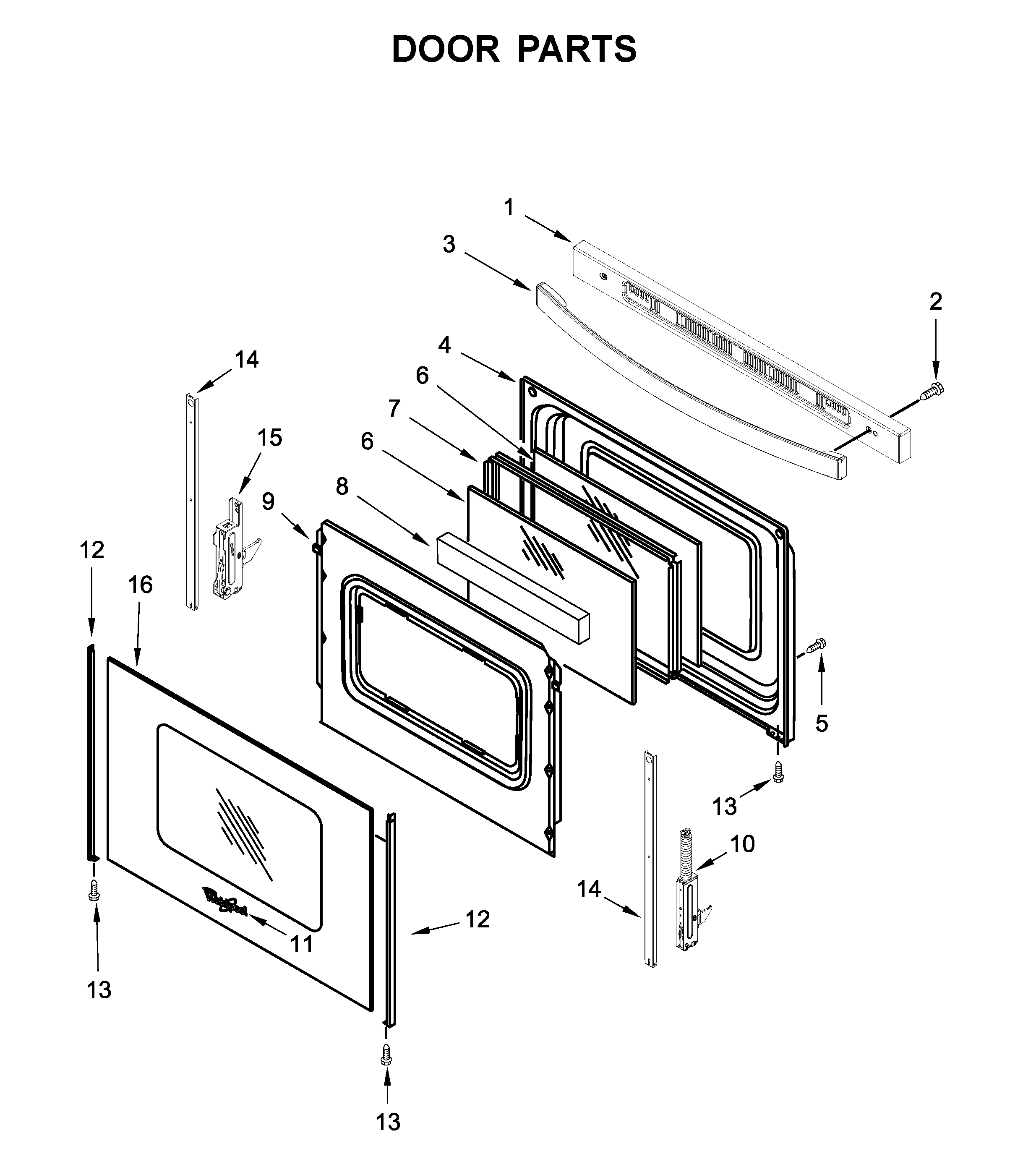

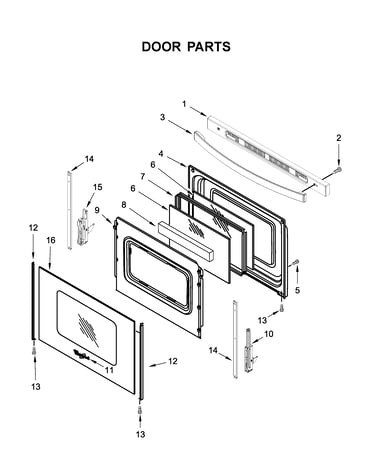

Door parts diagram

Oven door trim

Part #W10746435

Replaced by #W10761014

?
Manufacturer substitution
This part replaces W10746435. Substitute parts can look different from the original.
BEST SELLER
$33.55
13% OFF Phone Price : $38.55
In Stock
Module-spark W10920631
#5

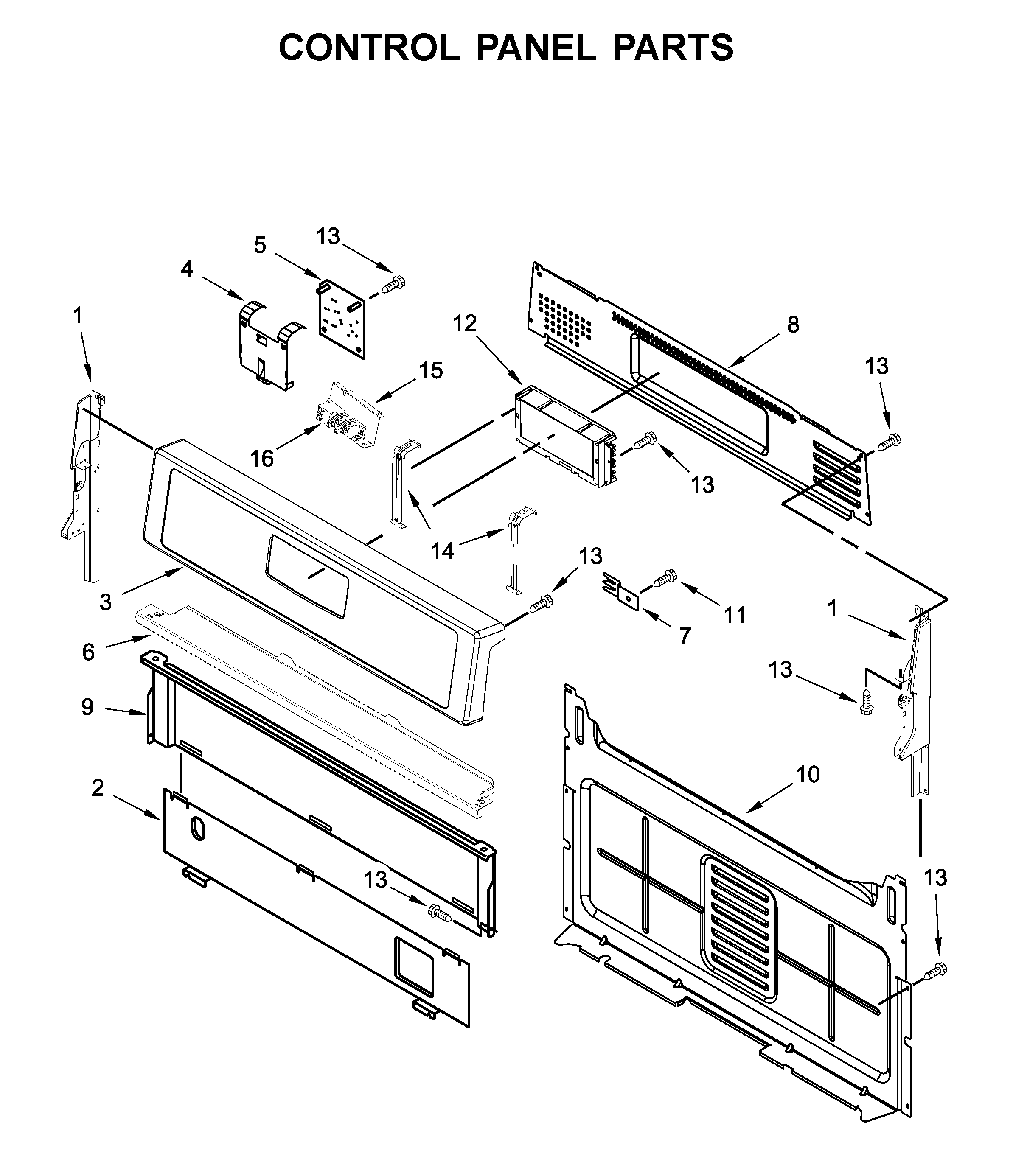

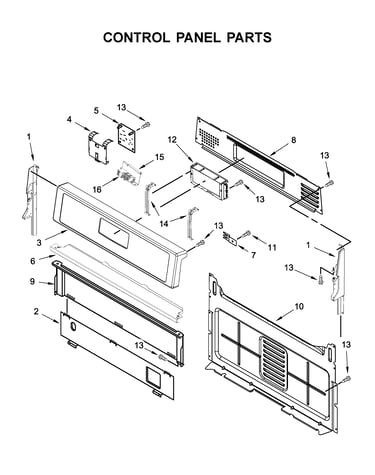

Control panel parts diagram

Module-spark

Part #W10920631

Replaced by #W11162730

?
Manufacturer substitution
This part replaces W10920631. Substitute parts can look different from the original.
BEST SELLER
$116.35
32% OFF MSRP : $170.00
In Stock
Range Surface Burner Head, Front W10515455
#3

Cooktop parts diagram

Range surface burner head, front

Part #W10515455

Replaced by #WPW10515455

?
Manufacturer substitution
This part replaces W10515455. Substitute parts can look different from the original.
BEST SELLER
$58.83
8% OFF Phone Price : $63.83
In Stock
Electrode W10515459
#12

Cooktop parts diagram

Electrode

Part #W10515459

Replaced by #WPW10515459

?
Manufacturer substitution
This part replaces W10515459. Substitute parts can look different from the original.
This item is not returnable
$30.60
14% OFF Phone Price : $35.60
In Stock
Insulation 261514
#NI

Optional parts (not included) diagram

Insulation

Part #261514

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 261514. Substitute parts can look different from the original.
$37.65
12% OFF Phone Price : $42.65
In Stock
Touch-up Paint 4392899
#NI

Optional parts (not included) diagram

Touch-up paint

Part #4392899

Replaced by #4392899

?
Manufacturer substitution
This part replaces 4392899. Substitute parts can look different from the original.
This item is not returnable
$15.38
12% OFF Phone Price : $17.38
In Stock
