Frigidaire FCRG305LAFB gas range Parts

Yes. For your Frigidaire gas range model FCRG305LAFB, using the full model number is the fastest way to pull up the exact parts list and diagrams so you can match the correct replacement part to your range’s configuration.

Where to find the model number on the range

The model and serial identification plate is on the right-hand surface of the oven front frame. You access it by opening the storage drawer, warmer drawer, or broiler drawer (depending on your version). See the location details in the FCRG305LAFB installation guide.

How to look up the right part (and avoid wrong-order returns)

Use these steps to make sure the part you order fits your exact range:

• Write down the model number and serial number from the ID plate.
• Also note any lot number or letter shown on the plate (it can affect part revisions).

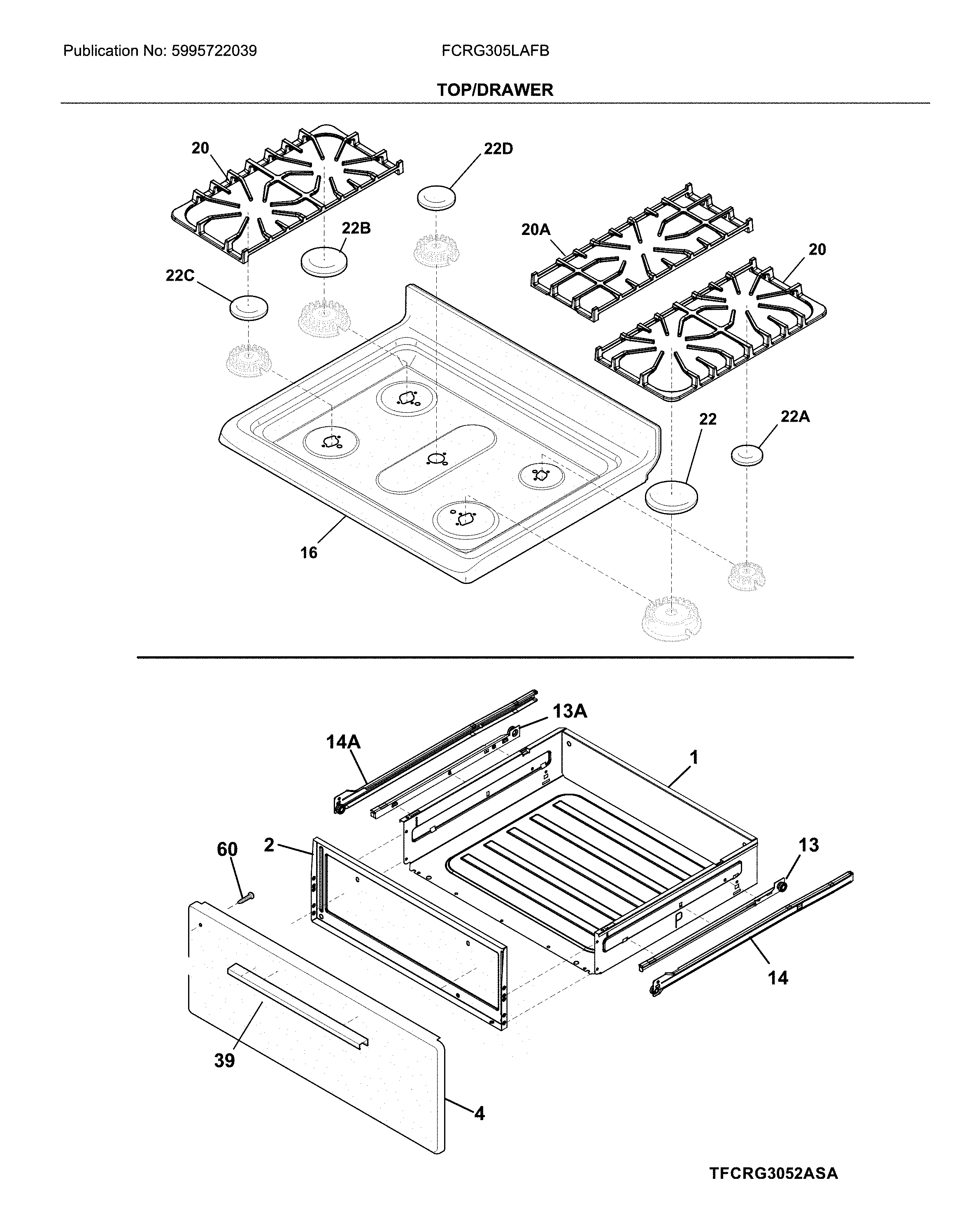

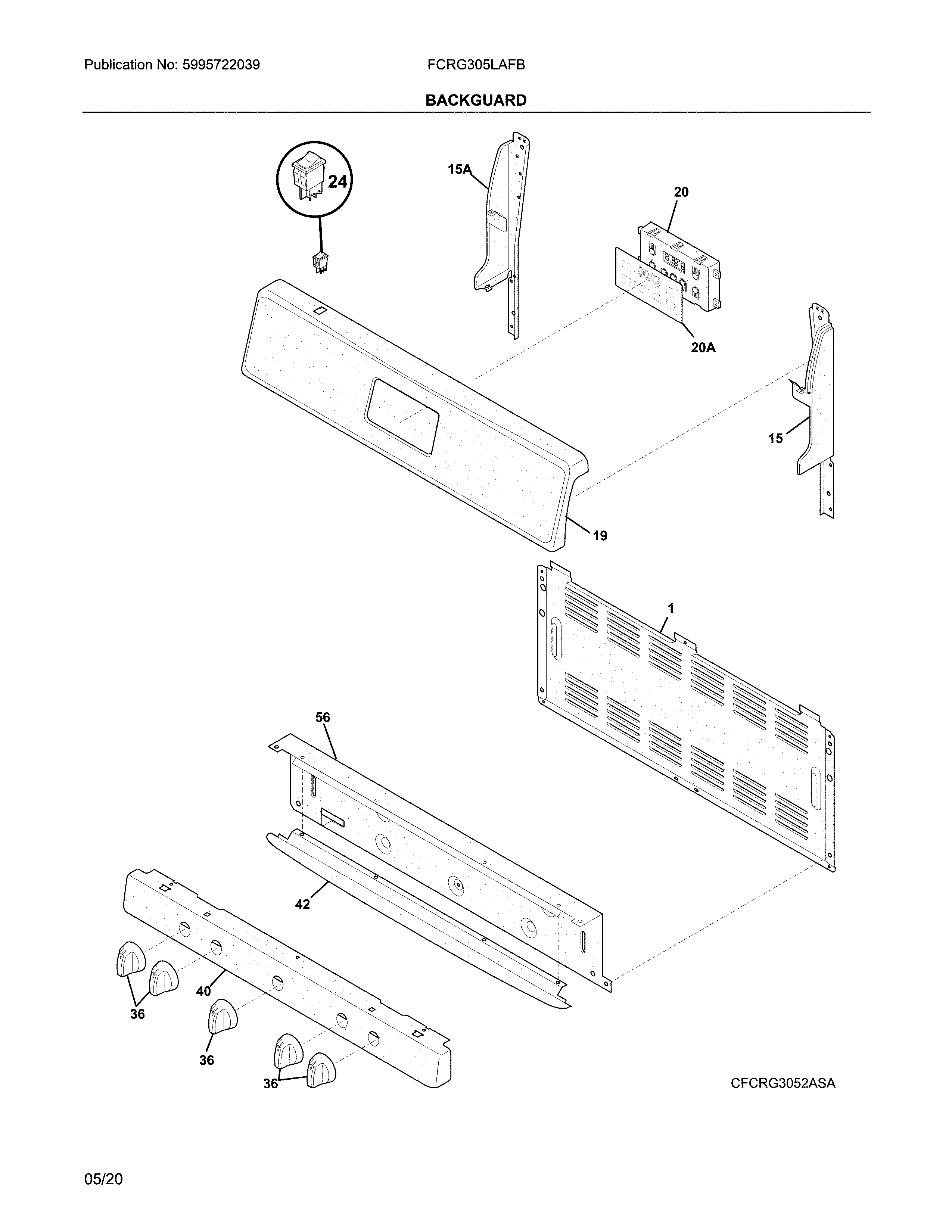

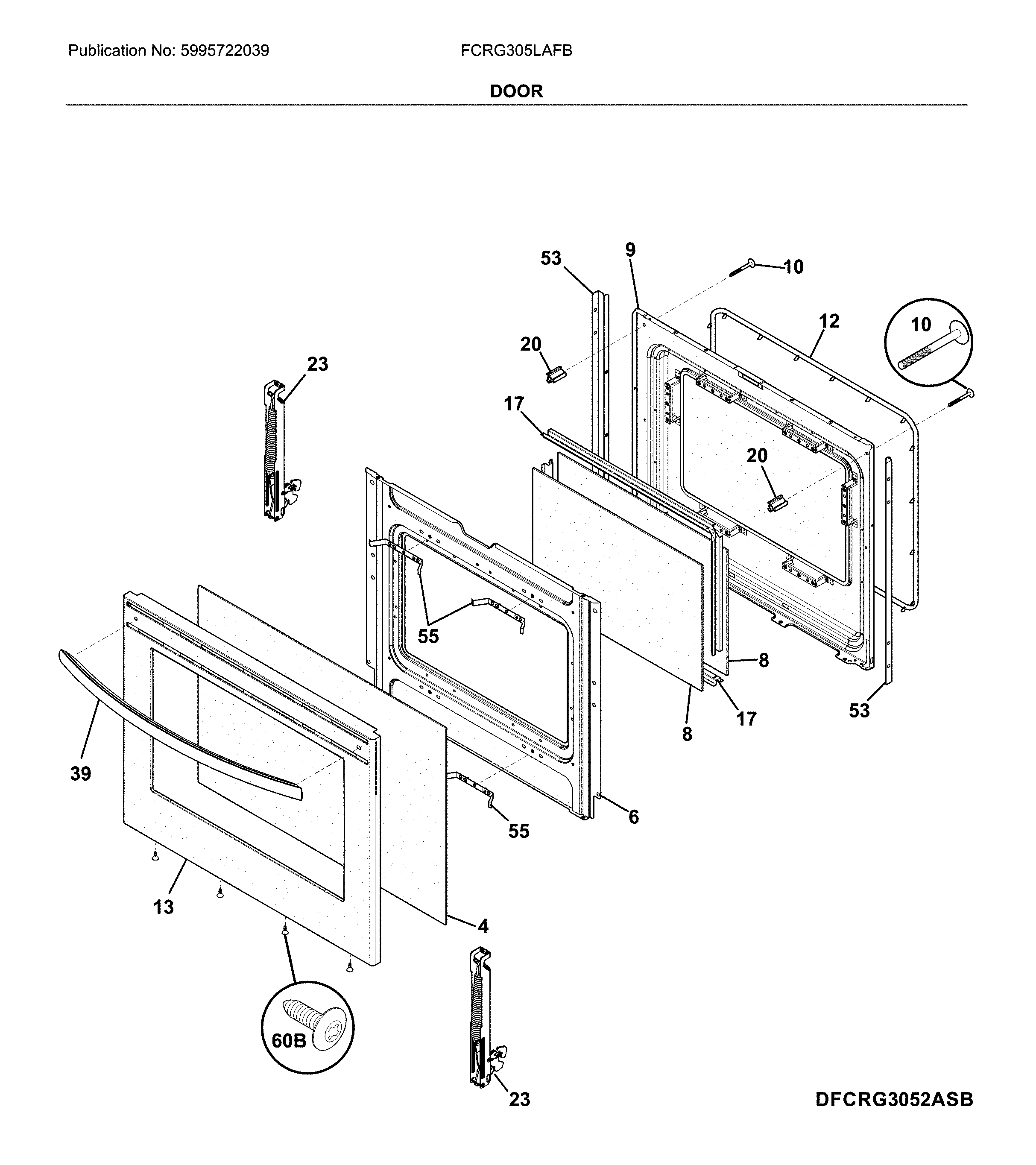

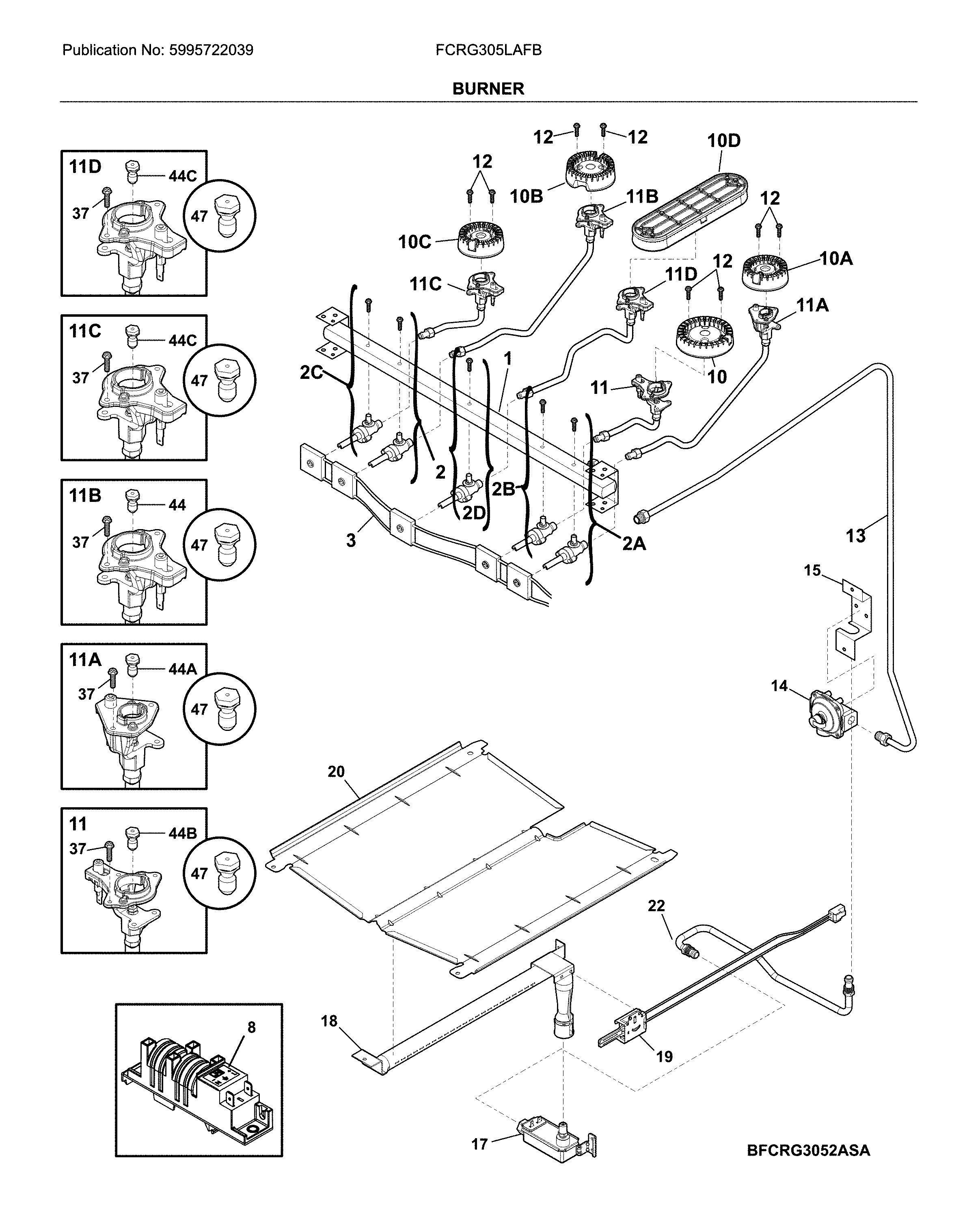

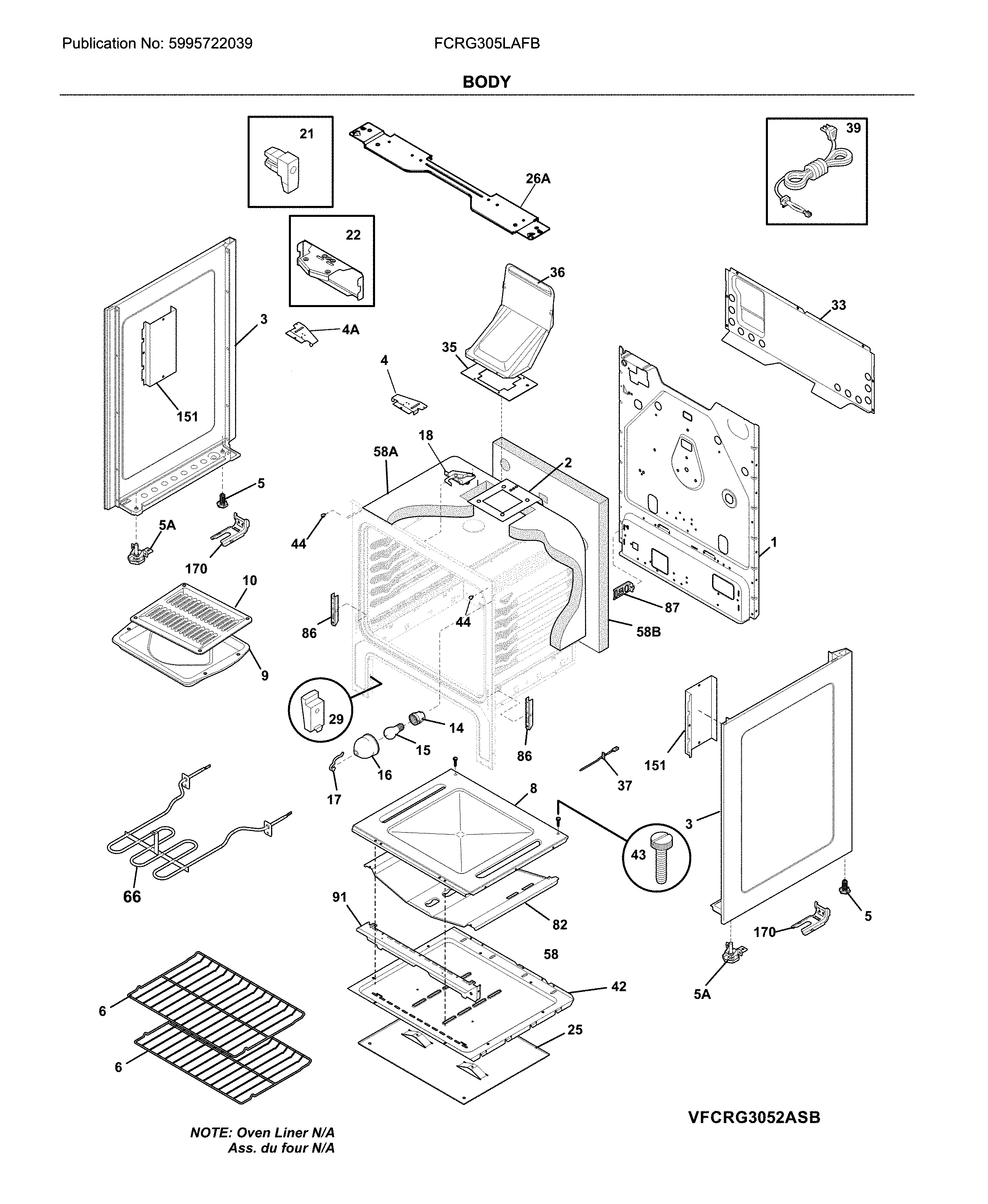

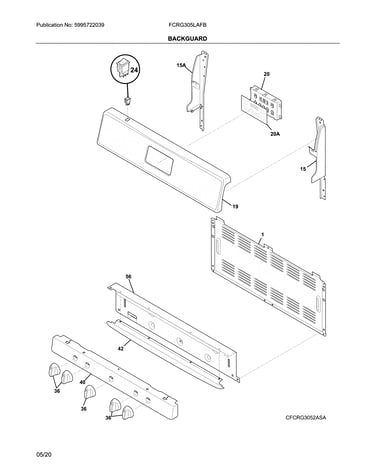

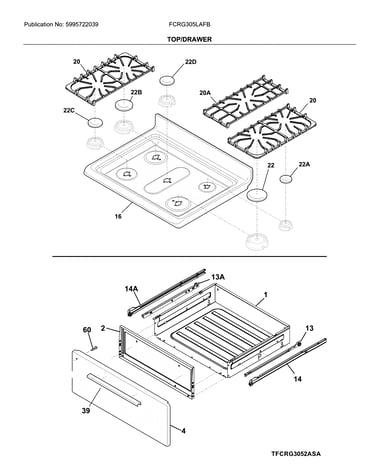

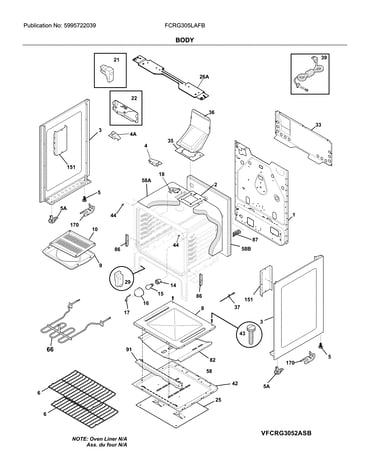

• Use the model number FCRG305LAFB to open the parts breakdown for your range.
• Match the part by name and part ID, then confirm it matches your symptom.
• Double-check finish and color notes (example: black vs stainless control pieces).

Example parts you can match by model

Once you are in the FCRG305LAFB parts list, you can identify common replacements like:

What you are fixing	Part to look for	What it affects
Oven will not heat or takes too long to ignite	Bake igniter 316489403	Ignites gas at the bake burner
Oven temperature seems inaccurate	Frigidaire range oven temperature sensor 316490000	Sends temperature feedback to the control
Oven light is out	Frigidaire range oven light bulb 316538904	Interior oven lighting

Why it matters

Frigidaire ranges often have multiple versions that look similar. Using the full model number and the ID plate details helps ensure you get the correct burner, igniter, sensor, control overlay, or hardware for your exact FCRG305LAFB build.

Last updated: February 2026

On the Frigidaire gas range model FCRG305LAFB, the model and serial number identification plate is on the right-hand surface of the oven front frame. You access it by opening the lower drawer (storage, warmer, or broiler drawer, depending on your range).

How to locate the ID plate (quick steps)

• Turn the oven off and let it cool.
• Pull open the lower drawer fully.
• Look at the right-hand side of the oven front frame (the front frame area behind the drawer opening).
• Find the identification plate and record:
  • Model number
  • Serial number
  • Lot number or letter (if shown)
• Use the exact model number when ordering Frigidaire range parts or scheduling service.

What the identification plate tells you

Besides the model and serial number, the plate typically lists key appliance details that help match parts correctly.

• Burner ratings (BTU information)
• Fuel type (natural gas or LP)
• Gas pressure setting the range was adjusted for at the factory

Common places people look first (and why they miss it)

Location checked	Why it is usually not correct	What to do instead
Oven door frame area	The plate is not on the door itself	Check the oven front frame behind the drawer opening
Back panel	Often blocked once installed	Use the drawer access method
Under the cooktop	Not the standard location for this model	Go straight to the right-hand oven front frame

Why it matters

We use the model number to match the correct version of parts like an oven igniter, temperature sensor, or control overlay. Even small model variations can change which Frigidaire range parts fit and work correctly.

For the exact illustration and wording, see the FCRG305LAFB installation guide and the FCRG305LAFB owner’s manual.

Last updated: February 2026

If your Frigidaire FCRG305LAFB gas range smells like gas, treat it as a potential gas leak: do not light the range, do not touch electrical switches, and call your gas supplier from a neighbor’s phone (or call the fire department if you cannot reach them). See the safety steps in the installation guide.

What to do right now (safety first)

• Turn all burner knobs to OFF.
• Do not try to light any appliance (including the oven).
• Do not flip light switches or use a phone inside the home.
• Leave the area and call your gas supplier from a neighbor’s phone.
• If you cannot reach your gas supplier, call the fire department.

Common causes after the immediate safety steps

Once the gas supplier says it is safe to re-enter, these are the most common reasons a range smells like gas:

• A surface burner knob was slightly on, letting gas flow without ignition.
• A burner cap or burner head is misaligned, causing delayed ignition and a brief gas odor.
• A weak igniter can cause slow oven ignition, letting gas build up before it lights (bake issues often point to the bake igniter 316489403).
• A loose connection at the range pressure regulator or supply line.
• Poor ventilation, especially if the range is used for long periods.

Quick checks you can do (after it is declared safe)

• Confirm every knob is fully in the OFF position.
• Remove and reseat burner caps so they sit flat and centered.
• Clean burner ports gently (food spills can disrupt ignition).
• Run the vent hood or open a window during heavy cooking.

Symptom guide

What you notice	Most likely area	What it points to
Smell only when a top burner is on	Surface burner	Cap/head alignment or dirty ports
Smell mainly during bake start	Oven burner/ignition	Slow ignition, often igniter related
Smell even when everything is off	Gas supply/regulator	Supply line, regulator, or valve issue

Why it matters

Gas odor can signal unburned fuel in the home. Following the exact “what to do if you smell gas” steps reduces fire and explosion risk and helps you get the right professional support quickly.

Last updated: February 2026
