Ariens
Rear-Engine Riding Mower

Model # 99280700 (101-999999) Official Ariens riding lawn mower

Here are the diagrams and repair parts for Official Ariens 99280700-101-999999 riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

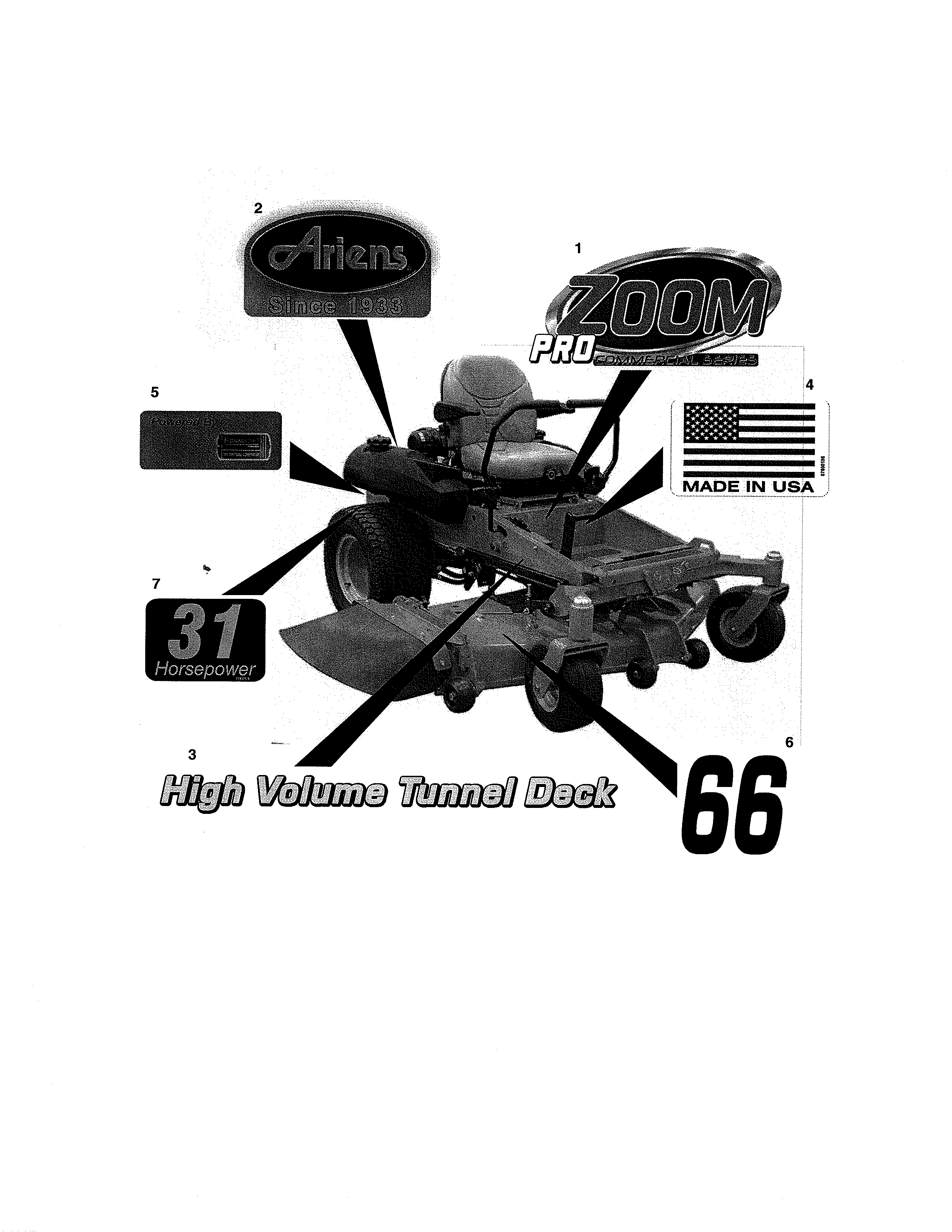

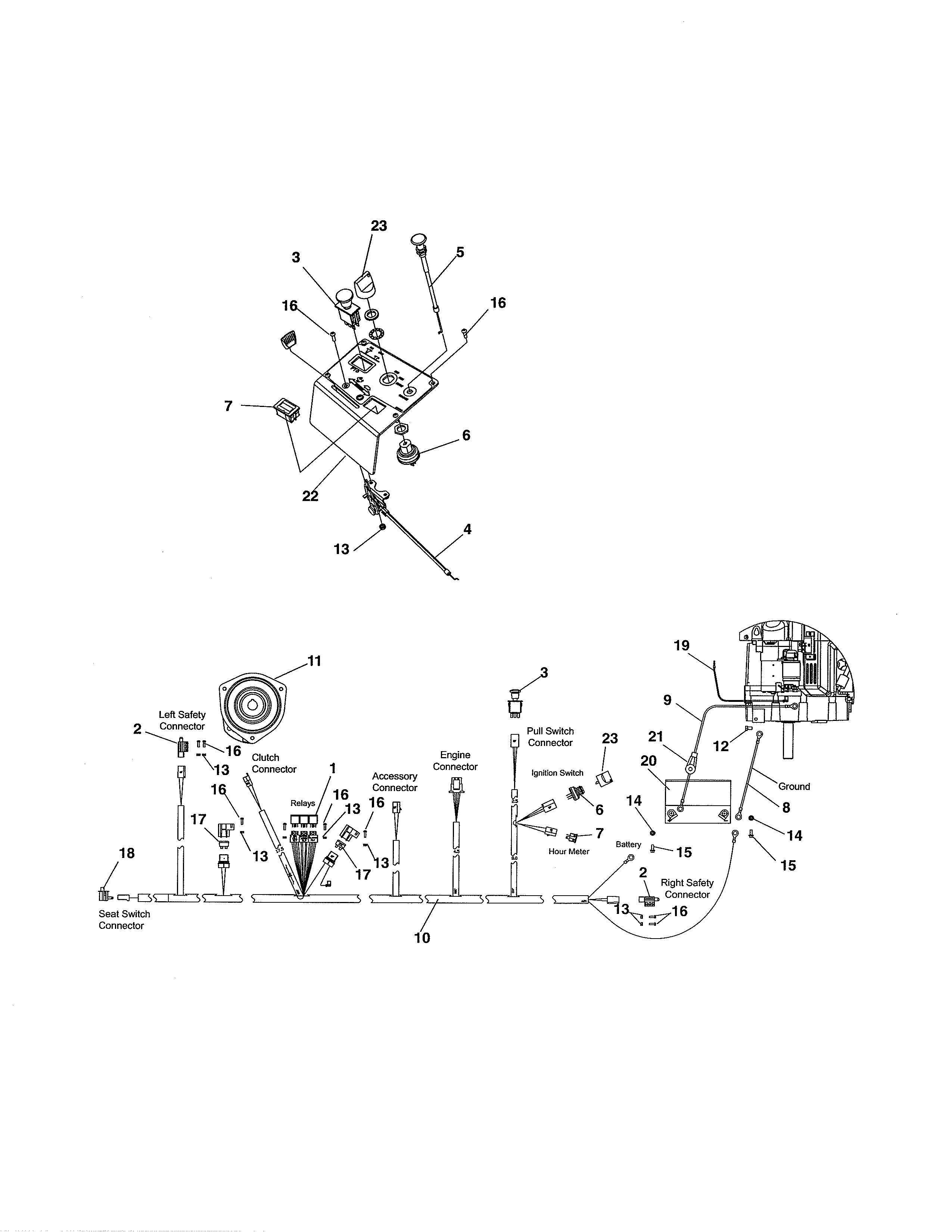

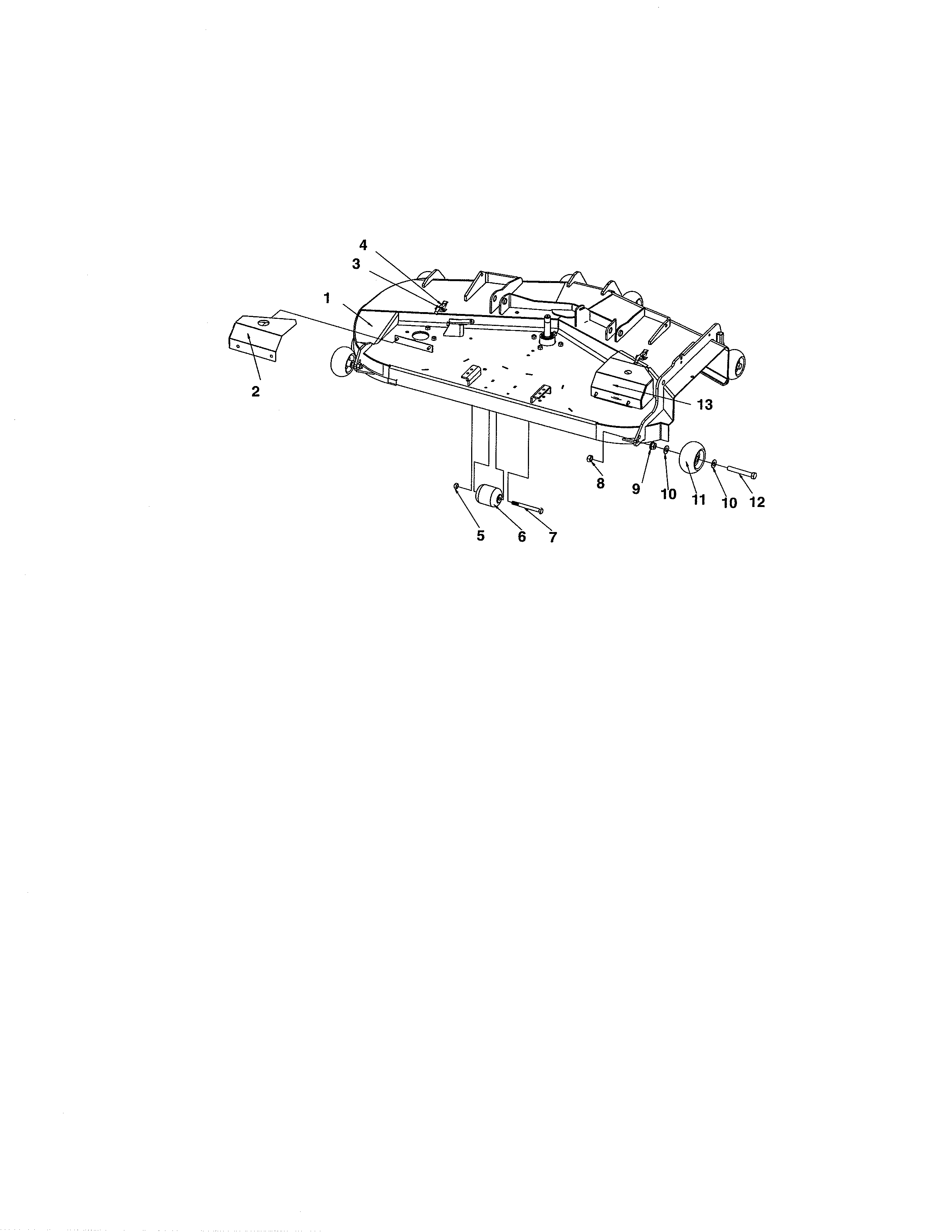

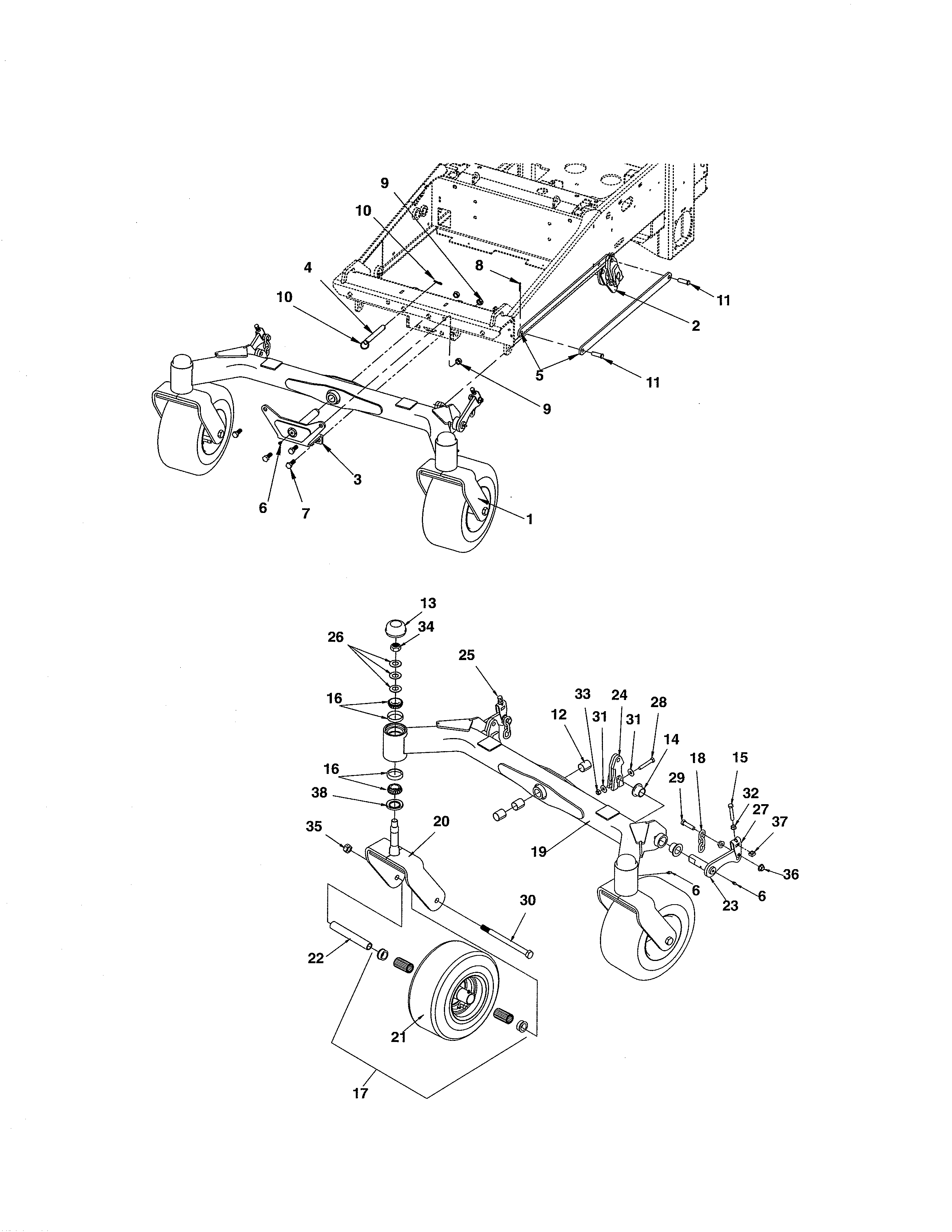

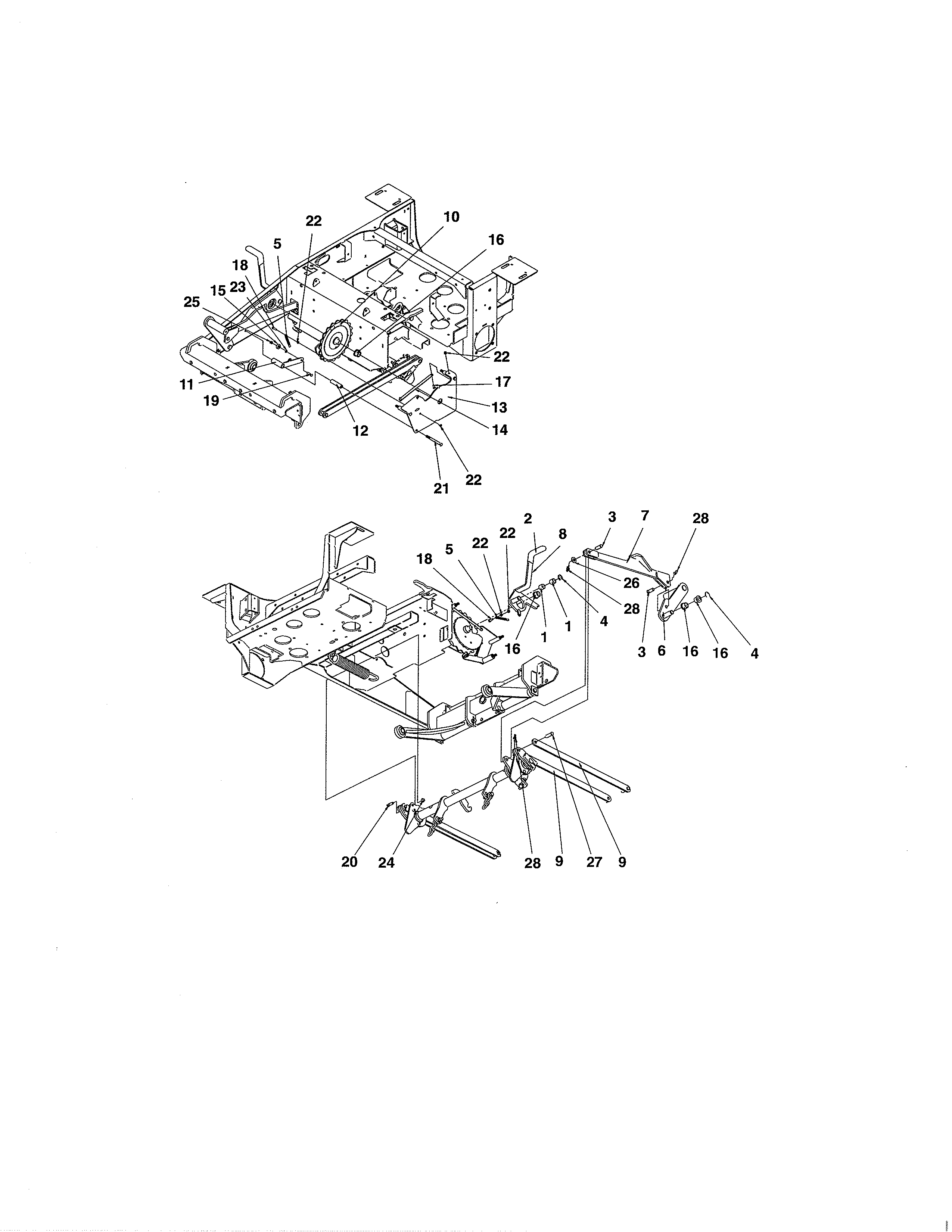

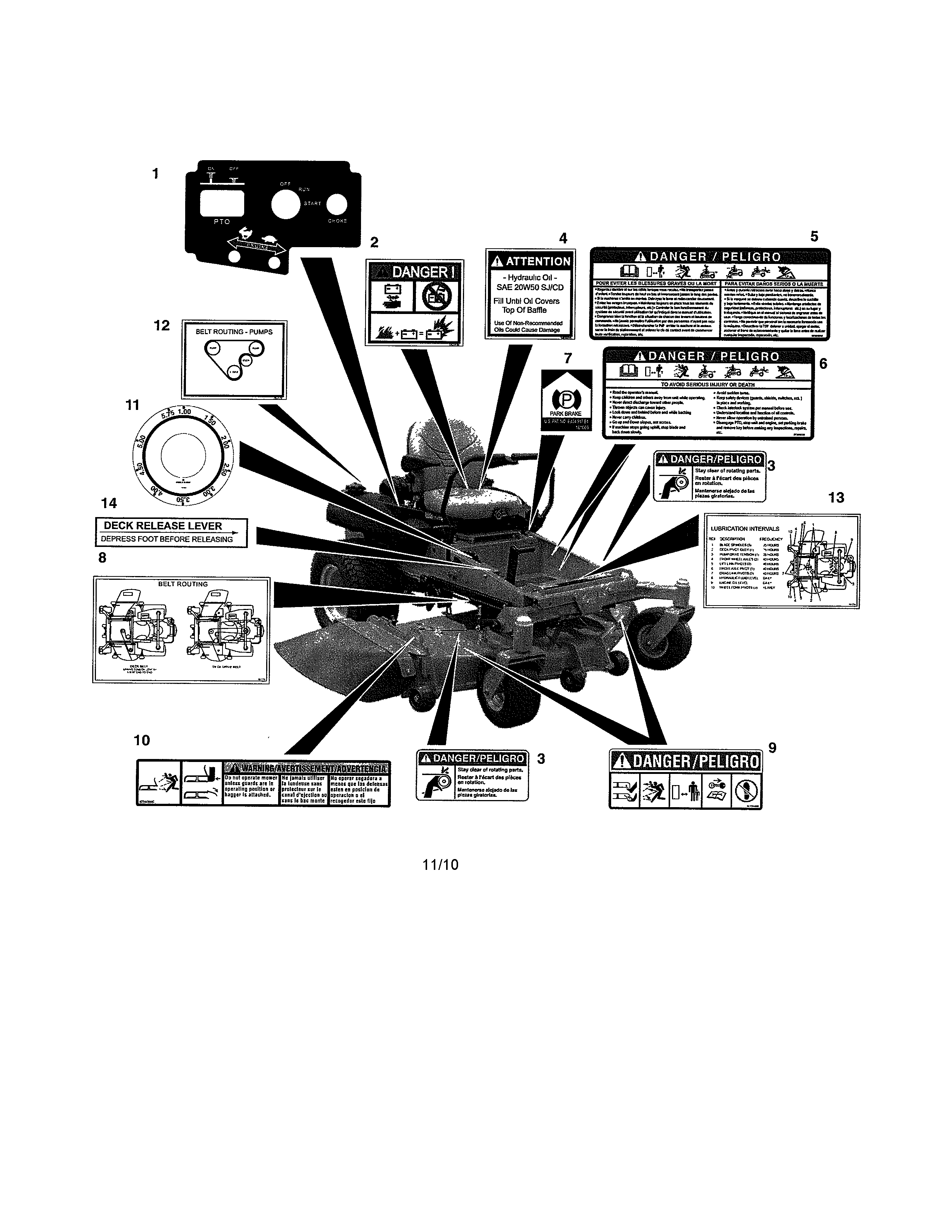

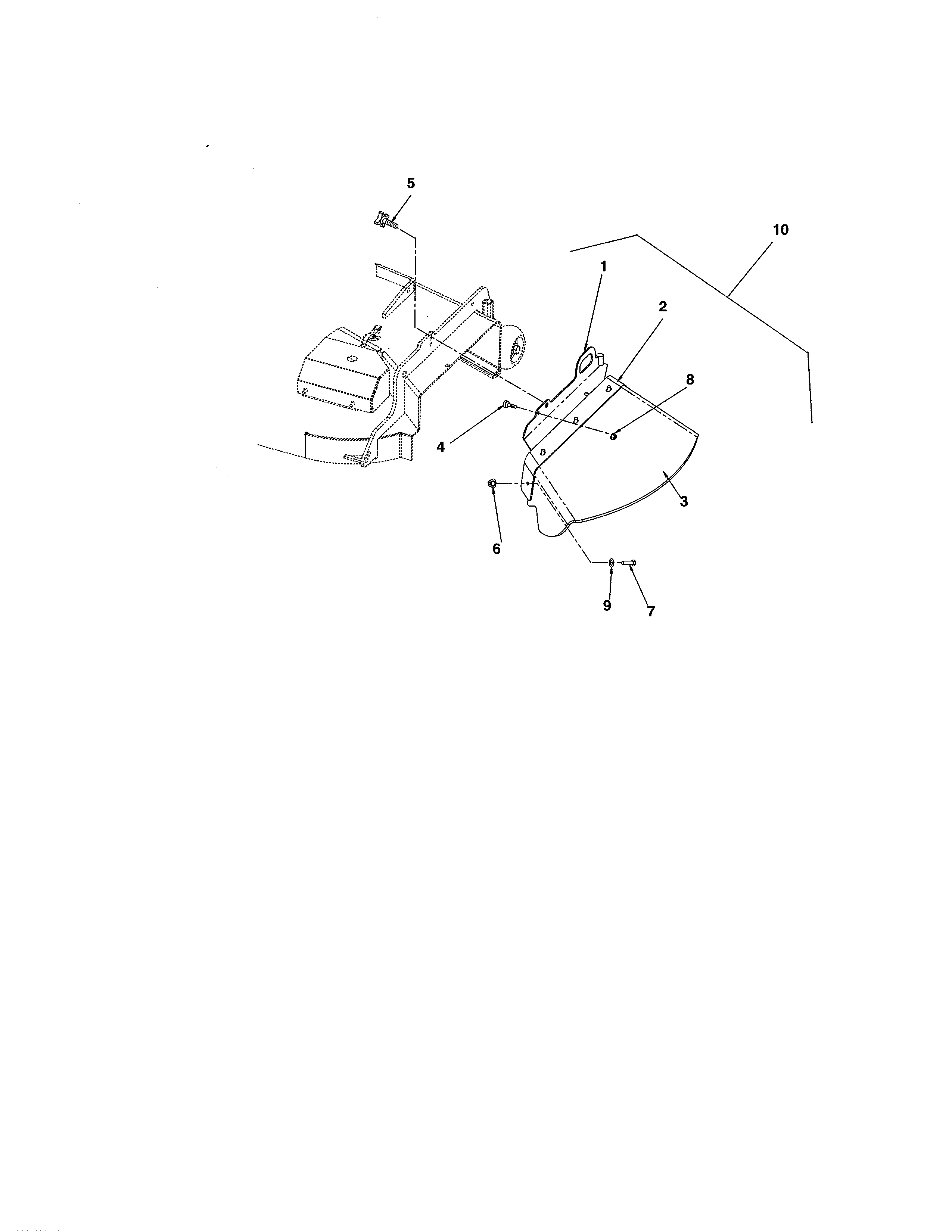

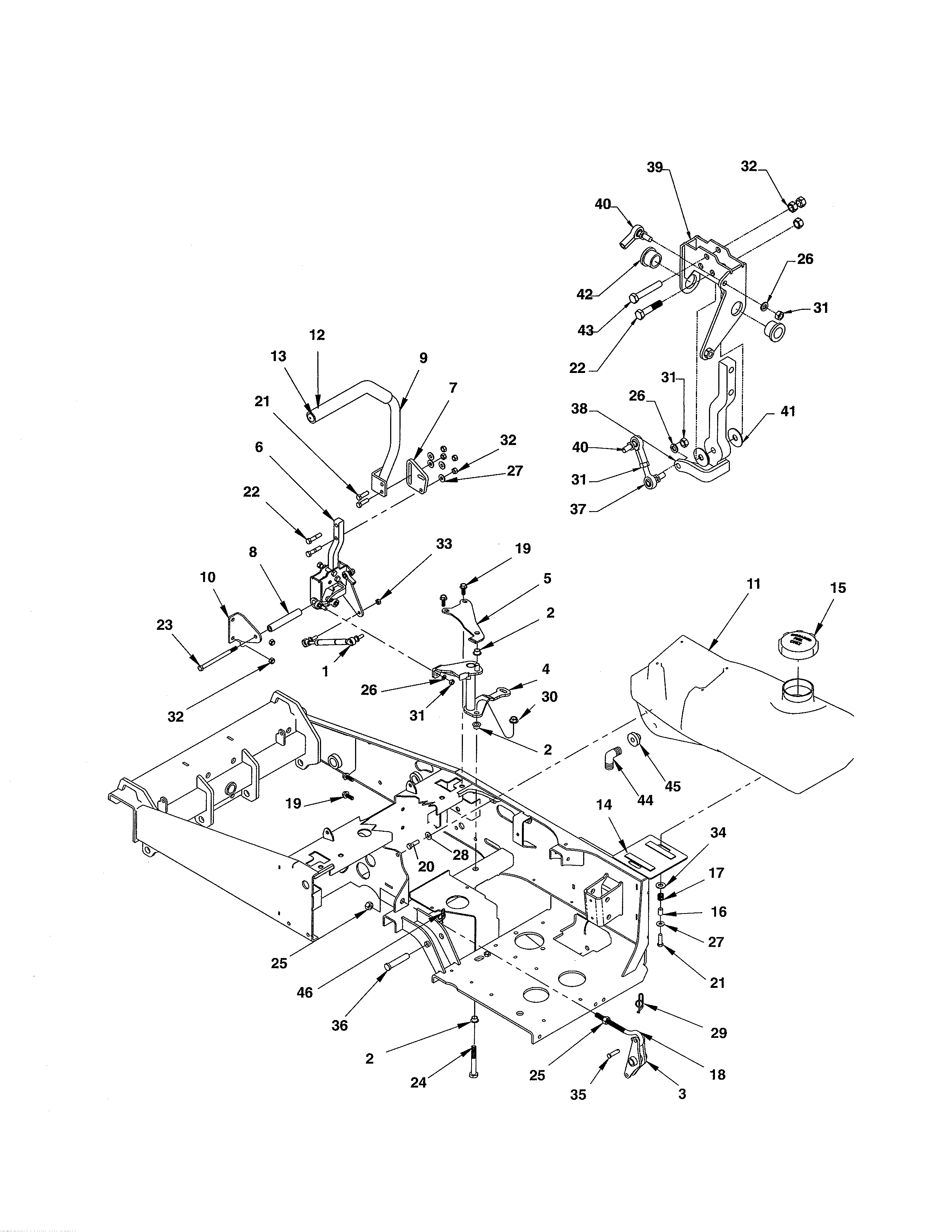

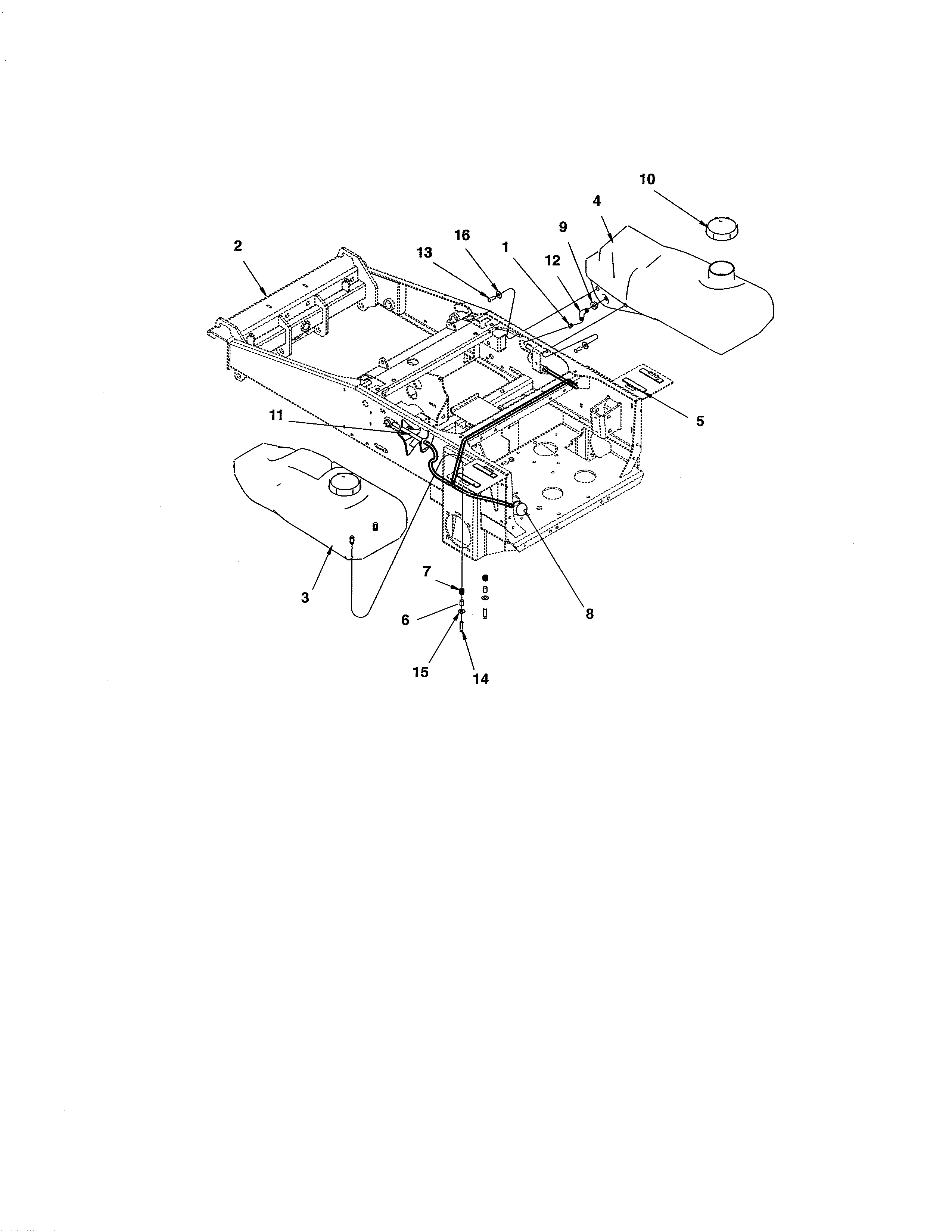

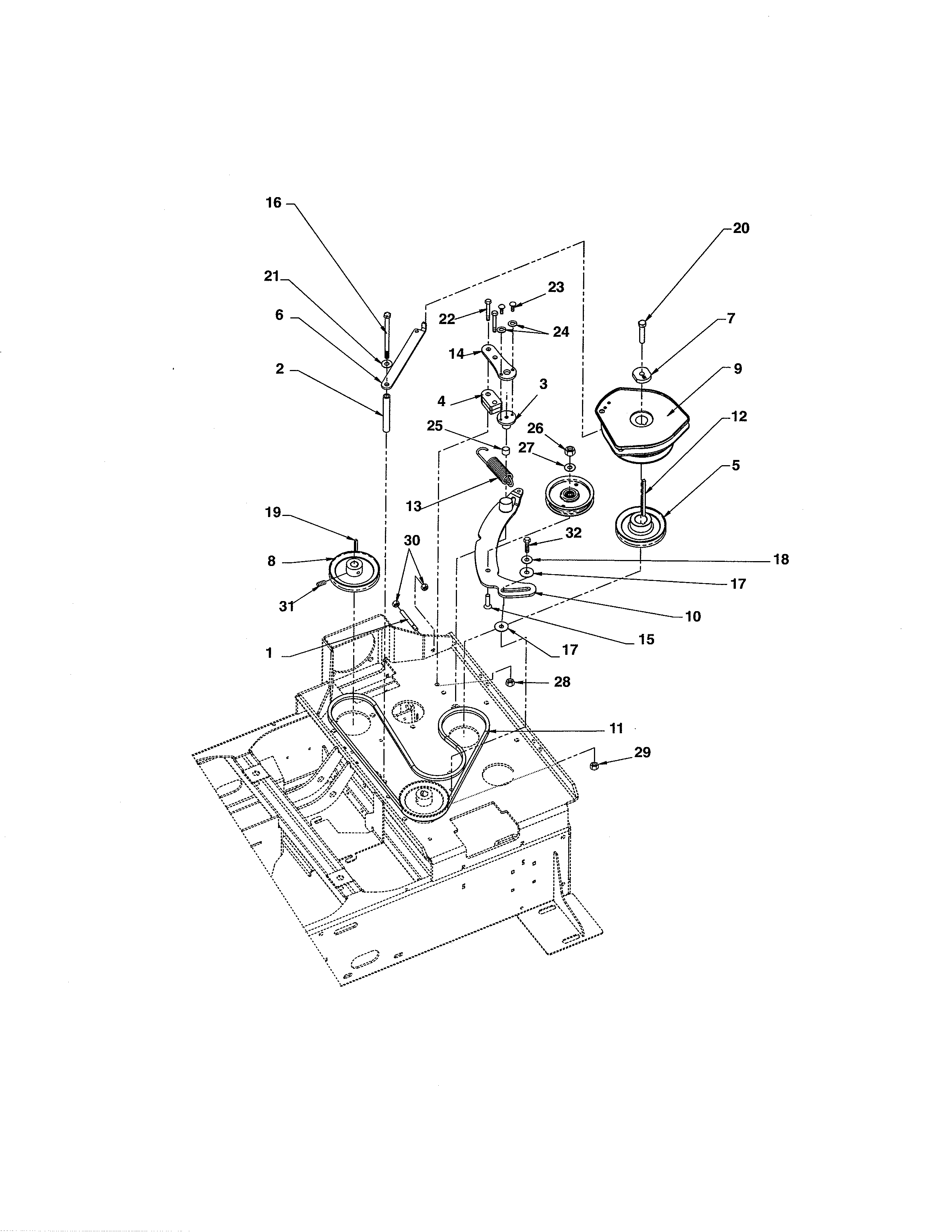

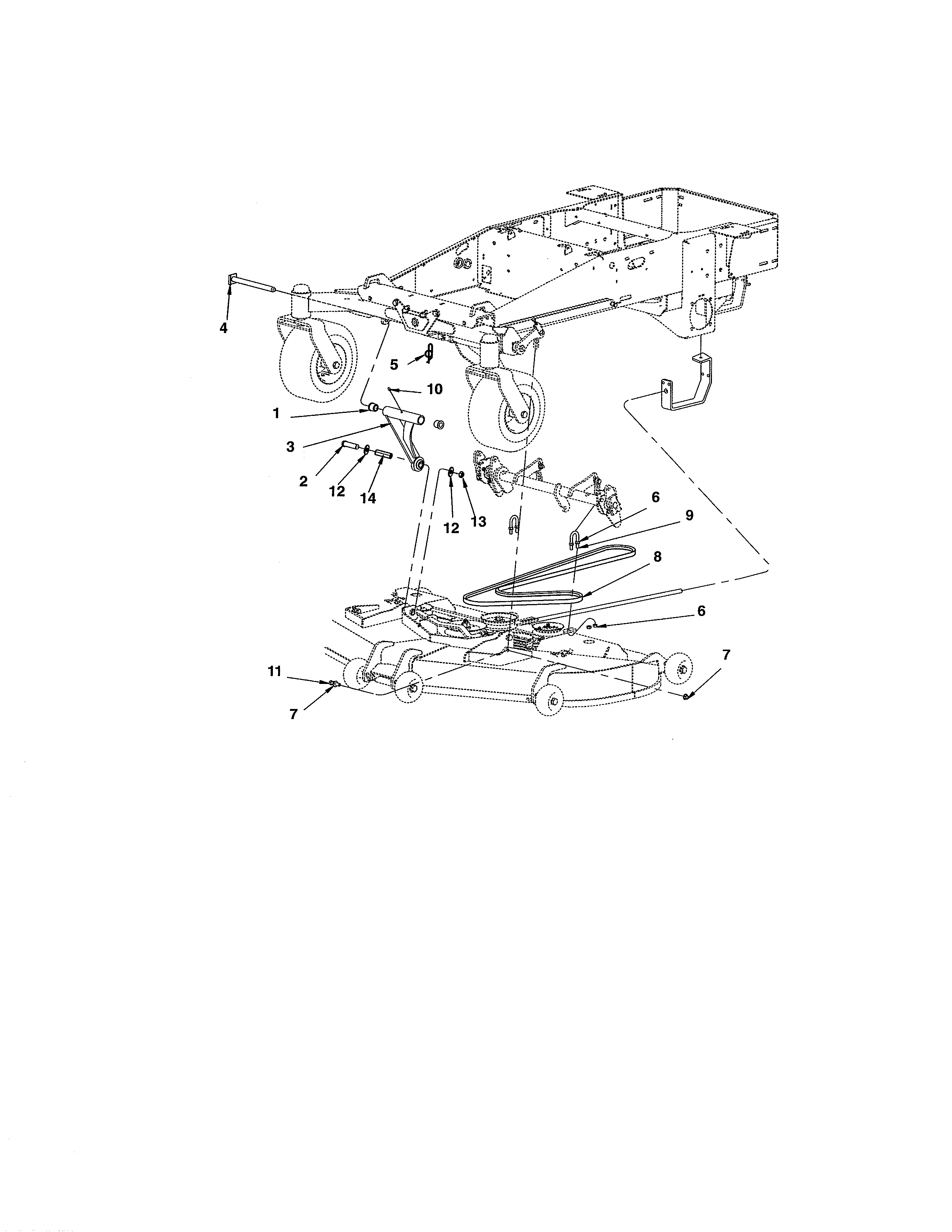

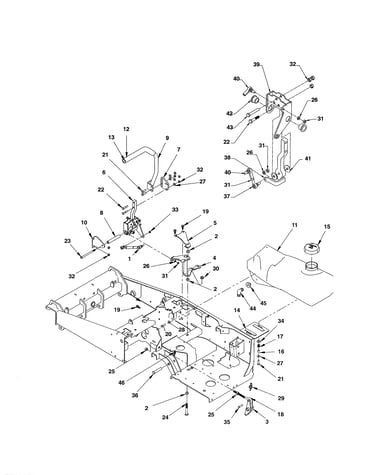

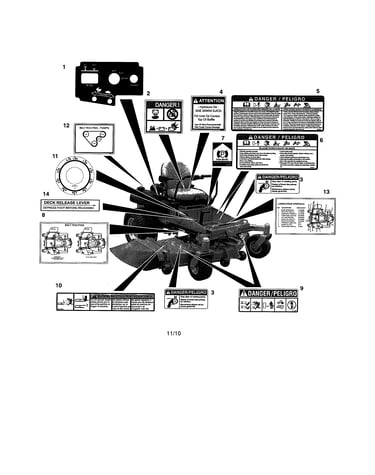

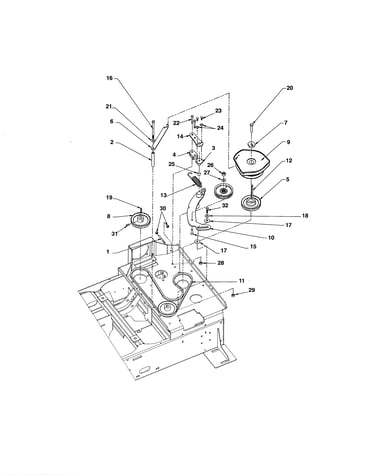

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 348 parts  |

Ftg- Adp 9
#12

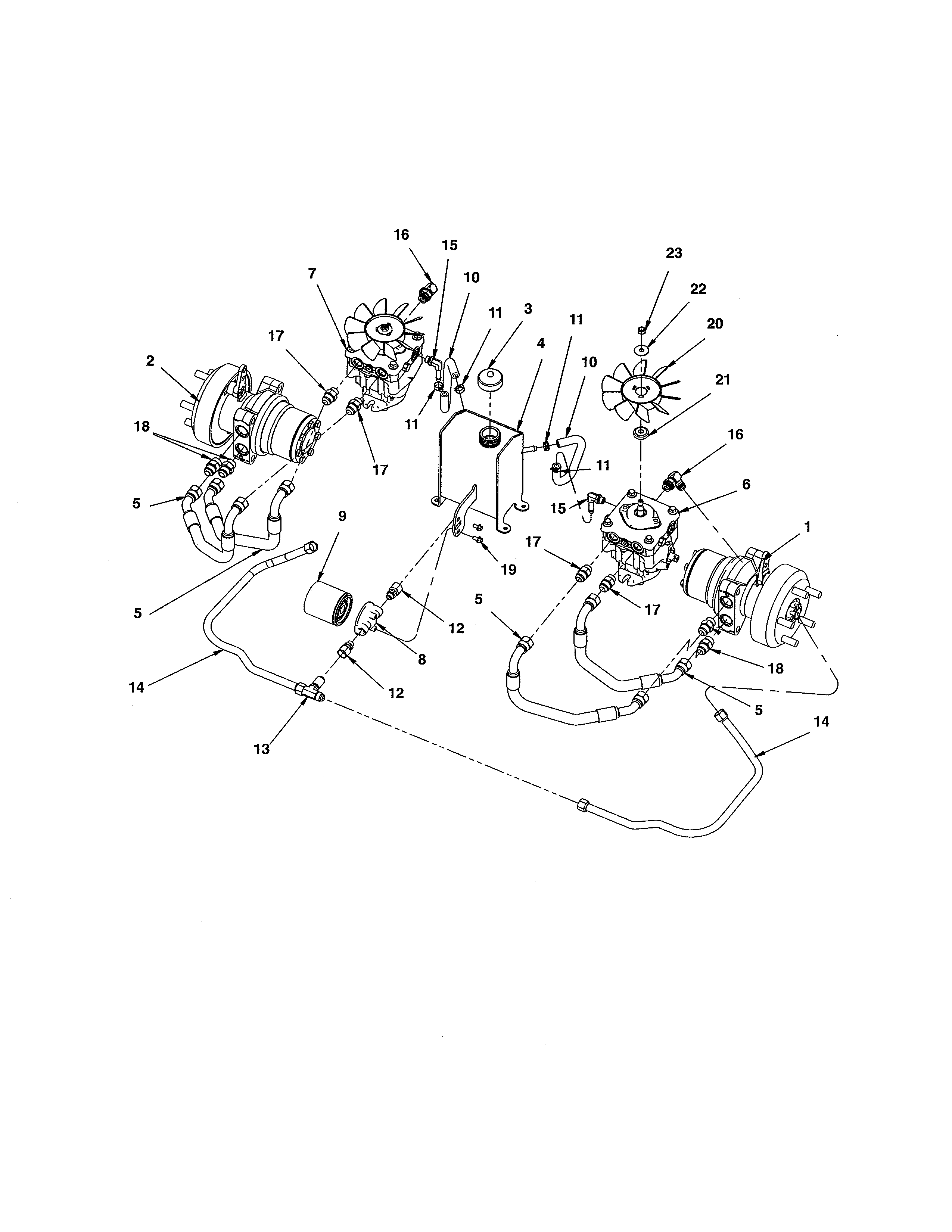

Hydraulics diagram

Ftg- adp 9

Part #00181031

In Stock
Ftg- 90 1/
Ftg- 90 1/

Part #00191605

In Stock
Weldment
Weldment

Part #03816351

In Stock
Oil Filter
#3

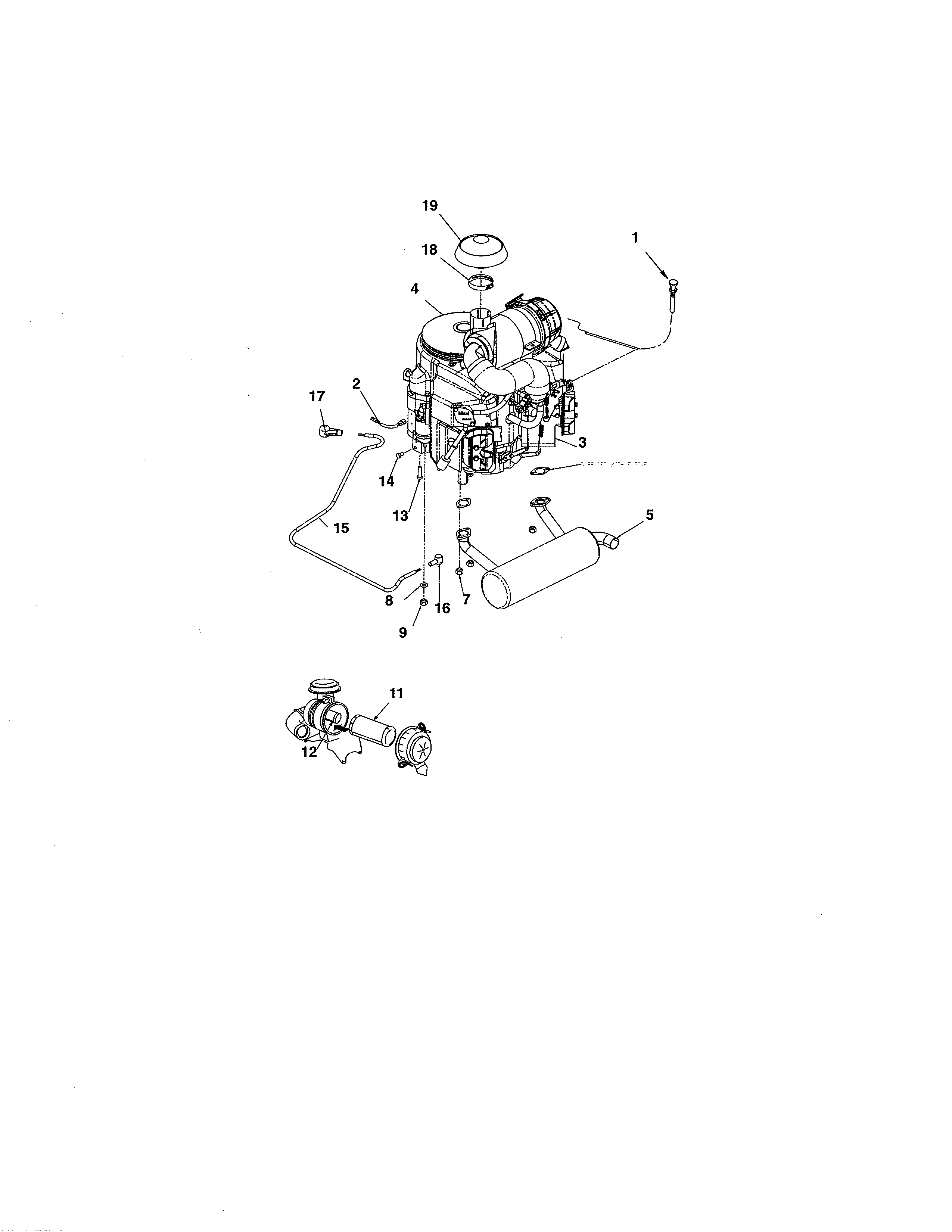

Engine/exhaust diagram

Oil filter

Part #21535800

In Stock
Upper Seal
#52

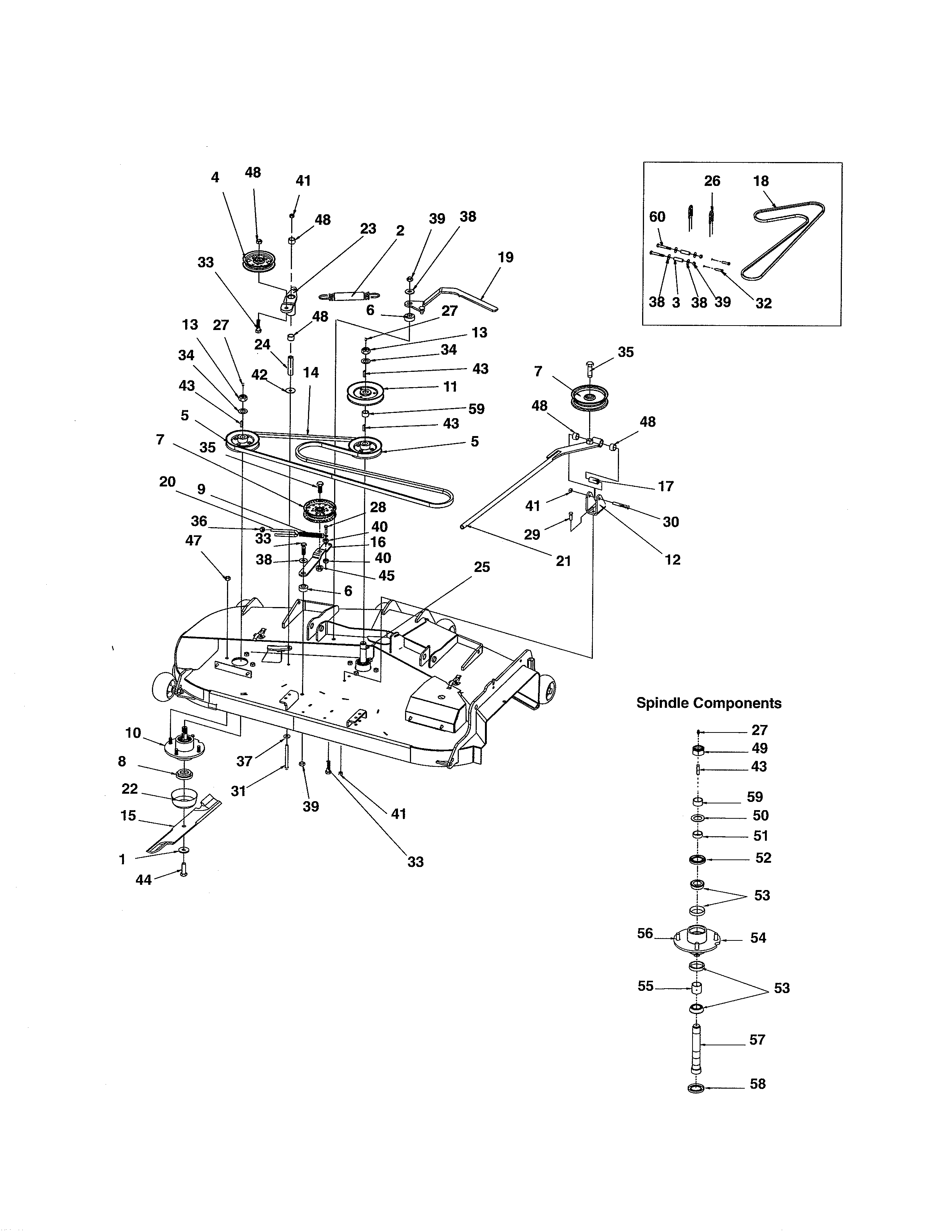

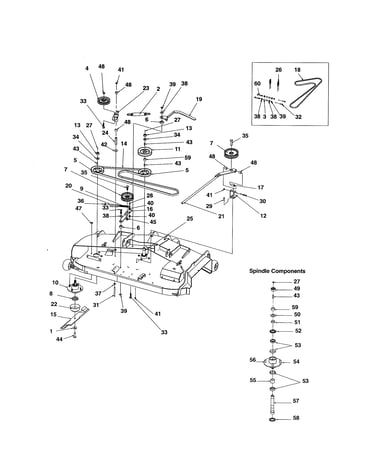

Belts/idlers/blades diagram

Upper seal

Part #AA145551

In Stock
Bolt
#16

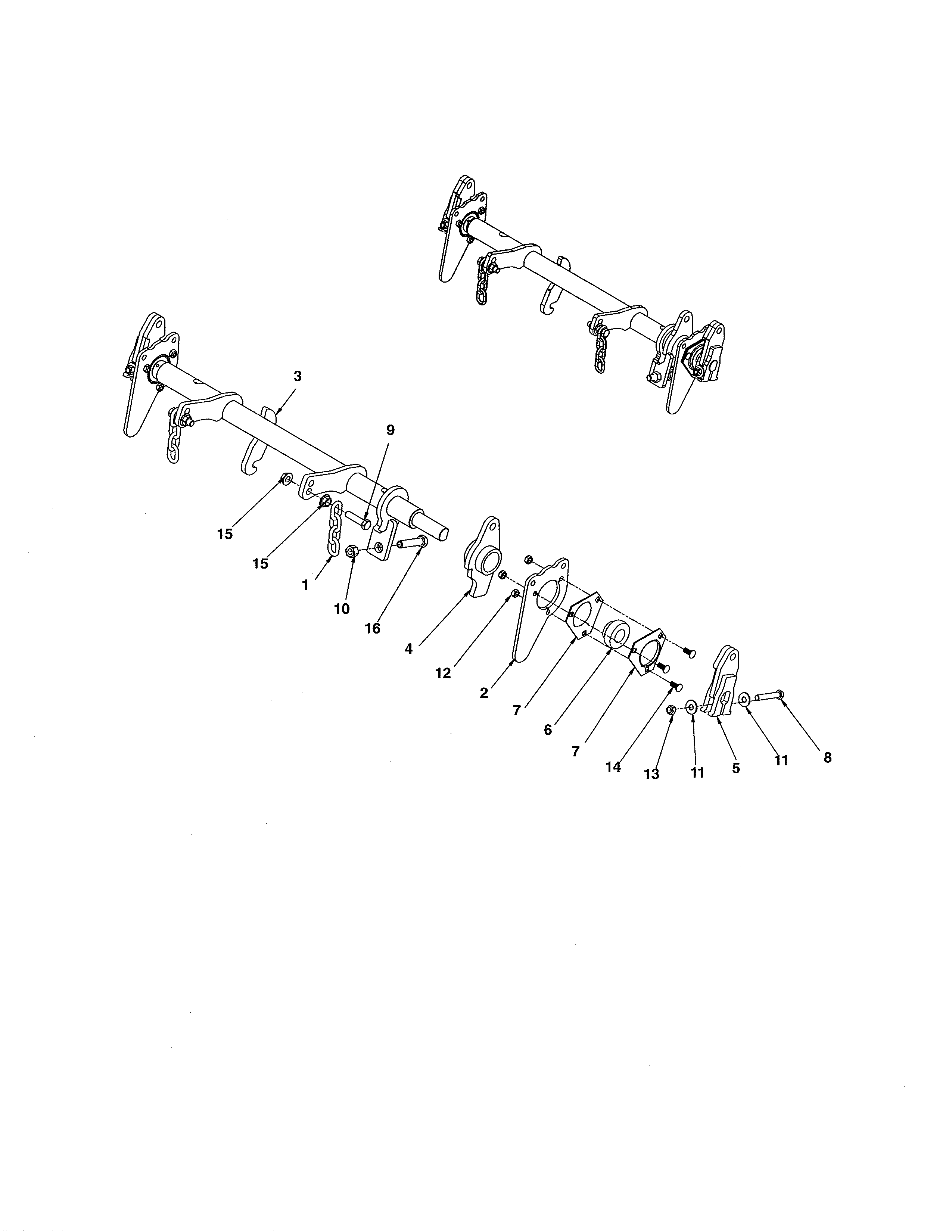

Lift rod diagram

Bolt

Part #00967341

In Stock
Tire- 24x1
#20A

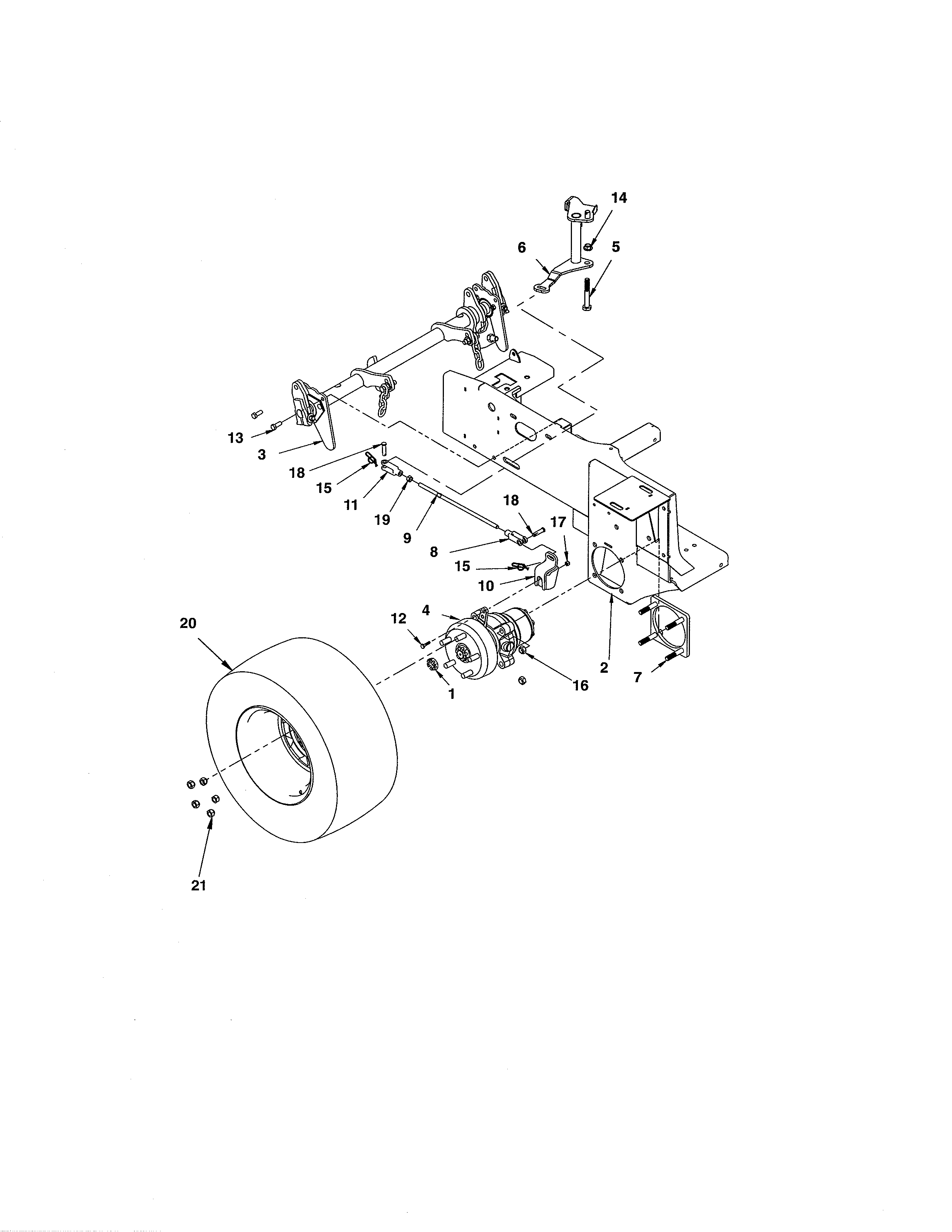

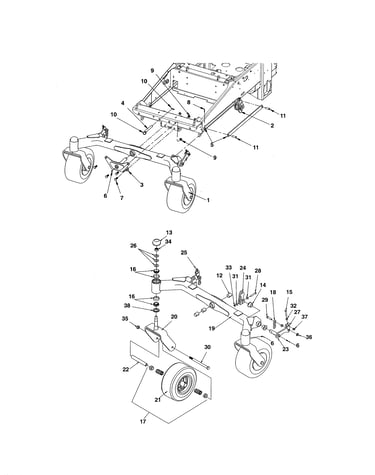

Wheels/brakes diagram

Tire- 24x1

Part #07100208

In Stock
Band 15"
#1

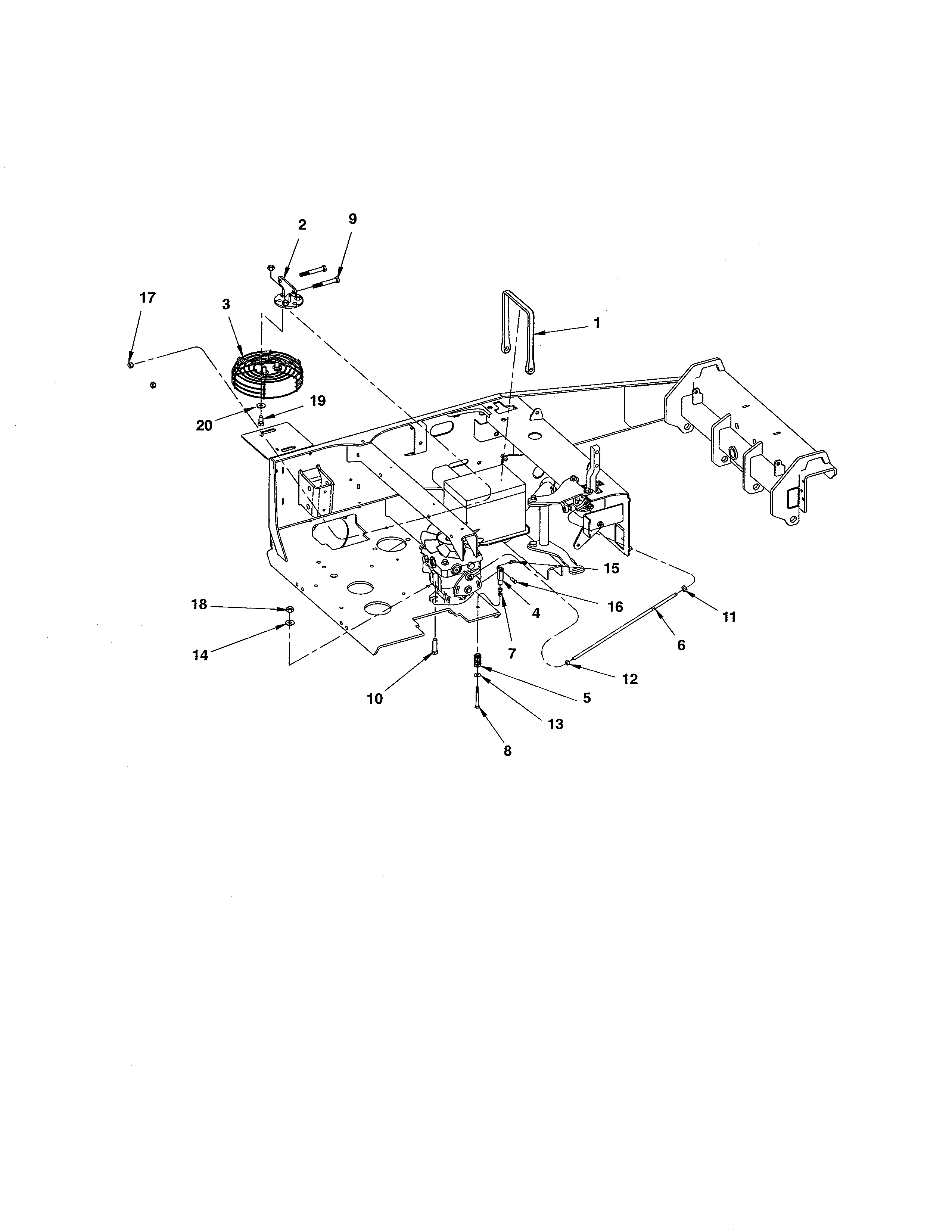

Pump diagram

Band 15"

Part #00181228

In Stock
Plate- Hit
#23

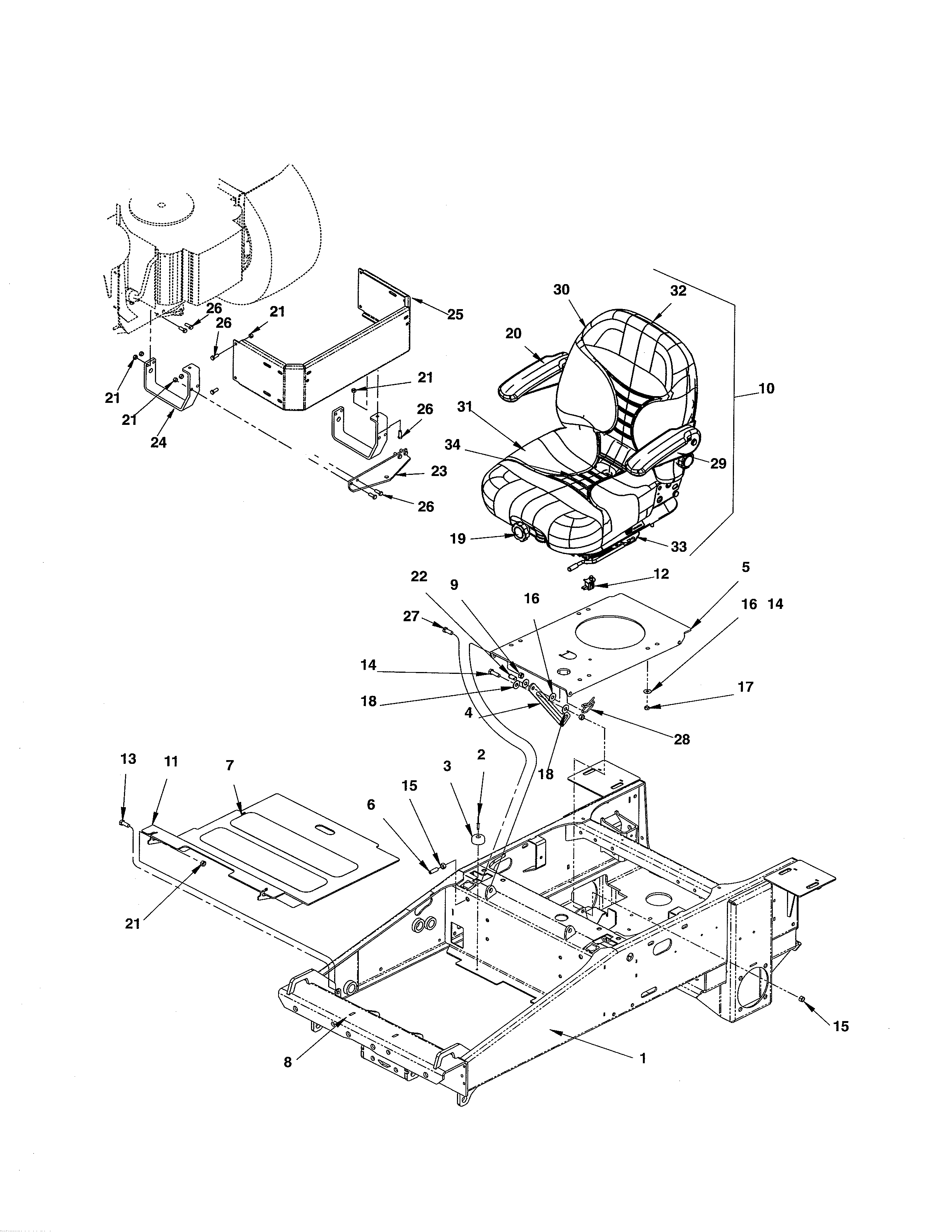

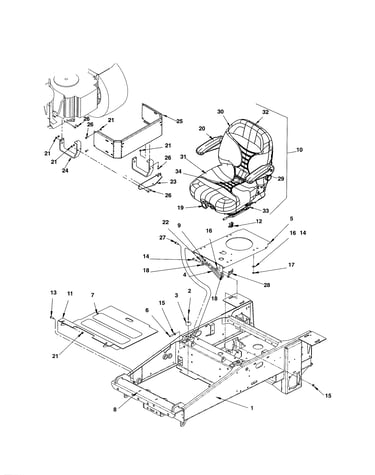

Seat/foot plate diagram

Plate- hit

Part #03817259

In Stock
Kit-seat C
#31

Seat/foot plate diagram

Kit-seat c

Part #59208900

In Stock
