Model #TAX4SNYAWH GE refrigerator - y series

Here are the diagrams and repair parts for GE TAX4SNYAWH refrigerator - y series, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

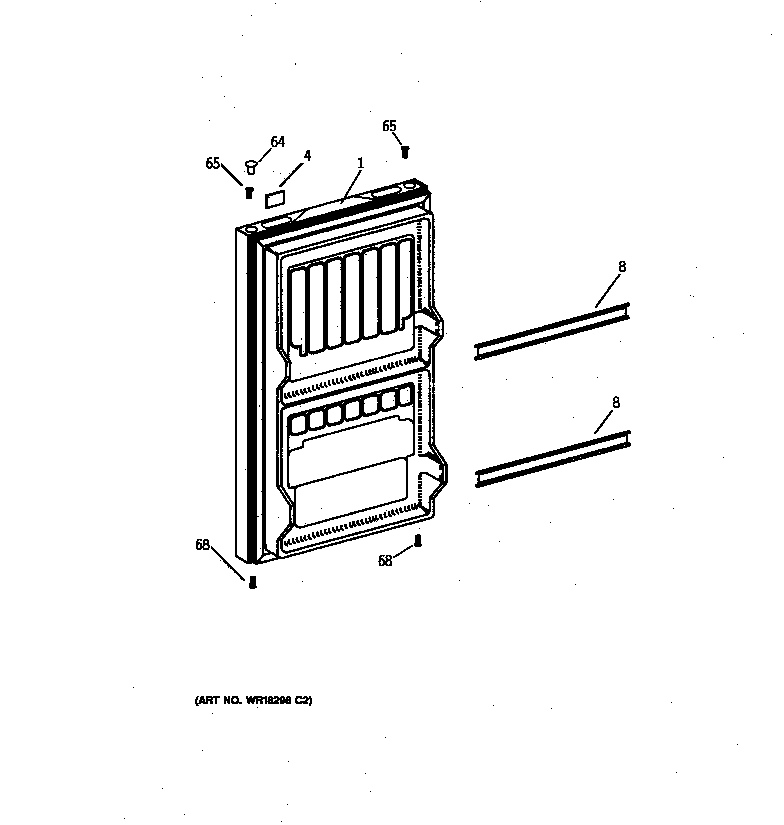

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 59 parts

    Refrigerator Power Cord

    #626

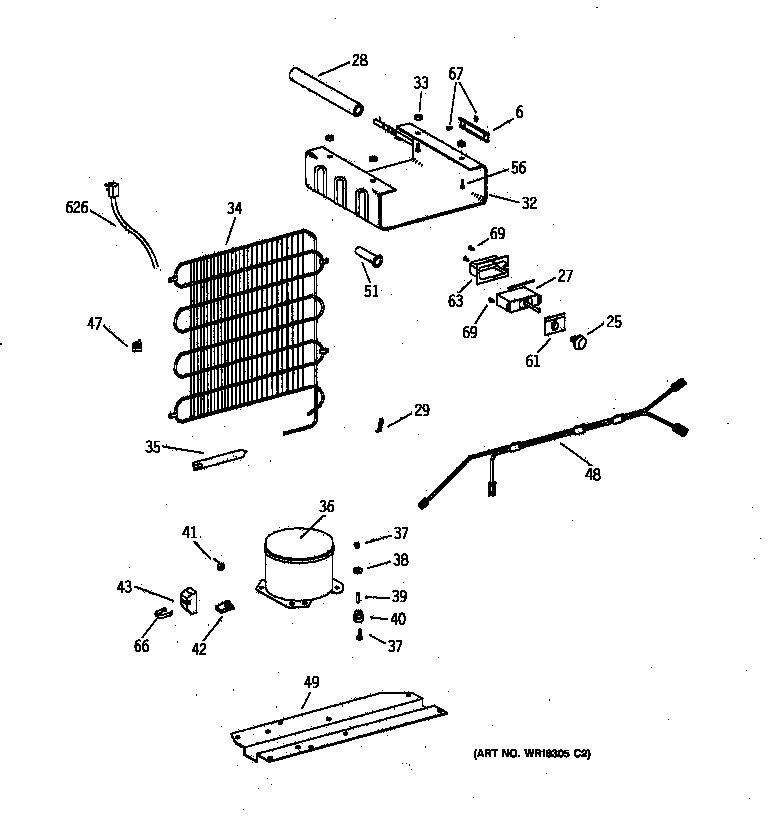

    Unit parts Diagram

    Refrigerator power cord

    Part #WR23X10300
    ?
    Manufacturer substitution
    This part replaces WR23X108. Substitute parts can look different from the original.
    This part replaces WR23X108
    $16.28

    In Stock

    Refrigerator Use and Care Guide

    #NI

    All parts Diagram

    Refrigerator use and care guide

    Part #49-6865-3
    ?
    Manufacturer substitution
    This part replaces 49-6865. Substitute parts can look different from the original.
    This part replaces 49-6865
    $8.49

    In Stock

    Bearing

    #19

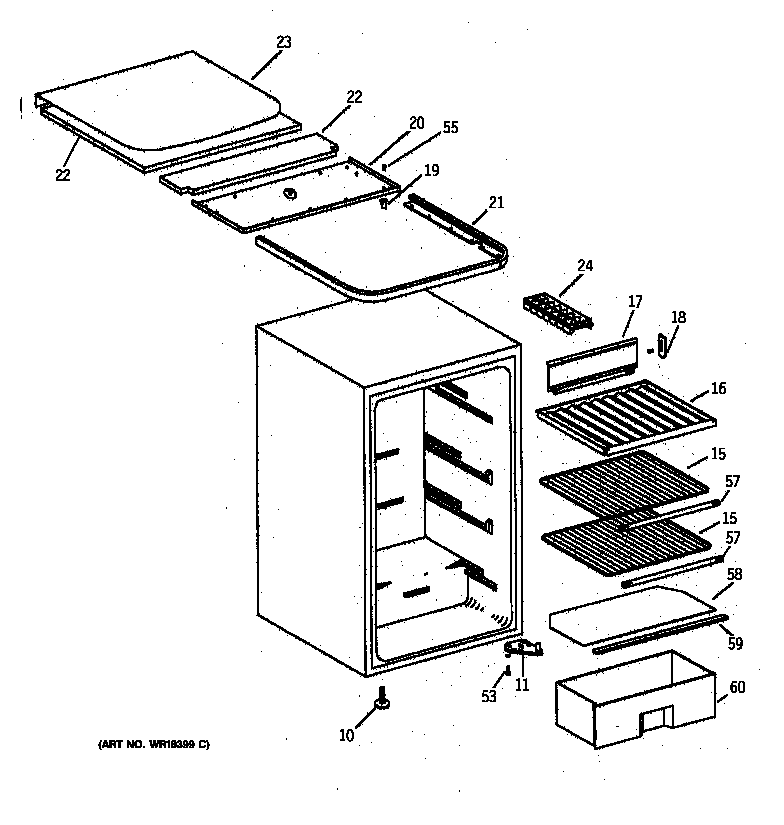

    Cabinet & shelves Diagram

    Bearing

    Part #WR2X8057

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Clamp

    #6

    Unit parts Diagram

    Refrigerator clamp

    Part #WR2X8274

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Dial Insert

    #NI

    All parts Diagram

    Refrigerator dial insert

    Part #WR2K34

    The manufacturer no longer makes this part, and there's no substitute part

    Screw & N

    #67

    Unit parts Diagram

    Screw & n

    Part #WR1K17

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #38

    Unit parts Diagram

    Washer

    Part #WR1K18

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Foam Pad

    #22A

    Cabinet & shelves Diagram

    Refrigerator foam pad

    Part #WR82K03

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Condenser

    #34

    Unit parts Diagram

    Refrigerator condenser

    Part #WR84K01

    The manufacturer no longer makes this part, and there's no substitute part

    Temperature Control

    #27

    Unit parts Diagram

    Temperature control

    Part #WR9K01

    The manufacturer no longer makes this part, and there's no substitute part
