Model # 153623 Official Broan range hood

Here are the diagrams and repair parts for Official Broan 153623 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Damper (black) 97006078
#6

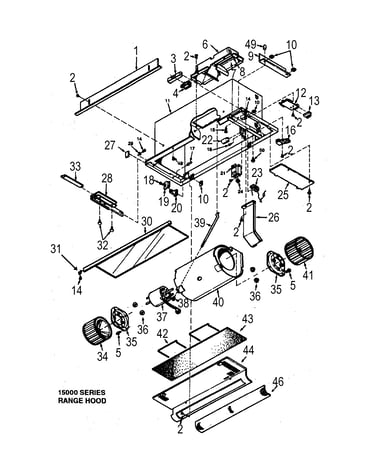

Range hood assy diagram

Damper (black)

Part #97006078

Replaced by #S97006078

?
Manufacturer substitution
This part replaces 97006078. Substitute parts can look different from the original.
$25.69
In Stock
Range Hood Fan Motor Mount 99100491
#36

Range hood assy diagram

Range hood fan motor mount

Part #99100491

The manufacturer no longer makes this part, and there's no substitute part
