Jenn-Air JS42PPDUDB16 42" built-in refrigerator Parts

Common problems we see with Jenn-Air refrigerators like model JS42PPDUDB16 include warm temperatures from airflow or condenser issues, ice maker or water dispenser problems, water leaks from a clogged drain, noisy fans, and door sealing or alignment problems. Many fixes start with cleaning, inspection, and basic adjustments in the installation guide.

Most common symptoms (and what usually causes them)

• Not cooling or uneven temps: blocked air vents, dirty condenser coils, failing evaporator fan, or a temperature sensor issue

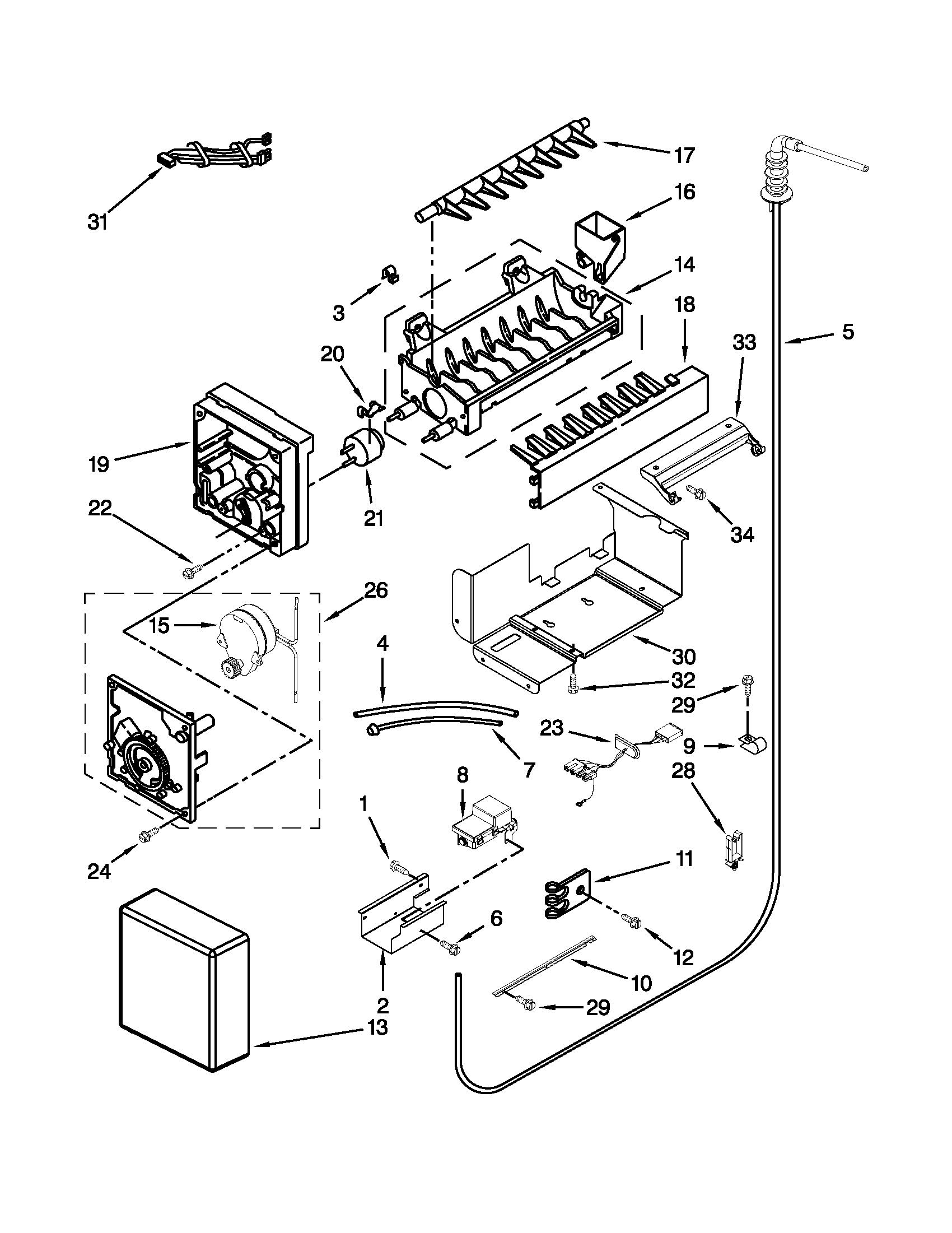

• Ice maker not working: water supply restriction, filter restriction, inlet valve problem, or ice bin issues
• Water leaking: clogged defrost drain, loose water line fitting, or filter housing/cap not seated
• Noisy operation: evaporator fan blade rubbing ice, condenser fan noise, or vibration from panels/grilles
• Door not closing or sealing: leveling, hinge alignment, or gasket/panel fit problems

Quick checks we recommend first

1. Confirm airflow: keep food packages from blocking interior vents.
2. Clean condenser area: dust buildup reduces cooling efficiency and can raise temperatures.
3. Power reset: unplug for 2 to 5 minutes, then restore power to clear minor control glitches.
4. Check door alignment and level: built-in units are sensitive to leveling; small adjustments prevent trim and door-fit issues.
5. Inspect water system: verify the filter is fully seated and look for drips at fittings.

Parts that commonly relate to these problems (for this model)

Symptom	Common part involved	Example part for JS42PPDUDB16
Weak water flow, slow ice production	Water filter	Refrigerator filter EDR3RXD1
Warm fridge/freezer, fan noise	Evaporator fan components	Refrigerator evaporator fan blade WP2169142
Lights or door-related behavior issues	Door/light switch	Refrigerator light switch W11384469
No water to ice maker/dispenser	Water inlet valve	Refrigerator water inlet valve WPW10159842

Why it matters

Catching the root cause early helps protect food temperatures, prevents water damage from slow leaks, and reduces strain on the sealed system. On built-in models, correct leveling and alignment also helps the doors seal consistently and keeps trim and grille fit looking right.

Last updated: February 2026

A Jenn-Air refrigerator typically lasts 15 years. For a built-in model like Jenn-Air JS42PPDUDB16, lifespan depends most on steady temperatures, clean airflow through the grille area, and keeping the sealed system and fans running efficiently; good maintenance helps it reach the full service life.

Typical lifespan ranges

• Expected service life: about 15 years
• Common real-world range: 10 to 20 years
• Shortened lifespan is more likely when airflow is restricted, doors do not seal well, or the unit runs hot and continuously

What you notice	What it usually means	What to do first
Runs almost all the time	Poor airflow, dirty condenser area, warm room, or door leak	Clean airflow paths; confirm doors close and seal
Temps swing or food spoils early	Sensor/control or airflow issue	Verify settings; avoid blocking vents
Frost buildup or warm freezer	Defrost or fan problem	Check for blocked vents; listen for fan operation
Water tastes off or flow slows	Filter is overdue	Replace the refrigerator filter EDR3RXD1

Maintenance that extends life (what we recommend)

• Keep the upper grille and intake/exhaust areas clear so heat can leave the machine compartment.
• Confirm the refrigerator is level and aligned; built-ins that are out of level can have door sealing and alignment issues (see the installation guide).
• Do not overload shelves in a way that blocks air vents inside the fresh food or freezer sections.
• Replace the water filter on schedule; a restricted filter can reduce dispenser flow and strain the water system.
• Listen for normal fan operation; unusual noise or no airflow can point to a fan or control issue.

Why it matters

A built-in refrigerator is designed to run for many years, but it relies on moving heat out of the cabinet. When airflow is restricted or doors do not seal tightly, the compressor and fans run longer, which accelerates wear and shortens overall life.

Last updated: February 2026

The model number is printed on the refrigerator’s model and serial tag. On Jenn-Air built-in models like JS42PPDUDB16, you’ll typically find that tag inside the fresh food compartment along the side wall or near the top trim area; confirm the exact location in the installation guide.

Where to look first

Check these common tag locations on a 42-inch built-in side-by-side refrigerator:

• Inside the refrigerator (fresh food) compartment on the left or right side wall
• Near the ceiling of the fresh food compartment, behind the top trim area
• Along the door frame (hinge side) when the door is open
• Behind the upper grille area (some built-in designs place labels near the top)

How to read the tag correctly

Use the full model number exactly as shown so parts and diagrams match your unit.

• Copy every letter and number (example: JS42PPDUDB16)
• Include any suffixes; they affect fit and finish parts
• If the tag also lists a serial number, record it for reference
• Take a clear photo before ordering parts

Quick checklist: model number vs. serial number

Item on tag	What it’s used for	Example format
Model number	Matching parts, diagrams, manuals	JS42PPDUDB16
Serial number	Production details, service history	Letters and numbers

Why it matters

Built-in Jenn-Air refrigerators have multiple design variations (Euro-Style, Pro-Style, overlay, dispensing vs. non-dispensing). Using the exact model number ensures you get the correct items like a refrigerator filter EDR3RXD1, control boards, gaskets, and trim pieces.

Last updated: March 2026
