Model # 4700A Official Eureka upright vacuum
Here are the diagrams and repair parts for Official Eureka 4700A upright vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part

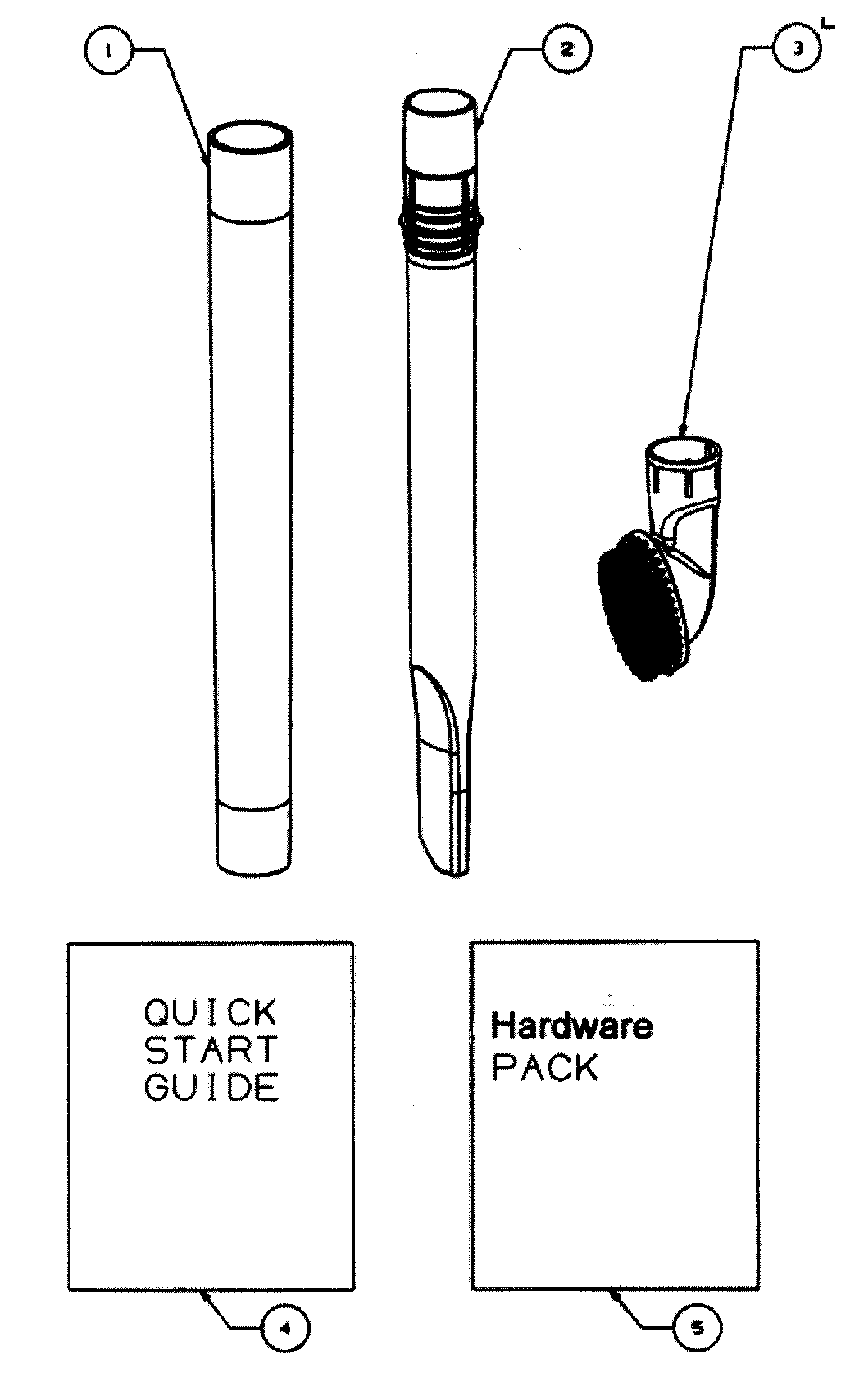

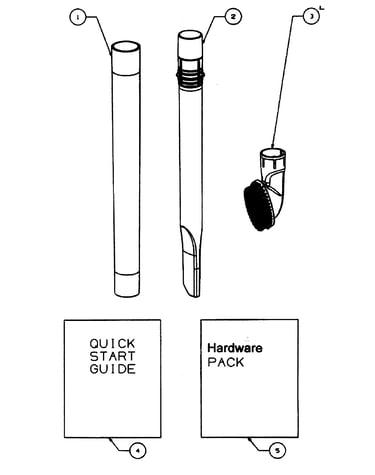

SELECT DIAGRAM
Browse Parts for4700A Vacuum Cleaners
- #1

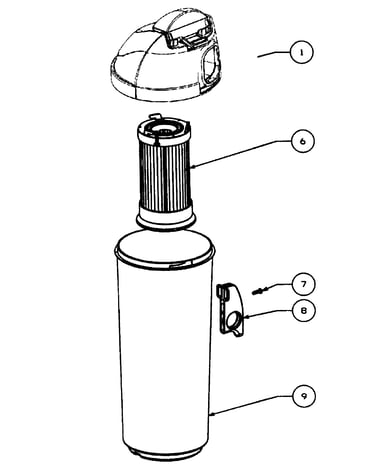

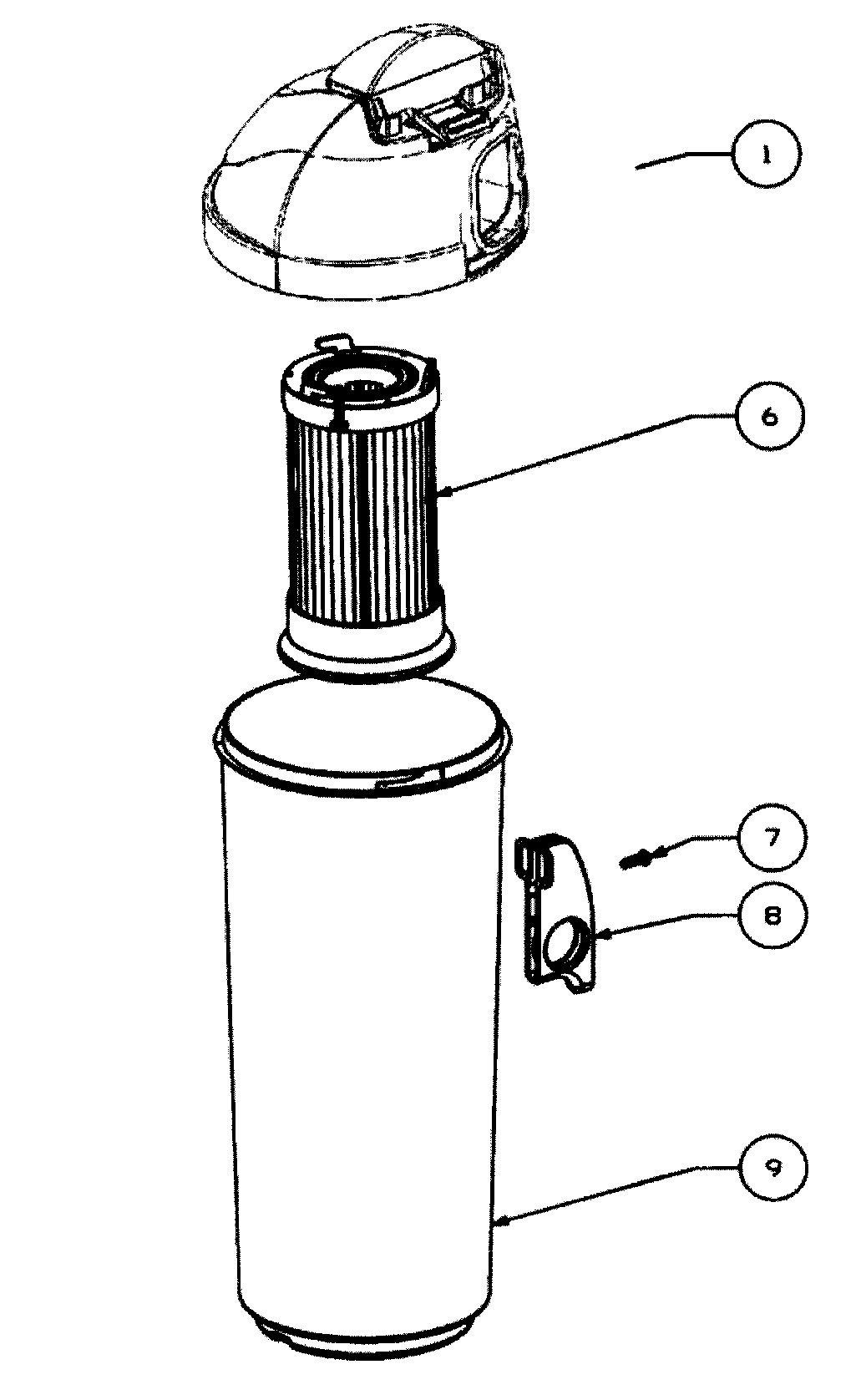

Dust cup diagram
Eureka vacuum dust compartment coverPart #75188-1
The manufacturer no longer makes this part, and there's no substitute part
- #18

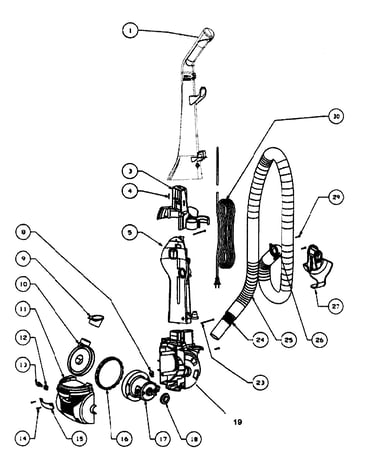

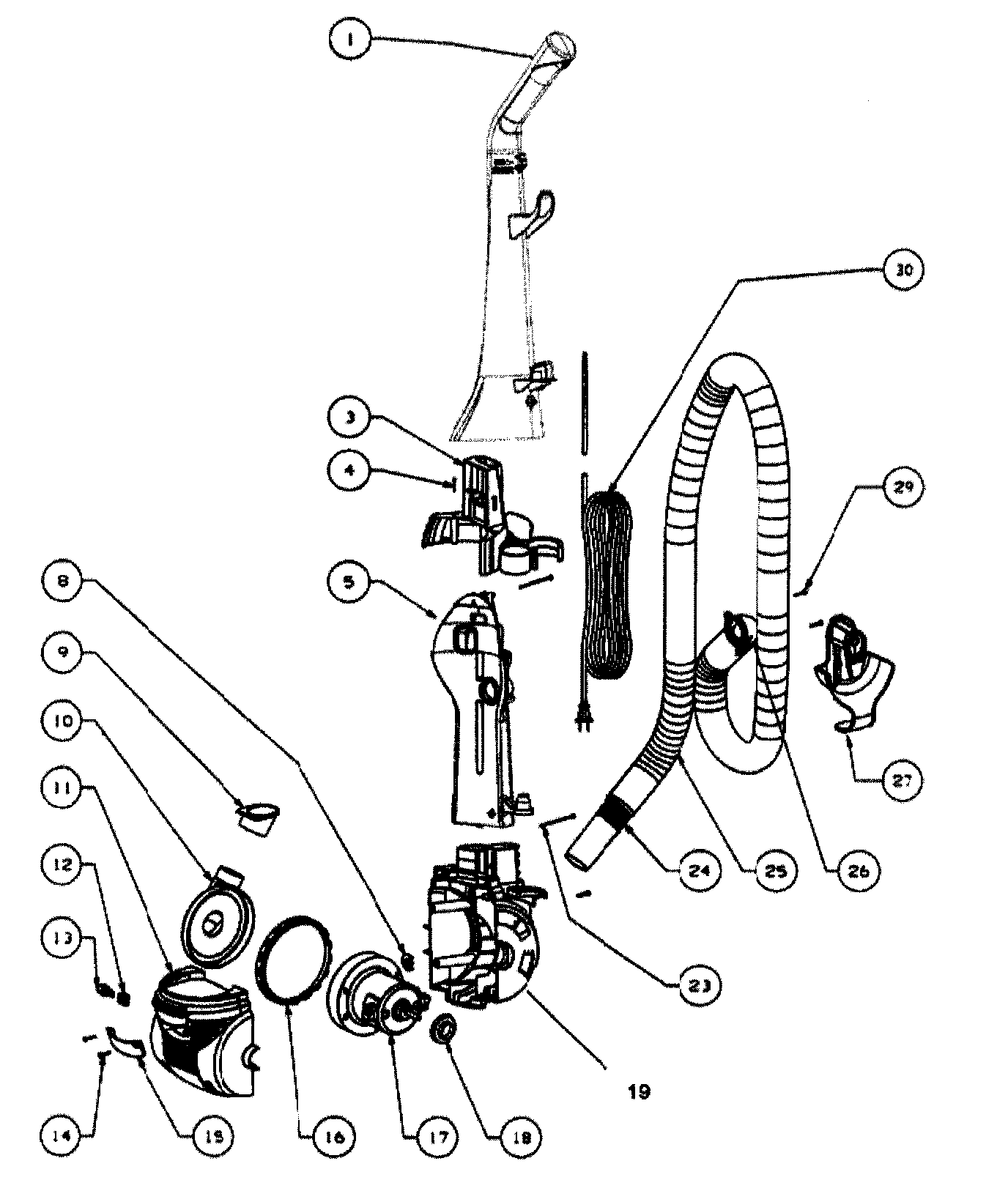

Main body diagram
Eureka bushingPart #75094
The manufacturer no longer makes this part, and there's no substitute part
- #11
Main body diagram
Eureka motor coverPart #74829-355N
The manufacturer no longer makes this part, and there's no substitute part
- #4

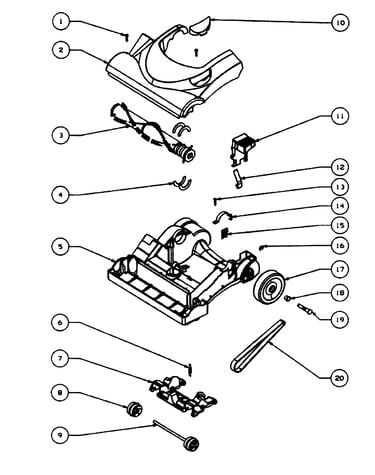

Base/hood diagram
Eureka vacuum nozzle base sealPart #74824
The manufacturer no longer makes this part, and there's no substitute part
- #12
Base/hood diagram
Eureka handle releasePart #74821
The manufacturer no longer makes this part, and there's no substitute part
- #15
Main body diagram
Eureka lensPart #74830-313N
The manufacturer no longer makes this part, and there's no substitute part
- #8
Main body diagram
Eureka package washerPart #63202
The manufacturer no longer makes this part, and there's no substitute part
- #14
Base/hood diagram
Motor clampPart #74825
The manufacturer no longer makes this part, and there's no substitute part
- #19
Main body diagram
Eureka motor coverPart #62562
The manufacturer no longer makes this part, and there's no substitute part
- #9
Base/hood diagram
Vacuum wheel axle, frontPart #71478
The manufacturer no longer makes this part, and there's no substitute part
