Whirlpool WRS322FDAT04 refrigerator Parts

For a Whirlpool WRS322FDAT04 side-by-side refrigerator, the most reliable “reset” is a power reset: turn the refrigerator off by unplugging it (or switching off the breaker) for about 5 minutes, then restore power. This clears many control glitches and restarts normal cooling.

Quick reset methods (most common)

• Power reset (recommended): unplug for 5 minutes, then plug into a grounded 3-prong outlet.
• Breaker reset: switch the refrigerator circuit breaker OFF for 5 minutes, then ON.
• Cooling turned off: if the unit has a “Cooling Off” setting, turn cooling back ON using the control panel (see the control section in the installation guide).

What to check right after the reset

• Confirm the outlet has power (plug in a lamp to test).
• Make sure the cord is fully seated in a grounded 3-prong outlet (no extension cord).
• Set temperatures back to your normal settings (avoid setting to coldest expecting faster cooling).
• Allow 24 hours for the refrigerator and freezer to cool completely after a restart.

If you are trying to reset a specific symptom

Symptom	What “reset” helps most	What to do next
Control panel acting glitchy	Power reset	Restore power; wait a few minutes for the control to stabilize
Not cooling after restart	Power reset plus correct settings	Verify cooling is ON; recheck temps in 24 hours
Lights not working	Door-close reset	Close doors to reset lights; check for long door-open time
Warm temps	Not a true reset issue	Reduce door openings; clear blocked vents; recheck in 24 hours

Why it matters

A reset restarts the electronic control and can clear temporary faults, but it will not fix airflow problems (blocked vents), door sealing issues, or a failed component. Using the correct restart steps also prevents electrical and cooling performance problems.

For control and operating details specific to WRS322FDAT04, follow the steps in the installation guide.

Last updated: February 2026

Yes. The Whirlpool WRS322FDAT04 side-by-side refrigerator is designed to use an ice maker; the installation instructions include ice maker operation and troubleshooting (for example, turning the ice maker on and connecting the refrigerator to a water supply). See the installation guide for the ice maker on/off and water hookup details.

How to tell if the ice maker is installed and ready

• Look for the ice maker assembly in the freezer compartment (typically on the side wall).
• Confirm the refrigerator is connected to a cold water supply and the shutoff valve is fully open.
• Make sure the ice maker is turned on (some models use a switch or arm).
• Verify the ice storage bin is installed and seated correctly.
• After a new hookup, allow time for production to start and ramp up.

Common reasons it is not making ice (and what to do)

The WRS322FDAT04 troubleshooting guidance points to these frequent causes:

Symptom	Most common cause	What we recommend
No ice at all	Water supply off or not connected	Connect to water and fully open the shutoff valve
Small or hollow cubes	Kinked water line or low pressure	Straighten the line; confirm adequate pressure
No ice after install	New installation	Flush the water system; wait 24 hours for ice, 72 hours for full output
Ice dispenser issues	Door not fully closed or bin not seated	Close doors firmly; reinstall bin securely

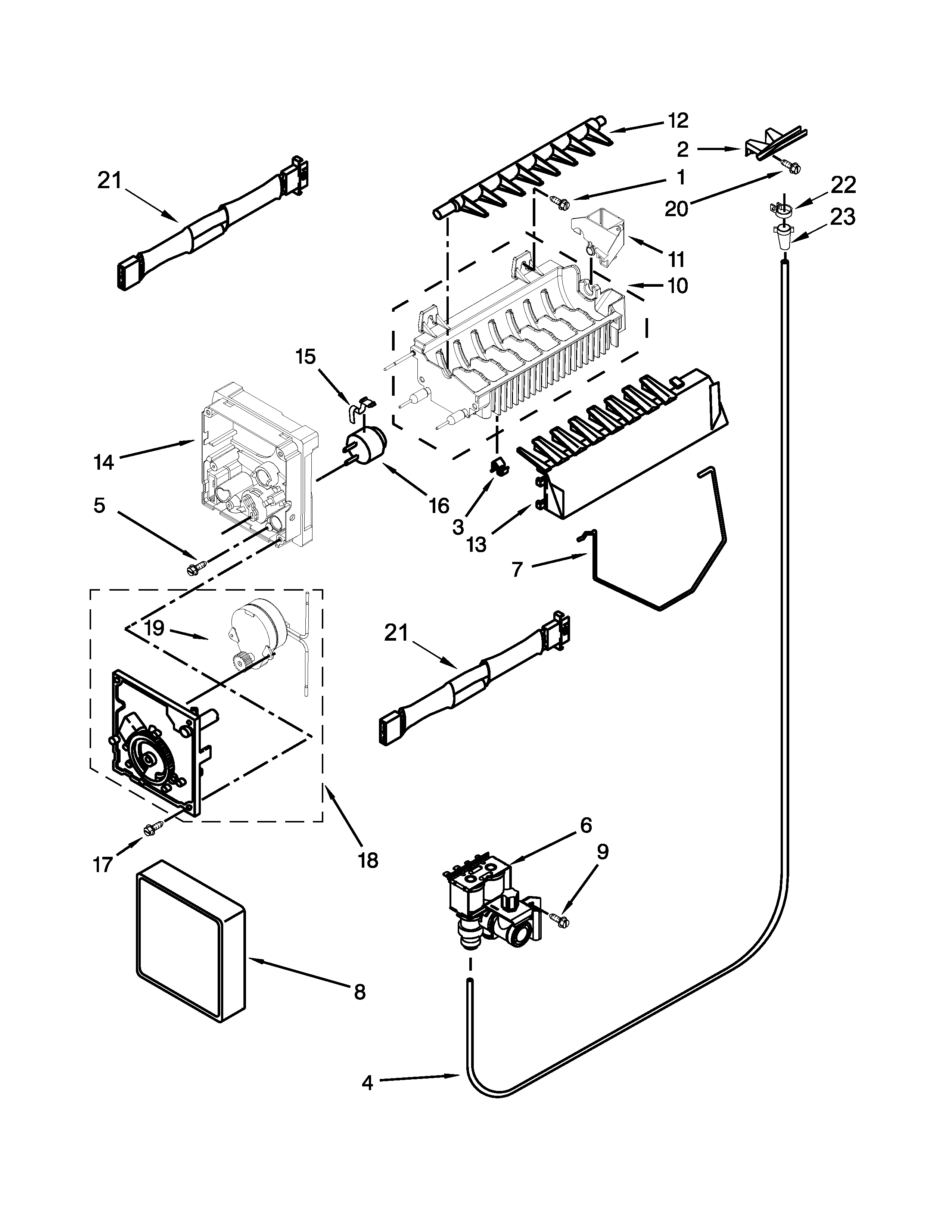

Parts that are commonly involved

If the ice maker is present but failing mechanically, these model-matched parts are often the fix:

• Refrigerator ice maker assembly WPW10300022 (the complete ice maker module)
• Refrigerator ice container WPW10558424 (bin that holds and delivers ice)
• Refrigerator filter EDR1RXD1 (a misinstalled or restricted filter can reduce water flow)

Why it matters

An ice maker depends on steady water flow, correct bin placement, and proper startup timing. Getting those basics right prevents hollow cubes, slow production, and dispenser clogs.

Last updated: February 2026

A Whirlpool side-by-side refrigerator like model WRS322FDAT04 typically lasts about 12 years. You can reach (and often exceed) that lifespan by keeping airflow clear, maintaining good door seals, and avoiding conditions that make the compressor run constantly; see the owner's manual for model-specific care and operating guidance.

Typical lifespan and what affects it

Most side-by-side refrigerators land in a similar range, but real-world life depends on how hard the sealed system and fans have to work.

• Room temperature and ventilation: warm rooms and tight clearances increase run time
• Door use: frequent openings and doors left ajar add heavy load
• Loading and airflow: blocking interior vents causes uneven temps and longer cycles
• Power quality: repeated breaker trips or blown fuses can stress components
• Moisture and humidity: humid environments increase moisture buildup and frost risk

What “normal” operation looks like (so you do not mistake it for failure)

Your WRS322FDAT04 can run longer than older refrigerators because it uses an energy-efficient compressor and fans that operate at lower speeds. That longer run time is normal, especially after installation (allow 24 hours to cool fully) or after adding a large amount of warm food.

Quick check: normal vs. needs attention

Symptom	Often normal	Often needs service/repair
Compressor runs a lot	Warm room, frequent door openings, new install	Poor door seal, blocked vents, control issue
Clicking/buzzing	Water valve cycling for dispenser/ice maker	Loud repeated clicking with no cooling
Uneven shelf temps	Top shelf slightly colder on some models	Freezing in fresh food section consistently

Maintenance that extends lifespan

These steps reduce strain on the compressor, evaporator fan, and defrost system.

• Keep food packages clear of air vents so cold air can circulate
• Confirm both doors close fully and gaskets seal all the way around
• Set temperatures appropriately; then recheck after 24 hours before changing again
• Replace the water filter on schedule if you use the dispenser; use the refrigerator filter EDR1RXD1
• If you see puddles or moisture, address it early; follow how to get rid of refrigerator puddles

Why it matters

A refrigerator usually fails early when it is forced to run hot and long. Good airflow, stable temperatures, and tight door seals reduce run time, which protects major components like the compressor and electronic control board.

Last updated: February 2026

For the Whirlpool WRS322FDAT04, the most common day-to-day “problem” is a cooling complaint caused by airflow or setup issues (blocked vents, doors not sealing, or controls set incorrectly), not a single failed part. Use the WRS322FDAT04 installation guide troubleshooting section to pinpoint the cause.

Most common issues we check first

• Air vents blocked by food packages (warm spots or a too-cold top shelf)
• Doors opened often or not closed completely (humidity, temperature swings)
• Controls not set correctly for room conditions (too warm or too cold)
• New installation or recent control change (needs 24 hours to stabilize)
• Normal longer run time on energy-efficient compressors and fans

Quick checks before replacing parts

1. Confirm the refrigerator is plugged into a grounded outlet and cooling is turned on.
2. After installation or a temperature change, wait 24 hours before judging results.
3. Clear items away from air vents, especially near the top shelf vents.
4. Make sure shelves and bins are fully seated so doors close completely.

Symptom-to-cause cheat sheet

Symptom	Most common cause	First action
Not cold enough	Cooling off, blocked vents, recent install	Turn cooling on; clear vents; wait 24 hours
Top shelf too cold	Cold air enters near top vents	Keep items away from vents
Moisture inside	Humid room, frequent openings, poor seal	Reduce openings; confirm seal

When it points to a part issue

If vents, doors, and settings are correct and you still have heavy frost or weak airflow, the defrost system is a common next area to test; the refrigerator defrost heater WPW10495967 is one component in that circuit.

Why it matters

Airflow and control issues are fast to fix and prevent unnecessary part replacement while helping your WRS322FDAT04 hold safe, steady temperatures.

Last updated: February 2026
