Where is the model number on a Kenmore side by side refrigerator?
On a Kenmore side-by-side refrigerator like model 1069547611, the model number is printed on the appliance identification label. On most side-by-side units, you will find that label inside the fresh food (refrigerator) compartment along the side wall near the front, or around the door frame area.
Common places to check first
Look in these spots in order; they are the most common for Kenmore side-by-side refrigerators:
- Inside the refrigerator compartment on the left side wall near the top front
- Inside the refrigerator compartment on the right side wall near the top front
- On the refrigerator door frame (open the door and check the vertical frame)
- Behind the crisper drawers on the side wall (you may need to slide drawers out)
- Inside the freezer compartment on the side wall near the front (less common)
What the label looks like (and what to write down)
The label typically includes both a model number and a serial number. We recommend writing down:
- Model number (for example, 1069547611)
- Serial number (used to identify production details)
- Any revision or type codes listed on the tag
Quick ID checklist
| Item | What it’s used for | When you need it |
|---|---|---|
| Model number | Matching parts diagrams and fit | Ordering parts like a thermostat or door gasket |
| Serial number | Narrowing down production variations | When a part changed during a production run |
Why it matters
Kenmore model numbers that start with 106 are commonly tied to Whirlpool-built designs, and small production changes can affect fit. Using the exact model number helps us match the correct replacement part the first time.
If you are trying to order parts
Once you have the model number, you can match parts by function and symptom. For example, cooling and temperature issues often relate to parts like the refrigerator thermostat WP2198202 or defrost components.
Last updated: February 2026
How many cubic feet is my Kenmore refrigerator by model number?
For Kenmore model 1069547611, the exact cubic-foot capacity is determined from the refrigerator’s rating label (model and serial tag) inside the fresh food compartment; that label lists the official capacity for your specific build. Use the model number on the tag to match parts and specs.
Where to find the cubic-foot capacity on model 1069547611
Check these common locations (in order):
- Inside the refrigerator section on a side wall near the crisper drawers
- On the ceiling of the fresh food compartment near the light cover
- Behind the toe grille (kick plate) area on some side-by-side designs
- Inside the freezer section on a side wall (less common)
Quick ways to estimate capacity (when the label is unreadable)
If the rating label is missing or damaged, we use a measurement-based estimate to get close.
- Measure interior width, height, and depth (in inches)
- Multiply to get cubic inches
- Divide by 1,728 to convert to cubic feet
- Subtract space taken by shelves, bins, and the ice maker area (a small reduction is normal)
Conversion table
| What you have | What to do | Result |
|---|---|---|
| Interior measurements (inches) | W × H × D | Cubic inches |
| Cubic inches | ÷ 1,728 | Approx. cubic feet |
Why it matters

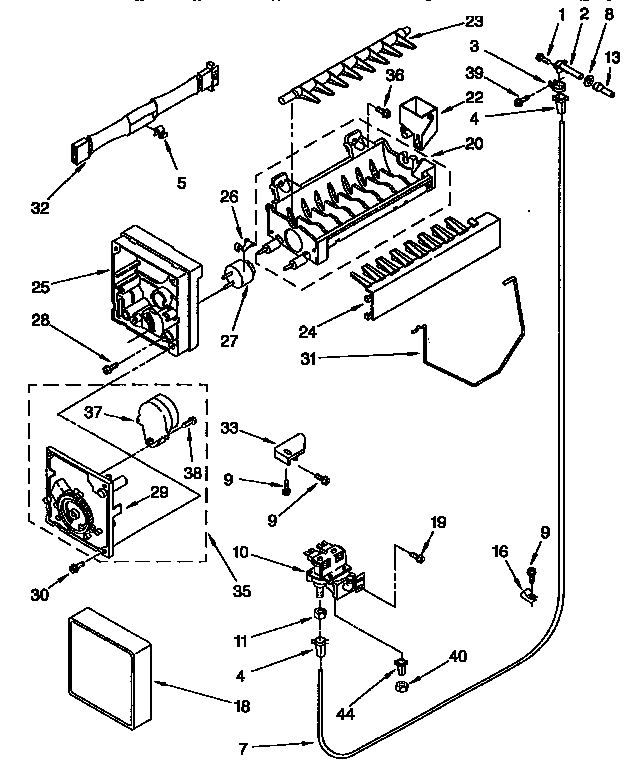

Cubic-foot capacity helps us match the right refrigerator parts and accessories (like ice storage and dispenser components) and set realistic expectations for cooling load and airflow. If you are troubleshooting ice production or storage space, the ice system parts for this model, such as the ice maker assembly - refrigerator ice maker by whirlpool 4317943, are often involved.
Related help for Kenmore refrigerators
If you are looking up specs because the refrigerator is acting up (cooling, display, or sensor issues), use the model-family troubleshooting resources as a starting point: Kenmore 106 model refrigerator error codes.
Last updated: February 2026
Is Kenmore refrigerator made by LG?
Kenmore refrigerators are made by several different manufacturers, not just LG. For Kenmore model 1069547611, the manufacturer is identified by the model number prefix; the first three digits (the source prefix) tell you which company built the refrigerator.
How to tell who made your Kenmore 1069547611
Look at the model number on the rating label (usually inside the fresh food compartment on a side wall or ceiling). Then match the first three digits:
- 106: Whirlpool-built Kenmore refrigerator
- 795: LG-built Kenmore refrigerator
- 253: Frigidaire/Electrolux-built Kenmore refrigerator
- 111: Daewoo-built Kenmore refrigerator (common on some newer styles)
Because your model is 1069547611, it falls in the 106 prefix family, which is Whirlpool-built.
Why the manufacturer matters
Knowing the actual builder helps you choose the right replacement parts and troubleshooting steps for your side-by-side refrigerator, especially for systems like:
- Ice maker and dispenser components
- Defrost system parts (defrost bi-metal, adaptive defrost control)
- Temperature control components (thermostat)
- Door gaskets and door switch circuits
Parts examples that match this model family
If you are repairing common Whirlpool-built Kenmore 106 issues (ice production, temperature swings, frost buildup), these model-matched parts are examples you can use as reference points:
| Symptom | Common area to check | Example part for 1069547611 |
|---|---|---|
| No ice or small cubes | Ice maker assembly | Ice maker assembly - refrigerator ice maker by whirlpool 4317943 |
| Warm refrigerator section | Cold control/thermostat | Refrigerator thermostat WP2198202 |
| Frost buildup, poor airflow | Defrost safety device | Refrigerator defrost bi-metal WPW10225581 |
Related DIY help
If you are troubleshooting the dispenser or ice maker on this Kenmore side-by-side, we recommend starting with these step-by-step guides:
- Common refrigerator ice maker problems and solutions
- How to disassemble a Kenmore refrigerator dispenser
- How to prevent water dispenser and ice maker problems
Last updated: February 2026
How to clean the coils on a Kenmore side by side refrigerator?
Cleaning the condenser coils on your Kenmore side-by-side refrigerator model 1069547611 helps it cool efficiently and can reduce warm temperatures and compressor run time. We recommend cleaning the coils about every 6 months (more often if you have pets or heavy dust).
Before you start (safety and prep)
- Unplug the refrigerator, or switch off power at the breaker.
- If your model has a water line, avoid pulling the unit so far that the line kinks.
- Protect the floor with cardboard or a towel.
- Use a coil brush and a vacuum with a crevice tool (avoid sharp tools that can puncture tubing).
How to clean the condenser coils
Most Kenmore side-by-side units have coils either behind the front toe grille (bottom front) or on the back of the cabinet.
- Remove the toe grille (if present) or pull the refrigerator out to access the rear.
- Vacuum loose dust first so you do not pack debris deeper into the coil.
- Brush the coil fins gently from top to bottom; work in small sections.
- Vacuum again to remove what the brush loosens.
- Clean the area around the condenser fan (if accessible) so airflow is not blocked.
- Reinstall the grille, move the refrigerator back carefully, then restore power.
Quick checklist: what “done” looks like
- Dust is removed from the coil surface and surrounding base area
- No debris is touching the condenser fan blade
- Toe grille is fully snapped back in place
- Refrigerator is level and not pinching the water line
Common problems after coil cleaning (and what to check)
| Symptom after cleaning | What to check | What it points to |
|---|---|---|
| Still not cooling well | Airflow at base/back, dirty fan area | Restricted condenser airflow |
| Loud rattling | Fan area, grille fitment | Fan hitting debris or loose grille |
| Runs constantly | Door sealing, temperatures, airflow | Heat load or airflow issue |
If you suspect the condenser fan or internal airflow is the issue, evaporator airflow problems can mimic dirty-coil symptoms. The how to fix your evaporator cooling fan guide is a good next step.
Why it matters
Dirty coils trap heat; that forces the sealed system to work harder, which can lead to warmer fresh food temperatures, soft ice, and higher energy use.
Last updated: February 2026
What are the most common problems with Kenmore refrigerators?
The most common problems we see on Kenmore refrigerators like model 1069547611 are poor cooling, water leaks, ice maker or dispenser failures, and unusual noises. These issues usually trace back to airflow restrictions, frost buildup in the defrost system, worn door seals, or a failing fan, thermostat, or ice maker component.
Most common symptoms and what they usually mean
- Not cooling or warm temperatures: dirty condenser coils, evaporator fan issue, or a temperature control problem
- Frost buildup in the freezer: defrost system trouble (defrost thermostat, defrost control)
- Water under the fridge or in the fresh food section: clogged defrost drain, cracked water line, or reservoir issue
- No ice or small/hollow cubes: water supply restriction, dispenser/ice maker mechanical issue, or frozen fill path
- Buzzing, clicking, or rattling: fan blade hitting ice, failing motor, or compressor start components
Quick checks we recommend before replacing parts
- Confirm temperatures: set freezer near 0°F and refrigerator near 37°F.
- Check airflow: make sure vents are not blocked by food packages.
- Inspect door sealing: look for gaps, torn gasket sections, or condensation around the door.
- Listen for the evaporator fan: it should run when the compressor is running (door switch closed).
- Look for ice buildup on the freezer back panel (a strong clue of defrost trouble).
Parts that commonly solve these problems on model 1069547611
| Problem area | What fails most often | Example part on this model |
|---|---|---|
| Ice production | Ice maker module or assembly | Ice maker assembly - refrigerator ice maker by whirlpool 4317943 |
| Temperature control | Cold control thermostat | Refrigerator thermostat WP2198202 |
| Defrost system | Defrost bi-metal thermostat | Refrigerator defrost bi-metal WPW10225581 |
| Air circulation noise/cooling | Fan blade or motor | Refrigerator evaporator fan blade WP2169142, refrigerator evaporator motor 4389144 |
| Door not sealing | Door gasket worn or warped | Whirlpool refrigerator door gasket, black 2159083 |
Why it matters
Cooling, ice making, and leak complaints often share the same root causes: restricted airflow, moisture turning into ice, or warm air entering through a weak door seal. Fixing the underlying cause protects food temperatures, reduces compressor run time, and prevents repeat failures.

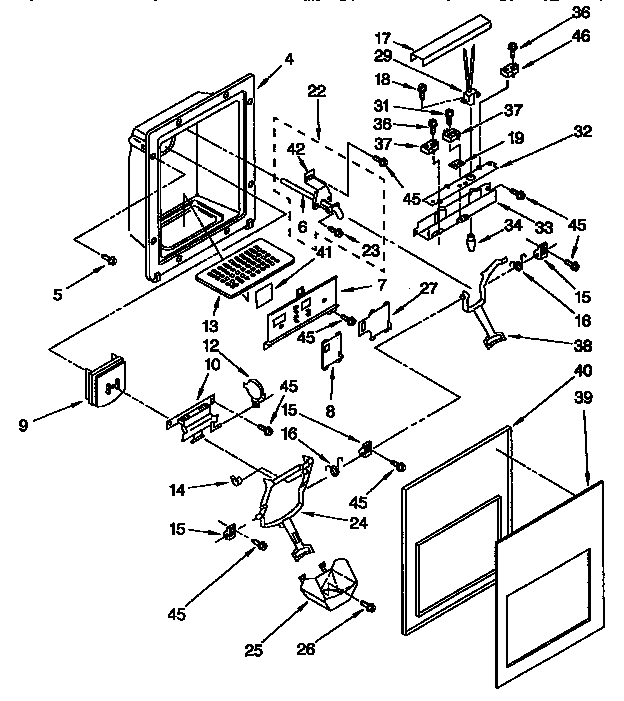

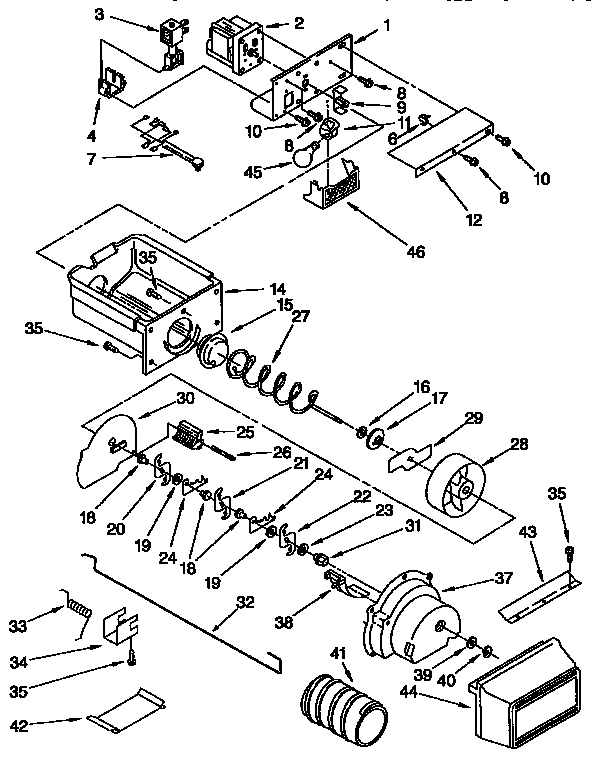

For dispenser-related issues (ice not dispensing, stuck trim, broken tabs), we use the steps in how to disassemble a Kenmore refrigerator dispenser to access and inspect the auger, container, and switches safely.
Last updated: February 2026
