Kenmore Elite
Wall Oven/Microwave Combo

Model # 79048903001 Official Kenmore Elite wall oven/microwave combo

Here are the diagrams and repair parts for Official Kenmore Elite 79048903001 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

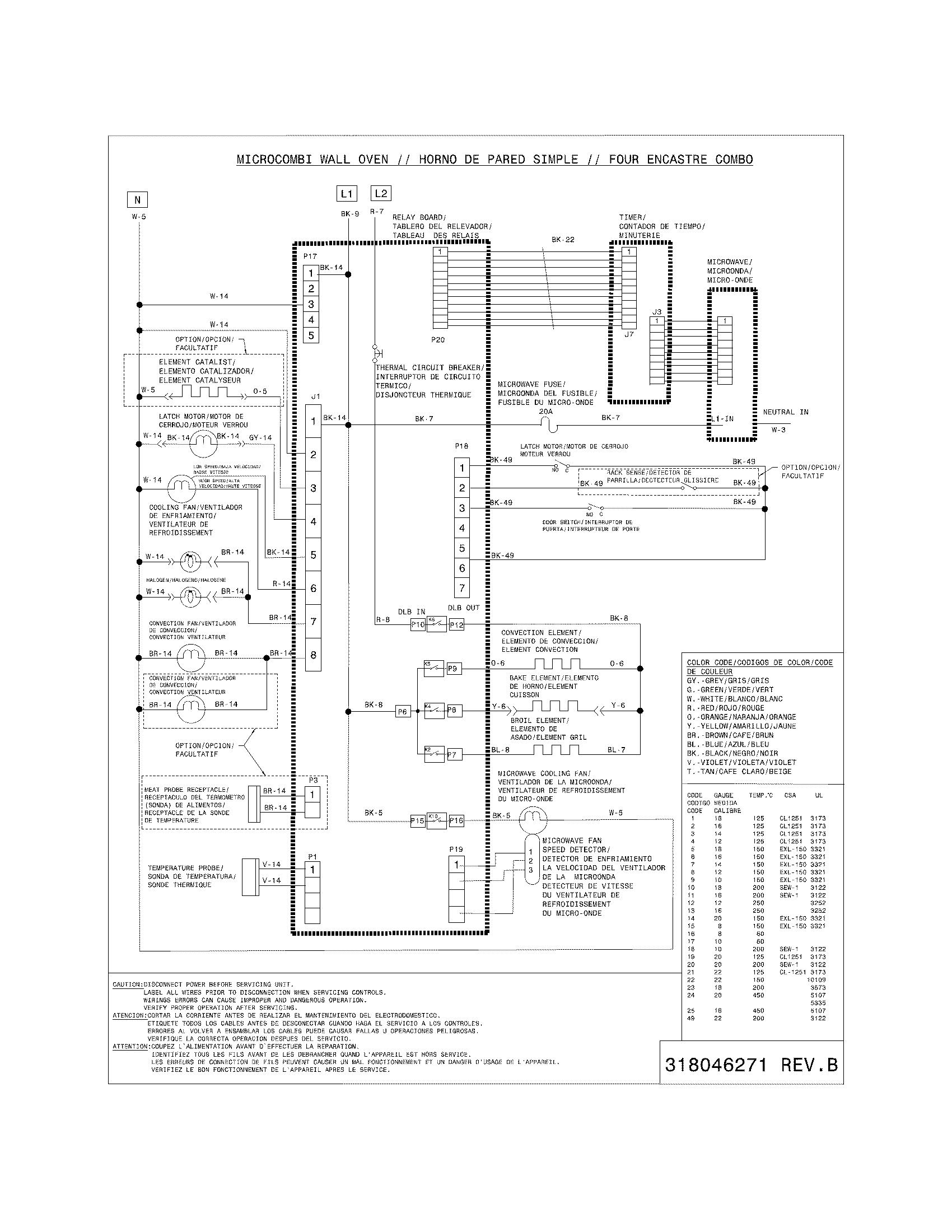

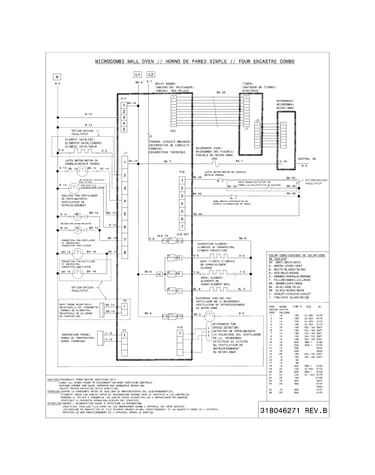

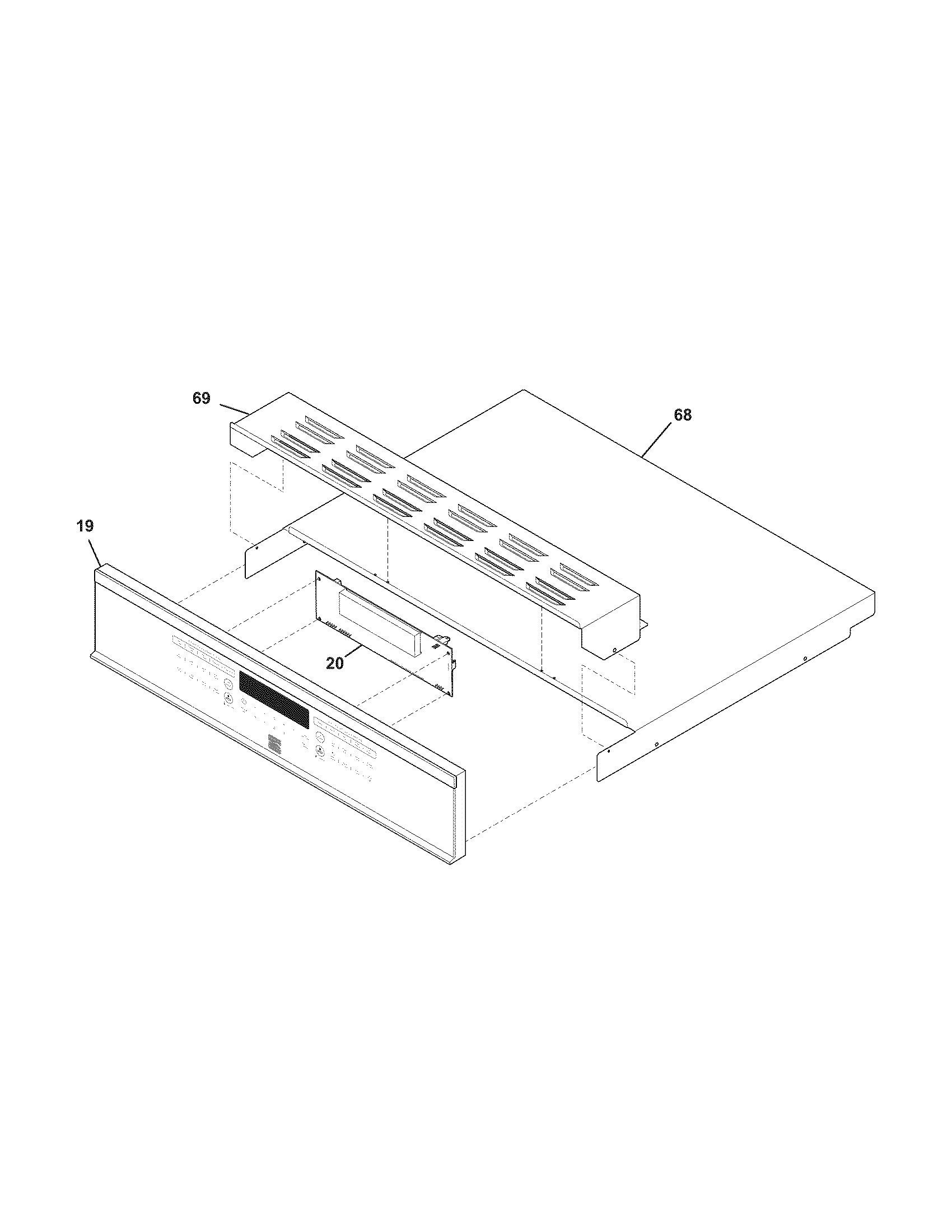

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |
Range Bake Element (replaces 318601601, 808650402) 318601604
#67

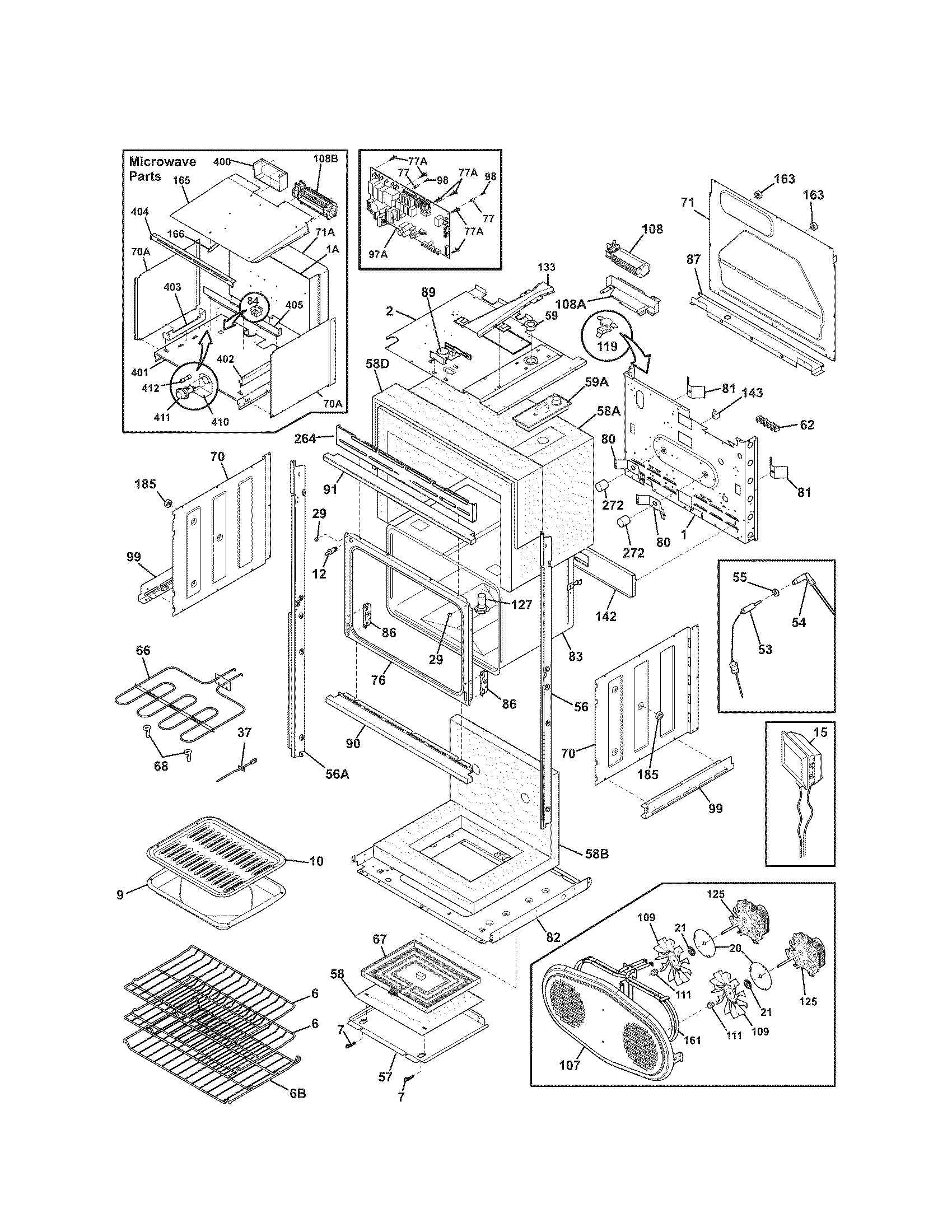

Lower oven diagram

Range bake element (replaces 318601601, 808650402)

Part #318601604

BEST SELLER
$197.46 |
6% OFF Phone Price : $209.46
In Stock
Microwave Electronic Control Board 5304480656
#121

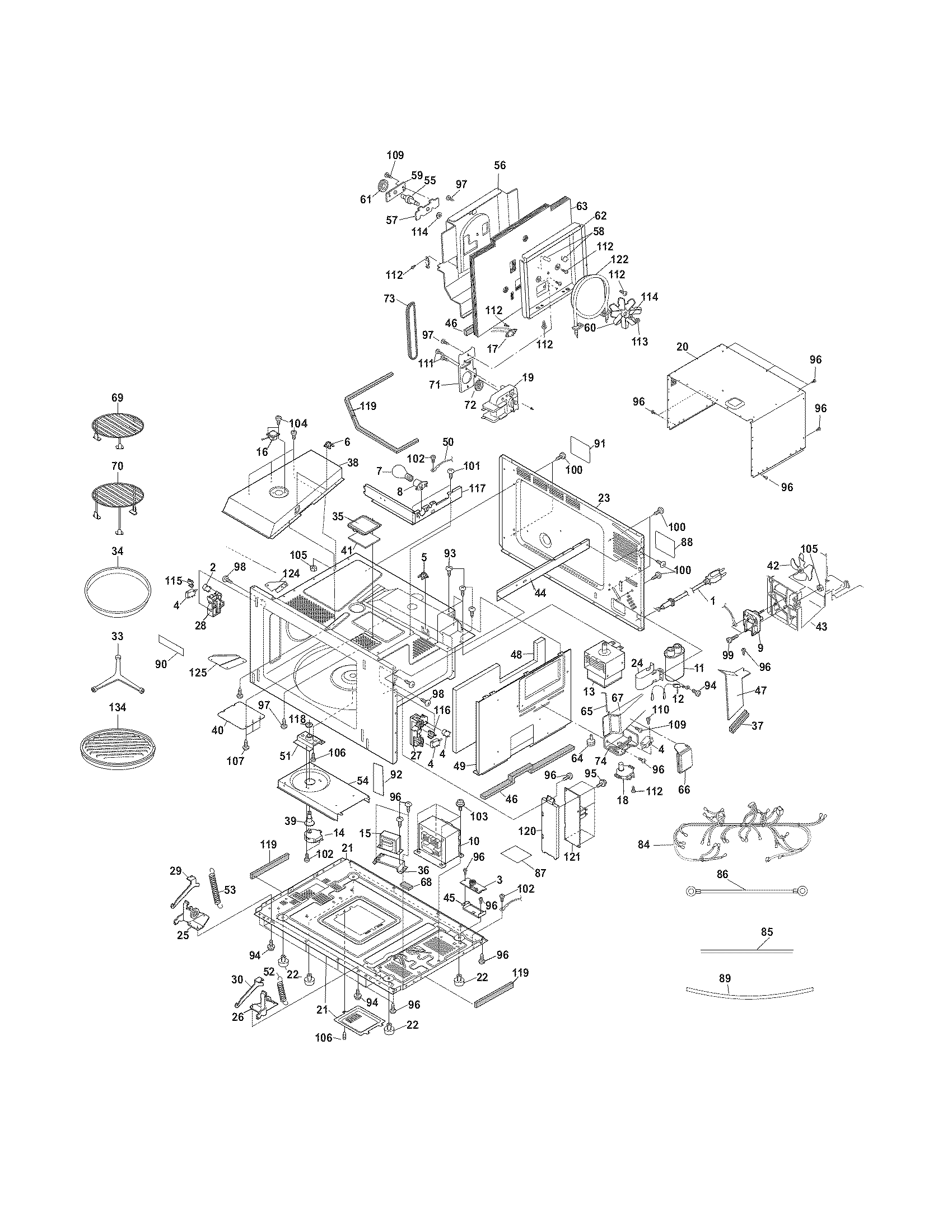

Microwave diagram

Microwave electronic control board

Part #5304480656

BEST SELLER
$227.61 |
5% OFF Phone Price : $239.61
In Stock
Range Convection Fan Blade (replaces 139009100, 316136400, 318398300) 318398302
#109

Lower oven diagram

Range convection fan blade (replaces 139009100, 316136400, 318398300)

Part #318398302

BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Microwave Door Outer Panel And Handle Assembly 5304480651
#75

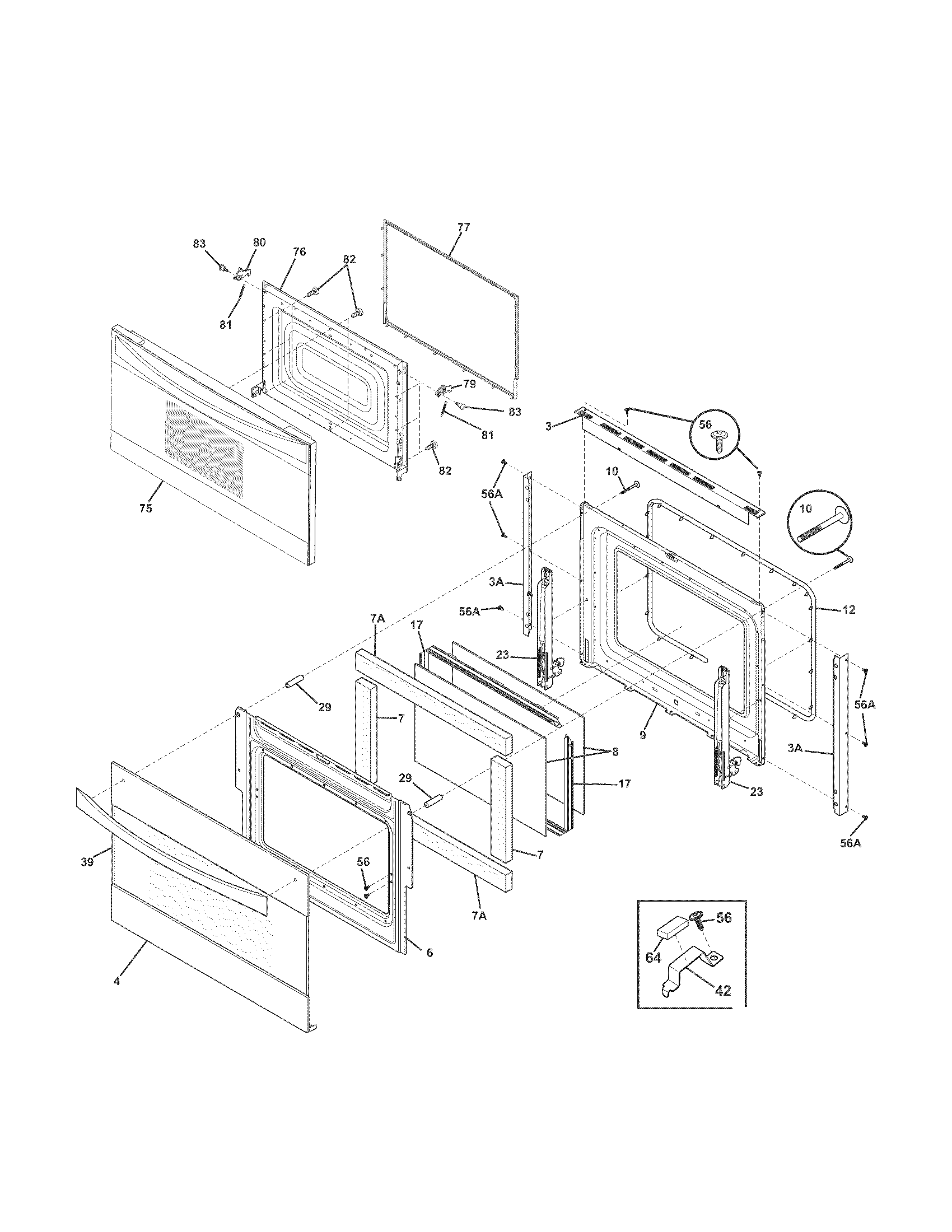

Doors diagram

Microwave door outer panel and handle assembly

Part #5304480651

Replaced by #5304503610

?
Manufacturer substitution
This part replaces 5304480651. Substitute parts can look different from the original.
BEST SELLER
$430.88 |
$12.00 OFF Phone Price : $442.88
In Stock
Holder 318576200
#411

Lower oven diagram

Holder

Part #318576200

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576200. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
24% OFF Was : $143.42
In Stock
Fuse 318576100
#412

Lower oven diagram

Fuse

Part #318576100

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576100. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
24% OFF Was : $143.42
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Microwave Door Interlock Switch 5304440026
#4

Microwave diagram

Microwave door interlock switch

Part #5304440026

BEST SELLER
$39.53 |
13% OFF Phone Price : $45.53
In Stock
Wall Oven Door Outer Panel (black And Stainless) 318299526
#4

Doors diagram

Wall oven door outer panel (black and stainless)

Part #318299526

BEST SELLER
$405.94 |
10% OFF Was : $451.04
In Stock
Range Oven Cooling Fan Assembly (replaces 318073018, 7318073018, 7318073028) 318073028
#108

Lower oven diagram

Range oven cooling fan assembly (replaces 318073018, 7318073018, 7318073028)

Part #318073028

BEST SELLER
$205.71 |
6% OFF Was : $218.85
In Stock
