Kenmore 2783138815 gas self-cleaning wall oven with extended delayed ignition Parts
Here are the diagrams and repair parts for Kenmore 2783138815 gas self-cleaning wall oven with extended delayed ignition, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

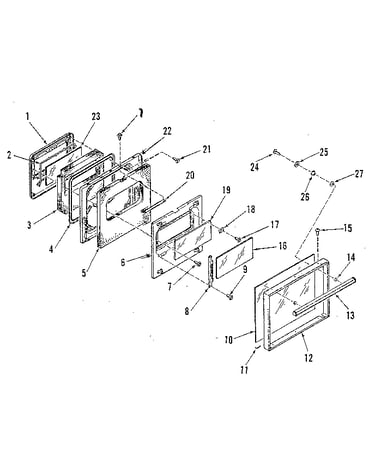

SELECT DIAGRAM
Browse Parts for 2783138815 Wall Ovens

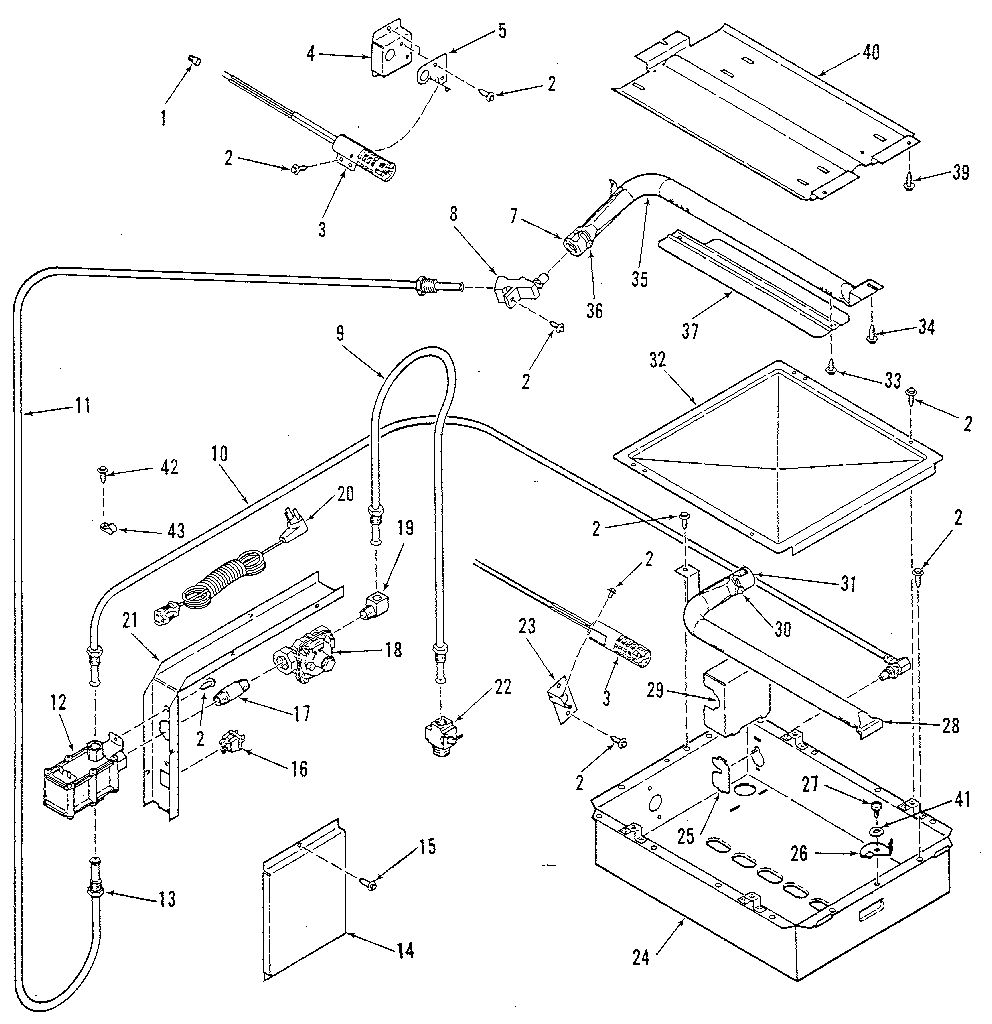

Burner section diagram
Igniter
Part #337263Replaced by #WB2X9154
Manufacturer substitutionThis part replaces 337263. Substitute parts can look different from the original.In Stock$83.297% OFF Phone Price : $89.29
Qty

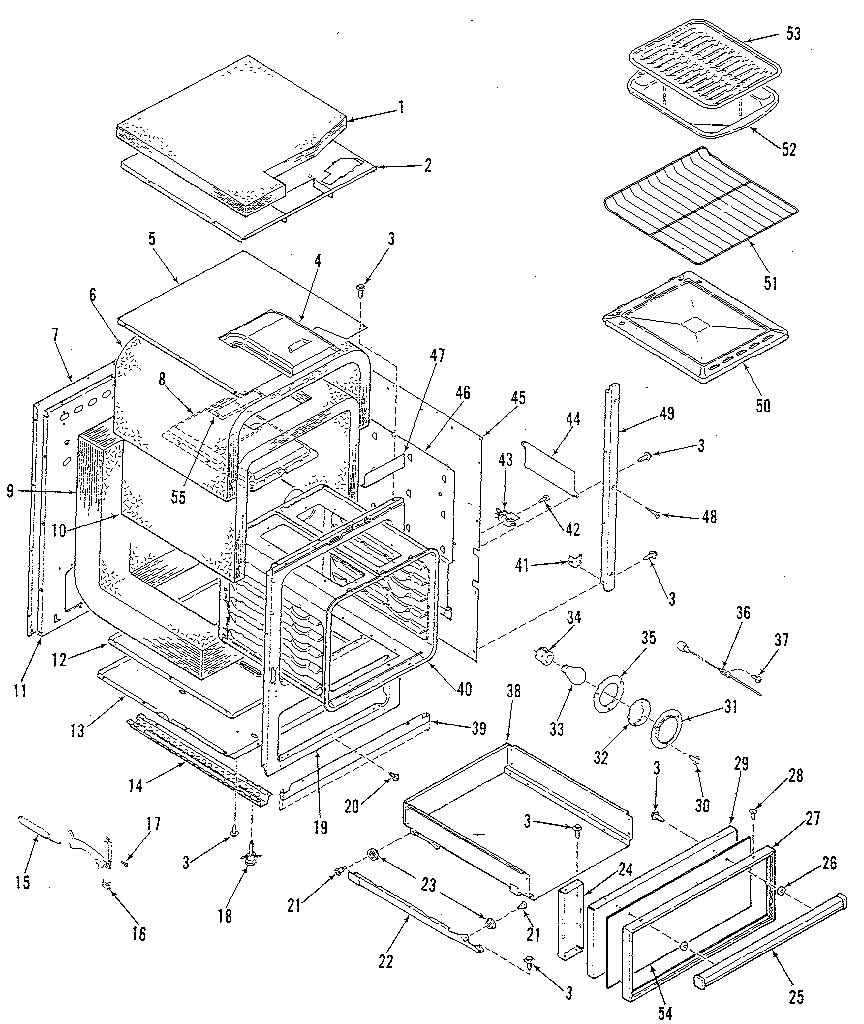

Body section diagram
Sensor
Part #334300Replaced by #WB21X5301

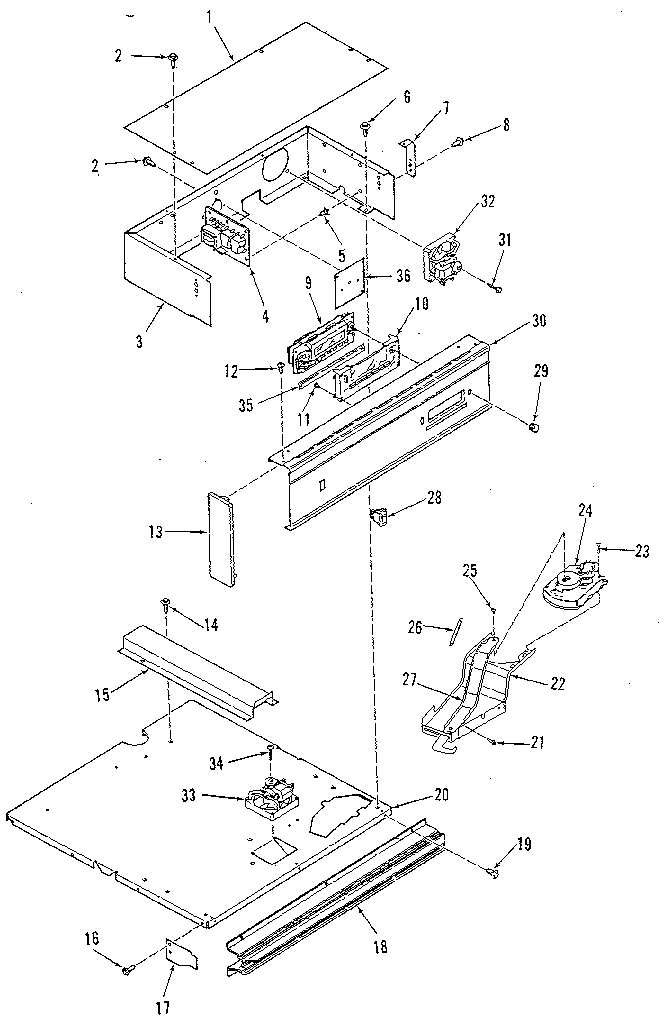

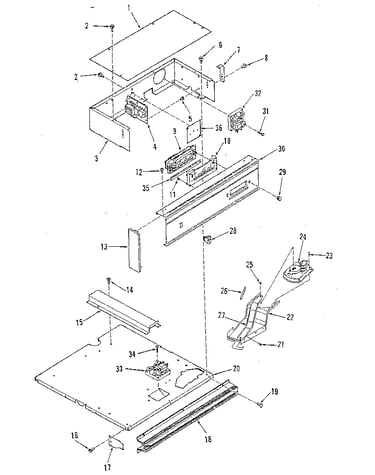

Manufacturer substitutionThis part replaces 334300. Substitute parts can look different from the original.In Stock$128.509% OFF Phone Price : $140.50QtyControl panel diagram
Screw
Part #105771Replaced by #WB1X1293

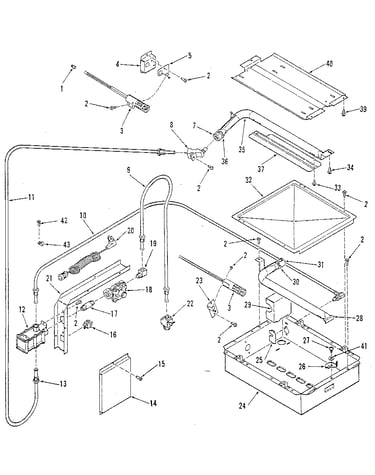

Manufacturer substitutionThis part replaces 105771. Substitute parts can look different from the original.This item is not returnableIn Stock$9.869% OFF Phone Price : $10.86QtyBurner section diagram
Connector
Part #103595Replaced by #WB1X371D
Manufacturer substitutionThis part replaces 103595. Substitute parts can look different from the original.In Stock$42.25QtyScrew
Part #327320Replaced by #WB1M1
Manufacturer substitutionThis part replaces 327320. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1311% OFF Phone Price : $9.13QtyBurner section diagram
Regulator

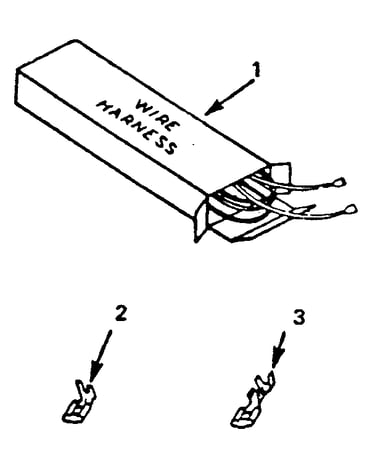

In Stock$18.49QtyWire harnesses and components diagram
Wire Harness

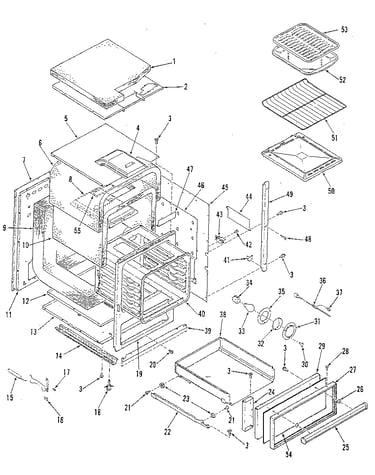

In Stock$38.45QtyBody section diagram
Trim
Part #338298This item is not returnableIn Stock$9.99QtyBurner section diagram
Screw
In Stock$31.10QtyBody section diagram
Low Trim Foot
In Stock$46.07Qty
