Model #MVWB835DC4 Official Maytag washer
Here are the diagrams and repair parts for Maytag MVWB835DC4 washer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

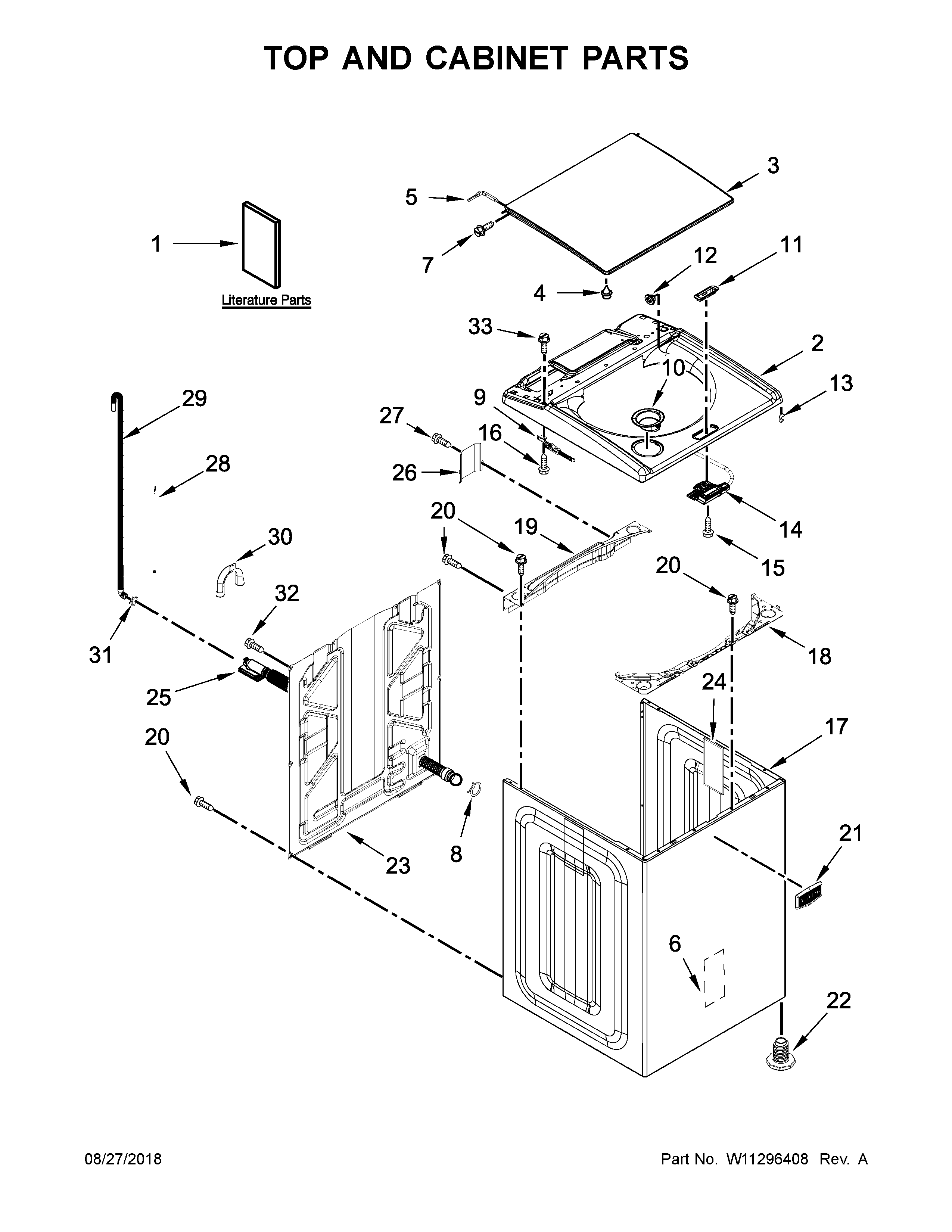

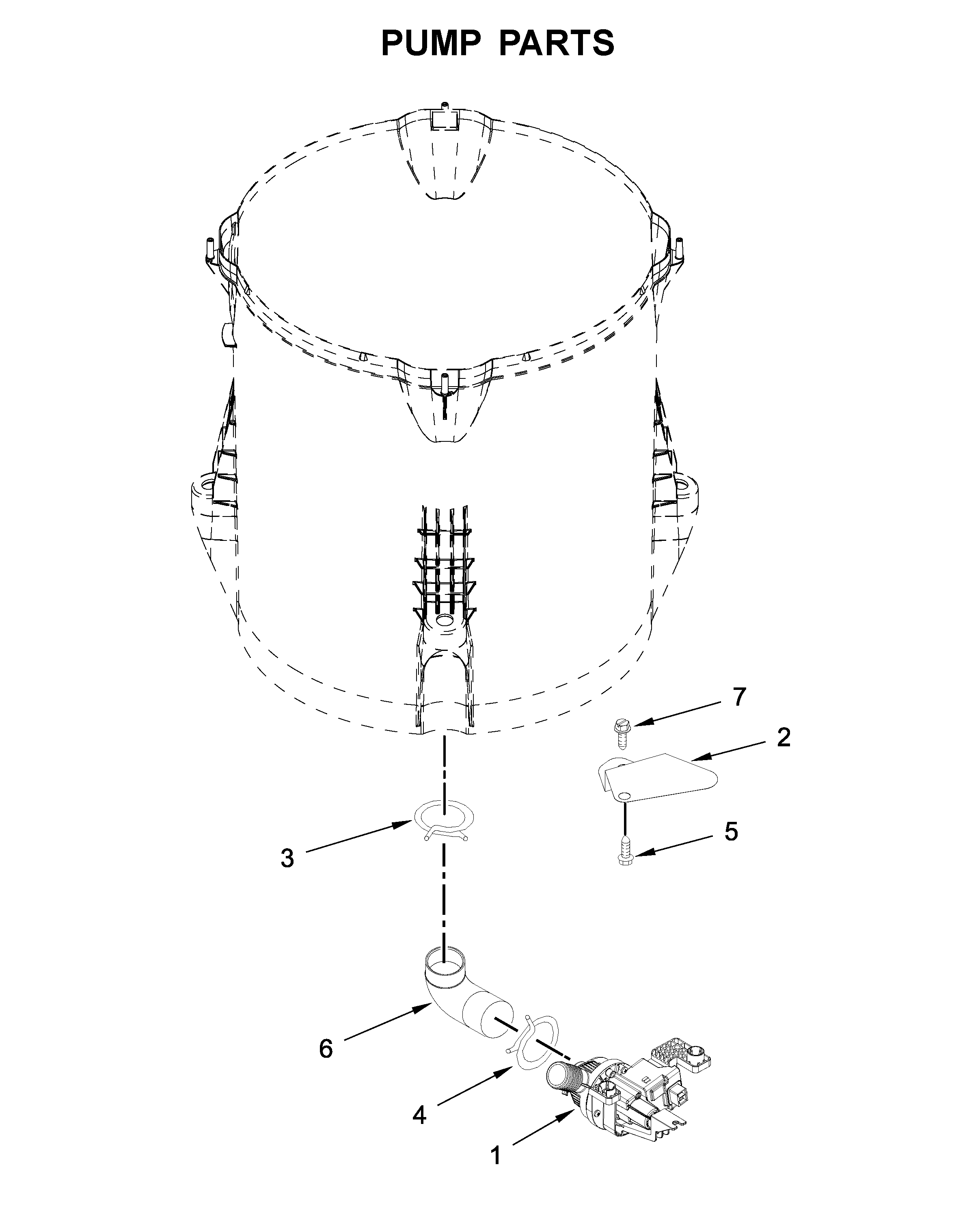

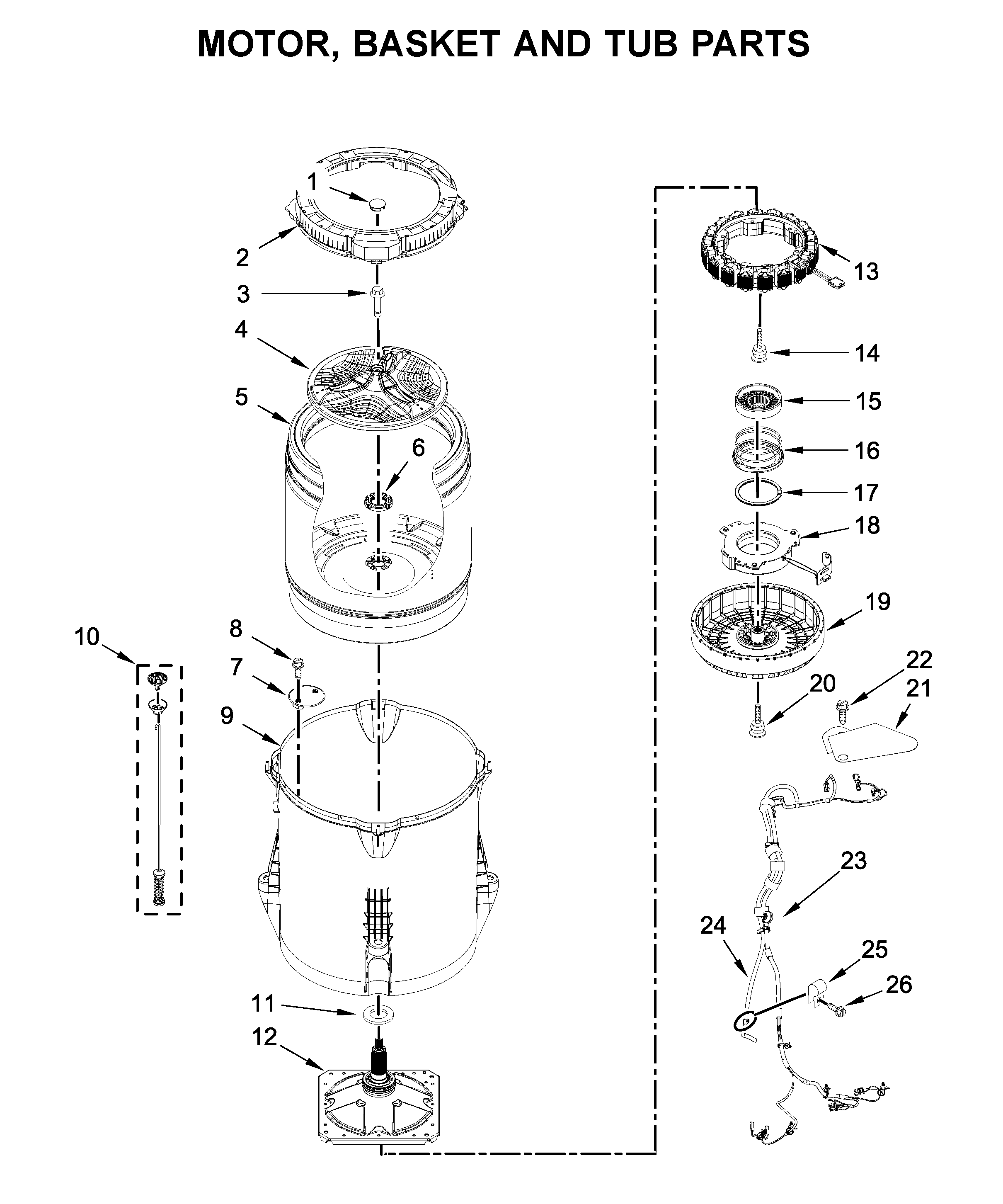

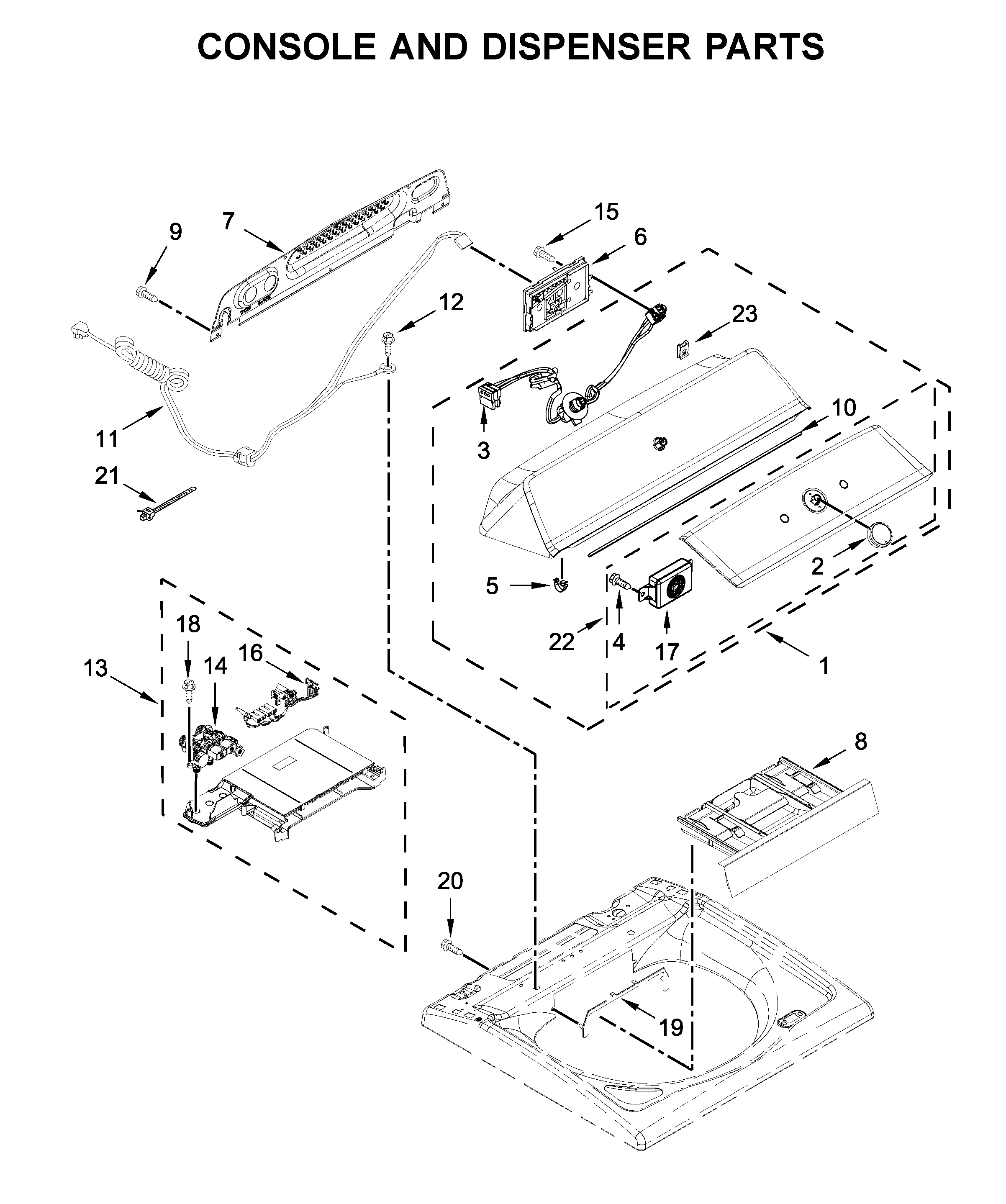

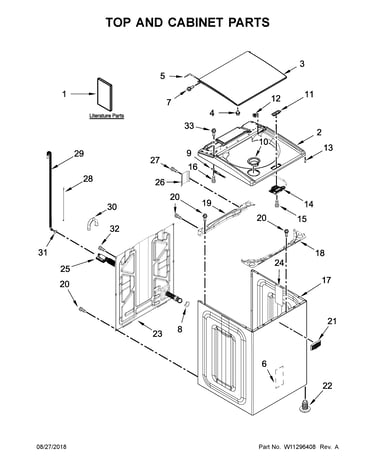

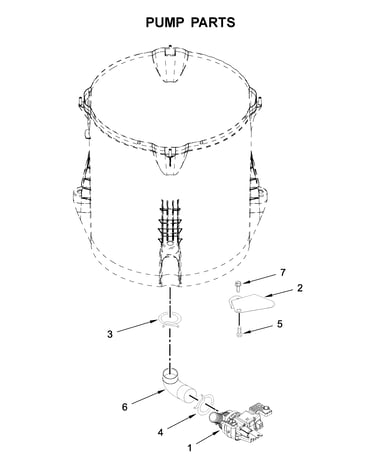

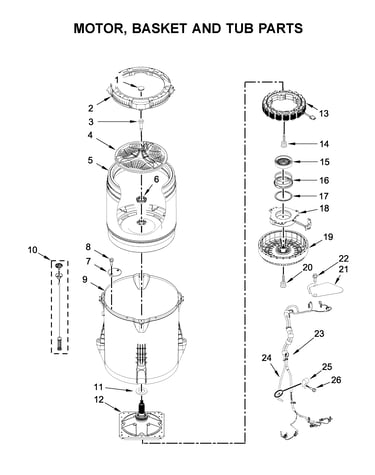

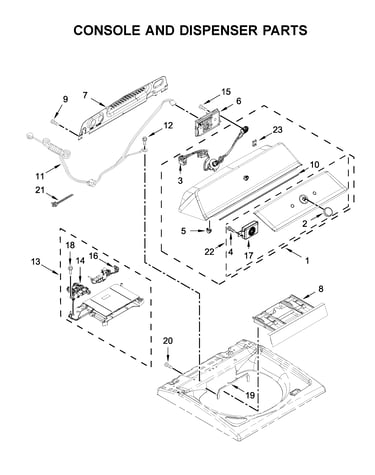

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 111 parts
Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)
Part #W10135699
Get free shipping with Automatic Reorder
In Stock
$10.10 |
37% OFF
MSRP: $16.00
Spring support
Part #W10006494
Replaced by #W10734521
?
Manufacturer substitution
This part replaces W10006494. Substitute parts can look different from the original.
In Stock
$24.98 |
24% OFF
MSRP: $33.00
30mm spiral
Part #W10275082
Replaced by #W10734521
?
Manufacturer substitution
This part replaces W10275082. Substitute parts can look different from the original.
In Stock
$24.98 |
24% OFF
MSRP: $33.00
Washer water inlet valve
Part #W10758828
Replaced by #W11165546
?
Manufacturer substitution
This part replaces W10758828. Substitute parts can look different from the original.
In Stock
$69.10 |
10% OFF
MSRP: $77.00
Hose asm - d
Part #W11203364
Replaced by #W11244231
?
Manufacturer substitution
This part replaces W11203364. Substitute parts can look different from the original.
In Stock
$19.43 |
9% OFF
Phone Price: $21.43
Washer drain pump
Part #W10727777
Replaced by #W10876600
?
Manufacturer substitution
This part replaces W10727777. Substitute parts can look different from the original.
In Stock
$116.82 |
10% OFF
MSRP: $130.00
Washer washplate screw
Part #W10625252
In Stock
$6.86 |
13% OFF
Phone Price: $7.86
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
Clutch coil
Part #W10905022
Replaced by #W10754448
?
Manufacturer substitution
This part replaces W10905022. Substitute parts can look different from the original.
In Stock
$69.44 |
7% OFF
Phone Price: $74.44
Recommended maintenance parts and accessories
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
In Stock
$31.19 |
14% OFF
Phone Price: $36.19
Symptoms common to all washers
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Articles and videos common to all washers
Learn how to fix a washing machine leak
Learn how to fix your broken washing machine
Find out how to clean and flush household appliances once a boil water advisory is lifted.
