Model #1106408400 Official Kenmore electric dryer

Here are the diagrams and repair parts for Kenmore 1106408400 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 129 parts

Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)#91

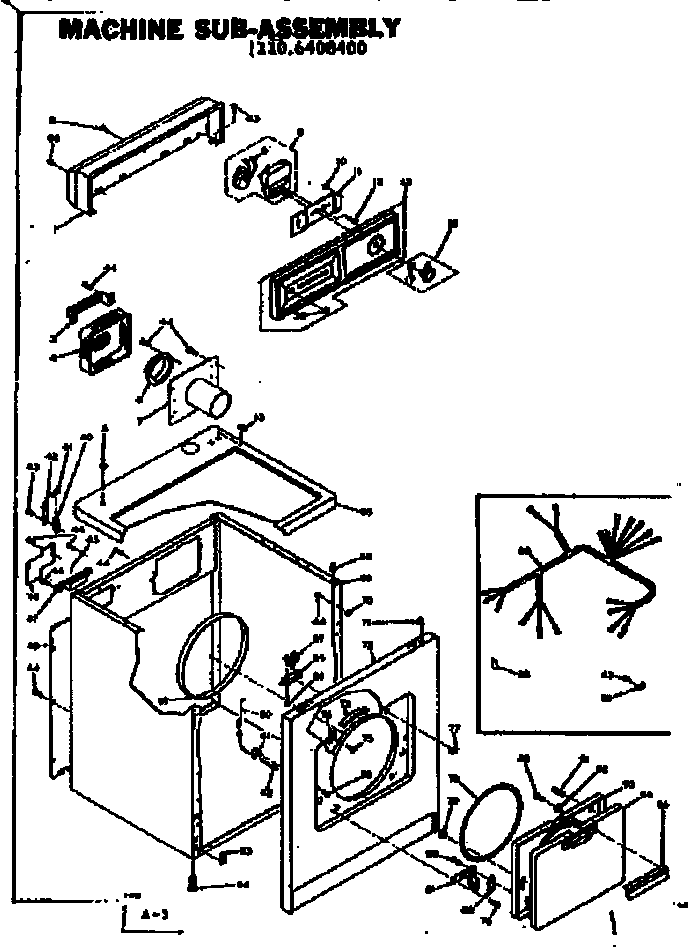

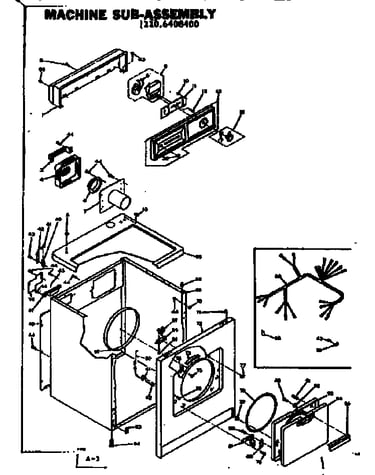

Machine sub-assembly Diagram

Door strike

Part #236876
Replaced by #279570
?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$3.40 |
74% OFF
MSRP: $13.00
Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)#77

Machine sub-assembly Diagram

Catch

Part #236877
Replaced by #279570
?
Manufacturer substitution
This part replaces 236877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$3.40 |
74% OFF
MSRP: $13.00
Dryer Front Panel Clip (replaces 3394083, W10775448)#63

Machine sub-assembly Diagram

Clip

Part #237823
Replaced by #W10854425
?
Manufacturer substitution
This part replaces 237823. Substitute parts can look different from the original.
BEST SELLER
In Stock
$11.90 |
14% OFF
Phone Price: $13.90
Dryer Operating Thermostat (replaces 694674)#59

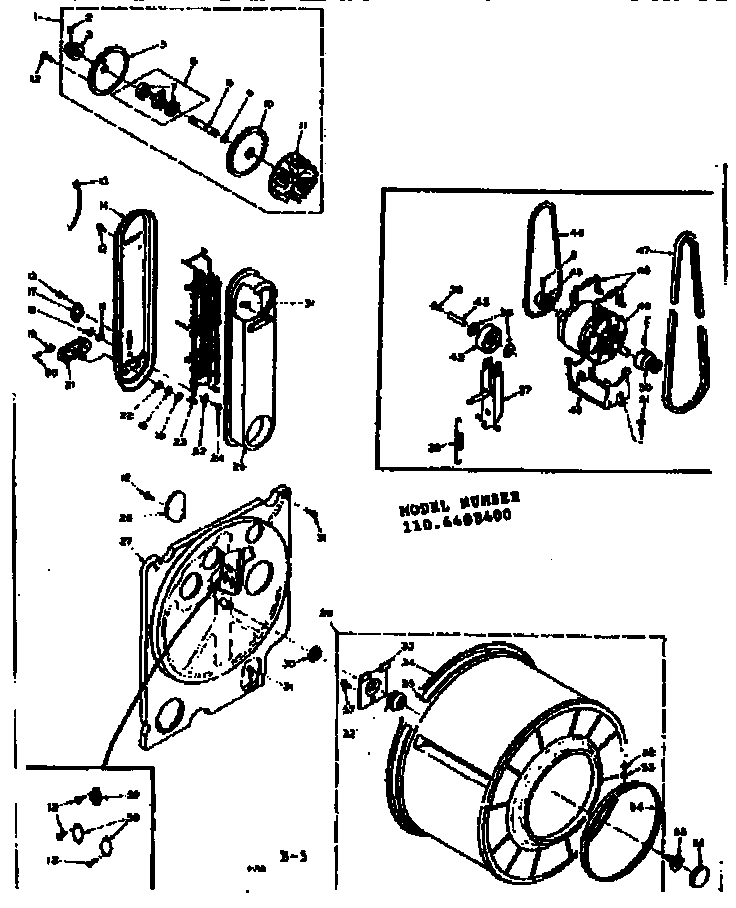

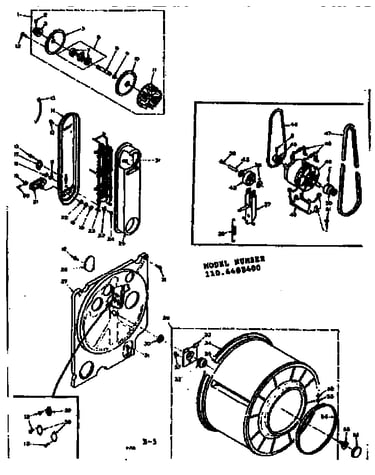

Bulkhead assembly Diagram

Thermostat

Part #229420
Replaced by #WP694674
?
Manufacturer substitution
This part replaces 229420. Substitute parts can look different from the original.
BEST SELLER
In Stock
$46.09 |
10% OFF
Was: $51.21
Dryer Top Panel Clip (replaces 18776)#71

Machine sub-assembly Diagram

Dryer top panel clip

Part #18776
Replaced by #WP18776
?
Manufacturer substitution
This part replaces 18776. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$7.55 |
12% OFF
Phone Price: $8.55
Dryer Terminal Block Kit (replaces 14924, 230148, 230149, 235078, 236109, 236667, 236668, 236672, 239239, 279092, 279195, 339209, 3394352, 339929, 339933, 34001481, 341001, 341055, 341103, 348911, 349899, 690261, S-4298, S-4298-1, S-6760, S-6761)#47

Machine sub-assembly Diagram

Terminal block

Part #230148
Replaced by #279320
?
Manufacturer substitution
This part replaces 230148. Substitute parts can look different from the original.
In Stock
$40.39 |
11% OFF
Phone Price: $45.39
Dryer Top Hinge#40

Machine sub-assembly Diagram

Hinge

Part #238088
Replaced by #WP8066217
?
Manufacturer substitution
This part replaces 238088. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.49 |
13% OFF
Phone Price: $7.49
Dryer Motor Bracket Bolt#51

Bulkhead assembly Diagram

Screw

Part #172455
Replaced by #3400500
?
Manufacturer substitution
This part replaces 172455. Substitute parts can look different from the original.
In Stock
$16.79 |
11% OFF
Phone Price: $18.79
Dryer High-Limit Thermostat#17

Bulkhead assembly Diagram

Thermostat

Part #237436
Replaced by #WP696818
?
Manufacturer substitution
This part replaces 237436. Substitute parts can look different from the original.
In Stock
$42.74 |
11% OFF
MSRP: $48.00
Dryer Screw, #6-20 x 1.25-in#59

Machine sub-assembly Diagram

Appliance screw

Part #98129
Replaced by #WP98129
?
Manufacturer substitution
This part replaces 98129. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
