Model # GTW460ASJ3WW Official GE washer

Here are the diagrams and repair parts for Official GE GTW460ASJ3WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

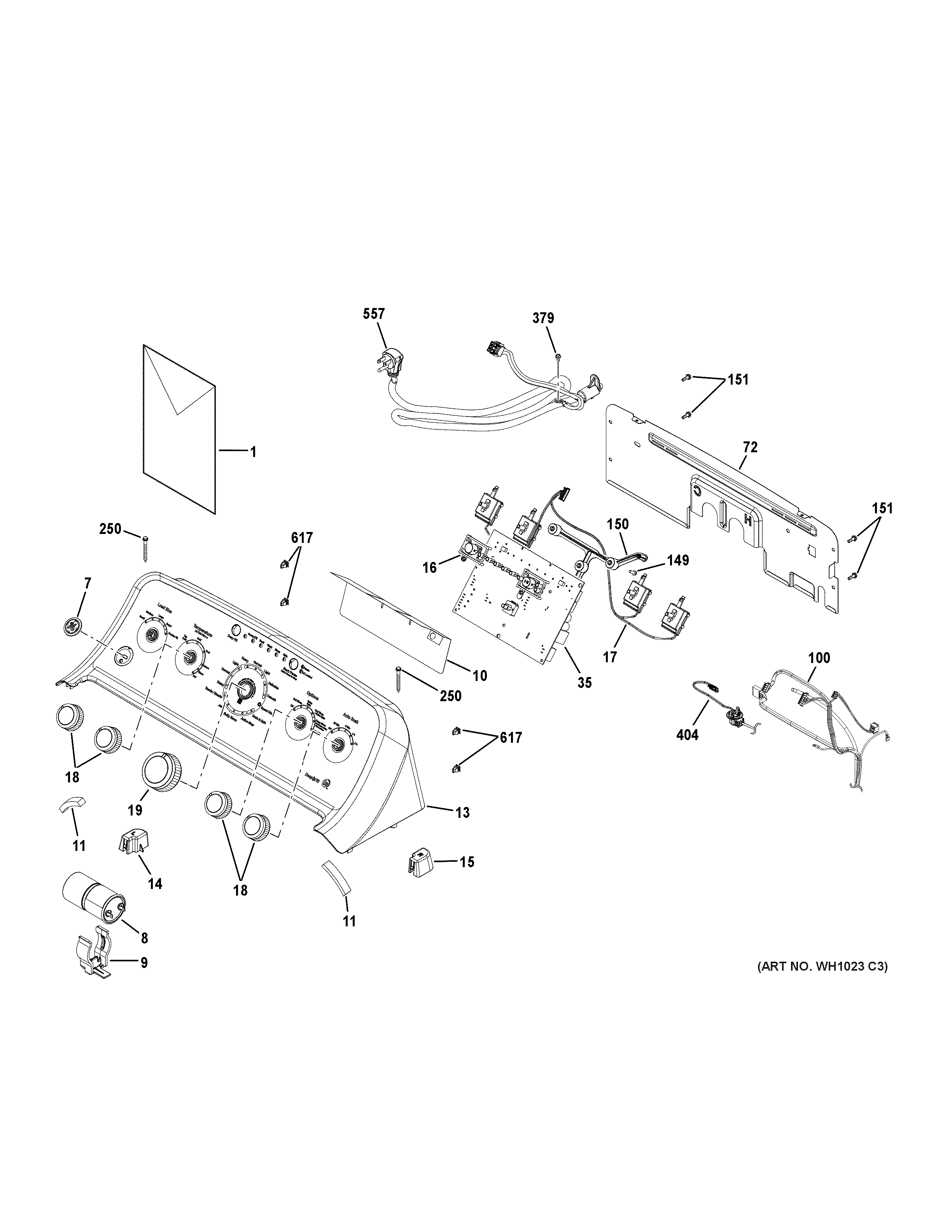

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Washer Suspension Rod And Spring Assembly, Right (green) (replaces Wh16x24144) WH16X26910
#415

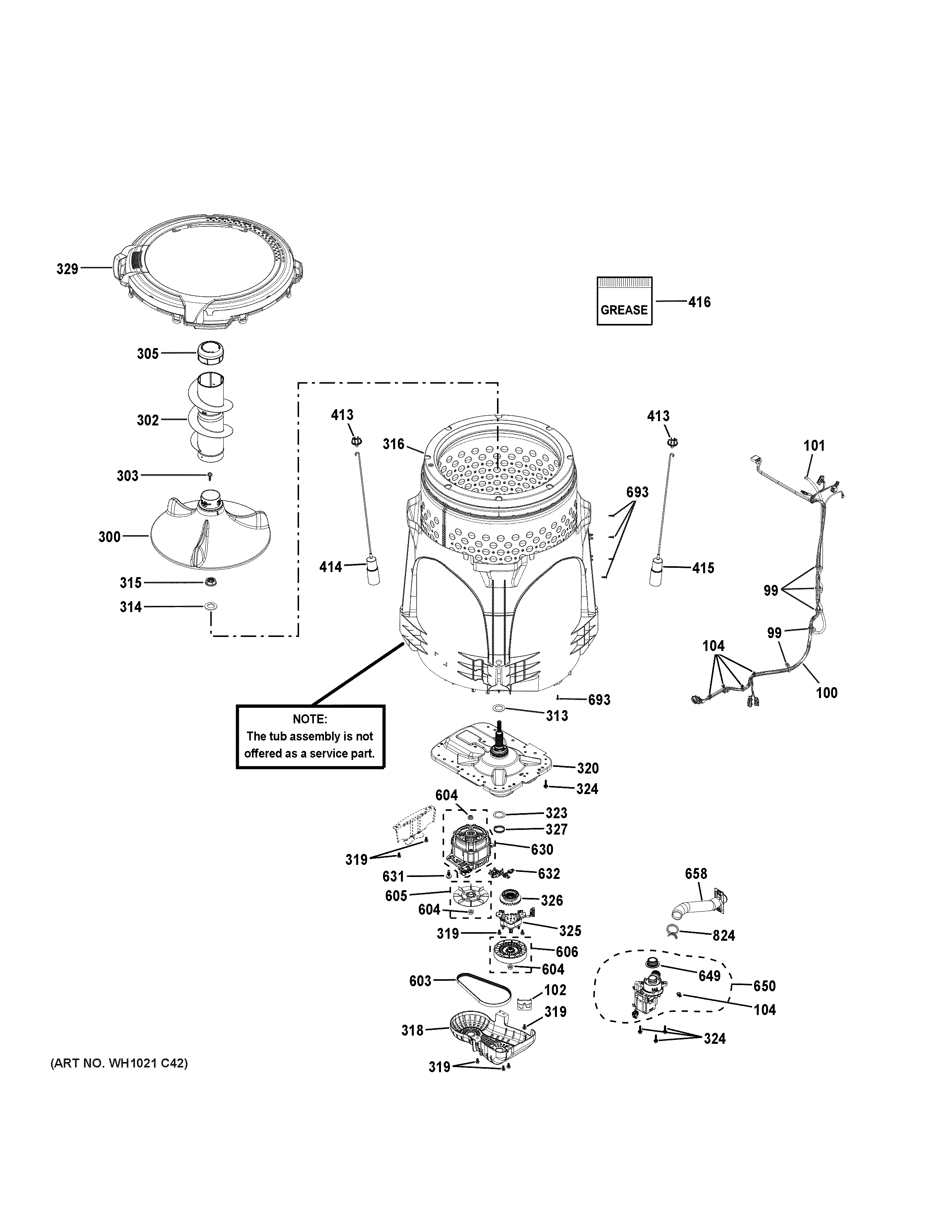

Tub & motor diagram

Washer suspension rod and spring assembly, right (green) (replaces wh16x24144)

Part #WH16X26910

BEST SELLER
$12.56
14% OFF Phone Price : $14.56
In Stock
Mode Shifter WH05X24435
#325

Tub & motor diagram

Mode shifter

Part #WH05X24435

Replaced by #WH03X30517

?
Manufacturer substitution
This part replaces WH05X24435. Substitute parts can look different from the original.
BEST SELLER
$32.92
13% OFF Phone Price : $37.92
In Stock
Washer Clutch WH05X24185
#326

Tub & motor diagram

Washer clutch

Part #WH05X24185

BEST SELLER
$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Drain Pump Assembly WH23X24178
#650

Tub & motor diagram

Washer drain pump assembly

Part #WH23X24178

Replaced by #WH23X28418

?
Manufacturer substitution
This part replaces WH23X24178. Substitute parts can look different from the original.
BEST SELLER
$44.79
10% OFF Phone Price : $49.79
In Stock
Washer Agitator Base (replaces Wh43x25447) WH43X24357
#300

Tub & motor diagram

Washer agitator base (replaces wh43x25447)

Part #WH43X24357

Replaced by #WH43X34257

?
Manufacturer substitution
This part replaces WH43X24357. Substitute parts can look different from the original.
BEST SELLER
$42.08
11% OFF Phone Price : $47.08
In Stock
Washer Shifter Spring WH01X24434
#327

Tub & motor diagram

Washer shifter spring

Part #WH01X24434

BEST SELLER
This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Screw WH02X24374
#303

Tub & motor diagram

Washer screw

Part #WH02X24374

BEST SELLER
$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Fabric Softener Dispenser Cup WH43X24454
#305

Tub & motor diagram

Washer fabric softener dispenser cup

Part #WH43X24454

BEST SELLER
This item is not returnable
$11.89
14% OFF Phone Price : $13.89
In Stock
Washer Water Inlet Valve Assembly WH13X24392
#803

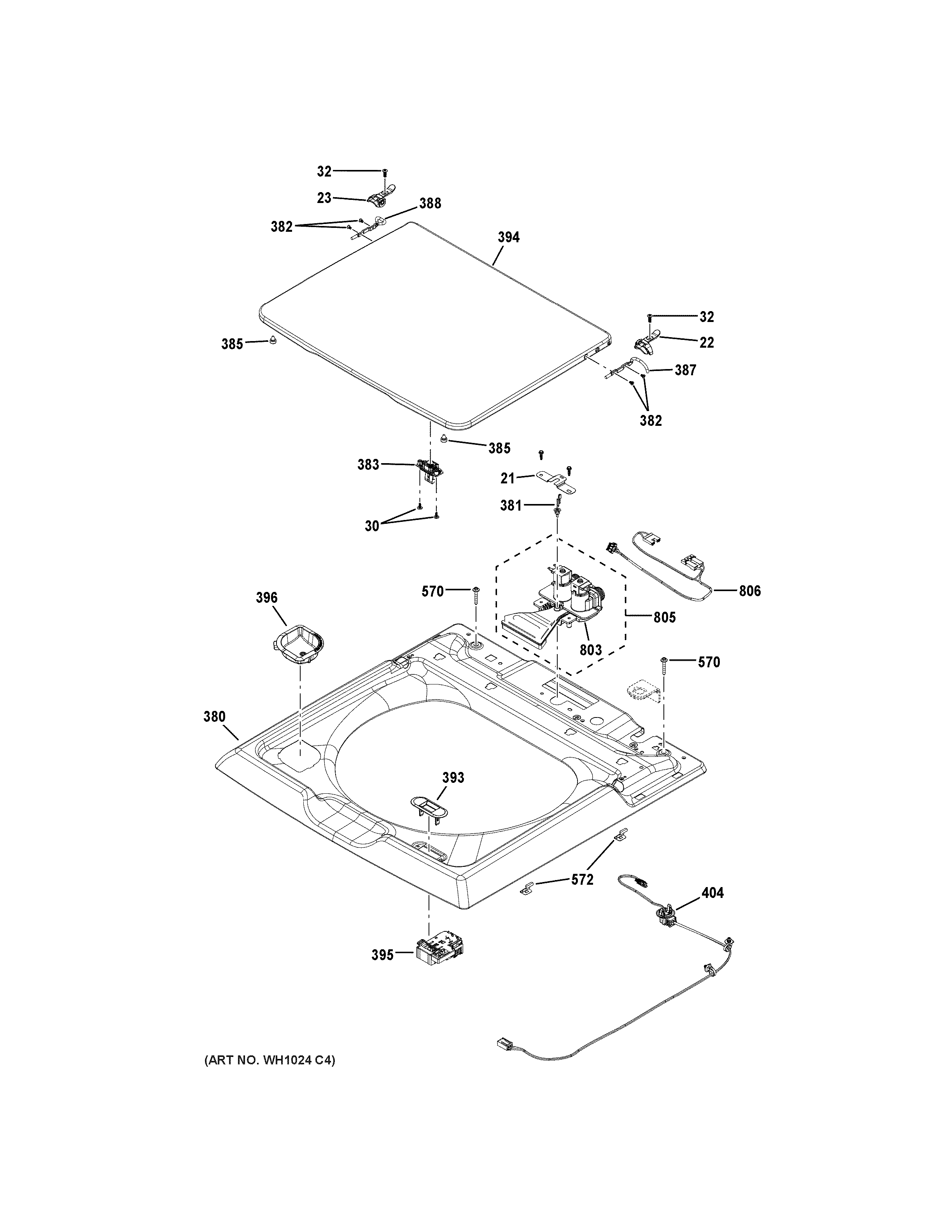

Top panel & lid diagram

Washer water inlet valve assembly

Part #WH13X24392

Replaced by #WH13X26535

?
Manufacturer substitution
This part replaces WH13X24392. Substitute parts can look different from the original.
BEST SELLER
$42.65
10% OFF Phone Price : $47.65
In Stock
Washer Water Inlet Valve Assembly WH13X24386
#805

Top panel & lid diagram

Washer water inlet valve assembly

Part #WH13X24386

Replaced by #WH13X26535

?
Manufacturer substitution
This part replaces WH13X24386. Substitute parts can look different from the original.
BEST SELLER
$42.65
10% OFF Phone Price : $47.65
In Stock
