GE TFX22ARBAWW refrigerator - b series Parts
Here are the diagrams and repair parts for GE TFX22ARBAWW refrigerator - b series, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for TFX22ARBAWW Refrigerators

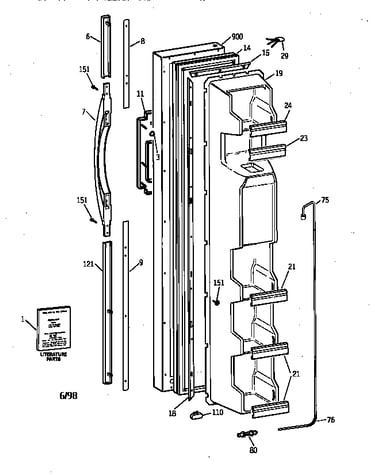

Freezer section diagram
Door Ice Stg
Part #WR17X2882Replaced by #WR17X10273
Manufacturer substitutionThis part replaces WR17X2882. Substitute parts can look different from the original.In Stock$40.0213% OFF Phone Price : $46.02
Qty

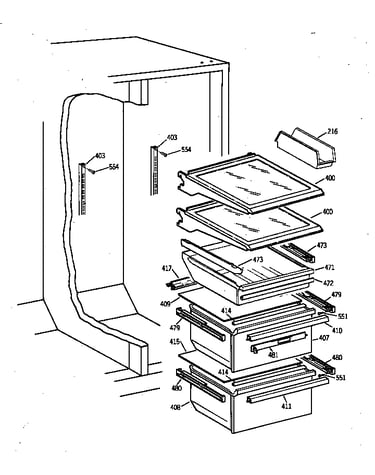

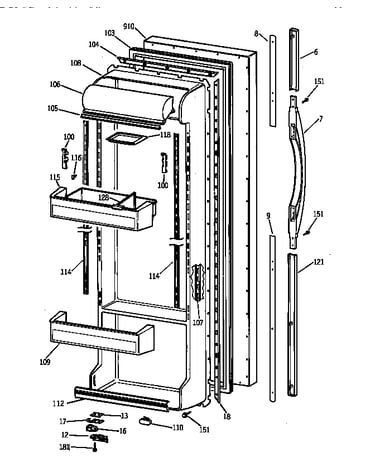

Fresh food door diagram
Hook Mdl L/s
Part #WR02X8410Replaced by #WR2X8410
Manufacturer substitutionThis part replaces WR02X8410. Substitute parts can look different from the original.In Stock$47.71QtyFresh food section diagram
Refrigerator Bracket
Part #WR02X7736Replaced by #WR2X7736
Manufacturer substitutionThis part replaces WR02X7736. Substitute parts can look different from the original.In Stock$123.48Qty#NI
All parts diagram
Ground Screw
Part #WR01X1466Replaced by #WZ5X158D
Manufacturer substitutionThis part replaces WR01X1466. Substitute parts can look different from the original.In Stock$37.2814% OFF Phone Price : $43.28QtyFreezer section diagram
Refrigerator Retainer Ring
Part #WR01X1367Replaced by #WR1X1367D

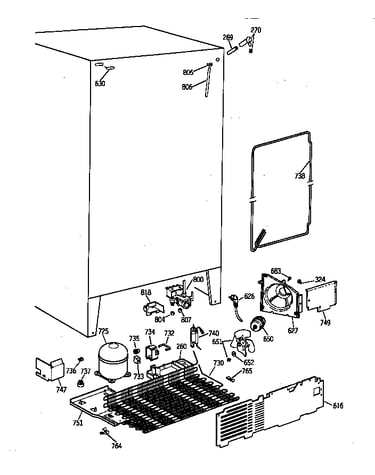

Manufacturer substitutionThis part replaces WR01X1367. Substitute parts can look different from the original.This item is not returnableIn Stock$16.1411% OFF Phone Price : $18.14QtyUnit parts diagram
Condenser Motor
Part #WR60X10010Replaced by #WR60X187

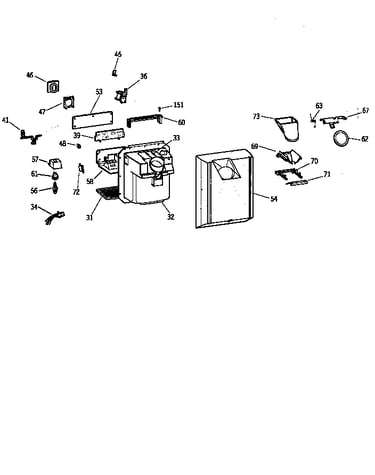

Manufacturer substitutionThis part replaces WR60X10010. Substitute parts can look different from the original.In Stock$242.847% OFF Was : $260.70QtyDispenser diagram
Mod Time Del
Part #WR55X0129
The manufacturer no longer makes this part, and there's no substitute part

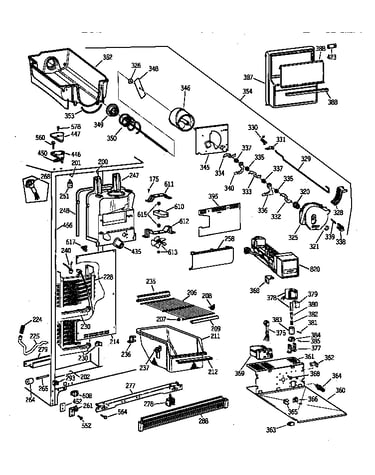

Freezer section diagram
Fan Shield
Part #WR17X10220
The manufacturer no longer makes this part, and there's no substitute part
Refrigerator Tail Handle
Part #WR12X10122
The manufacturer no longer makes this part, and there's no substitute part

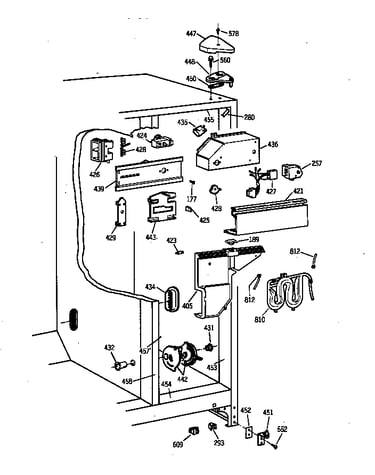

Fresh food section diagram
Refrigerator Screw
Part #WZ04X0244
The manufacturer no longer makes this part, and there's no substitute part
