Model #970L48422E0 Official Frigidaire washer

Here are the diagrams and repair parts for Frigidaire 970L48422E0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 129 parts

Clip#45A

Motor/tub Diagram

Clip

Part #134261300
In Stock
$11.89
COVER, MOTOR CONTROL, HOUSING#5

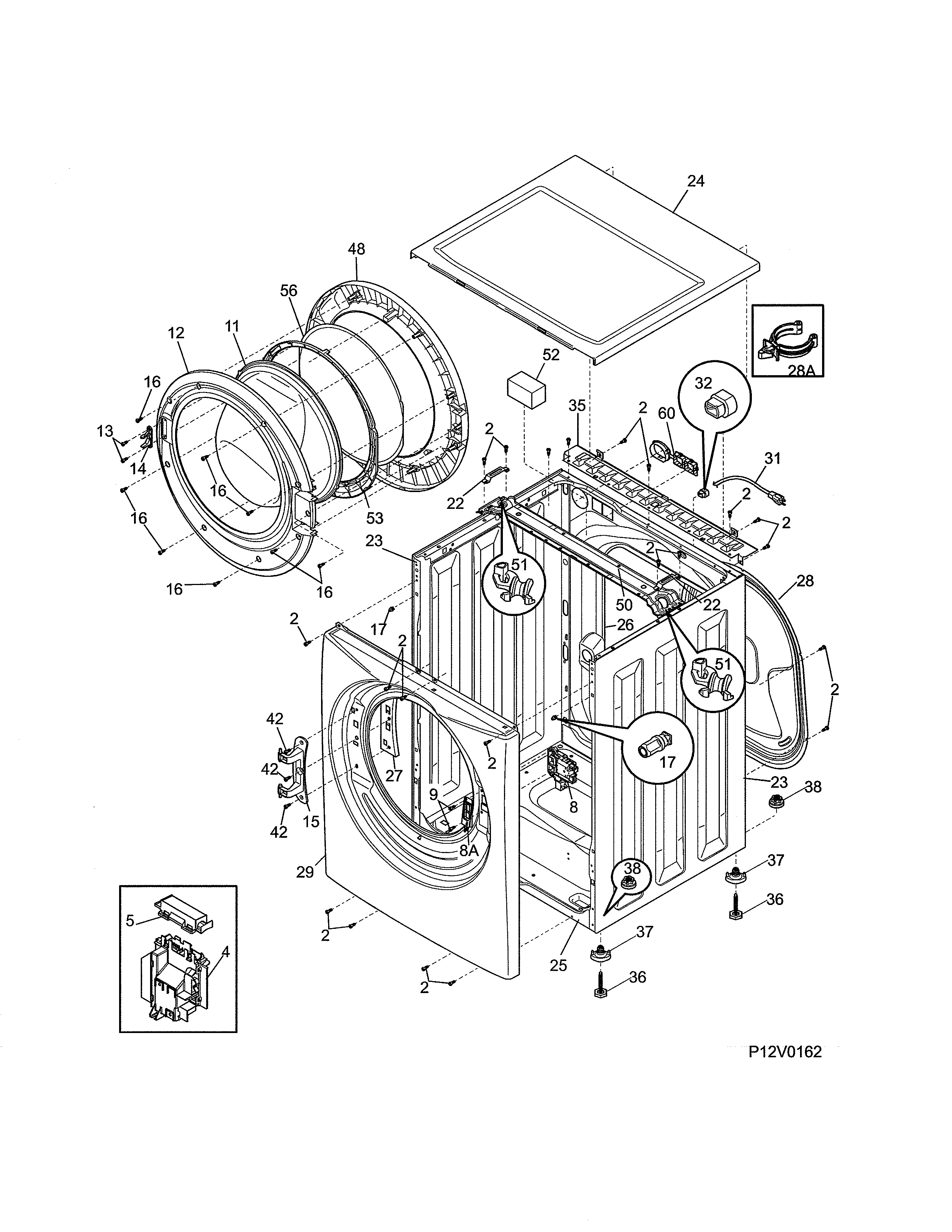

Cabinet/top Diagram

Cover, motor control, housing

Part #134649700

The manufacturer no longer makes this part, and there's no substitute part

WIRING HARNESS, MOTOR (NOT SHOWN)#19A

Motor/tub Diagram

Wiring harness, motor (not shown)

Part #137290700

The manufacturer no longer makes this part, and there's no substitute part

SCREW, PHILLIPS, 6-19 X 0.650#19

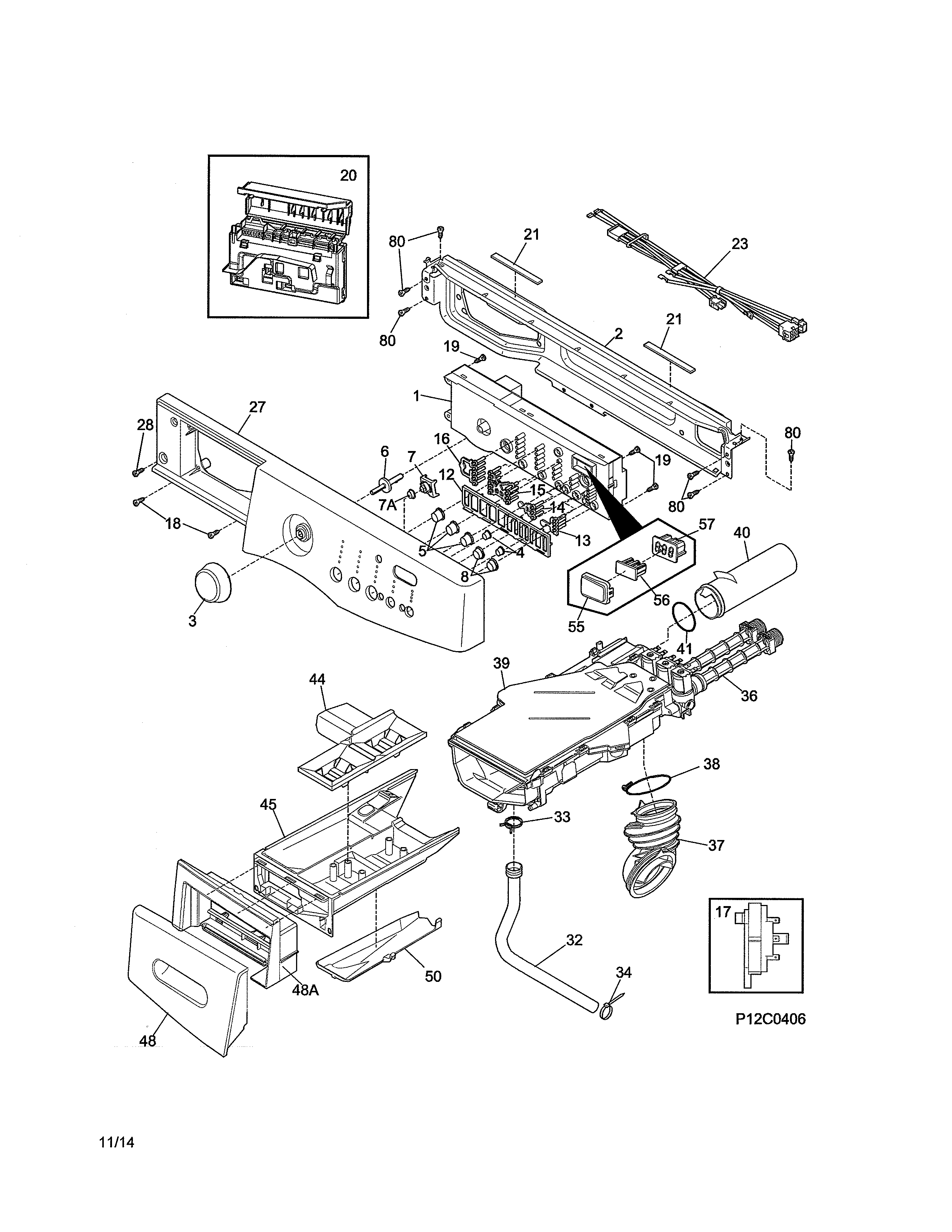

Control panel Diagram

Screw, phillips, 6-19 x 0.650

Part #134402900

The manufacturer no longer makes this part, and there's no substitute part

BRACKET, HINGE, REINFORCEMENT#27

Cabinet/top Diagram

Bracket, hinge, reinforcement

Part #134550900

The manufacturer no longer makes this part, and there's no substitute part

RING, DOOR TRANSITION#53

Cabinet/top Diagram

Ring, door transition

Part #137266700

The manufacturer no longer makes this part, and there's no substitute part

SCREW, PAN HEAD, 8-18B X 0.31

See All Related Diagrams

Screw, pan head, 8-18b x 0.31

Part #131168200

The manufacturer no longer makes this part, and there's no substitute part

CLAMP, TUB HOSE#38

Control panel Diagram

Clamp, tub hose

Part #134372400

The manufacturer no longer makes this part, and there's no substitute part

HOSE, DRAIN, ONE PIECE#55

Motor/tub Diagram

Hose, drain, one piece

Part #137628100

The manufacturer no longer makes this part, and there's no substitute part

PUSH BUTTON, ROUND #1#4

Control panel Diagram

Push button, round #1

Part #137320810

The manufacturer no longer makes this part, and there's no substitute part
