Yes. Craftsman tillers are a solid choice for typical home garden work when they’re used and maintained as directed; the Craftsman 917292390 is a 5.5 HP, 24-inch tine width front-tine tiller designed for effective soil prep, including tougher ground when you take controlled passes. See the 917292390 owner's manual for the operating and maintenance routine that keeps performance consistent.

A front-tine tiller like model 917292390 is a good fit when you want manageable size and straightforward controls for garden beds.

• Breaks up and mixes soil for planting and amendments
• Works best in multiple shallow passes instead of one deep pass
• Handles hard ground better when you slow down and let the tines do the work

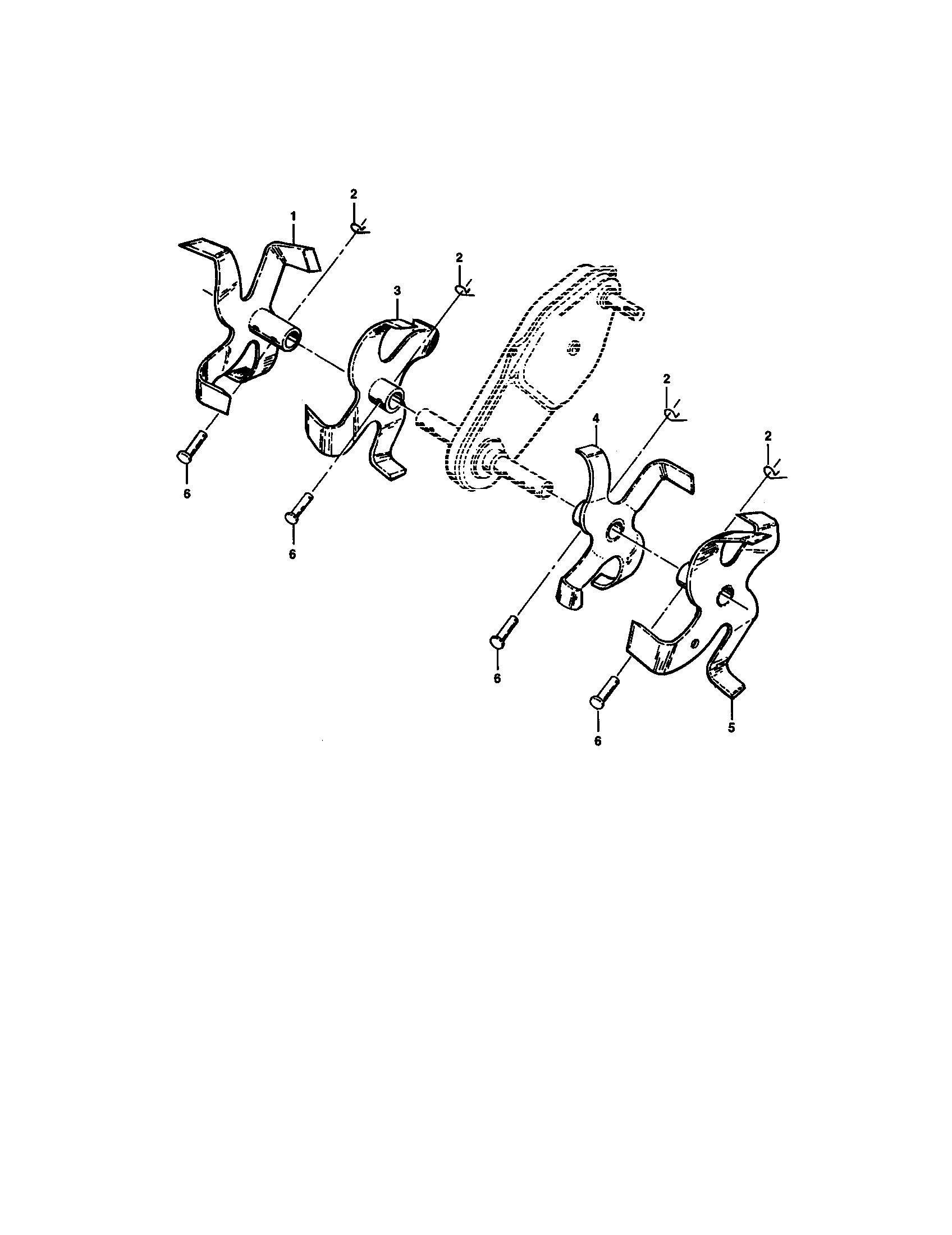

• Requires routine checks of fasteners and wear items (tines, belts, spark plug)

Many “not good” experiences come from setup, wear, or pushing the machine too hard.

The manual calls out frequent safety and maintenance checks that directly affect durability.

• Shut off engine and disconnect the spark plug wire before cleaning or servicing
• Check shear pins and mounting bolts at frequent intervals
• Keep guards and shields installed during operation
• Avoid overloading by tilling too deep at too fast a rate
• Store safely; don’t store with fuel indoors near ignition sources

A tiller’s “goodness” is mostly about matching the tool to the job and maintaining it. When we follow the correct depth, speed, and maintenance routine, a Craftsman tiller like the 917292390 delivers reliable garden-bed performance and avoids the premature wear that frustrates owners.

Last updated: February 2026

The Craftsman front-tine tiller model 917292390 uses a Briggs & Stratton gasoline engine; the owner’s manual lists it as engine model 137202, type 1124-E1. For operating and maintenance details (oil, choke, throttle, starting), use the 917292390 owner's manual.

From the repair parts section of the manual, the engine identification is:

We recommend matching the manual listing to the ID on your actual engine (helpful when ordering carburetor, gasket set, or tune-up parts).

• Look for the Briggs & Stratton model/type stamping on the engine shroud or valve cover area.
• Clean dirt and oil off the label area so the numbers are readable.
• Match 137202 (model) and 1124-E1 (type) exactly.
• If the label is missing, use the tiller model number 917292390 to reference the correct parts breakdown in the manual.

Briggs & Stratton engines often share similar displacement and appearance across multiple machines, but the model and type code determine the correct ignition parts, carburetor parts, gaskets, and governor linkages. Using the exact engine ID prevents wrong-part returns and starting or performance issues.

If you are doing routine service, a tune-up kit is a common starting point for spark plug and air filter maintenance. For this model’s parts list, see the briggs & statton tune-up kit 5140B.

Last updated: February 2026

For the Craftsman 917292390 front-tine tiller, we use a high-quality 4-cycle engine oil and choose the viscosity by temperature (SAE 30 for warm weather; 10W-30 for cooler conditions). Fill the crankcase to the proper level shown in the 917292390 owner's manual.

Use standard small-engine 4-cycle oil; the key is matching viscosity to your typical operating temperature.

• SAE 30: best for consistently warm temperatures
• 10W-30: better for cooler starts and wider temperature swings
• Use a name-brand detergent oil intended for 4-cycle engines
• Do not overfill; oil level should be at the specified full mark/level point

The manual’s fill method for this tiller is to fill to the correct level (it may be described as filling to the proper level point).

• Park the tiller on a level surface
• Remove the oil fill plug/dipstick (if equipped)
• Add oil slowly, then pause to let it settle
• Recheck level and top off to the correct mark/level
• Reinstall the plug securely and wipe any spills

Correct oil viscosity protects the engine from accelerated wear and helps the tiller start easier in cooler weather. It also reduces the chance of smoking, fouled spark plugs, and overheating caused by low or incorrect oil.

Last updated: February 2026

On the Craftsman 917292390 front-tine tiller, a no-start is usually caused by stale fuel, incorrect choke/throttle settings, a fouled or mis-gapped spark plug, low oil level, or restricted airflow. Follow the starting steps and tune-up checks in the Craftsman 917292390 owner's manual first.

• Confirm the throttle control is not in STOP.
• Set choke for a cold start; if the engine “fires” but will not run, move to half choke, then to RUN as it warms.
• Verify fresh unleaded gasoline; drain and refill if fuel is old.
• Check oil level; low oil can cause hard starting and overheating.
• Inspect the air filter and air screen; clean if dirty.
• Remove the spark plug; clean/regap or replace (typical gap is 0.030 in.).

• Move the throttle to STOP.
• Disconnect the spark plug wire and keep it away from the plug.
• Let the engine cool before working near the muffler.

A tiller that will not start is often a simple fuel, air, or spark problem. Fixing the root cause prevents repeat no-starts, reduces plug fouling, and helps protect belts, pulleys, and the tine control system during repeated starting attempts.

Last updated: February 2026

On the Craftsman front-tine tiller model 917292390, we most often see the model number on the engine area, typically on a label near the recoil starter housing or under the engine shroud. Confirm the exact location and format in the 917292390 owner's manual.

Look for a sticker or metal tag in these spots (wipe dirt and oil off first):

• On or near the recoil starter (pull-start) housing
• Under the engine shroud (top cover) on the sheet metal
• Near the muffler heat shield area
• Near the spark plug area on the engine
• On the handle column or control panel area (less common)

Most Craftsman tillers use a model number format similar to 917.292390 (sometimes printed with a dot). You may also see:

• A serial number
• An engine model/type code (for the Briggs and Stratton engine)

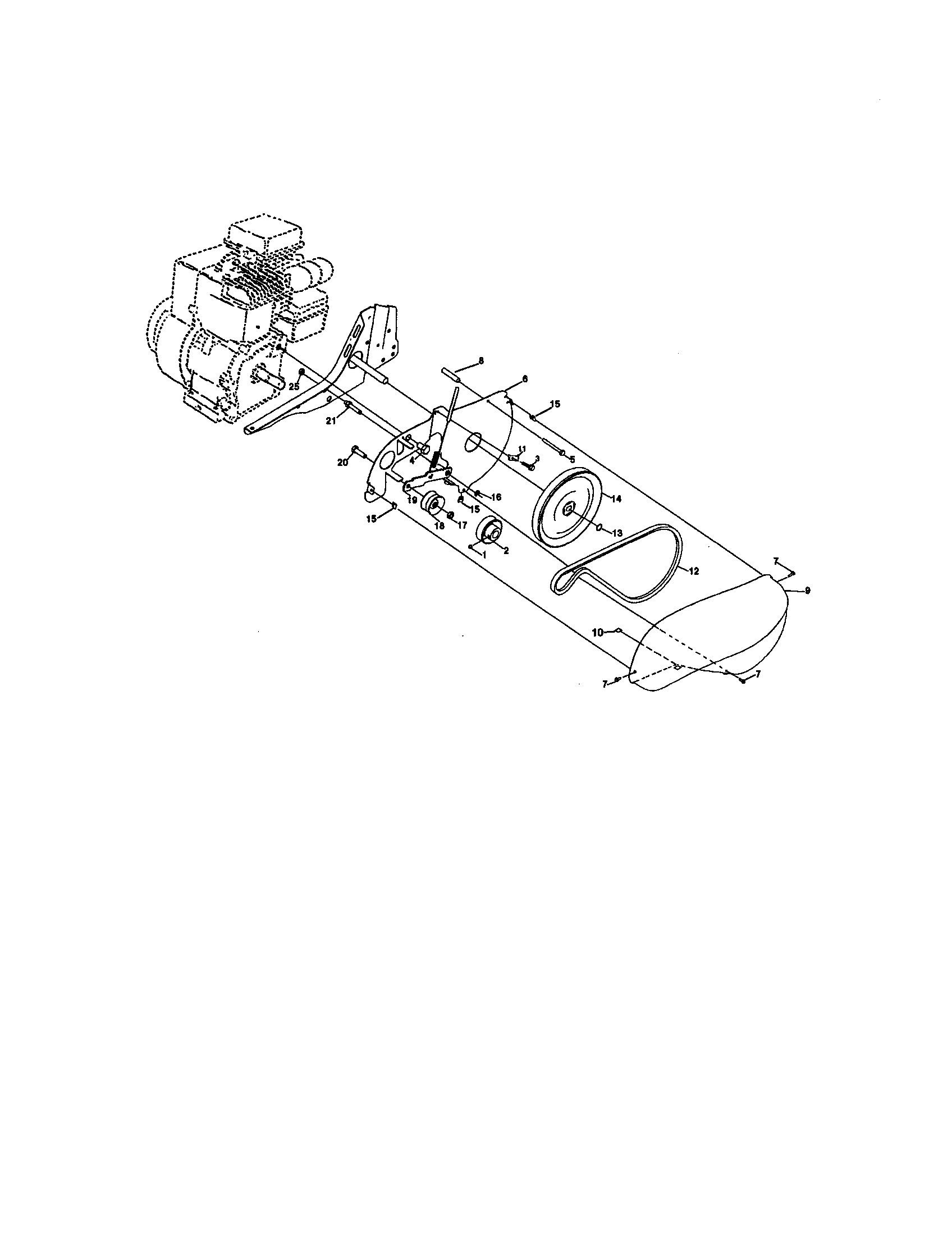

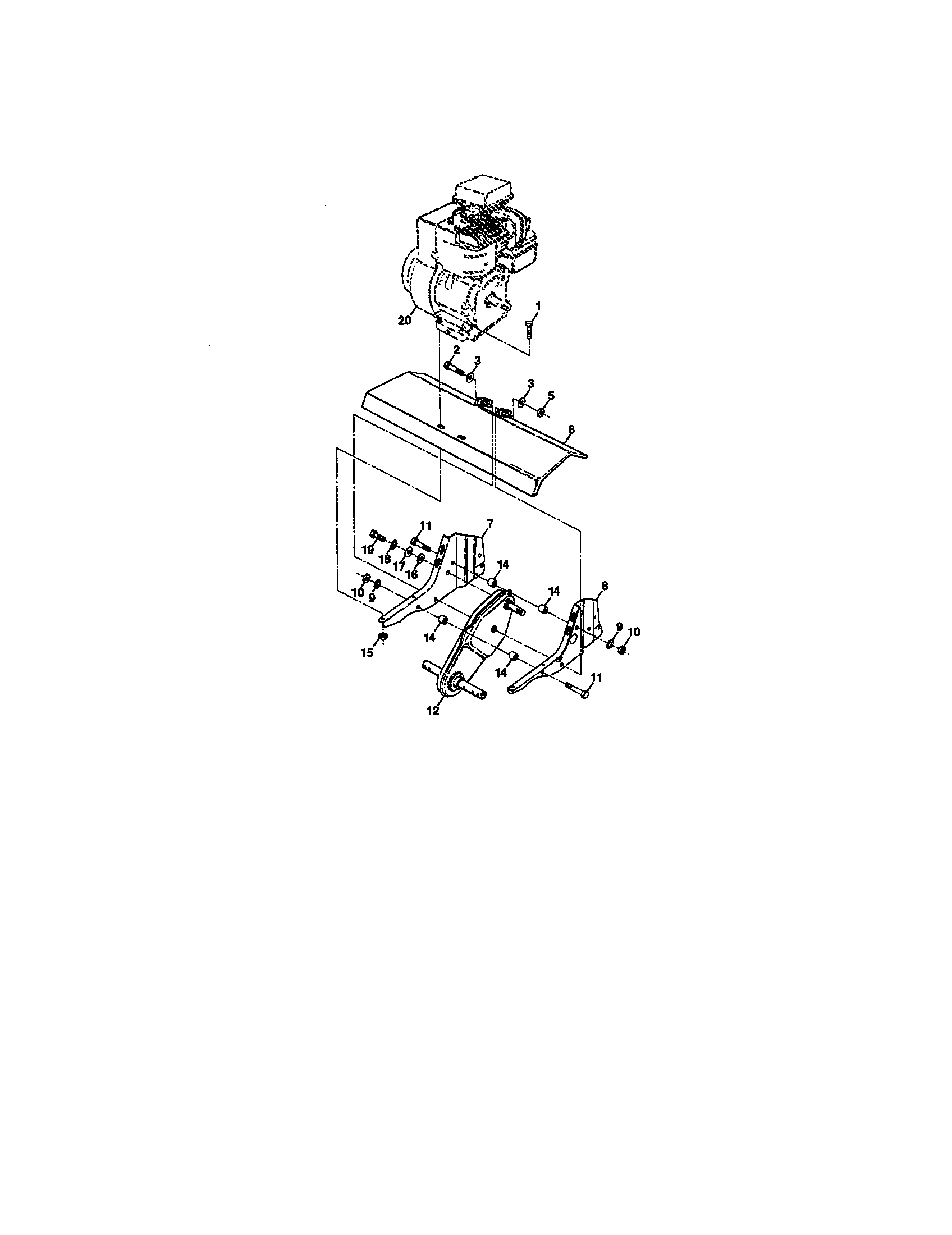

Using the correct model number helps us match the right diagrams and parts for your exact tiller configuration (tine assembly, belt guard and pulley parts, transmission hardware). That prevents ordering the wrong control cable, pulley, or tine-related hardware.
