Kelvinator UFS133FM2W upright freezer - lk30890070 Parts
Here are the diagrams and repair parts for Kelvinator UFS133FM2W upright freezer - lk30890070, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for UFS133FM2W Freestanding Freezers

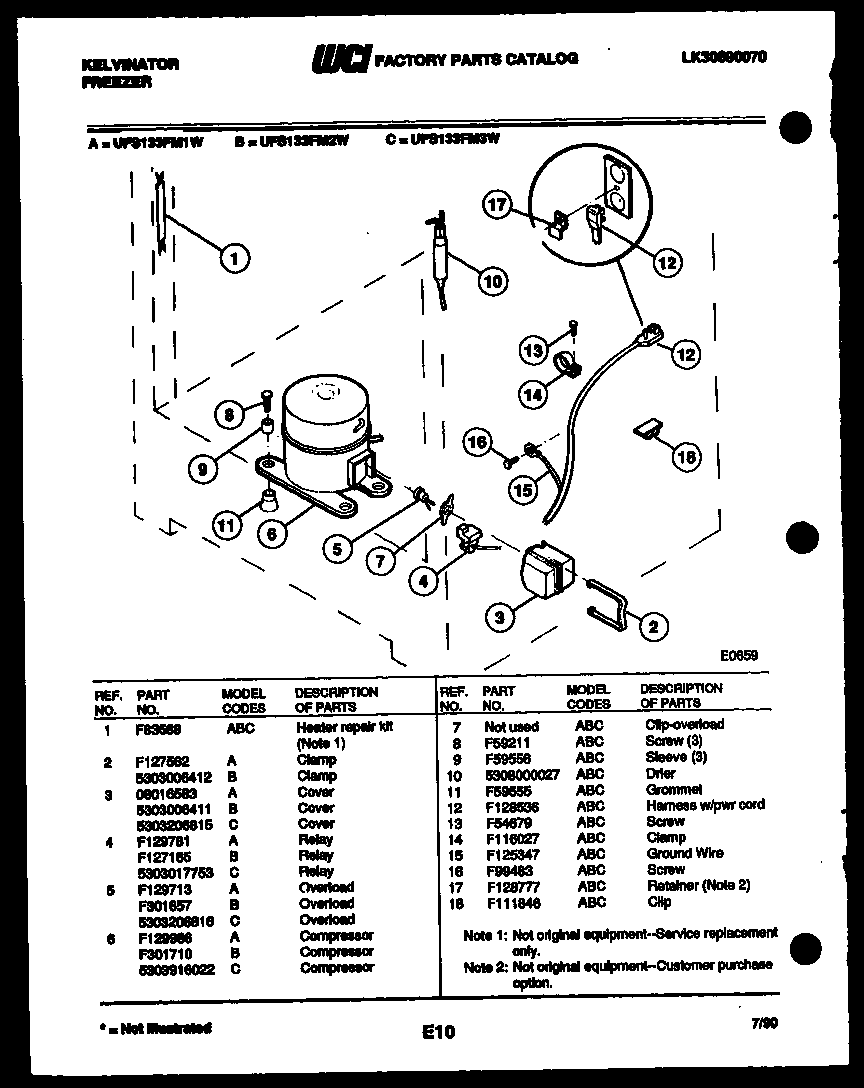

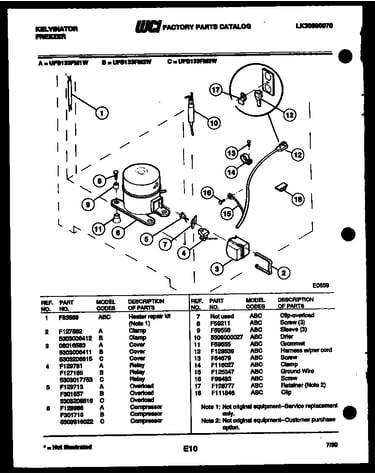

System and electrical parts diagram
Filter
Part #5308000027Replaced by #5303305677
Manufacturer substitutionThis part replaces 5308000027. Substitute parts can look different from the original.In Stock$25.3619% OFF Phone Price : $31.36
Qty

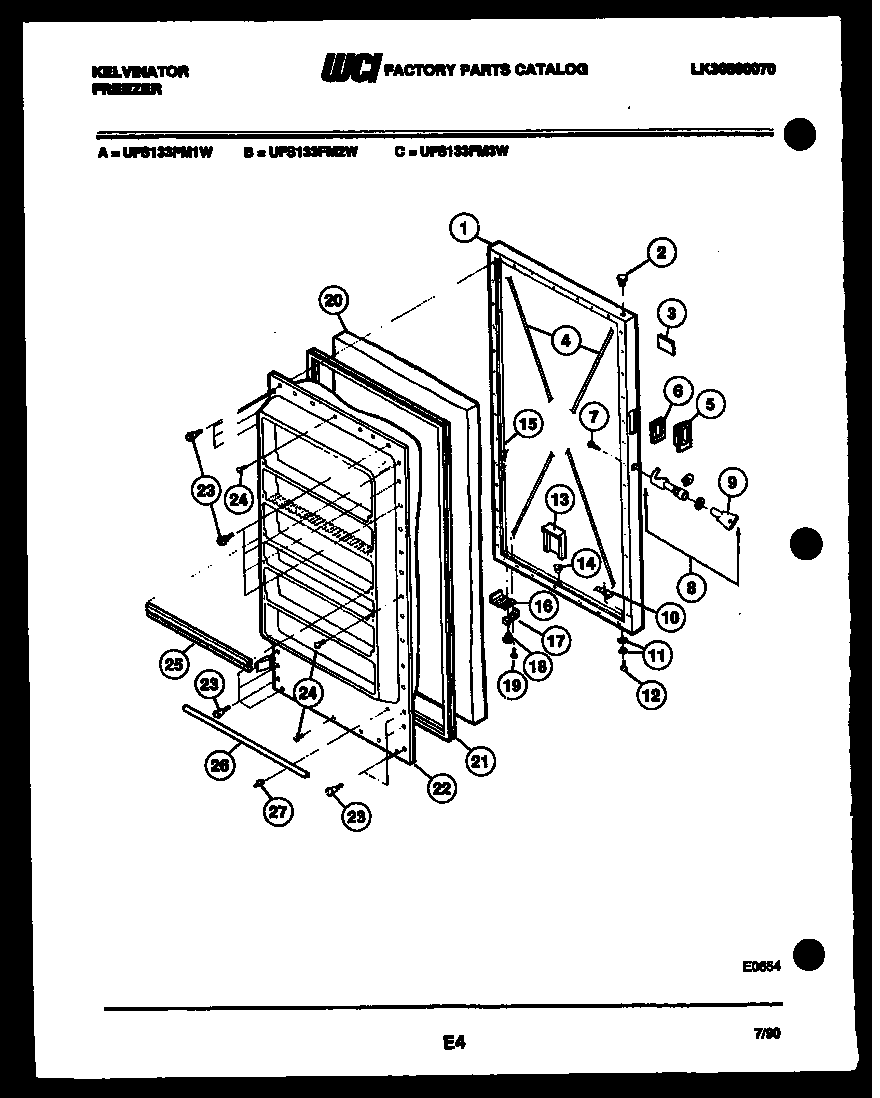

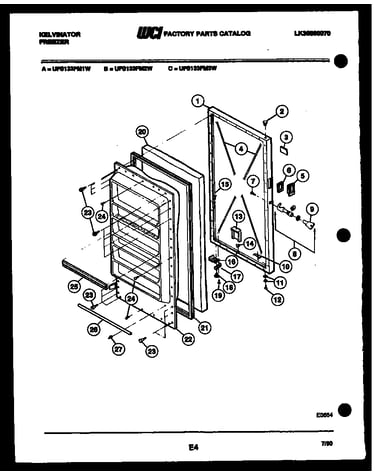

Door parts diagram
Key
Part #5308037402Replaced by #297147700

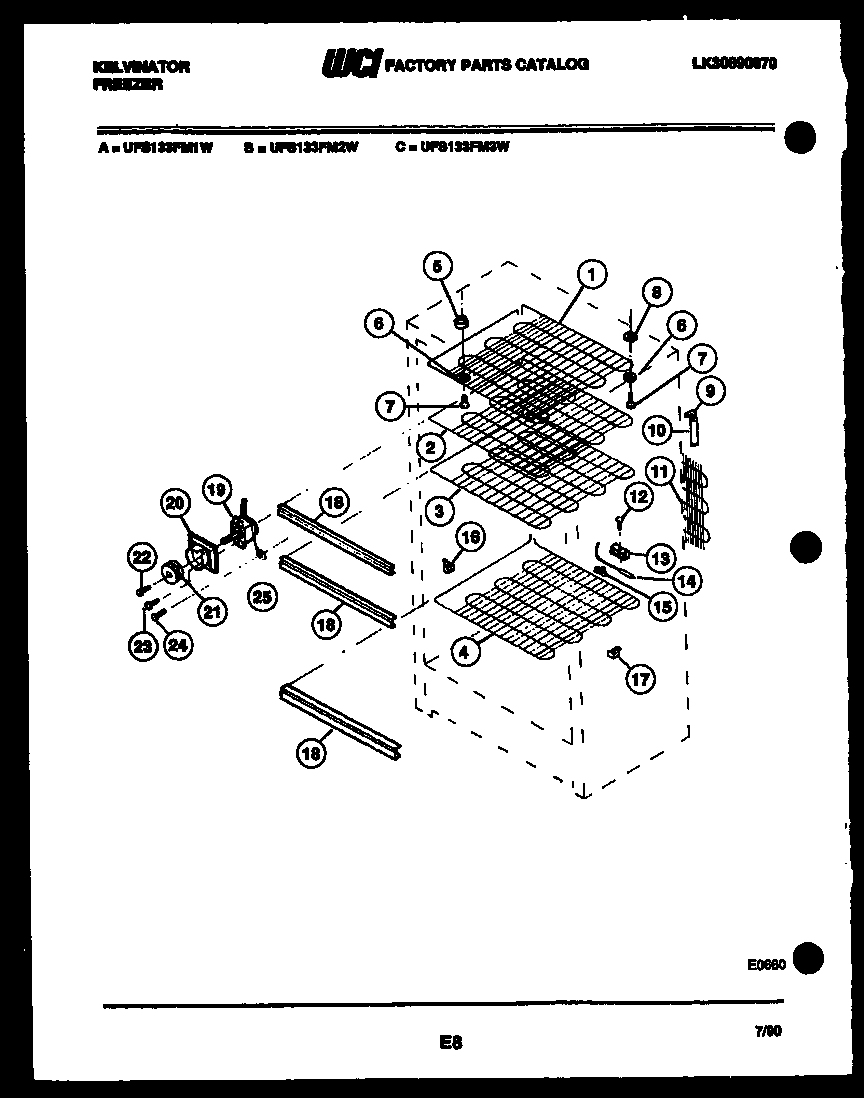

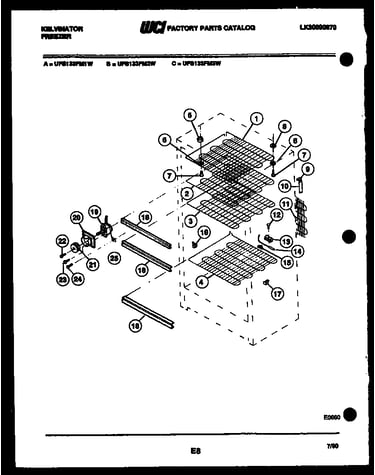

Manufacturer substitutionThis part replaces 5308037402. Substitute parts can look different from the original.In Stock$9.3110% OFF Phone Price : $10.31QtyShelves and supports diagram
Shelf Support
Part #F300590Replaced by #297001500

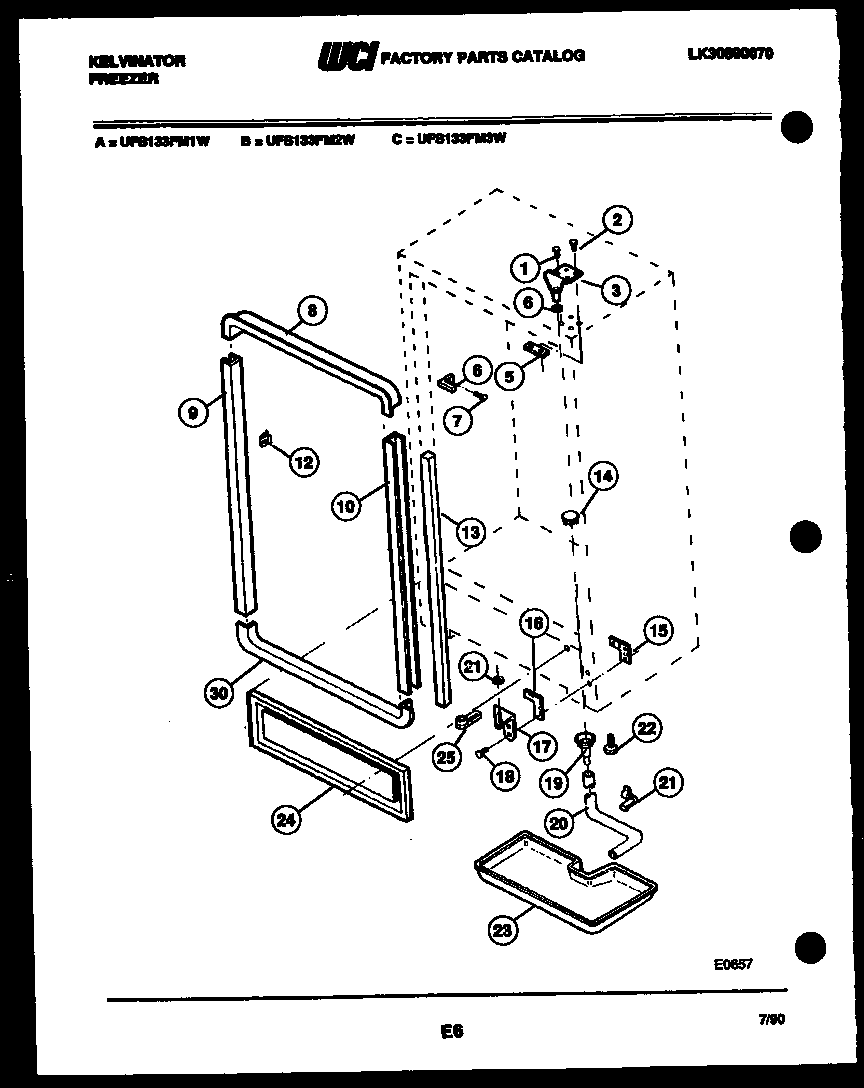

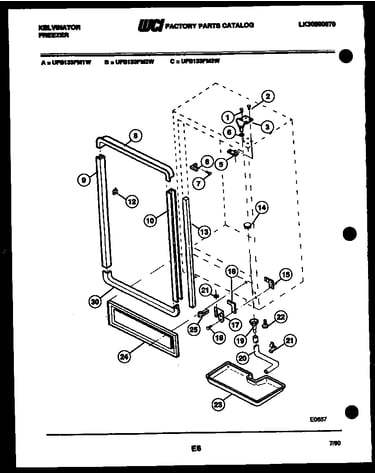

Manufacturer substitutionThis part replaces F300590. Substitute parts can look different from the original.This item is not returnableIn Stock$10.2949% OFF Was : $20.13QtyCabinet parts diagram
Drain Hose
Part #F129678Replaced by #5304512272
Manufacturer substitutionThis part replaces F129678. Substitute parts can look different from the original.This item is not returnableIn Stock$17.9010% OFF Phone Price : $19.90QtyShelves and supports diagram
Tube
Part #F129728Replaced by #5303916855
Manufacturer substitutionThis part replaces F129728. Substitute parts can look different from the original.In Stock$40.1625% OFF Was : $53.56QtyCabinet parts diagram
Insulation
Part #F116171-50Replaced by #5303925098
Manufacturer substitutionThis part replaces F116171-50. Substitute parts can look different from the original.In Stock$70.4342% OFF Was : $120.52QtySystem and electrical parts diagram
Cover
In Stock$33.54QtySystem and electrical parts diagram
Freezer Overload And Start Relay Cover Clamp
Part #5303006412This item is not returnableIn Stock$27.06QtyShelves and supports diagram
Heat Exchange
Part #F125274Replaced by #216385500
Manufacturer substitutionThis part replaces F125274. Substitute parts can look different from the original.In Stock$207.66QtyCabinet parts diagram
Latch
Part #F117634Replaced by #5309949966
Manufacturer substitutionThis part replaces F117634. Substitute parts can look different from the original.In Stock$28.97Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Repair guides for upright freezers
How to replace a freezer evaporator fan
Air won’t circulate to cool the freezer properly when the evaporator fan fails. Follow these step-by-step instructions t…
Repair time and Difficulty
45 minutes or less
How to replace a freezer door switch
When the door switch fails, the freezer can’t detect that the door is closed. Follow the steps in this repair guide to r…
Repair time and Difficulty
15 minutes or less
How to replace a freezer LED light board
The LED lights illuminate the interior of the freezer when you open the door. It takes just a few minutes to replace the…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about Sears Technical Institute and the advanced technical content being developed for aspiring appliance techs.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
