A blown thermal fuse on your Kenmore dryer model 11087561602 usually shows up as a dryer that will not run at all, or a dryer that tumbles but has no heat. The sure way to confirm is a continuity test with a multimeter after disconnecting power (see the 11087561602 owner's manual).

• Dryer will not start even though the door is closed and you press Start.
• Drum turns but there is no heat (common on electric dryers when one side of the power supply is lost).
• The problem started after long dry times, overheating, or a restricted vent.
• You recently noticed weak airflow or excessive lint around the dryer.

1. Disconnect power to the dryer.
2. Access the thermal fuse (location varies by design; follow the access steps in the 11087561602 owner's manual).
3. Remove at least one wire from the fuse terminal.
4. Check continuity across the fuse.

A thermal fuse usually blows because the dryer overheated. Before running the dryer again, we recommend:

• Clean the lint screen and confirm it seats correctly (a damaged screen can reduce airflow; consider the screen W10120998 if yours is torn or warped).
• Check the vent path for crushing, kinks, or heavy lint buildup.
• Make sure the dryer is not pushed too tight against the wall.
• Verify the outside vent hood opens fully.
• If you had no heat, also check both household fuses or breakers (many electric dryers use two).

The thermal fuse is a safety device; bypassing it can create unsafe overheating. Restoring proper airflow helps the dryer heat correctly, dry faster, and prevents repeat fuse failures.

Last updated: February 2026

The Kenmore dryer model 11087561602 is approximately 28.65 inches deep and about 36 inches wide; plan for a 60-inch door swing clearance in front. For the most accurate fit (including vent space), confirm measurements in the 11087561602 owner's manual.

Typical planning dimensions for this model:

• Width: about 36 in (91.4 cm)
• Depth (cabinet): about 28.65 in (72.77 cm)
• Door clearance (front): about 60 in (152.4 cm) to open fully
• Rear clearance for venting: most installs need at least 5 in (12.7 cm) behind the dryer for the exhaust vent and elbow

• Measure the narrowest doorway the dryer must pass through.
• Confirm you have room for the door to open fully (about 60 in in front).
• Leave space behind the dryer for the exhaust vent connection (commonly 5 in minimum).
• Verify the floor is level; a slope over 1 in can affect tumbling and sensor cycles.
• If installing in a garage, plan to set the dryer at least 18 in above the floor.

Correct sizing prevents crushed venting (poor drying, overheating risk), avoids door clearance problems, and makes service access easier when replacing common wear items like the dryer repair kit 4392067 or a dryer heating element WP8544771.

Last updated: February 2026

Your Kenmore dryer’s model number is printed on the rating label; on model 11087561602, you’ll typically find it inside the door opening on the cabinet frame, or on the back of the dryer near the top. Use that exact number when ordering parts or checking instructions in the 11087561602 owner's manual.

Check these common label locations first:

• Inside the dryer door opening on the cabinet frame
• On the back panel near the top edge
• Along the door opening area behind a small trim or plug strip (if present)
• On the side of the cabinet near the door opening

Kenmore electric dryers in this family often show a full model like 110.8756__ (with additional digits or a color code). For parts lookup and service, use the complete model number from the label (for example, 11087561602).

• Copy the model number exactly as printed (all digits, no spaces)
• If the label shows a dot format (example: 110.87561602), we use the digits-only format for lookup
• Match the model number before buying common wear items like a heating element, thermistor, or drum support roller

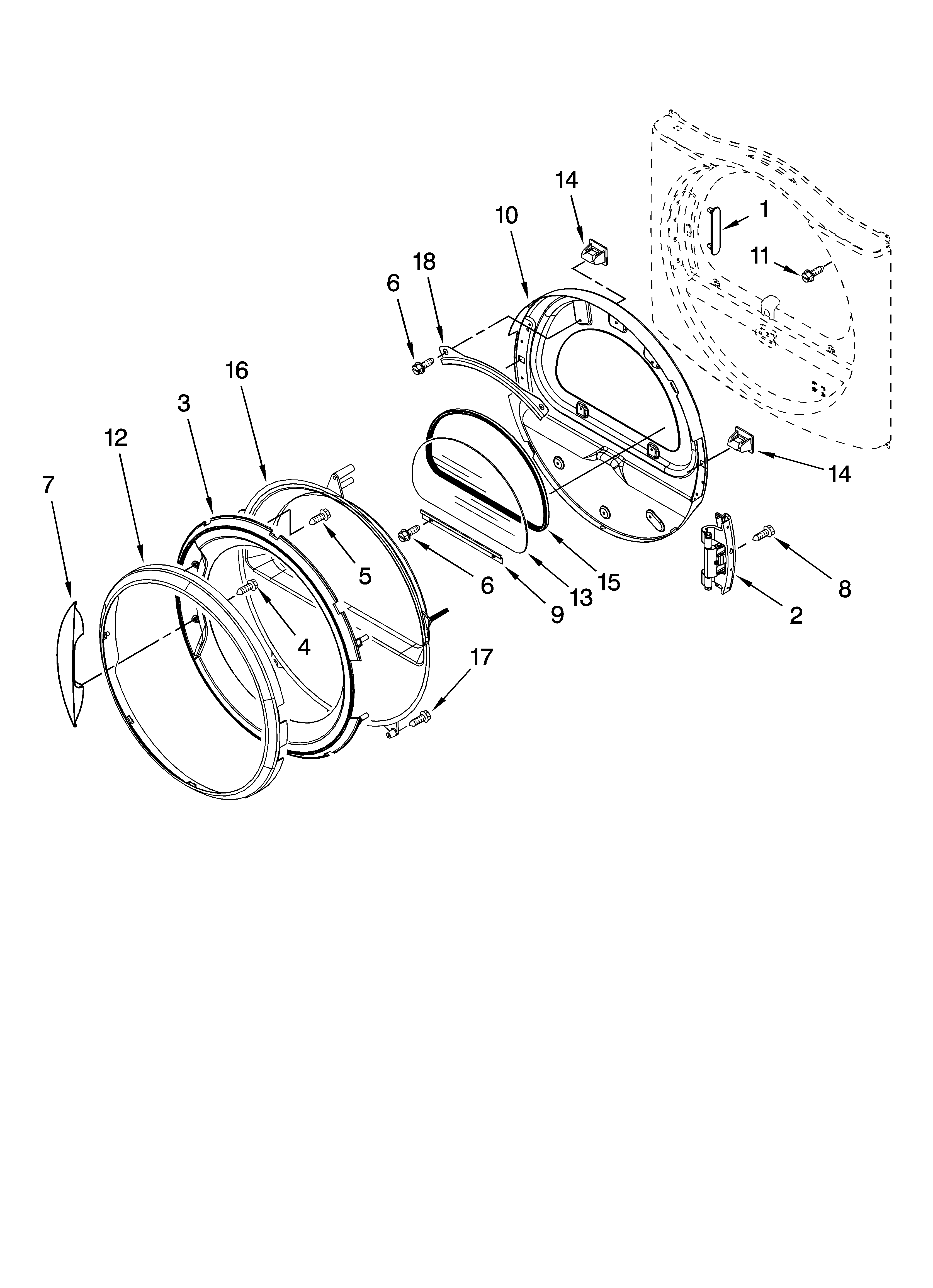

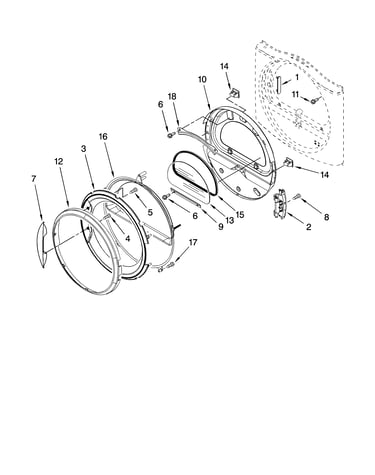

Kenmore dryers can look identical across multiple model numbers, but internal parts (like the heating circuit, drum support system, or door hardware) can vary. Using the correct model number helps us match the right diagrams, troubleshooting steps, and replacement parts the first time.

Last updated: February 2026

To change the belt on your Kenmore 11087561602 dryer, we unplug power, open the cabinet, release belt tension at the idler pulley, route the new belt around the drum and motor pulley, then reassemble and test for smooth drum rotation. Use the 11087561602 owner's manual for cabinet access and safety steps.

• Disconnect power at the outlet or breaker (the manual calls out disconnecting power before servicing).
• Let the dryer cool completely.
• Pull the dryer forward and make sure the vent is not crushed or kinked when you move it.
• Keep screws organized by panel (top, front, lint housing).
• If the dryer is stacked, unstack it per the kit instructions before servicing.

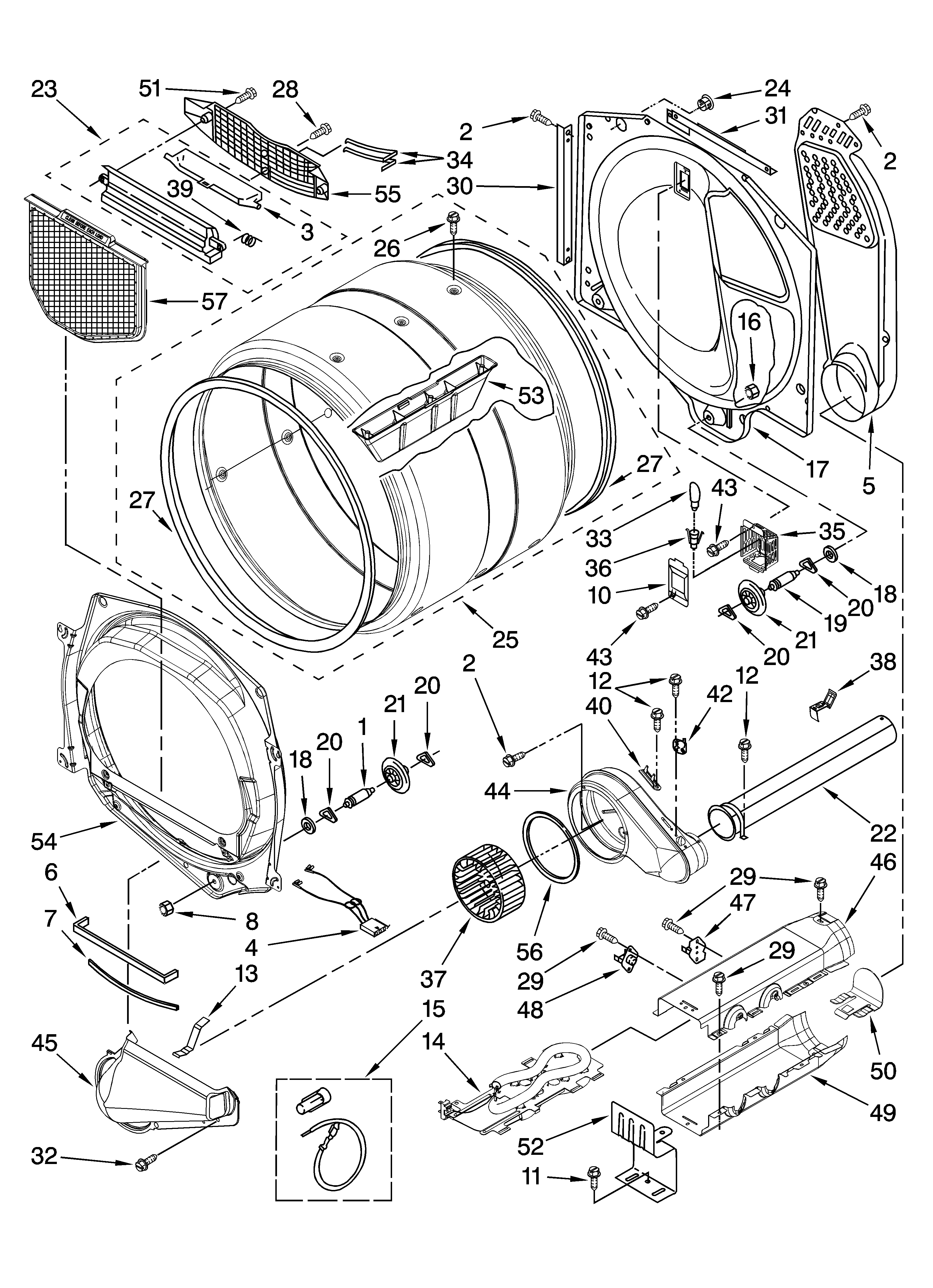

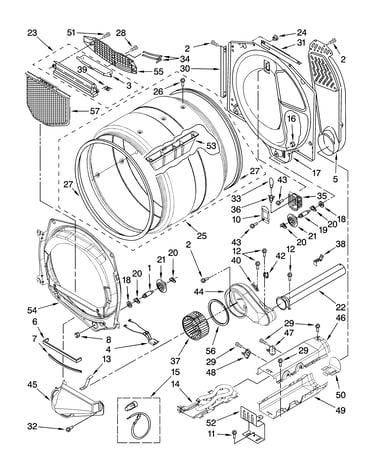

1. Remove the lint screen, then remove the screws that secure the lint screen housing (if equipped).

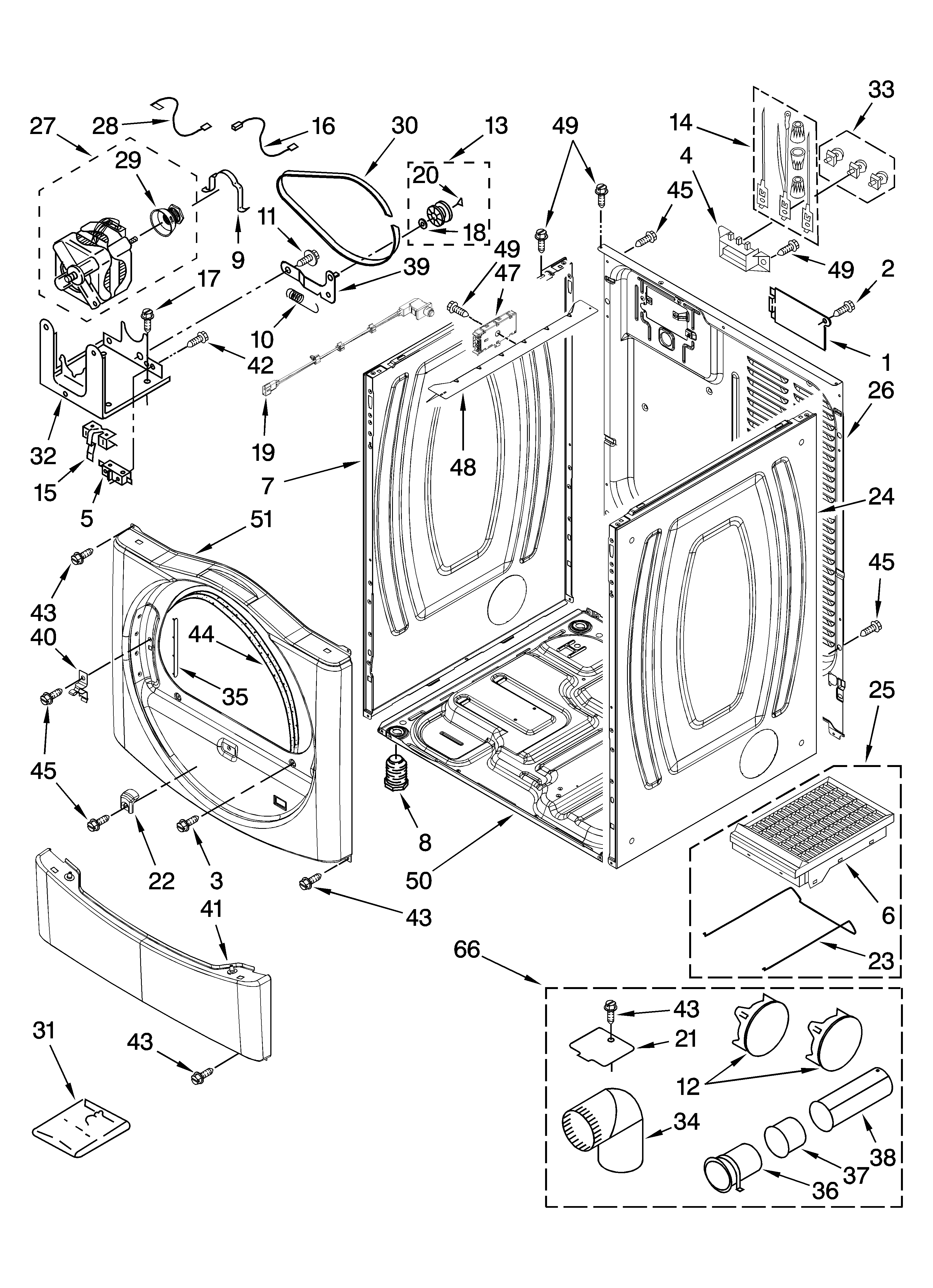

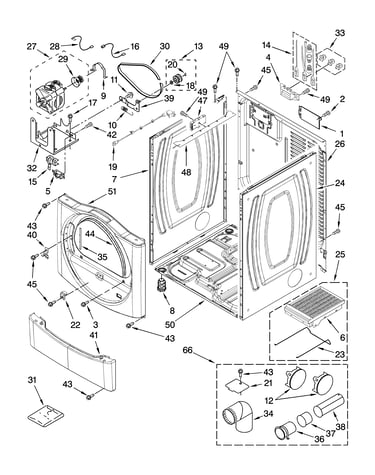

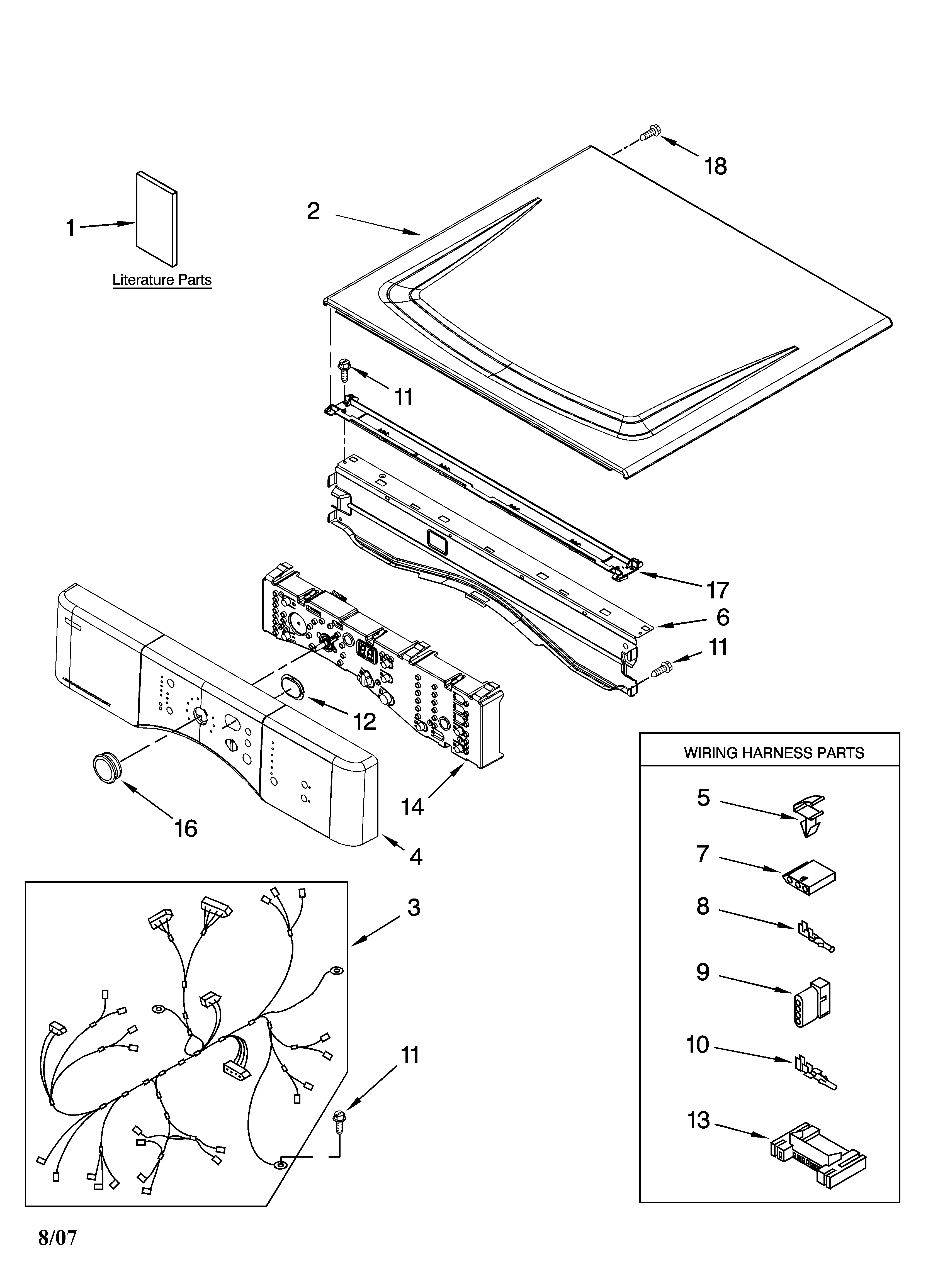

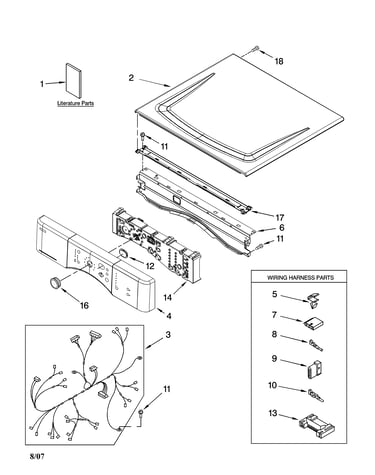

2. Open the cabinet (commonly by lifting the top, then removing the front panel).
3. Reach under the drum and push the idler pulley to relieve tension; slip the old belt off the motor pulley.
4. Remove the old belt from the drum.
5. Install the new belt with the ribbed side against the drum; position it roughly where the old belt rode.
6. Route the belt through the idler and around the motor pulley; the idler should apply tension.
7. Rotate the drum by hand several turns to confirm the belt tracks correctly and the idler moves freely.
8. Reinstall panels, reconnect vent, restore power, and run a short timed dry cycle.

If the belt broke due to wear in the drum support system, we often replace these at the same time:

• Dryer idler pulley 279640 (keeps proper belt tension)
• Support WPW10314173 (drum support roller that can seize or flatten)
• Dryer repair kit 4392067 (common wear items bundled together)

A correctly routed, properly tensioned belt prevents drum slippage, reduces wear on the drive motor, and helps the dryer heat and dry evenly because airflow and drum speed stay consistent.
