LG
Bottom-Mount Refrigerator

Model # LRBN22514ST Official LG refrigerator

Here are the diagrams and repair parts for Official LG LRBN22514ST refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

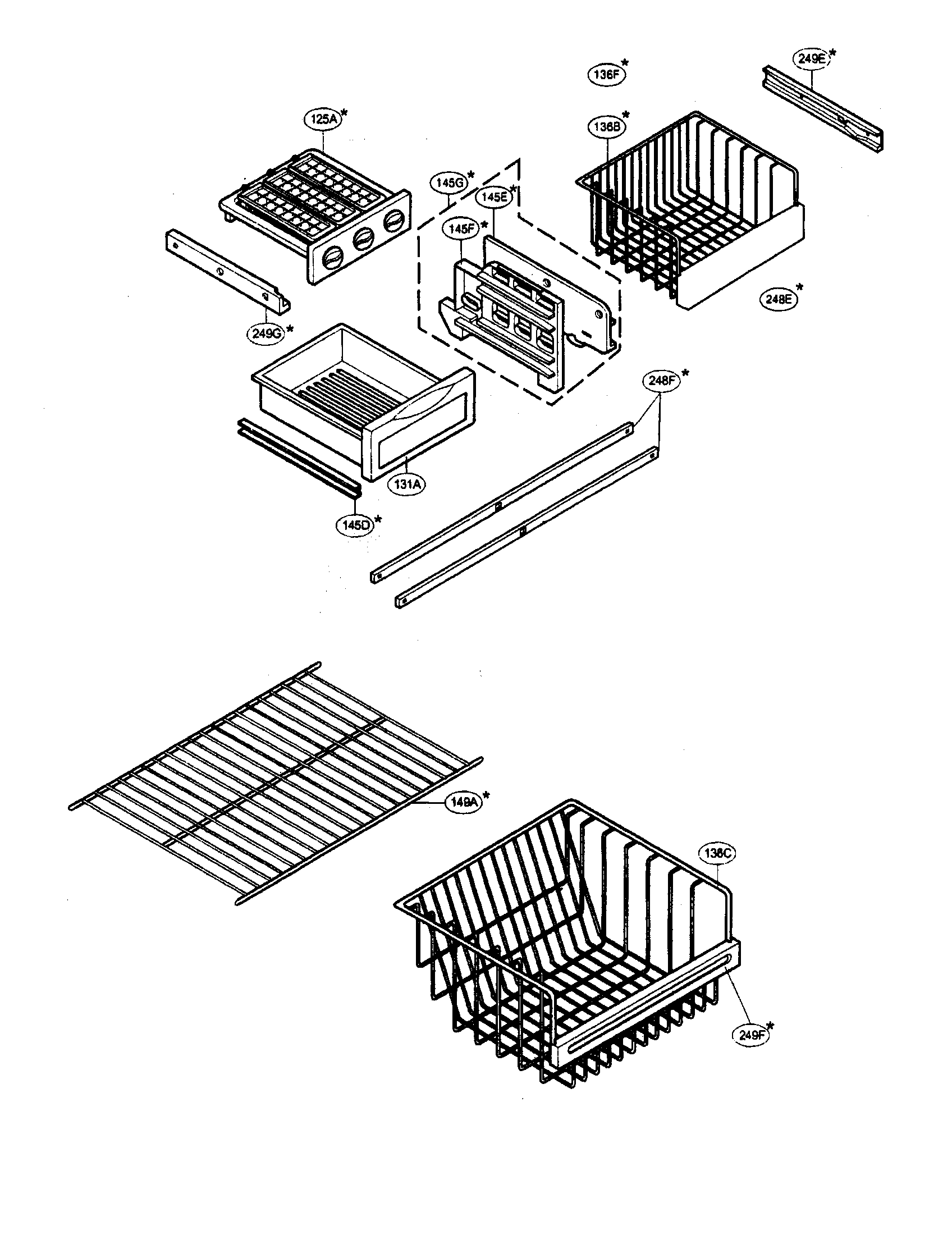

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Refrigerator Drier Assembly 5851JJ2002B
#317A

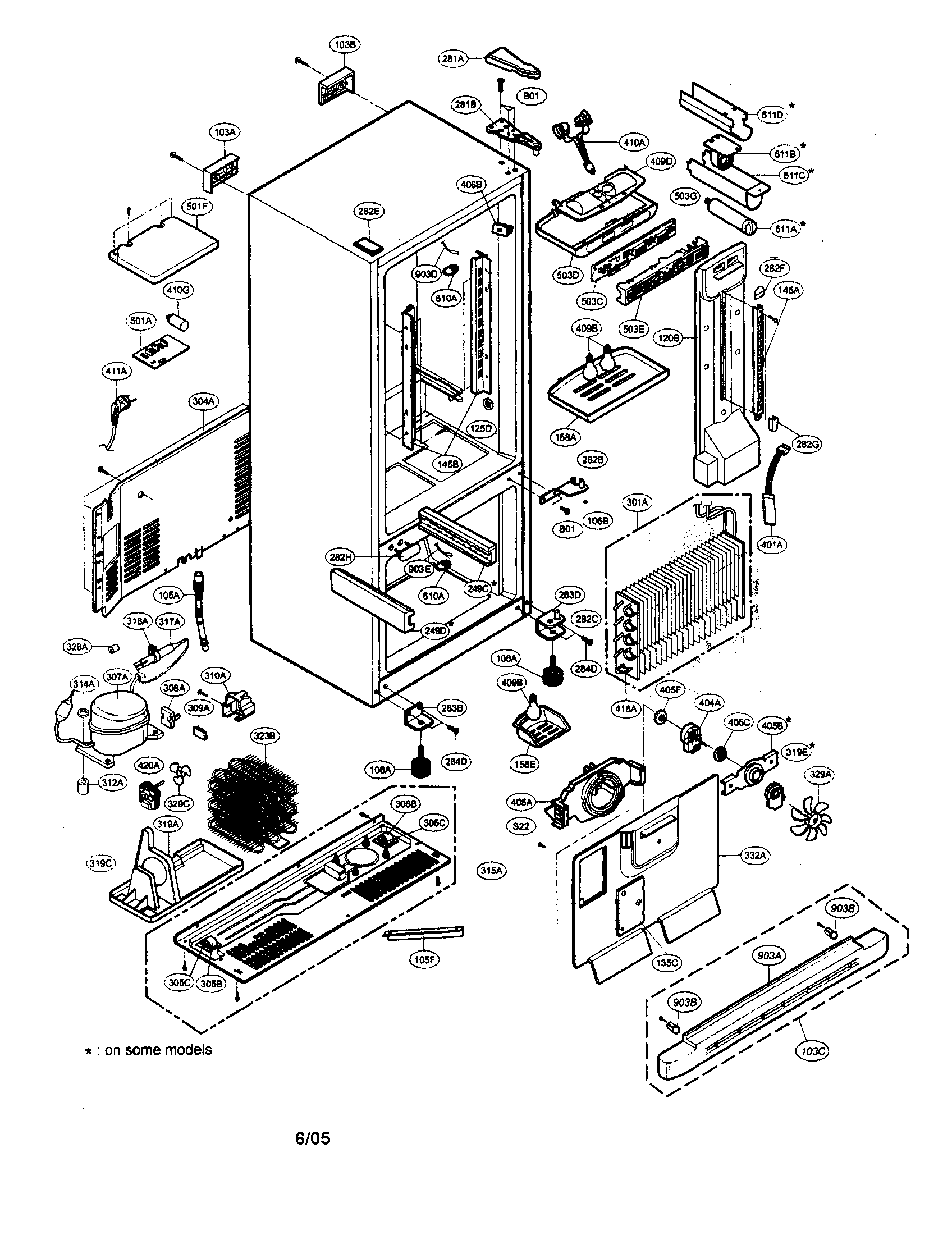

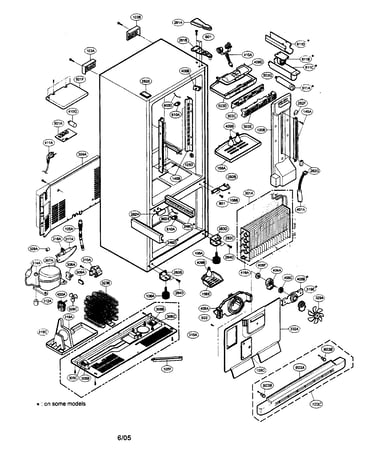

Cabinet assembly diagram

Refrigerator drier assembly

Part #5851JJ2002B

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JJ2002B. Substitute parts can look different from the original.
BEST SELLER
$71.46
7% OFF Phone Price : $76.46
In Stock
Refrigerator Door Push-button Switch 6600JB1004A
#406B

Cabinet assembly diagram

Refrigerator door push-button switch

Part #6600JB1004A

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1004A. Substitute parts can look different from the original.
BEST SELLER
$21.08
19% OFF Phone Price : $26.08
In Stock
Refrigerator Drain Assembly 5251JJ2003A
#105A

Cabinet assembly diagram

Refrigerator drain assembly

Part #5251JJ2003A

Replaced by #5251JA3003D

?
Manufacturer substitution
This part replaces 5251JJ2003A. Substitute parts can look different from the original.
BEST SELLER
$7.63
12% OFF Phone Price : $8.63
In Stock
Refrigerator Sensor 6500JK1003A
#903D

Cabinet assembly diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$20.77
19% OFF Phone Price : $25.77
In Stock
Refrigerator Crisper Drawer Cover Frame 3551JJ1005S
#160B

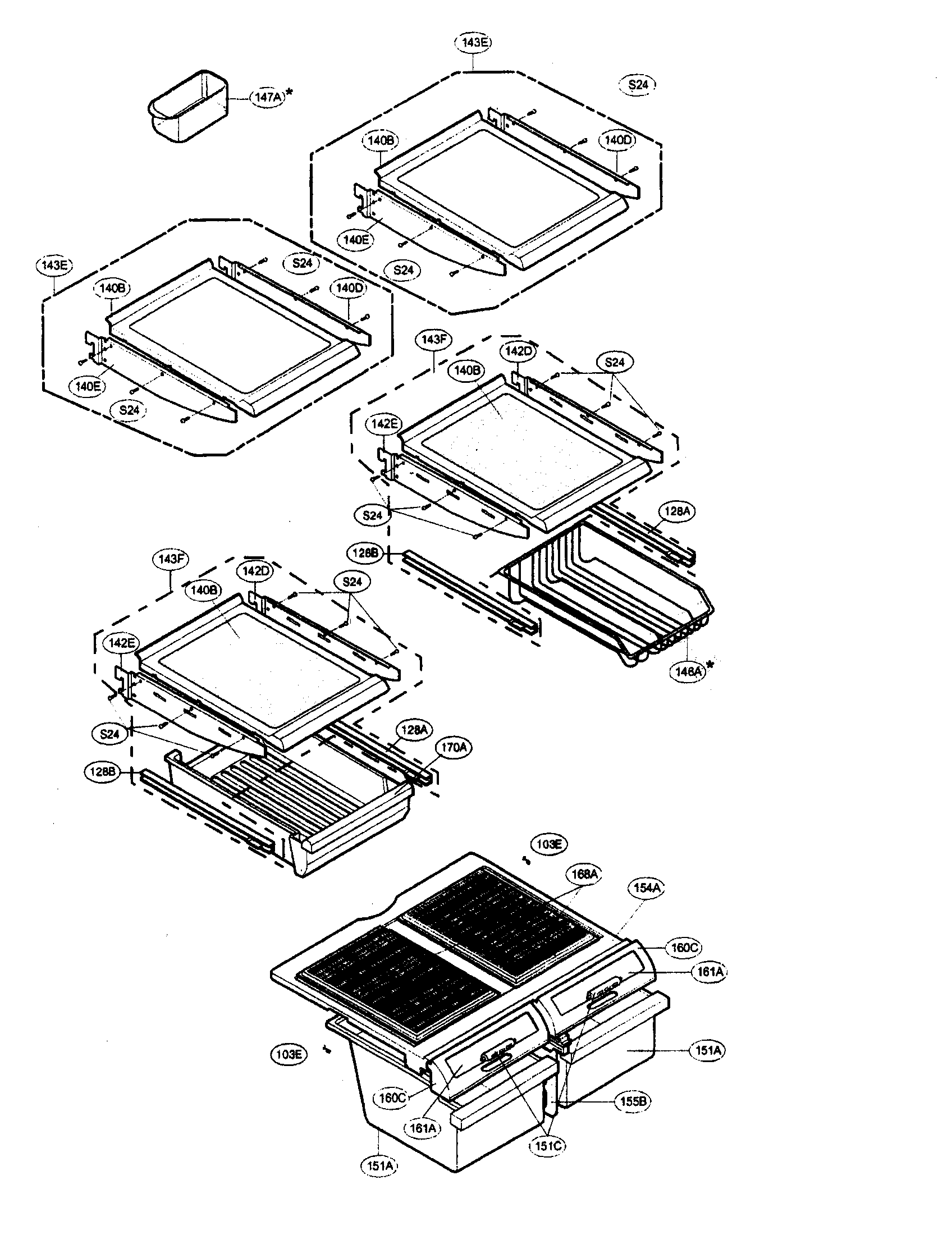

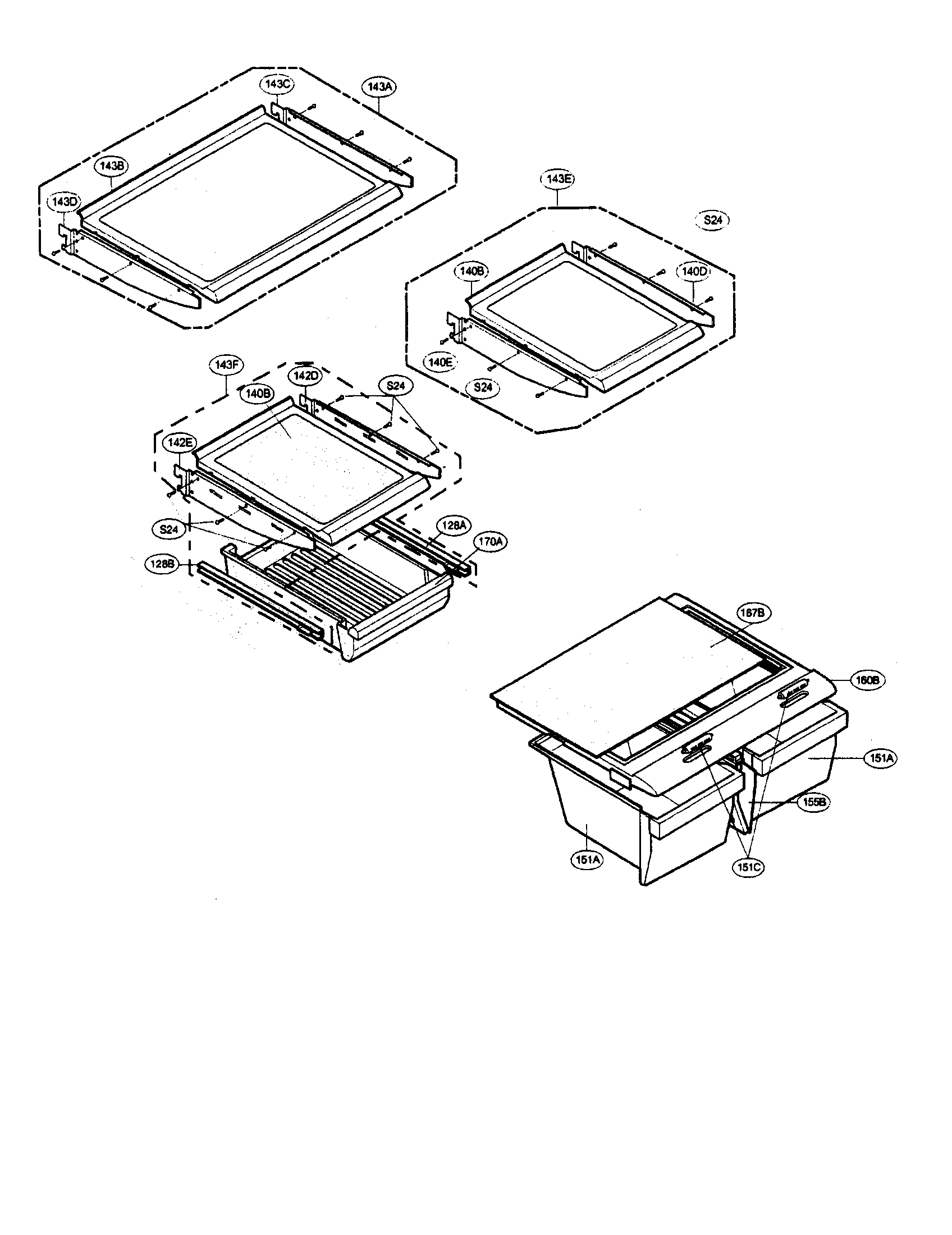

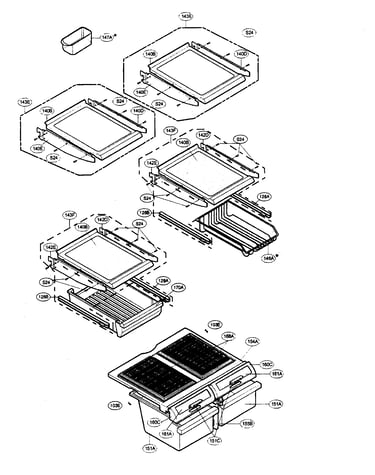

Shelves / trays diagram

Refrigerator crisper drawer cover frame

Part #3551JJ1005S

Replaced by #3551JJ1069C

?
Manufacturer substitution
This part replaces 3551JJ1005S. Substitute parts can look different from the original.
BEST SELLER
$92.46
6% OFF Was : $98.60
In Stock
Refrigerator Door Bin 5004JJ0001A
#241D

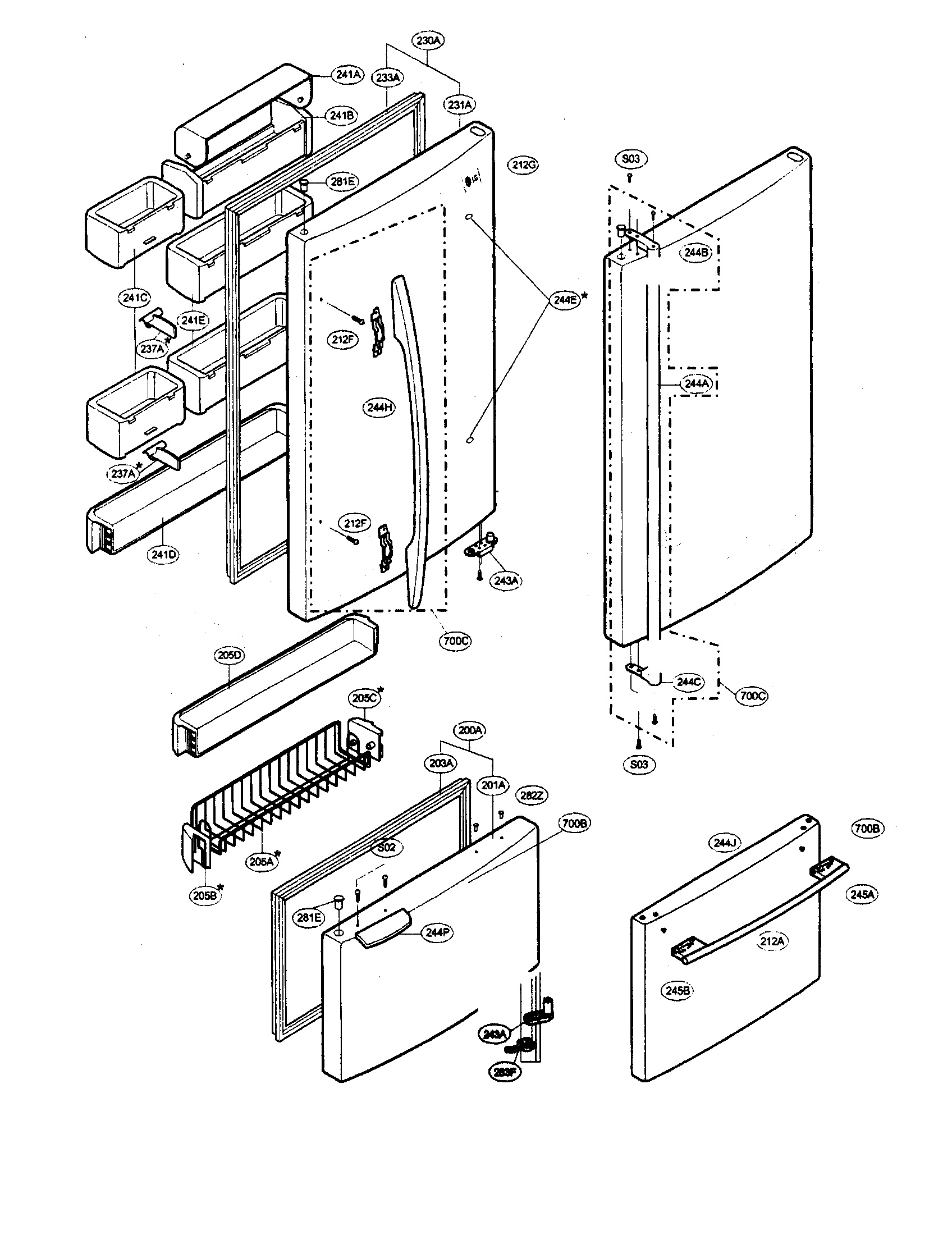

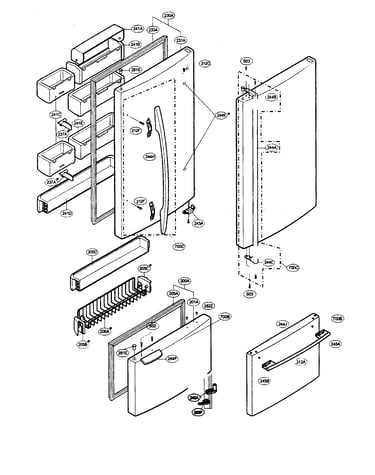

Door assembly diagram

Refrigerator door bin

Part #5004JJ0001A

BEST SELLER
$80.03
6% OFF Phone Price : $85.03
In Stock
Refrigerator Lamp Cover 3550JJ1040A
#158A

Cabinet assembly diagram

Refrigerator lamp cover

Part #3550JJ1040A

BEST SELLER
This item is not returnable
$32.35
13% OFF Phone Price : $37.35
In Stock
Refrigerator Shelf 5027JJ1008B
Refrigerator shelf

Part #5027JJ1008B

Replaced by #AHT72996107

?
Manufacturer substitution
This part replaces 5027JJ1008B. Substitute parts can look different from the original.
BEST SELLER
$80.50
6% OFF Phone Price : $85.50
In Stock
Refrigerator Deli Drawer Slide Rail 4975JJ2002A
#128B

Shelves / trays diagram

Refrigerator deli drawer slide rail

Part #4975JJ2002A

This item is not returnable
$25.61
16% OFF Phone Price : $30.61
In Stock
Refrigerator Thermistor 6500JK1004A
#903E

Cabinet assembly diagram

Refrigerator thermistor

Part #6500JK1004A

Replaced by #6500JB2002T

?
Manufacturer substitution
This part replaces 6500JK1004A. Substitute parts can look different from the original.
This item is not returnable
$19.57
9% OFF Phone Price : $21.57
In Stock
