Hoover
Upright Vacuum

Model # U5198-900 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U5198-900 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Vacuum Beater Bar Belt (replaces 11041084, 38520835) 38528035
#11

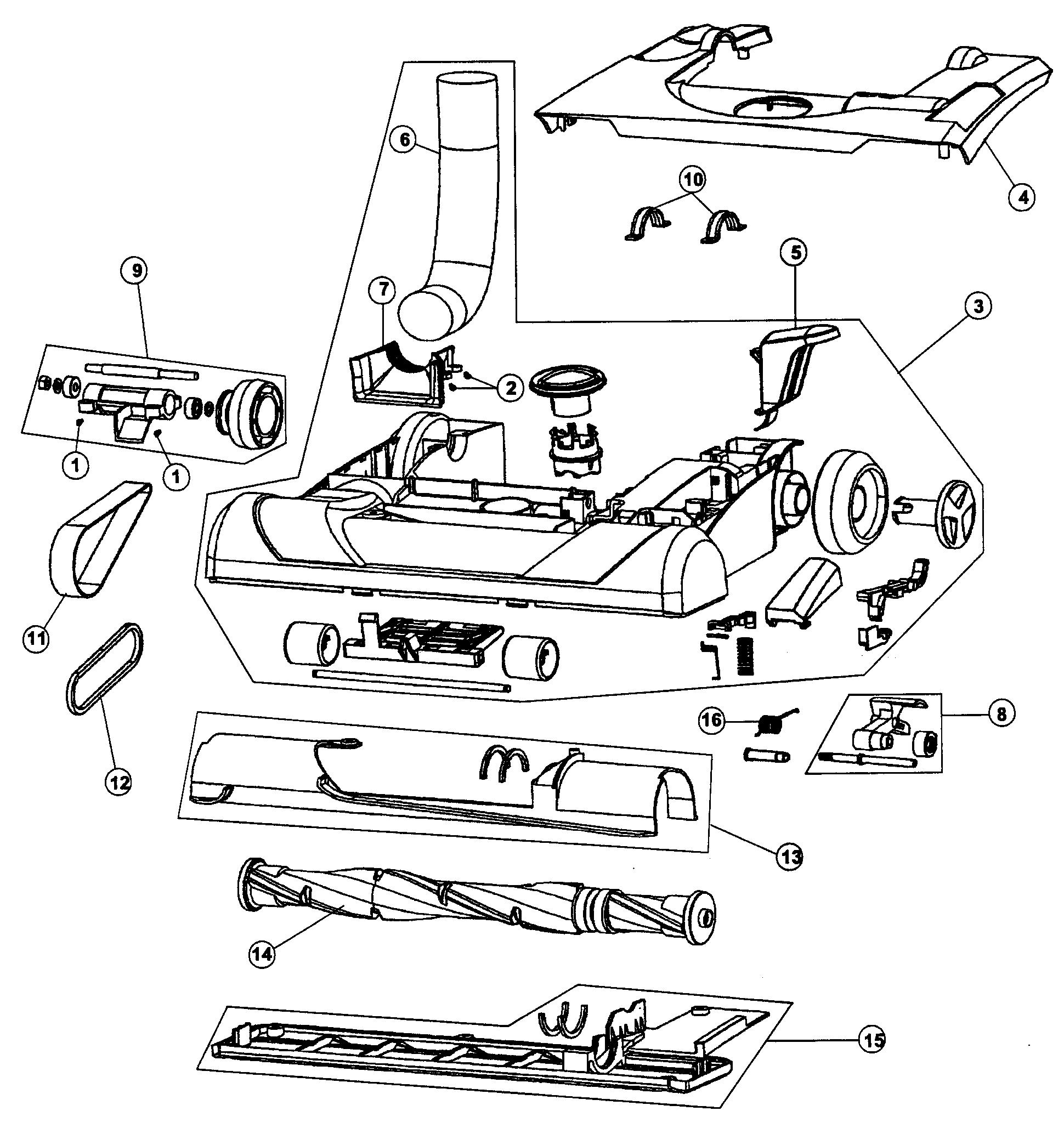

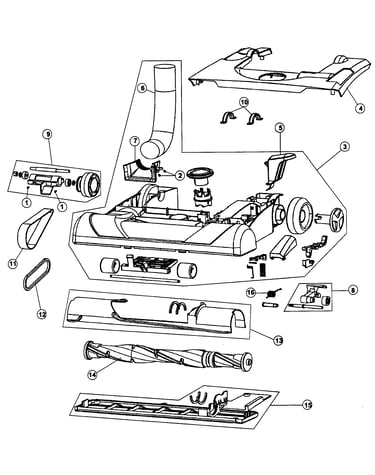

Base assy diagram

Vacuum beater bar belt (replaces 11041084, 38520835)

Part #38528035

This item is not returnable
$1.50
40% OFF Phone Price : $2.50
In Stock
Vacuum Idler Arm Pulley Assembly 93005400
#9

Base assy diagram

Vacuum idler arm pulley assembly

Part #93005400

The manufacturer no longer makes this part, and there's no substitute part

Connector 26401317
#28

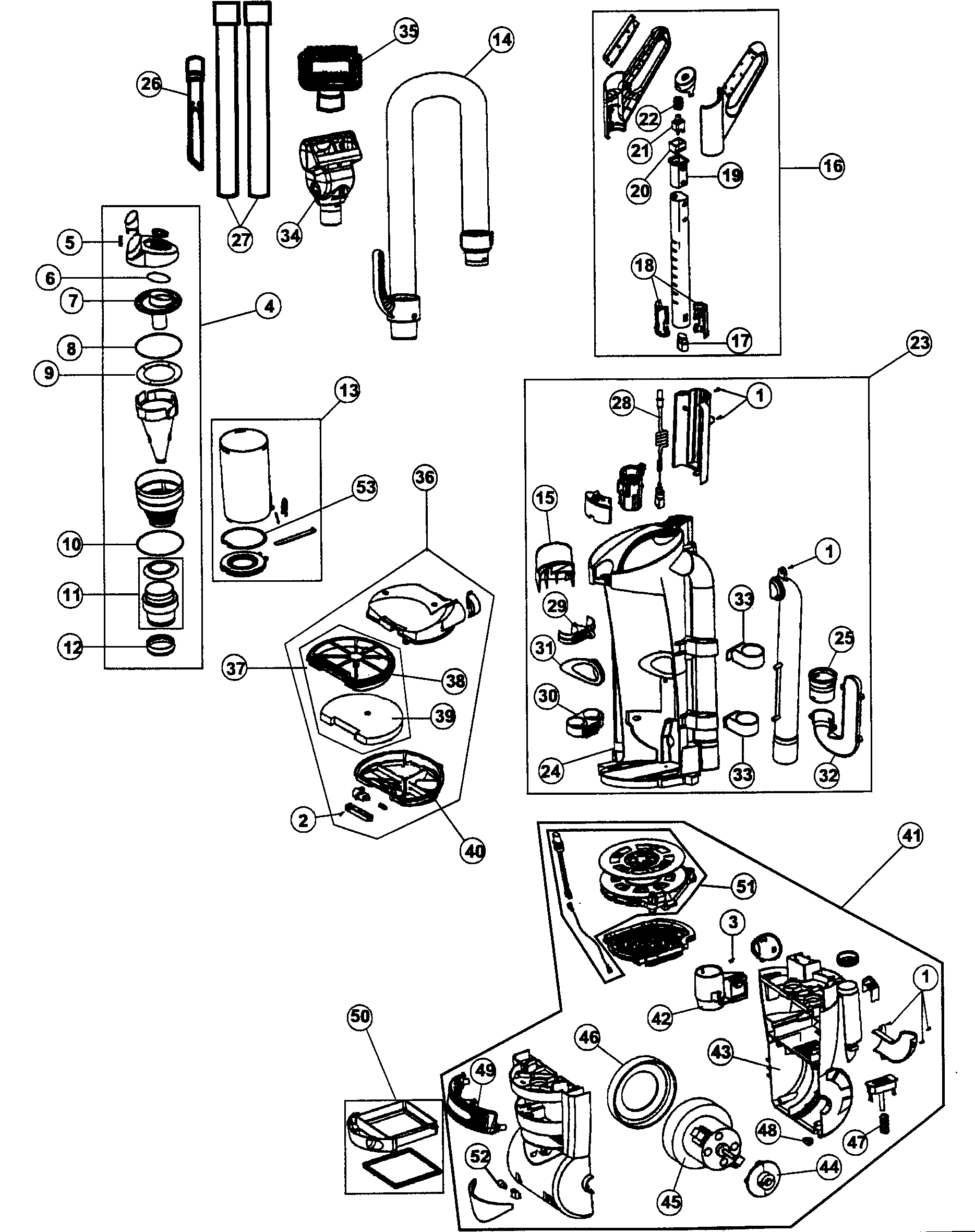

Maine body diagram

Connector

Part #26401317

The manufacturer no longer makes this part, and there's no substitute part

Cord Reel 93002478
#51

Maine body diagram

Cord reel

Part #93002478

The manufacturer no longer makes this part, and there's no substitute part

Male Connection 93001700
#17

Maine body diagram

Male connection

Part #93001700

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 93002514
#14

Maine body diagram

Vacuum hose assembly

Part #93002514

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528034
#12

Base assy diagram

Vacuum beater bar belt

Part #38528034

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 93002518
#39

Maine body diagram

Vacuum motor safety filter

Part #93002518

The manufacturer no longer makes this part, and there's no substitute part

Release Spring 93001656
#5

Maine body diagram

Release spring

Part #93001656

The manufacturer no longer makes this part, and there's no substitute part

Seal 93001652
#9

Maine body diagram

Seal

Part #93001652

The manufacturer no longer makes this part, and there's no substitute part
