Model # FRT21LR8DKB Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT21LR8DKB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

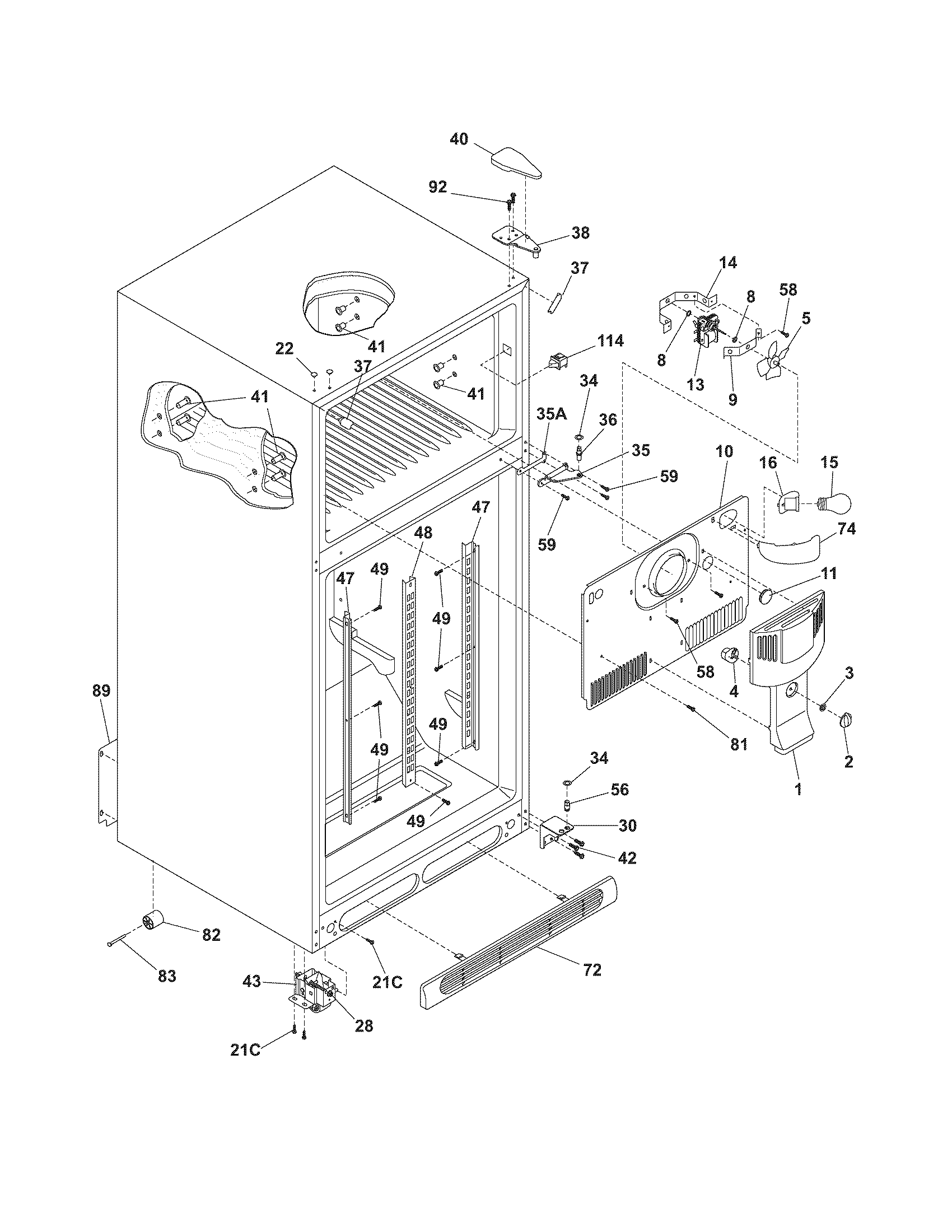

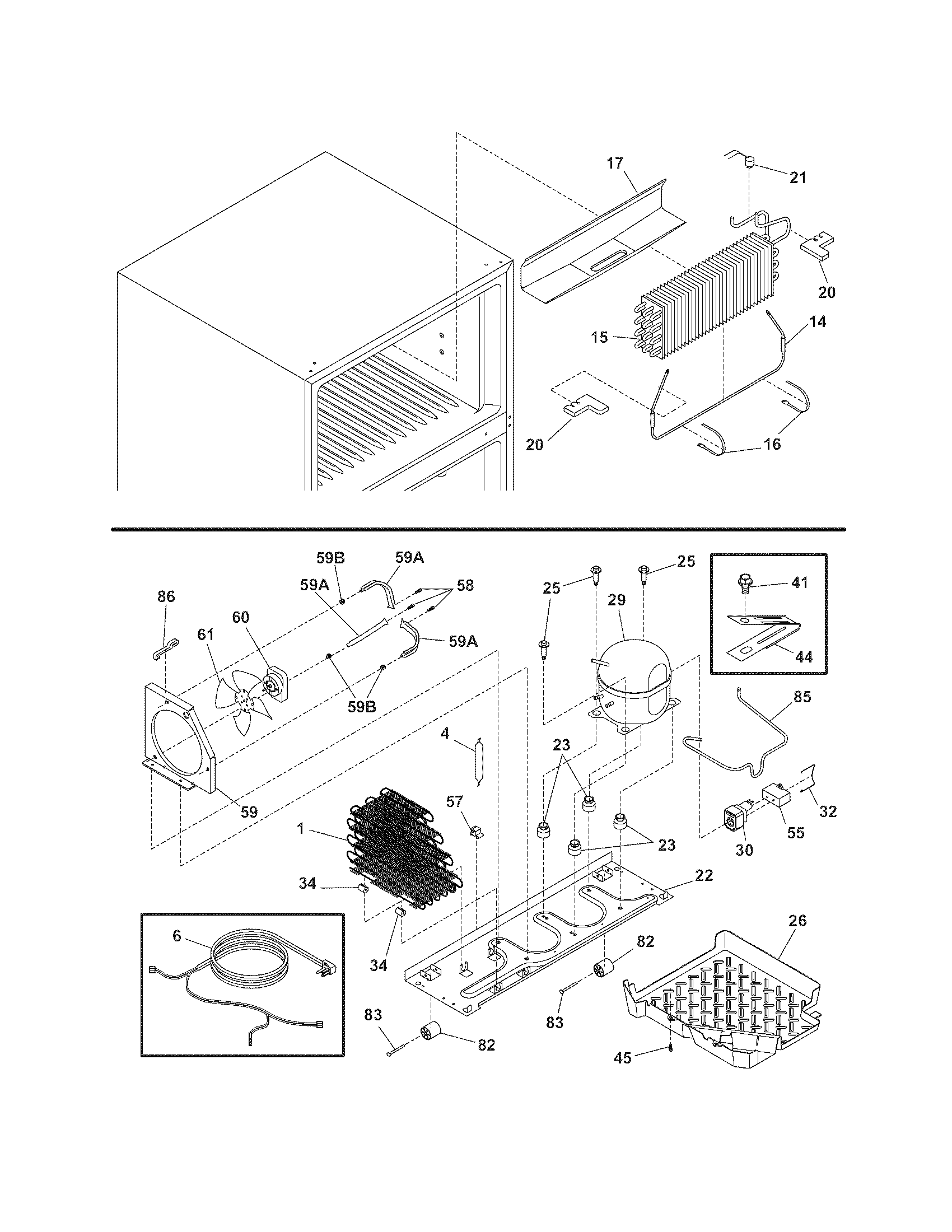

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 178 parts  |
Range Oven Light Bulb (replaces 241555401, 316538901)
#15

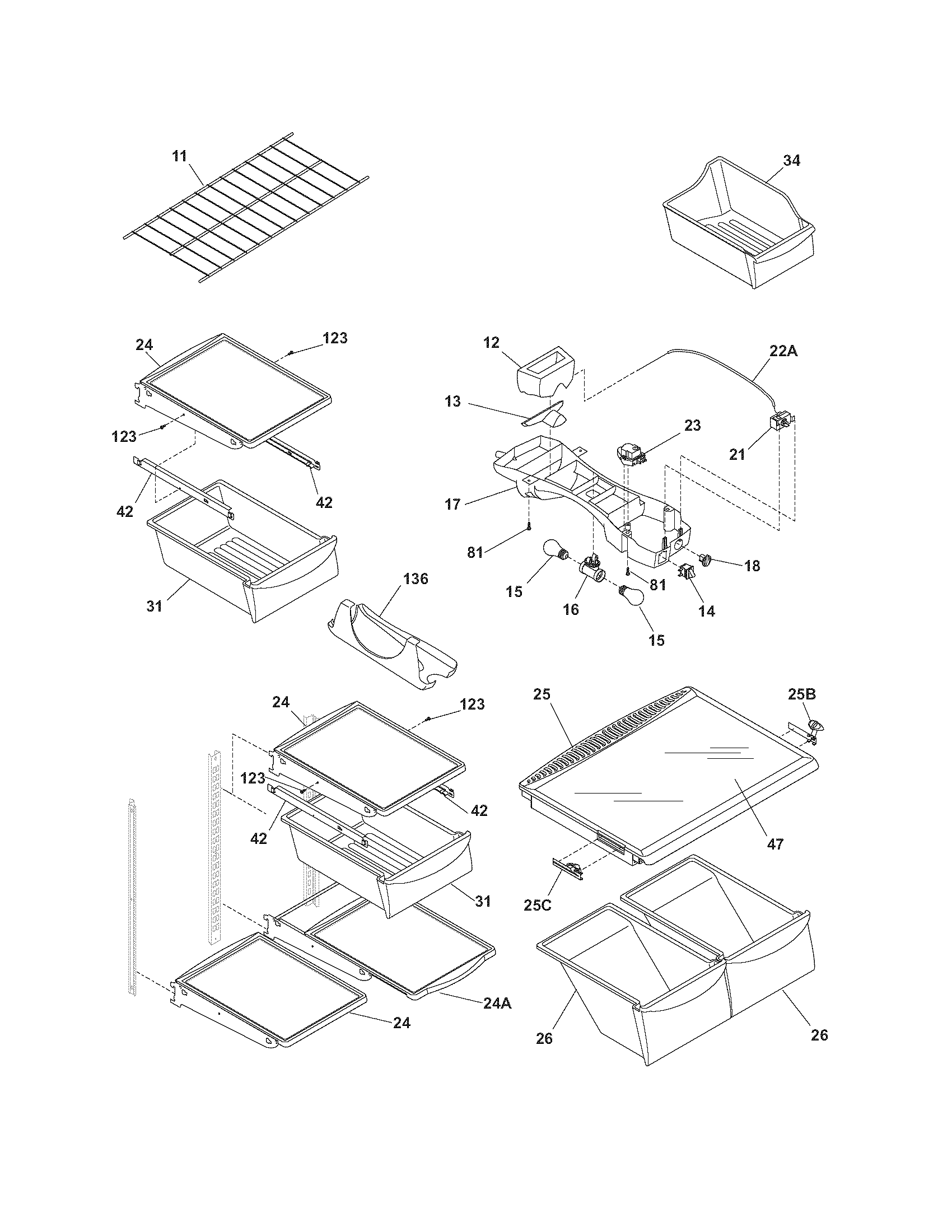

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$20.06 |
20% OFF Phone Price : $25.06
In Stock
Refrigerator Ice Maker (replaces 241798220, 241798224, 5304456671)
#19

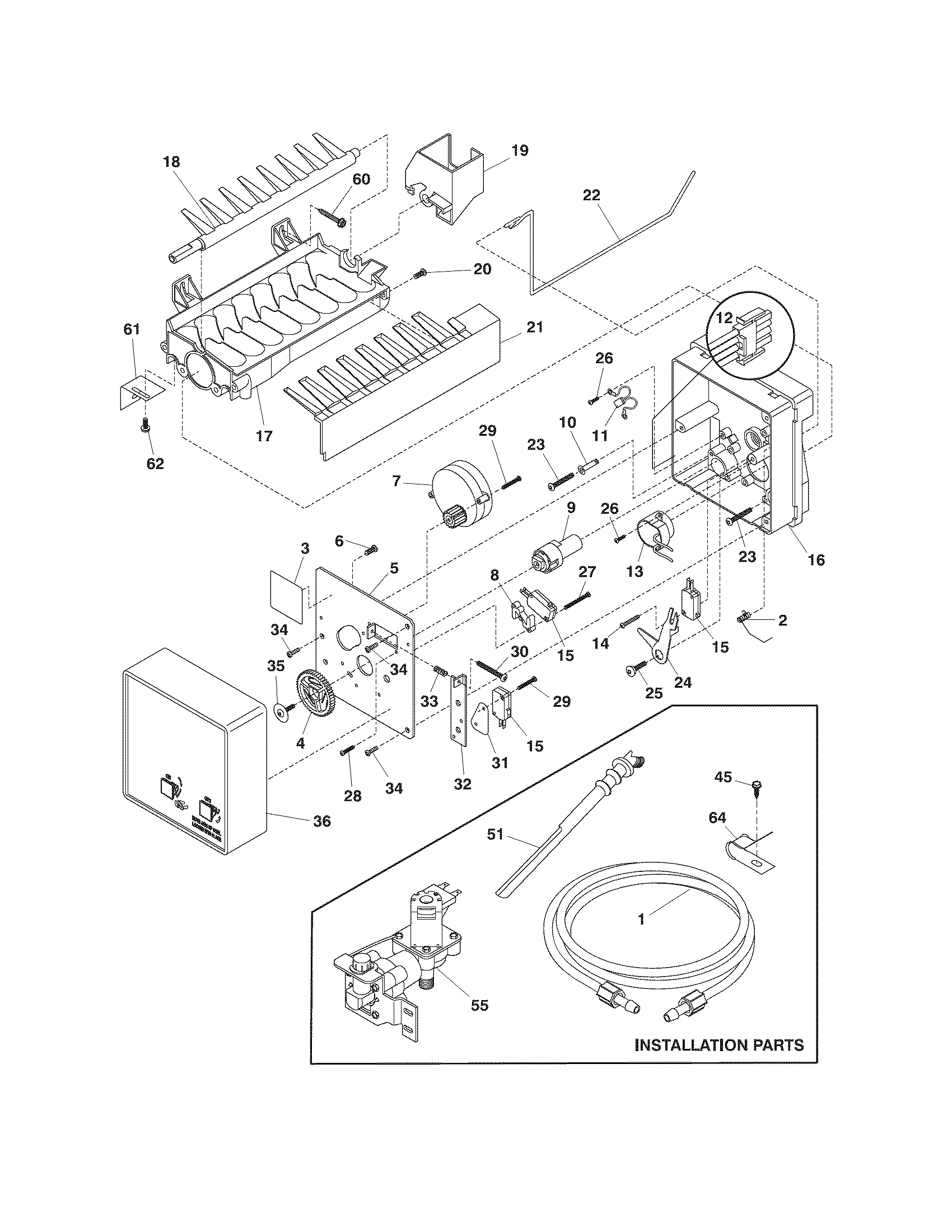

Ice maker diagram

Refrigerator ice maker fill cup

Part #5304456671

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5304456671. Substitute parts can look different from the original.
BEST SELLER
$144.92 |
6% OFF Phone Price : $154.92
In Stock
Refrigerator Water Inlet Valve Assembly (replaces 241803703)
#55

Ice maker diagram

Water inlet valve

Part #240519601

Replaced by #242252603

?
Manufacturer substitution
This part replaces 240519601. Substitute parts can look different from the original.
BEST SELLER
$57.42 |
8% OFF Phone Price : $62.42
In Stock
Refrigerator Crisper Shelf Frame (replaces 240364716, 240364718, 240364729, 240364789, 240364795, 240364796)
#25

Shelves diagram

Refrigerator drawer cover

Part #240364718

Replaced by #240364790

?
Manufacturer substitution
This part replaces 240364718. Substitute parts can look different from the original.
BEST SELLER
$100.66 |
9% OFF Phone Price : $110.66
Back Order
Refrigerator Deli Drawer Hanger, Right
#42

Shelves diagram

Refrigerator deli drawer hanger, right

Part #240356501

BEST SELLER
$49.12 |
9% OFF Phone Price : $54.12
In Stock
Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504)
#80

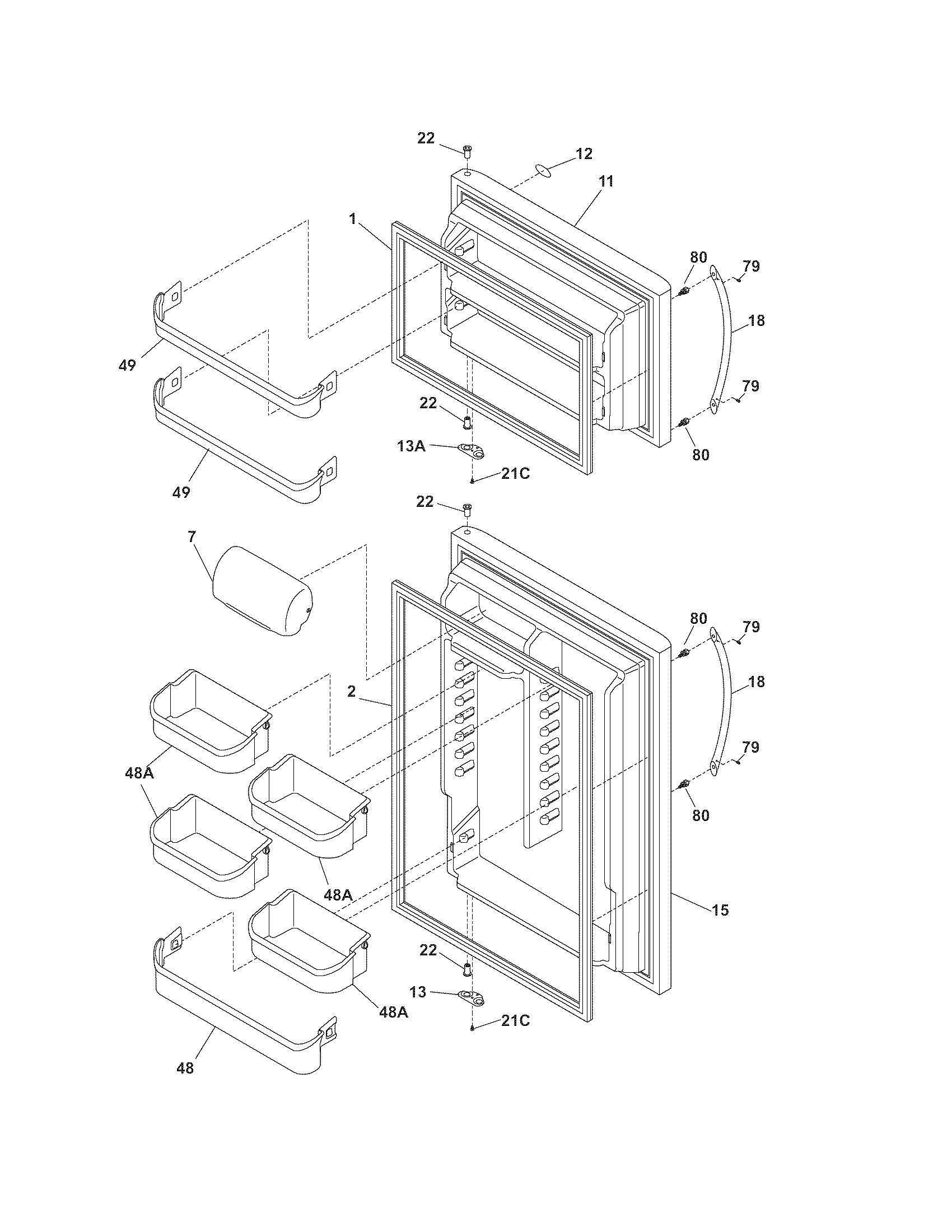

Door diagram

Refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$9.23 |
10% OFF Phone Price : $10.23
In Stock
Refrigerator Door Gasket (Black) (replaces 240542124, 5304439526)
#2

Door diagram

Refrigerator gasket

Part #240514612

Replaced by #241872512

?
Manufacturer substitution
This part replaces 240514612. Substitute parts can look different from the original.
BEST SELLER
$122.19 |
8% OFF Phone Price : $132.19
In Stock
Refrigerator Crisper Drawer (replaces 240530803, 240530807, 240530808, 240530810, 240530814, 240530817)
#31

Shelves diagram

Refrigerator meat pan

Part #240530803

Replaced by #240530811

?
Manufacturer substitution
This part replaces 240530803. Substitute parts can look different from the original.
BEST SELLER
$154.82 |
6% OFF Phone Price : $164.82
In Stock
Refrigerator Drawer Hanger
#42

Shelves diagram

Refrigerator drawer hanger

Part #240365401

BEST SELLER
$39.44 |
11% OFF Phone Price : $44.44
In Stock
Freezer Door Handle Set Screw, #10-32 x 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402)
#79

Door diagram

Freezer door handle set screw, #10-32 x 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402)

Part #218755402

BEST SELLER
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
