Craftsman 536255240 36" 10-hp lawn tractor with electric start Parts
Here are the diagrams and repair parts for Craftsman 536255240 36" 10-hp lawn tractor with electric start, as well as links to manuals and error code tables, if available.
By Schematic

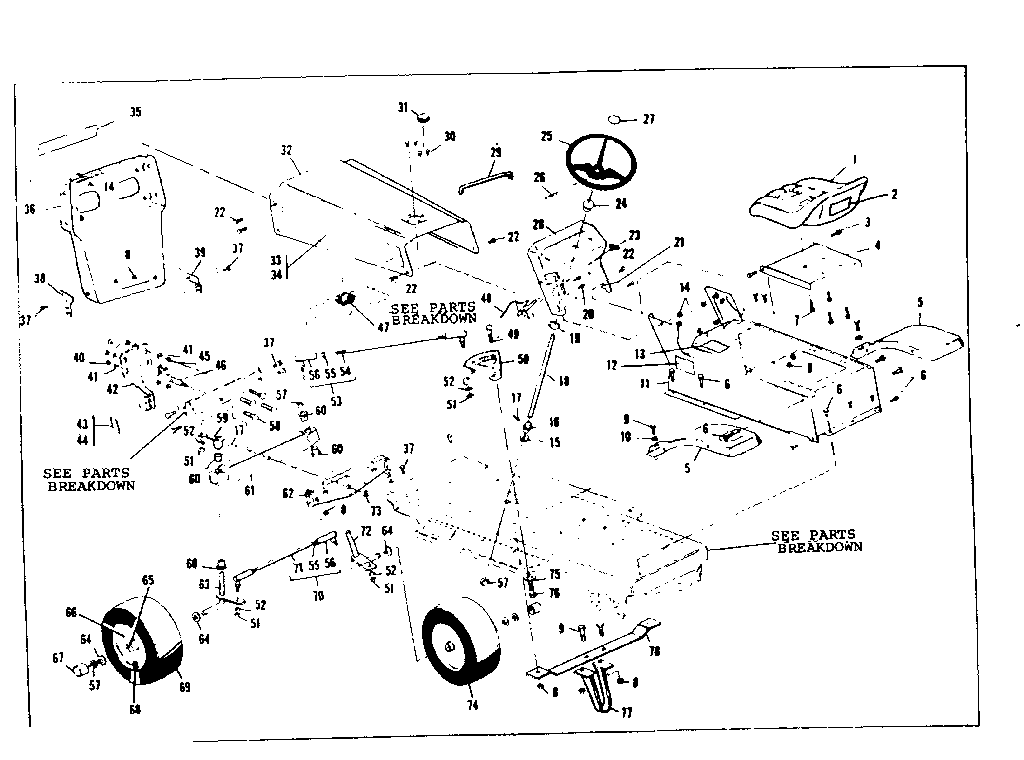

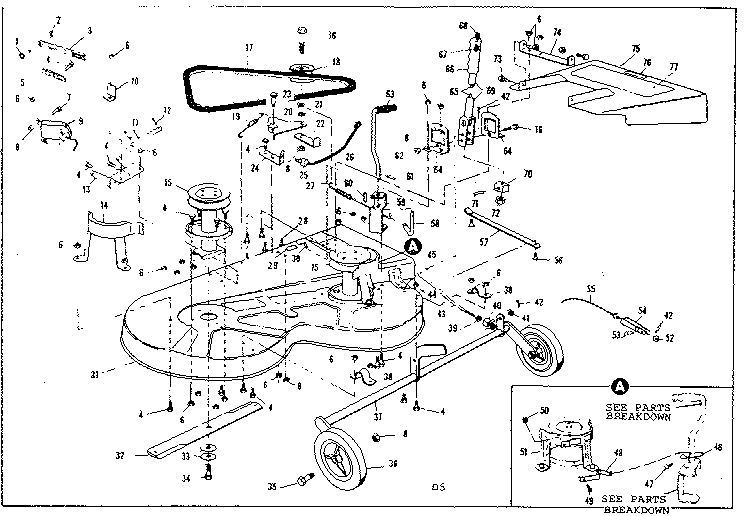

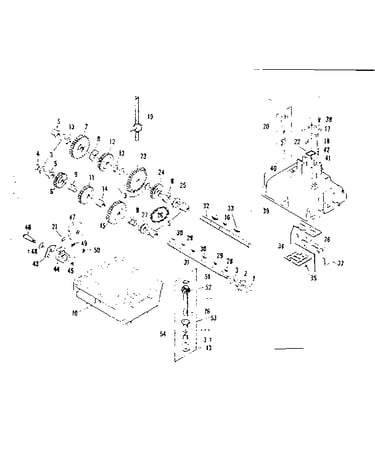

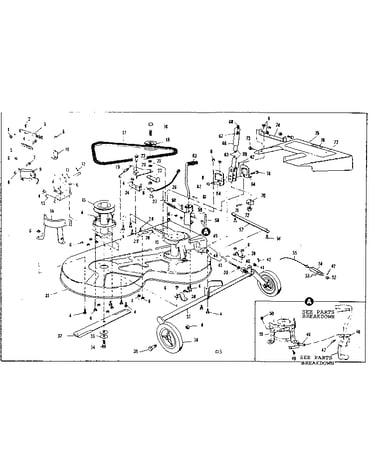

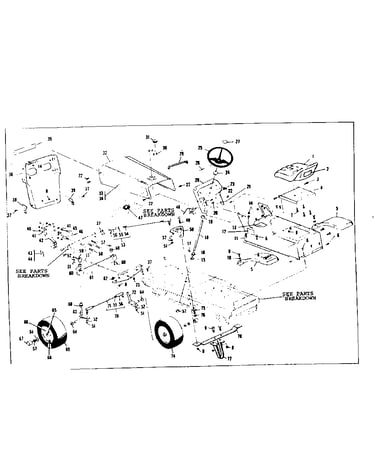

By Part
SELECT DIAGRAM
Browse Parts for 536255240 Riding Mowers & Tractors

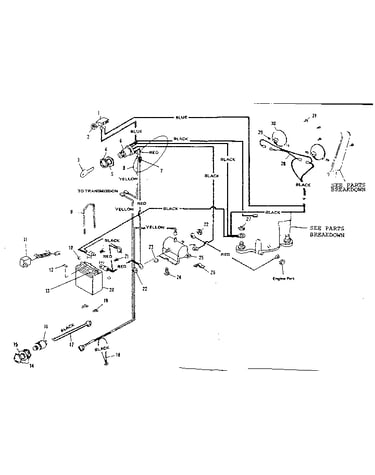

Wiring diagram diagram
Solenoid
Part #44429Replaced by #532146154
Manufacturer substitutionThis part replaces 44429. Substitute parts can look different from the original.In Stock$37.6814% OFF Phone Price : $43.68
Qty
Lock Nut
Part #9424215Replaced by #703251
Manufacturer substitutionThis part replaces 9424215. Substitute parts can look different from the original.In Stock$9.54QtyScrew
Part #39573Replaced by #1X20MA

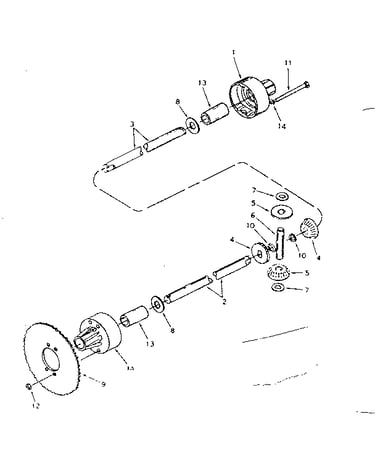

Manufacturer substitutionThis part replaces 39573. Substitute parts can look different from the original.In Stock$8.31QtyDifferential diagram
Washer
Part #792061Replaced by #792061
Manufacturer substitutionThis part replaces 792061. Substitute parts can look different from the original.This item is not returnableIn Stock$2.29QtyDifferential diagram
Gear
Part #778068Replaced by #778131
Manufacturer substitutionThis part replaces 778068. Substitute parts can look different from the original.$37.0614% OFF Phone Price : $43.06QtyTop half diagram
Brg Frnt Whl
Part #39979Replaced by #39979MA

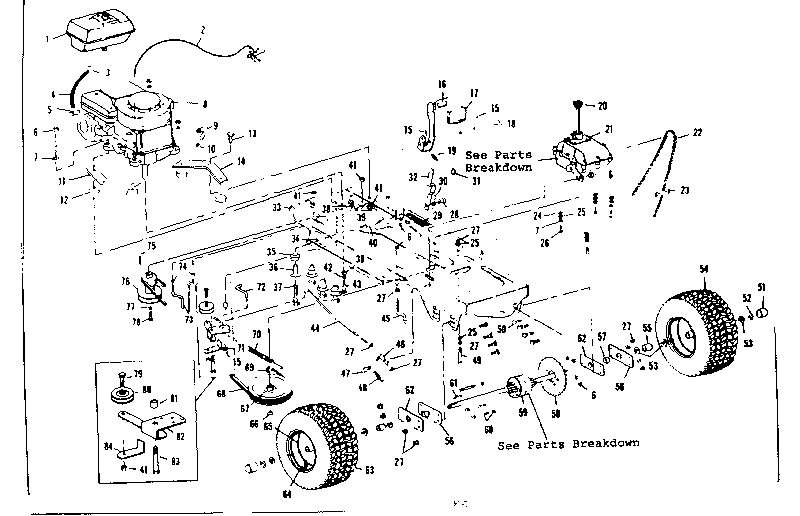

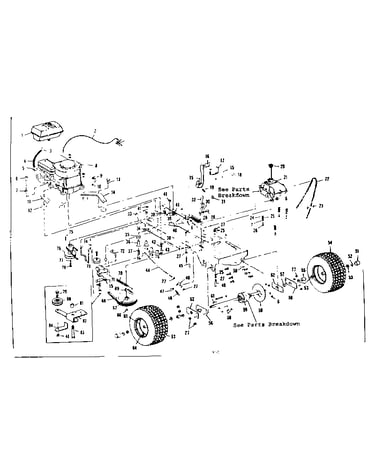

Manufacturer substitutionThis part replaces 39979. Substitute parts can look different from the original.In Stock$15.17QtyDrive assembly diagram
Washer
Part #120386Replaced by #STD551025
Manufacturer substitutionThis part replaces 120386. Substitute parts can look different from the original.In Stock$36.61Qty#NI
All parts diagram
Housing
Part #774344Replaced by #774659
Manufacturer substitutionThis part replaces 774344. Substitute parts can look different from the original.In Stock$63.219% OFF Phone Price : $69.21QtyDifferential diagram
Washer
Part #780001Replaced by #780001
Manufacturer substitutionThis part replaces 780001. Substitute parts can look different from the original.This item is not returnableIn Stock$4.34QtyDrive assembly diagram
Differential
Part #44056Replaced by #794182A
Manufacturer substitutionThis part replaces 44056. Substitute parts can look different from the original.In Stock$147.06Qty
