KitchenAid KUIA18PNLS11 freestanding ice maker Parts
Here are the diagrams and repair parts for KitchenAid KUIA18PNLS11 freestanding ice maker, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

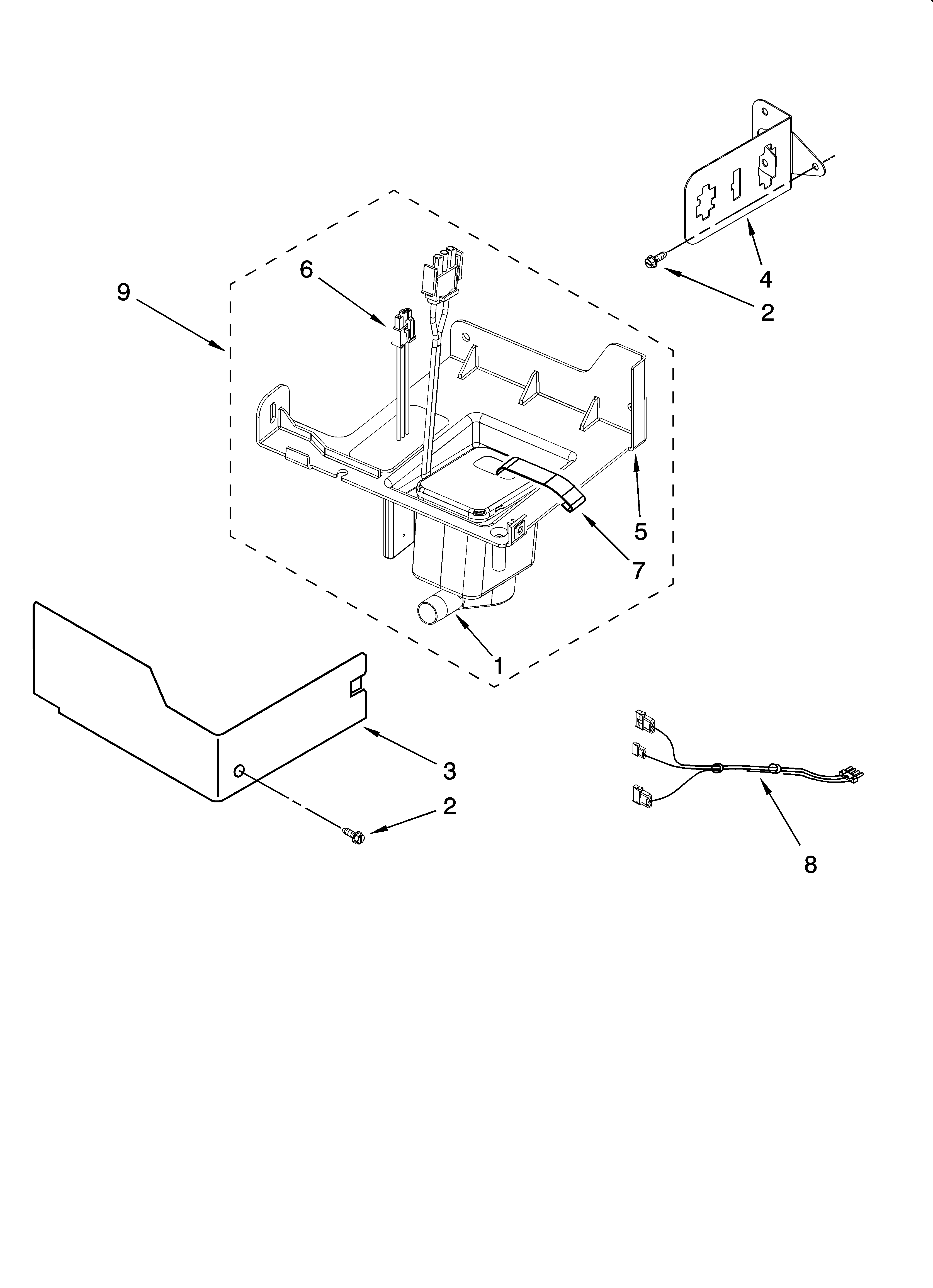

Browse Parts for KUIA18PNLS11 Freestanding Ice Maker

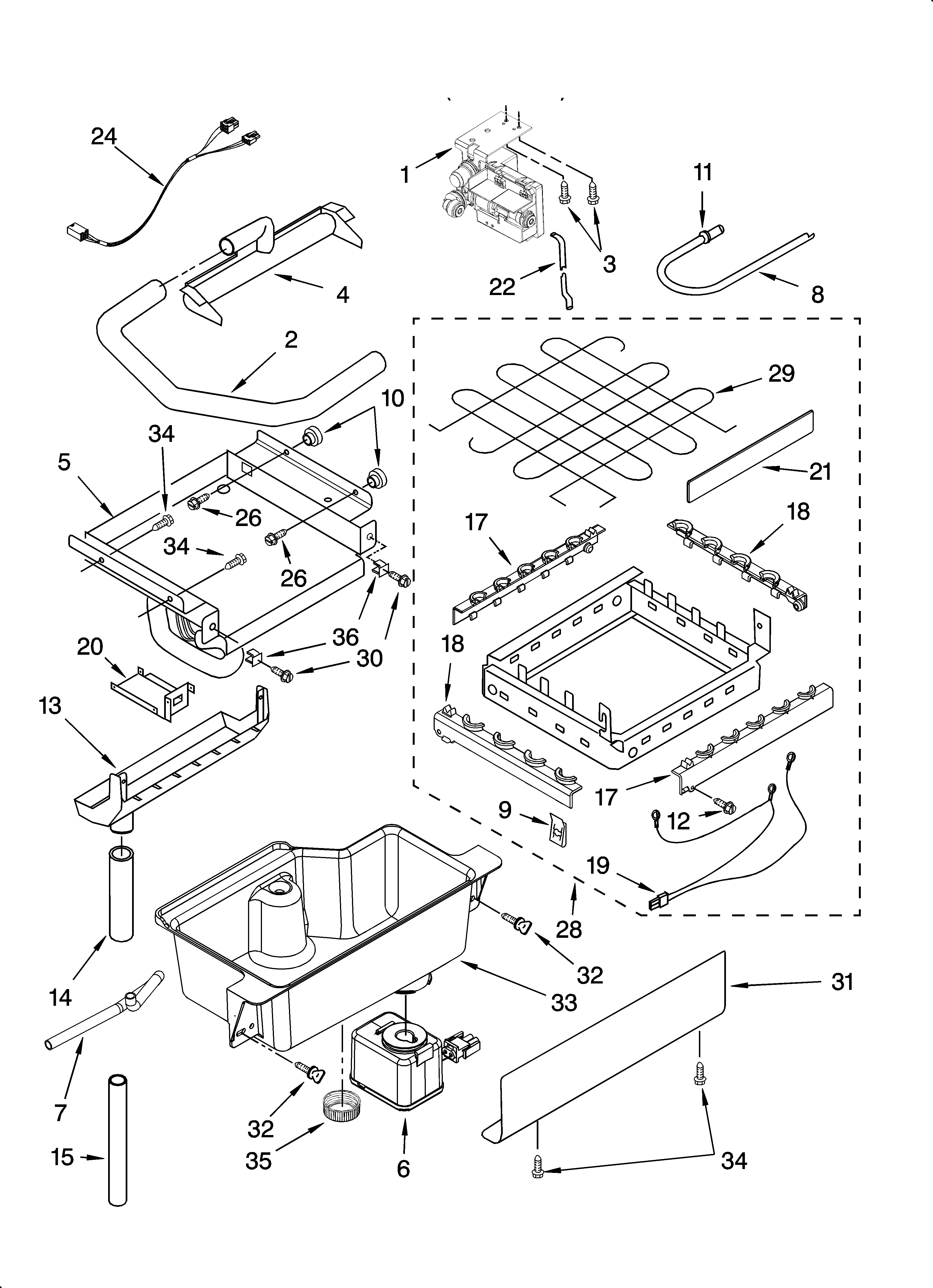

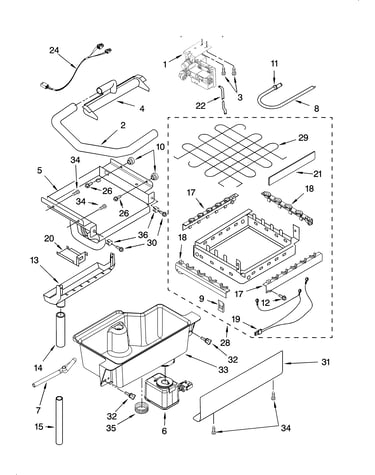

Evaporator, ice cutter grid and water parts diagram
Water Tube
Part #2172593Replaced by #W10823511
Manufacturer substitutionThis part replaces 2172593. Substitute parts can look different from the original.In Stock$36.3914% OFF Phone Price : $42.39
Qty

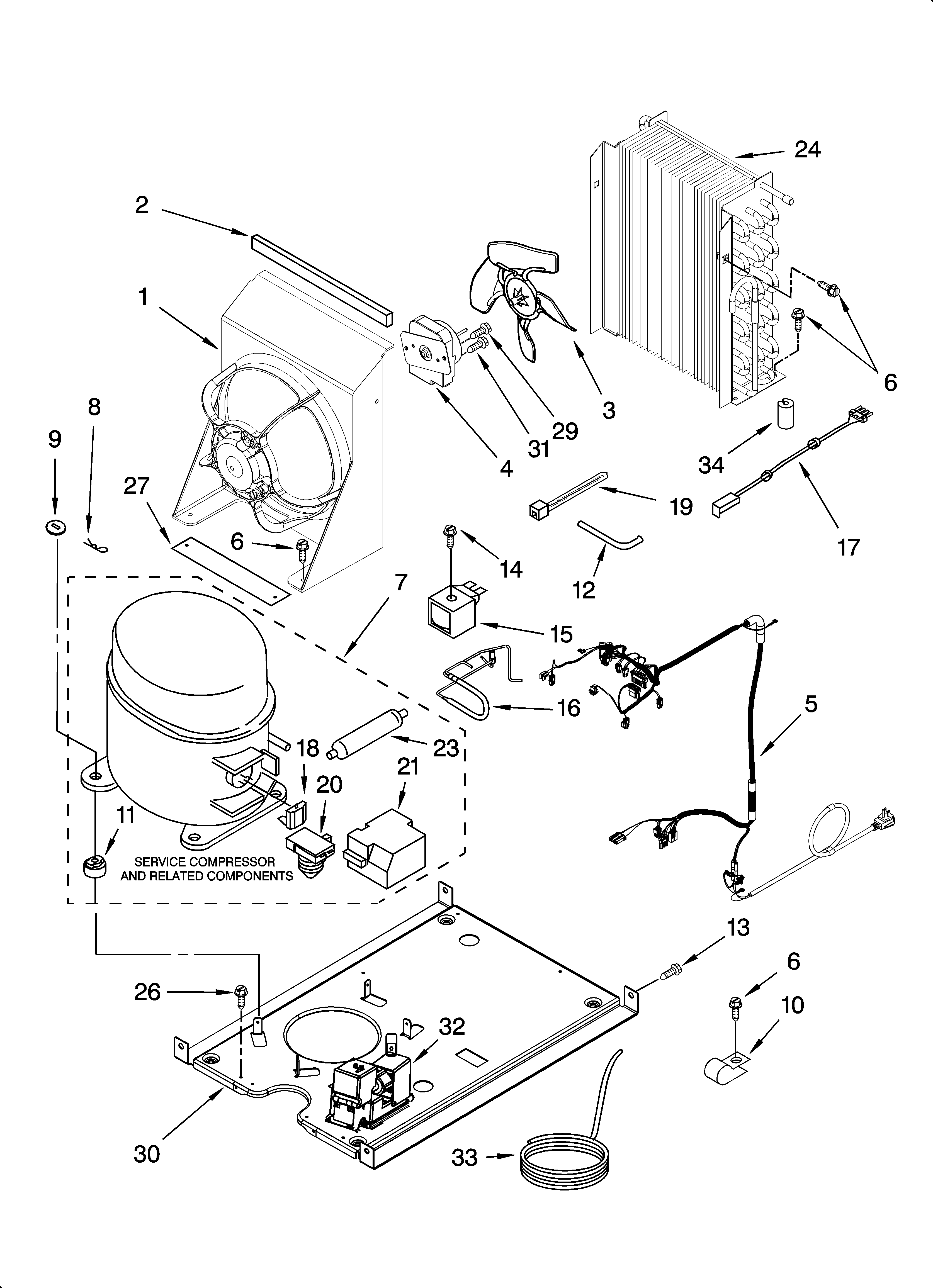

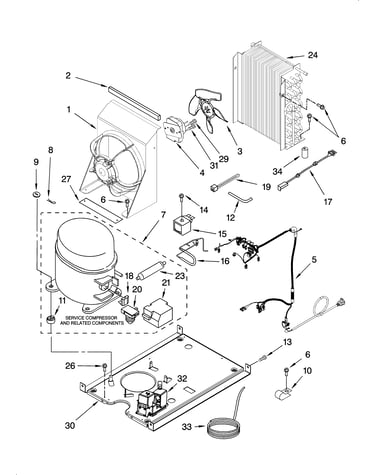

Unit parts, optional parts diagram
Cement
Part #797403Replaced by #WP279368
Manufacturer substitutionThis part replaces 797403. Substitute parts can look different from the original.In Stock$52.1810% OFF Phone Price : $58.18QtyUnit parts, optional parts diagram
Condenser Motor
Part #2315558Replaced by #W10124096

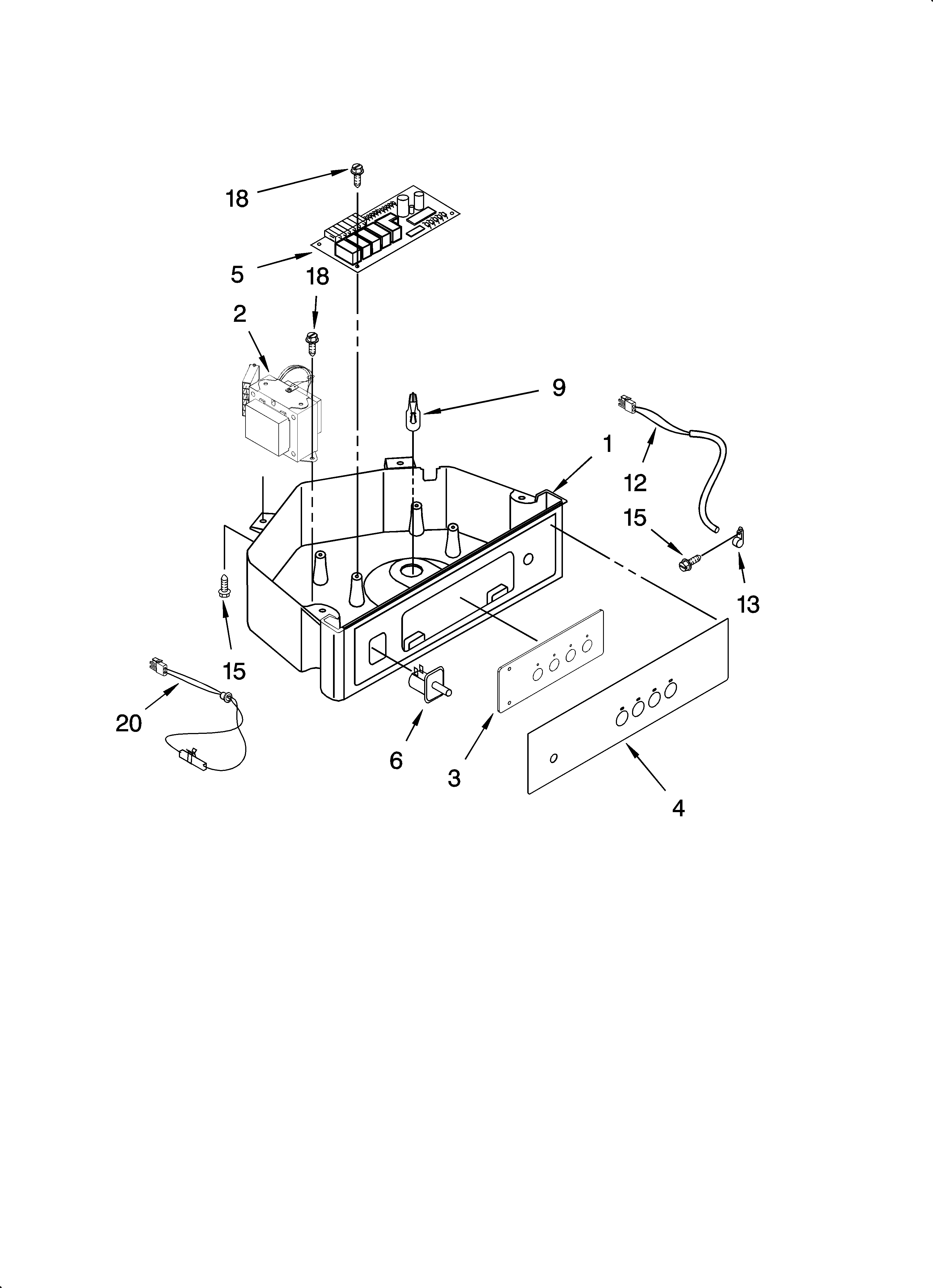

Manufacturer substitutionThis part replaces 2315558. Substitute parts can look different from the original.In Stock$81.287% OFF Phone Price : $87.28QtyControl panel parts diagram
Refrigerator Door Switch
Part #2149705Replaced by #WP2149705
Manufacturer substitutionThis part replaces 2149705. Substitute parts can look different from the original.In Stock$37.3814% OFF Phone Price : $43.38QtyEvaporator, ice cutter grid and water parts diagram
Screw
Part #8281192Replaced by #WP90767
Manufacturer substitutionThis part replaces 8281192. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyUnit parts, optional parts diagram
Appliance Screw
Part #304392Replaced by #WP489069
Manufacturer substitutionThis part replaces 304392. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyUnit parts, optional parts diagram
Compressor
Part #2313858Replaced by #W11735041
Manufacturer substitutionThis part replaces 2313858. Substitute parts can look different from the original.In Stock$485.98QtyEvaporator, ice cutter grid and water parts diagram
Ice Maker Drain Pump
Part #2313705Replaced by #W11566407
Manufacturer substitutionThis part replaces 2313705. Substitute parts can look different from the original.In Stock$79.787% OFF Phone Price : $85.78QtyEvaporator, ice cutter grid and water parts diagram
Dispenser
Part #2185523Replaced by #W10863947

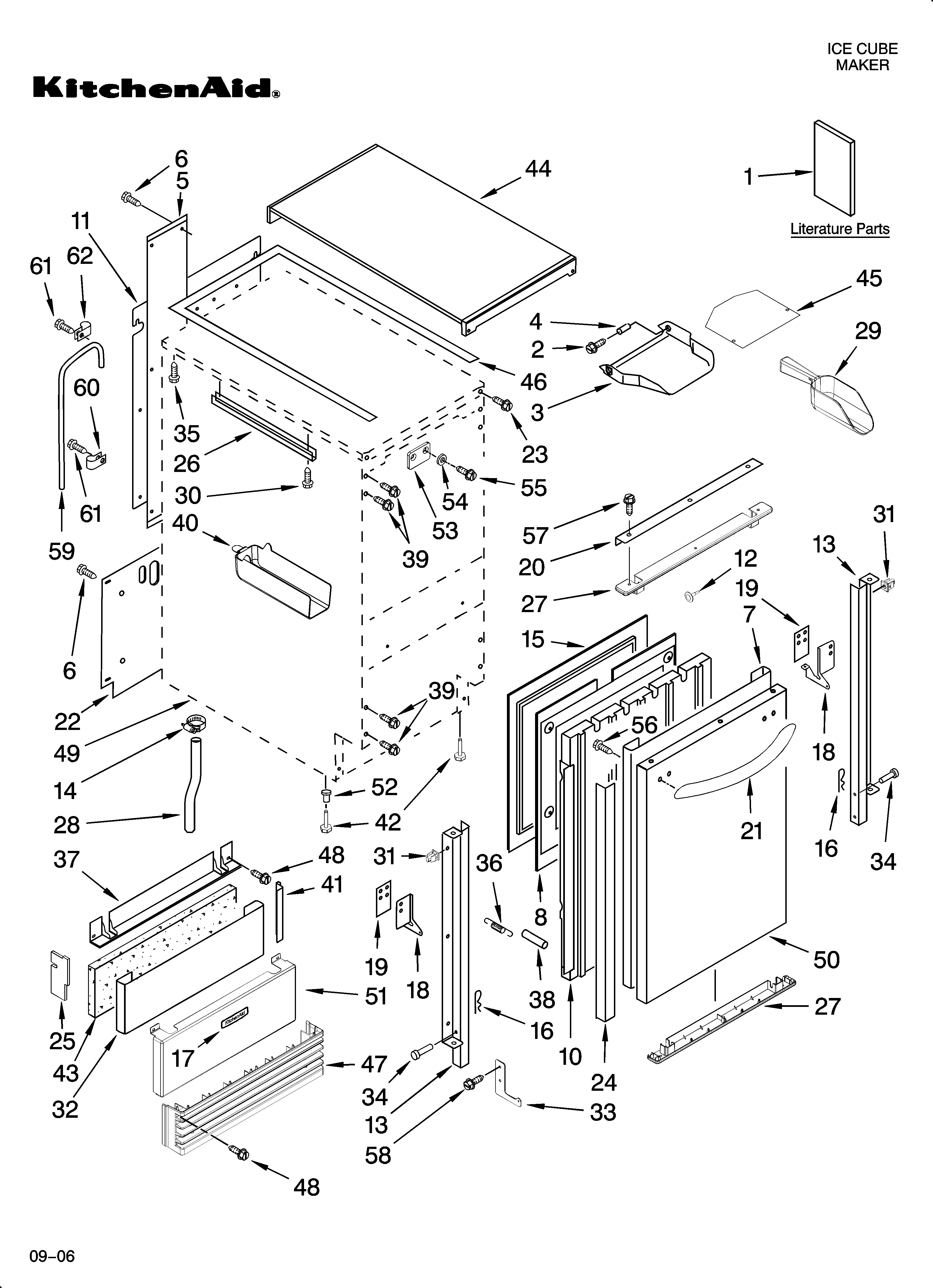

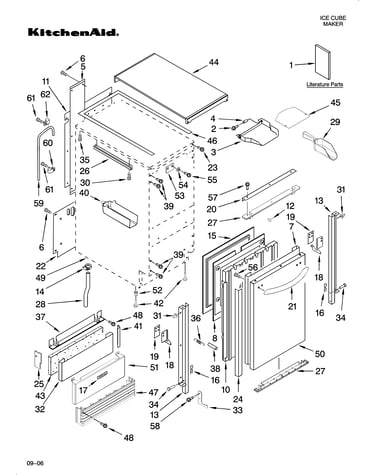

Manufacturer substitutionThis part replaces 2185523. Substitute parts can look different from the original.In Stock$43.7112% OFF Phone Price : $49.71QtyCabinet liner and door parts diagram
Refrigerator Screw
Part #489442Replaced by #WP489442
Manufacturer substitutionThis part replaces 489442. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4510% OFF Phone Price : $10.45Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Foam Pad
In Stock
$7.70
11% OFF Phone Price : $8.70
Qty
End Cap
In Stock
$112.87
Qty
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86
Qty
Ice Maker Recirculation Pump Cover
In Stock
$94.99
Qty
Shim
In Stock
$32.63
Qty
Insulation
In Stock
$120.72
Qty
Most common symptoms to help you fix your freestanding ice makers
Choose a symptom to see related ice maker repairs.
Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…
Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…
Main causes: wiring failure, broken cutting grid, faulty electronic control board…
Main causes: bad bin thermistor, condenser fan failure, faulty control board…
Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…
Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…
Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…
Most common repair guides to help fix your freestanding ice makers
These step-by-step repair guides will help you safely fix what’s broken on your ice maker.
How to replace a freestanding ice maker cutter grid
When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a…
Repair time and Difficulty
15 minutes or less
How to replace a freestanding ice maker recirculation pump
If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it. …
Repair time and Difficulty
45 minutes or less
How to replace a freestanding ice maker electronic control board
When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.…
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your freestanding ice makers
Use the advice and tips in these articles and videos to get the most out of your ice maker.
Find out what’s wrong with your appliance by following a circuit.…
Learn how to keep your freestanding ice maker operating at its peak by following these simple cleaning tips.…
Browse our common ice maker questions at Sears PartsDirect. Find detailed answers to frequently asked questions.…
