Model #1033136540 Kenmore gas counter unit

Here are the diagrams and repair parts for Kenmore 1033136540 gas counter unit, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 51 parts

Speed Nut

#50

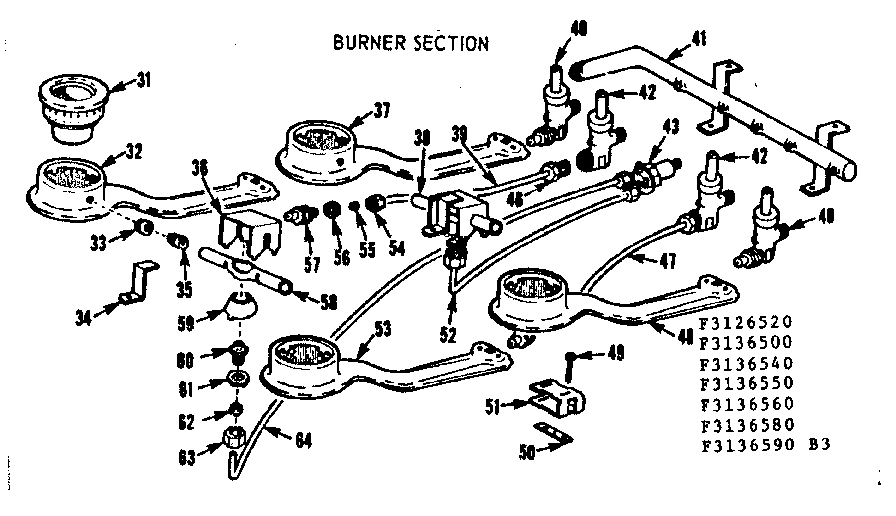

Burner section Diagram

Speed nut

Part #71351
This item is not returnable
$2.16

In Stock

Pilot Nut

#61

Burner section Diagram

Pilot nut

Part #102064
This item is not returnable
$2.16

In Stock

Bushing

#33

Burner section Diagram

Bushing

Part #102267
This item is not returnable
$2.99

In Stock

Speed Clip

#13

Main top section Diagram

Speed clip

Part #88306
This item is not returnable
$2.16

In Stock

Water Heater Pilot Tube Assembly

#39

Burner section Diagram

Water heater pilot tube assembly

Part #9000278
?
Manufacturer substitution
This part replaces 102706. Substitute parts can look different from the original.
This part replaces 102706
$13.71

In Stock

Water Heater Pilot Tube Assembly

#46

Burner section Diagram

Water heater pilot tube assembly

Part #9000278
?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
This part replaces 79719
$13.71

In Stock

Sleeve Ball

#62

Burner section Diagram

Sleeve ball

Part #74119

The manufacturer no longer makes this part, and there's no substitute part

Compressor Nut

#63

Burner section Diagram

Compressor nut

Part #74120

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve

#40

Burner section Diagram

Burner valve

Part #102729

The manufacturer no longer makes this part, and there's no substitute part

Support Rod

#11

Main top section Diagram

Support rod

Part #102161

The manufacturer no longer makes this part, and there's no substitute part
