Crosley CE35111AAW electric range Parts
Here are the diagrams and repair parts for Crosley CE35111AAW electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for CE35111AAW Ranges

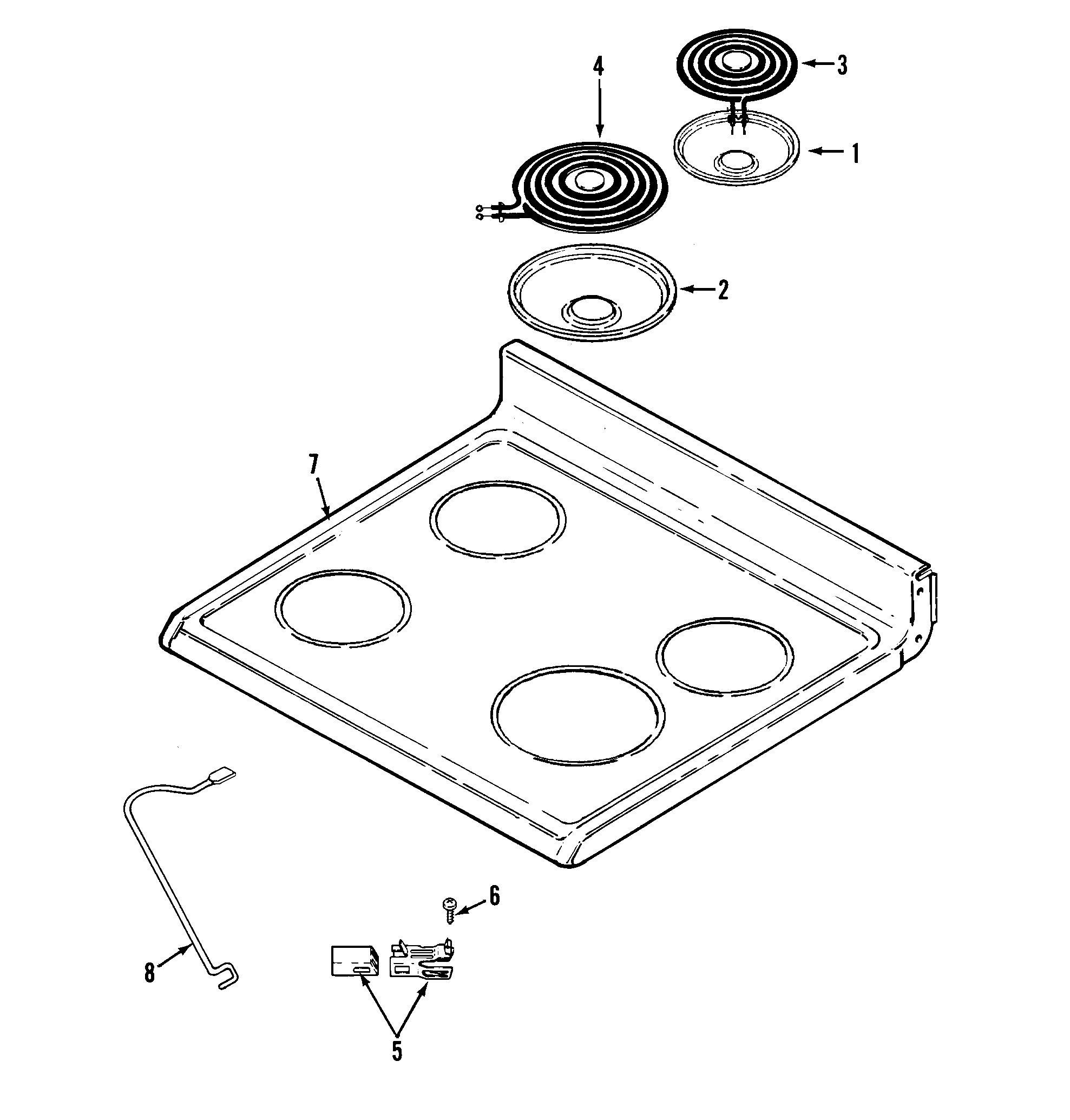

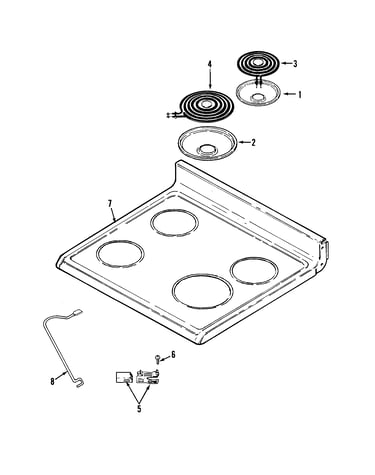

Top assembly diagram
Drip Bowl
Part #7725P015-60Replaced by #WPW10196406
Manufacturer substitutionThis part replaces 7725P015-60. Substitute parts can look different from the original.This item is not returnableIn Stock$6.3114% OFF Phone Price : $7.31
Qty
Top assembly diagram
Element
Part #04000032Replaced by #WP660532
Manufacturer substitutionThis part replaces 04000032. Substitute parts can look different from the original.In Stock$29.5217% OFF Phone Price : $35.52QtyTop assembly diagram
Surface Element
Part #04000031Replaced by #WP660532
Manufacturer substitutionThis part replaces 04000031. Substitute parts can look different from the original.In Stock$29.5217% OFF Phone Price : $35.52QtyTop assembly diagram
Receptacle
Part #1430306KReplaced by #12001676

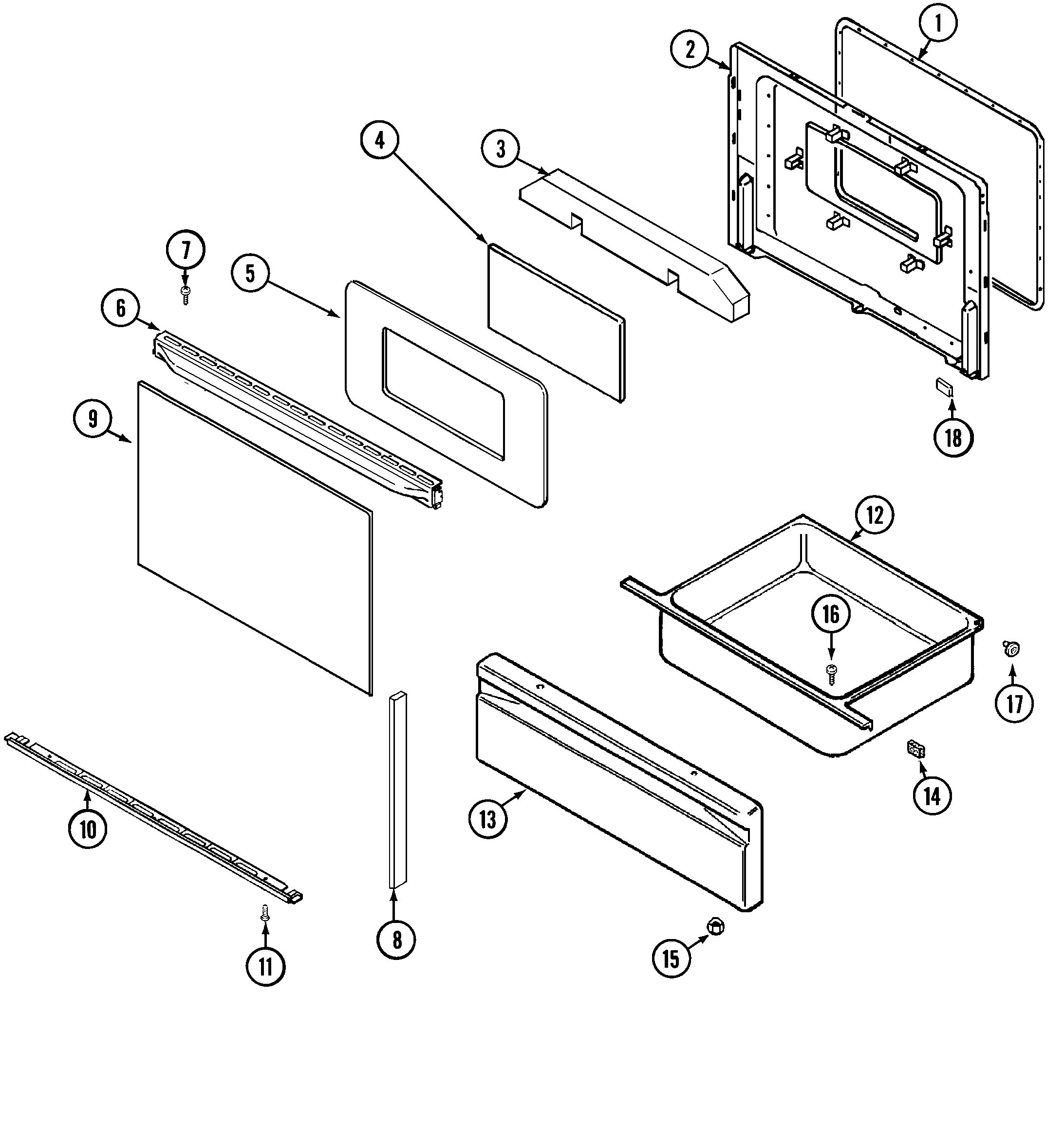

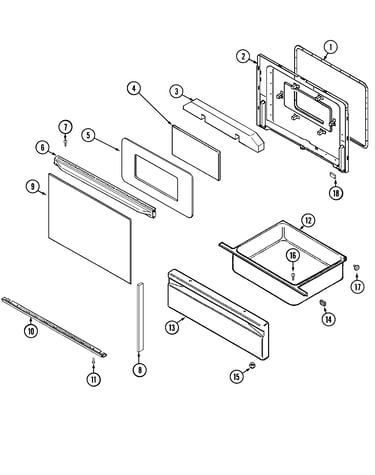

Manufacturer substitutionThis part replaces 1430306K. Substitute parts can look different from the original.In Stock$12.5214% OFF Phone Price : $14.52QtyDoor/drawer diagram
Bracket Screw
Part #7101P040-60Replaced by #WP98008545
Manufacturer substitutionThis part replaces 7101P040-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.4715% OFF Phone Price : $6.47QtyTop assembly diagram
Surface Element
Part #74007156Replaced by #WPW10345410

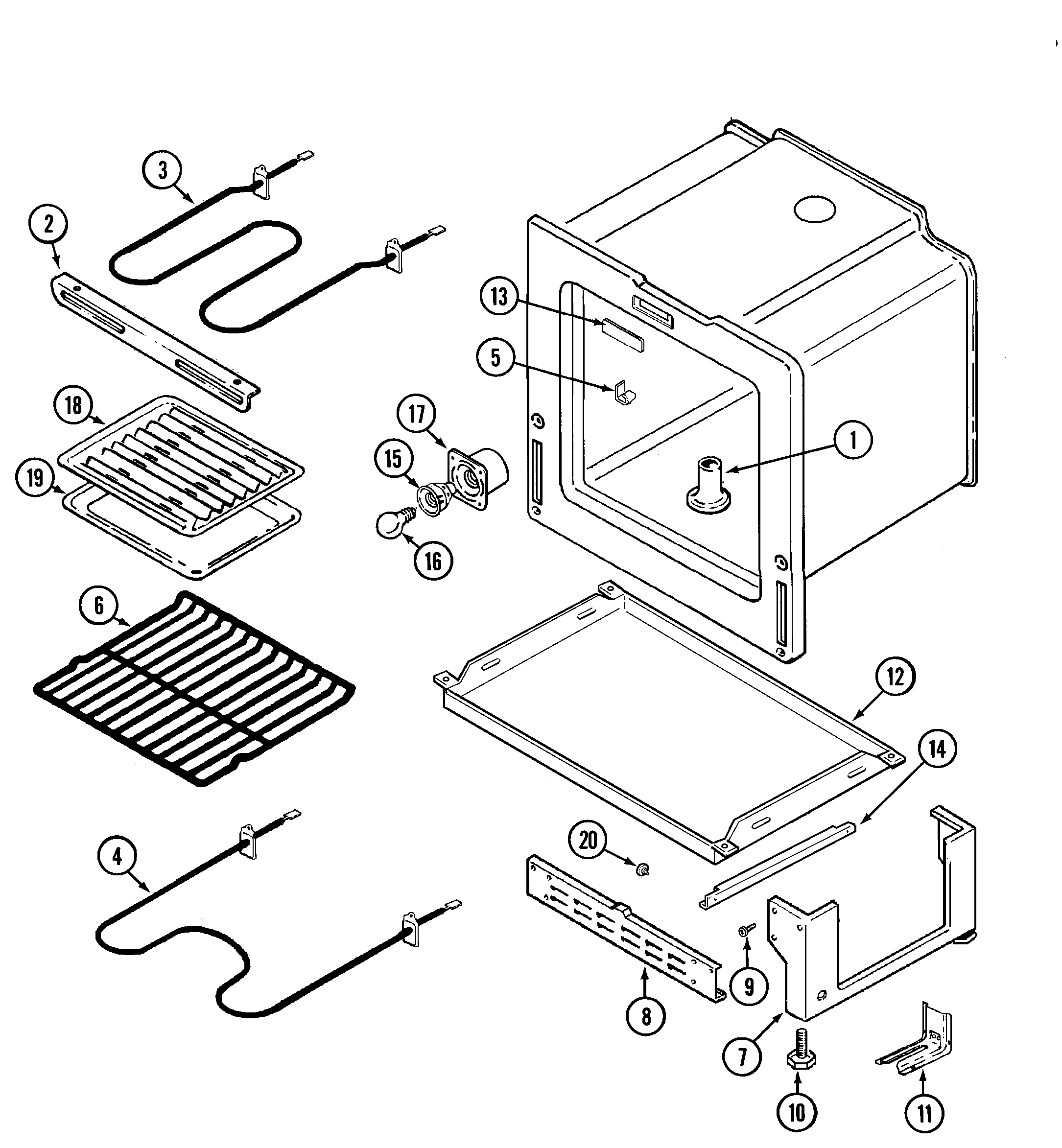

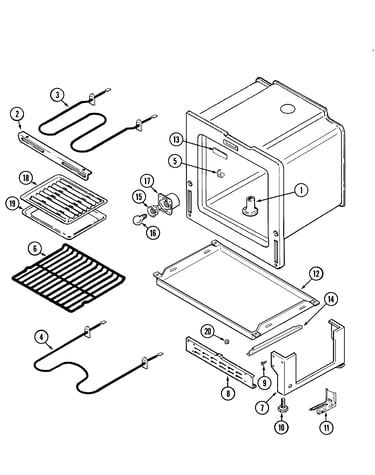

Manufacturer substitutionThis part replaces 74007156. Substitute parts can look different from the original.In Stock$110.2610% OFF Phone Price : $122.26QtyOven/base diagram
Oven Broiler Element
Part #74003041Replaced by #WPW10310249
Manufacturer substitutionThis part replaces 74003041. Substitute parts can look different from the original.In Stock$92.706% OFF Phone Price : $98.70QtyTop assembly diagram
Surface Element
Part #74007157Replaced by #WPW10259868
Manufacturer substitutionThis part replaces 74007157. Substitute parts can look different from the original.In Stock$68.3326% OFF Was : $92.40QtyTop assembly diagram
Screw
Part #7118P013-60Replaced by #WP74004005

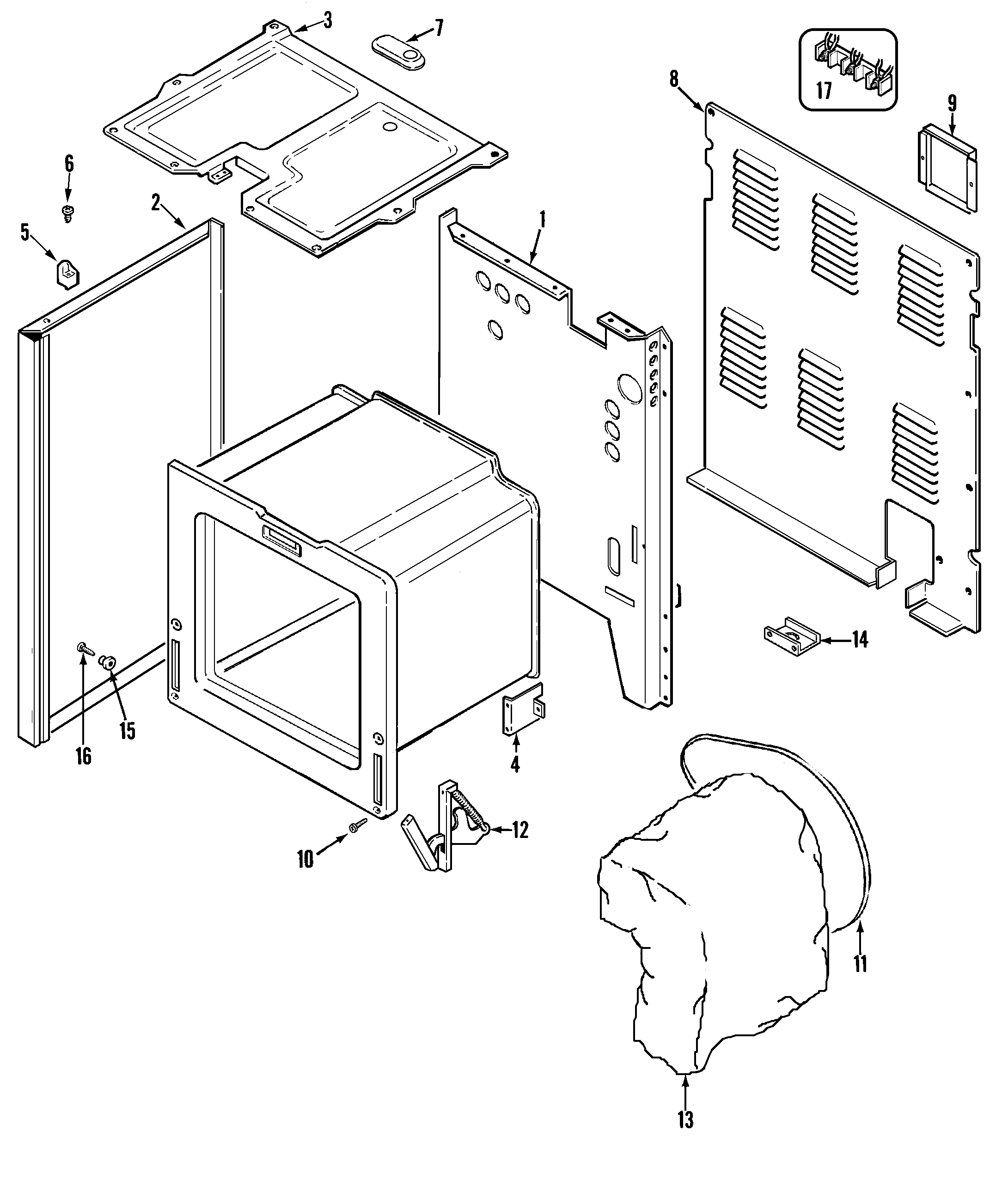

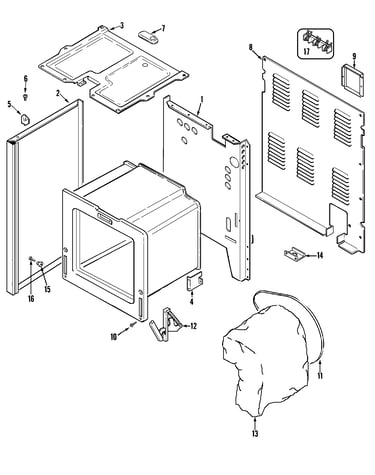

Manufacturer substitutionThis part replaces 7118P013-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyBody diagram
Door Hinge
Part #74003239Replaced by #W10876639
Manufacturer substitutionThis part replaces 74003239. Substitute parts can look different from the original.In Stock$94.116% OFF Phone Price : $100.11Qty
