Kenmore 10650022004 side-by-side refrigerator Parts

On Kenmore side-by-side refrigerator model 10650022004, the model number is printed on the appliance identification label, most often inside the fresh food compartment along the cabinet wall near the top, or around the door opening. The same label typically lists the serial number.

Common places to check first

Look for a white or silver sticker or metal tag in these spots:

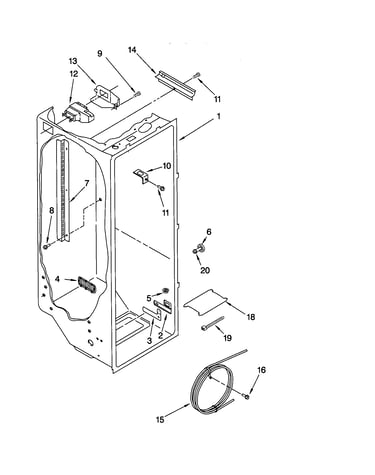

• Inside the refrigerator section on the left or right side wall (upper area)
• Along the ceiling of the fresh food compartment near the light housing

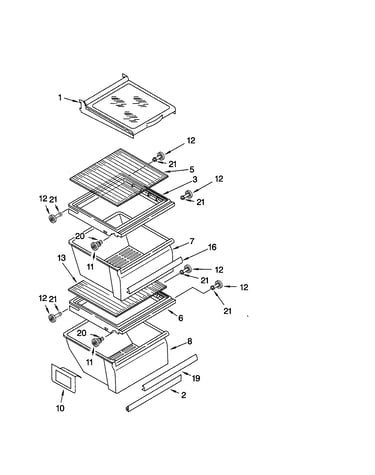

• On the cabinet frame behind the crisper drawers
• Along the door jamb (the frame you see when the door is open)
• On the back exterior panel near the bottom (less common, but possible)

What the label usually shows

The ID label typically includes both identifiers; use the model number for parts lookup and diagrams.

Item on label	What it’s used for	Example format
Model number	Finding exact parts for your refrigerator	10650022004
Serial number	Identifying production run and date info	Letters plus numbers

Why it matters

Kenmore refrigerators can look similar across multiple model series, but parts like the ice maker, thermostat, and door gasket can vary by model. Using the exact model number helps us match the correct replacement part the first time.

If the label is missing or unreadable

Use these practical workarounds:

• Check for a duplicate label on the back of the unit near the compressor area
• Look for the model number on your purchase paperwork or service invoice
• If you’re troubleshooting an ice or water issue while you search, common related parts for this model include the ice maker assembly - refrigerator ice maker by whirlpool 4317943 and the refrigerator inlet valve W10853654

Last updated: February 2026

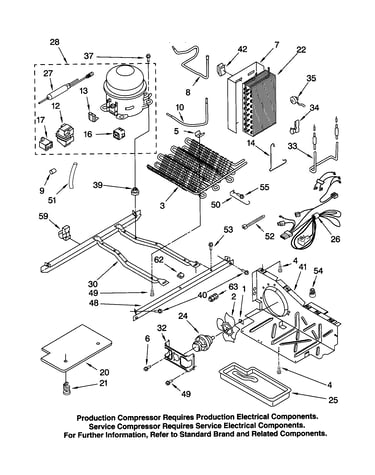

To clean the coils on your Kenmore side-by-side refrigerator model 10650022004, unplug the refrigerator, expose the condenser coil area (rear or bottom-front), then vacuum and brush off dust until airflow is clear. Clean coils help the compressor run cooler and more efficiently.

What you need

• Vacuum with a crevice tool
• Coil-cleaning brush (or a soft, long brush)
• Flashlight
• Towel or shallow pan (to catch dust)
• Work gloves

Step-by-step: cleaning the condenser coils

1. Disconnect power: Unplug the refrigerator (or switch off the breaker).
2. Locate the coils:

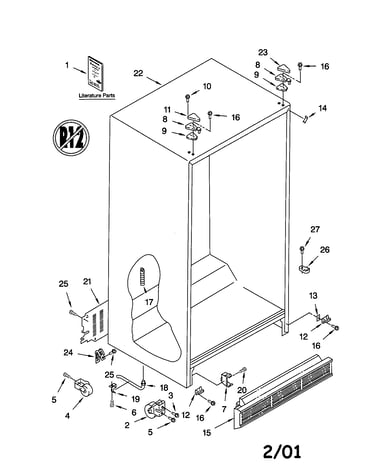

   • Many side-by-side models have coils behind a lower front toe grille.
   • Others have coils on the back behind a rear access cover.
3. Remove the cover/grille (if equipped) and set screws aside.
4. Dry clean first:
   • Use the brush to loosen packed lint and pet hair.
   • Vacuum slowly as you brush so debris does not spread.
5. Clean the condenser fan area (if accessible): Vacuum dust around the fan and nearby surfaces.
6. Reinstall the cover/grille, restore power, and confirm the refrigerator is running normally.

How often to clean (typical schedule)

Home situation	Coil cleaning interval
No pets, low dust	Every 6 to 12 months
Pets or heavy dust	Every 3 to 6 months
Refrigerator in garage/workshop	Every 3 months

Why it matters

Dirty condenser coils trap heat, which makes the sealed system work harder. That can lead to warmer temperatures, longer run times, and extra wear on cooling components like the compressor.

When coil cleaning is not enough

If the refrigerator still runs warm or seems to run constantly after cleaning, these model-relevant parts are common suspects:

• Failed condenser fan motor (air is not moving across the coils)

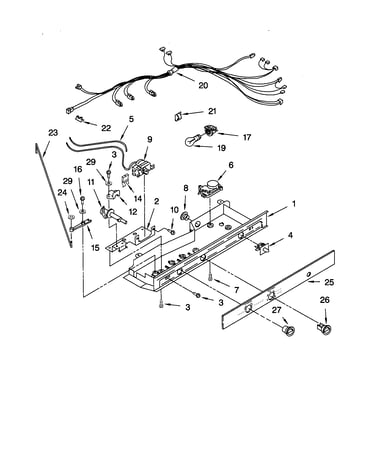

• Temperature control issues such as a faulty refrigerator thermostat WP2198202

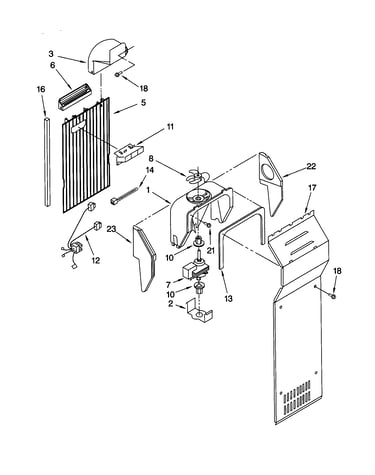

• Cooling airflow problems tied to the evaporator fan system

For ice and water related symptoms (slow ice production, hollow cubes, dispenser issues), we also recommend our DIY guide: how to prevent water dispenser and ice maker problems.

Last updated: February 2026

Kenmore model numbers (including refrigerator model 10650022004) are read left to right: the first 3 digits identify the original manufacturer, and the remaining digits narrow down the product platform and the exact feature or production variation. This helps us match the correct parts list and diagrams.

What each section of a Kenmore model number means

Most Kenmore model numbers follow this pattern:

• Prefix (first 3 digits): identifies who built the unit for Kenmore (for example, 106 is commonly associated with Whirlpool-built Kenmore refrigerators)
• Base model digits: identify the core design or platform
• Suffix/variation digits: identify feature packages, color/finish, or production changes
• Full model number: the only reliable way to ensure part compatibility when ordering

Why the full model number matters for parts

Even small digit changes can mean different shelves, door parts, or ice maker and dispenser components. When you use the complete model number, we can match parts that fit your exact side-by-side refrigerator.

Here are a few examples of parts that are model-sensitive:

• Ice maker components such as the ice maker assembly - refrigerator ice maker by whirlpool 4317943
• Temperature control parts such as the refrigerator thermostat WP2198202
• Door closing and alignment parts such as the refrigerator door cam (black) WP2182179

Quick check: what to verify before ordering

Use this checklist to avoid ordering the wrong part:

• Confirm the model number is 10650022004 (match every digit)
• Check for any additional tag info (serial number, revision, or engineering code)
• Compare the part name and location in the diagrams to what you see in the refrigerator
• If replacing a cooling or defrost part, note the symptom (warm fridge, frost buildup, noisy fan)

Common Kenmore refrigerator model number format (example)

Section	Example	What it tells you
Manufacturer prefix	106	Who built it for Kenmore
Platform/base	50022	Core design family
Variation	004	Specific version/features

Why it matters

Reading the model number correctly prevents mismatched parts, repeat repairs, and cooling or ice maker issues caused by installing a similar-looking but incompatible component.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10650022004 are poor cooling (airflow or defrost issues), water leaks, ice maker and dispenser failures, and unusual noises. These problems usually trace back to dirty condenser coils, iced-up evaporator areas, worn door seals, or a failing fan, thermostat, or water valve.

Most common symptoms and what they usually mean

• Not cooling or warm temperatures: restricted airflow, evaporator fan issue, defrost failure, or temperature control problem
• Freezer cold but fresh food warm: weak evaporator airflow, iced evaporator, or blocked air damper/vents
• Water under the refrigerator or in the fresh food section: clogged defrost drain, cracked water line, or reservoir leak
• Ice maker not making ice: water supply issue, inlet valve problem, or ice maker module failure
• Clicking, buzzing, or rattling noises: fan blade hitting ice, failing fan motor, or vibration from the cabinet/lines

Quick checks we recommend first (no parts needed)

1. Set temperatures correctly: aim for 0°F in the freezer and 37°F in the refrigerator.
2. Clean condenser coils (typically underneath or behind): dirty coils are a top cause of weak cooling.

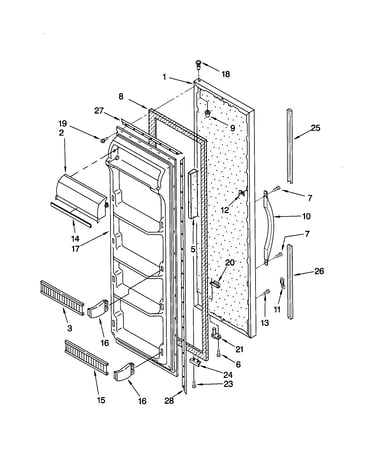

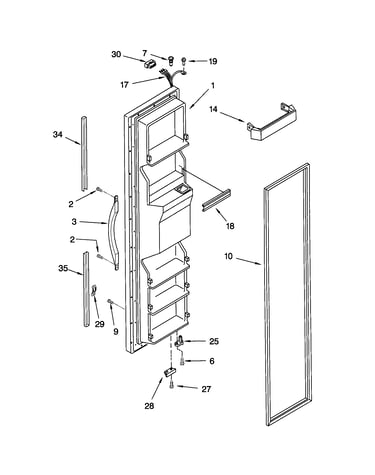

3. Check door sealing: close a dollar bill in the gasket; if it slips easily, the seal may be leaking.
4. Listen for the evaporator fan: it should run when the compressor is running (door switch may need to be held closed).
5. Inspect for frost buildup on the freezer back wall: heavy frost points to a defrost system problem.

Parts that commonly fix these issues on model 10650022004

Symptom	Common culprit	Example part for this model
Ice maker not working	Ice maker assembly or water supply issue	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
Warm temps, unstable temps	Temperature control/thermostat	Refrigerator thermostat WP2198202
Frost buildup, warm fridge	Defrost sensing issue	Refrigerator defrost bi-metal WPW10225581
No water to ice maker/dispenser	Water inlet valve	Refrigerator inlet valve W10853654

Why it matters

Cooling, ice, and leak problems often start small but can lead to spoiled food, ice buildup that blocks airflow, or water damage. Catching airflow and defrost issues early helps the compressor run less and keeps temperatures stable.

Helpful DIY guidance

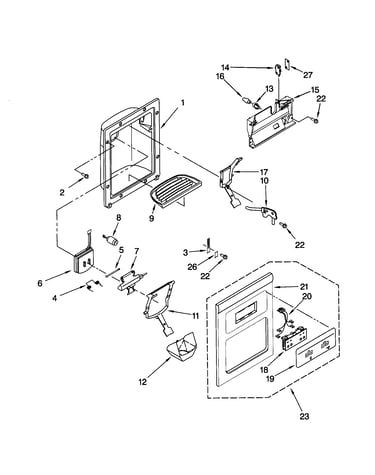

• For ice maker and dispenser troubleshooting, we use: how to prevent water dispenser and ice maker problems
• For model-family diagnostics, we use: Kenmore 106 model refrigerator error codes

Last updated: February 2026

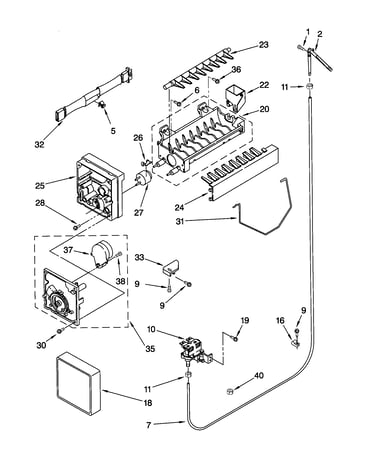

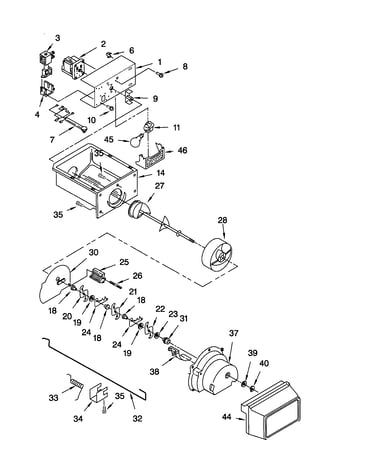

To replace the ice maker in your Kenmore 10650022004 side-by-side refrigerator, we remove power and the ice bin, disconnect the ice maker wiring harness, unmount the old assembly, then install and level the replacement so it fills and harvests ice correctly. Use the exact replacement ice maker assembly - refrigerator ice maker by whirlpool 4317943.

Before you start (safety and prep)

• Unplug the refrigerator or switch off the circuit breaker.
• Turn off the water supply to the refrigerator.

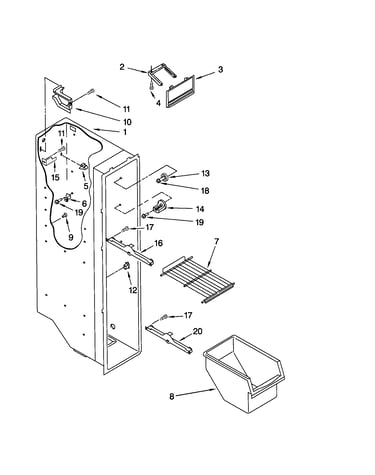

• Empty the ice bin and remove it from the freezer door or shelf.
• Protect the freezer floor with a towel to catch screws.
• Use a nut driver or screwdriver that fits your mounting screws.

Replacement steps (typical for Kenmore 106 side-by-side models)

1. Remove the ice bin and any shelves that block access.
2. Take off the ice maker cover (if equipped) to expose the harness plug and mounting screws.
3. Unplug the wiring harness connector.
4. Remove the mounting screws; support the ice maker as the last screw comes out.
5. Transfer any parts that must match the old unit (for example, the shutoff arm or mounting bracket pieces) if your replacement does not include them.
6. Mount the new ice maker, tighten screws evenly, and confirm it sits square and stable.
7. Reconnect the wiring harness and reinstall the cover, shelves, and ice bin.
8. Turn water and power back on; allow time for the first harvest cycle.

Quick checks if it still will not make ice

• Confirm the freezer temperature is about 0°F to 5°F.
• Make sure the shutoff arm (or sensor) is in the ON position.
• Check for a frozen fill tube; if frozen, look for slow seepage at the refrigerator inlet valve W10853654.
• Verify the dispenser and ice maker water supply is on and the line is not kinked.
• If cubes are small or hollow, inspect for restricted water flow and consider testing the inlet valve.

What to expect after installation

Item	Normal behavior	Typical timing
First batch of ice	Smaller or irregular cubes	First 1 to 2 cycles
Full bin	Gradual production	24 to 48 hours
No ice immediately	Not a failure by itself	First few hours

Why it matters

A correctly mounted and connected ice maker prevents leaks, reduces jam-ups in the mold, and helps the unit cycle properly. If the ice maker is tilted or the valve seeps, you can get overfilling, clumping, or a frozen fill tube.

Last updated: February 2026
