Craftsman
Gas Walk-Behind Mower

Model # 917376720 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376720 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 252 parts  |
Lawn & Garden Equipment Nut 409148
Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#6

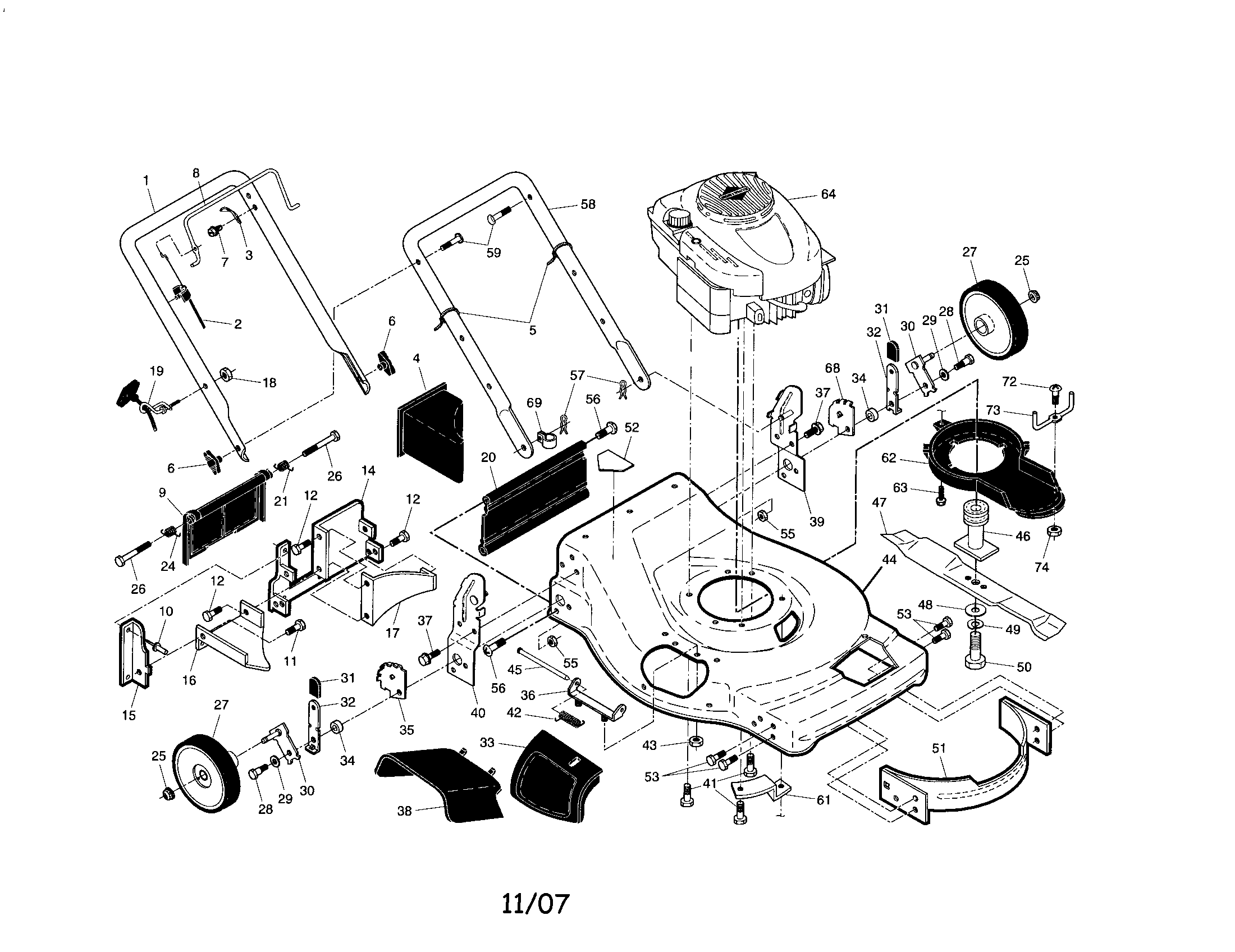

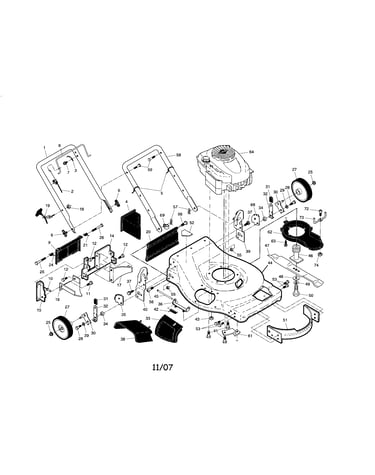

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

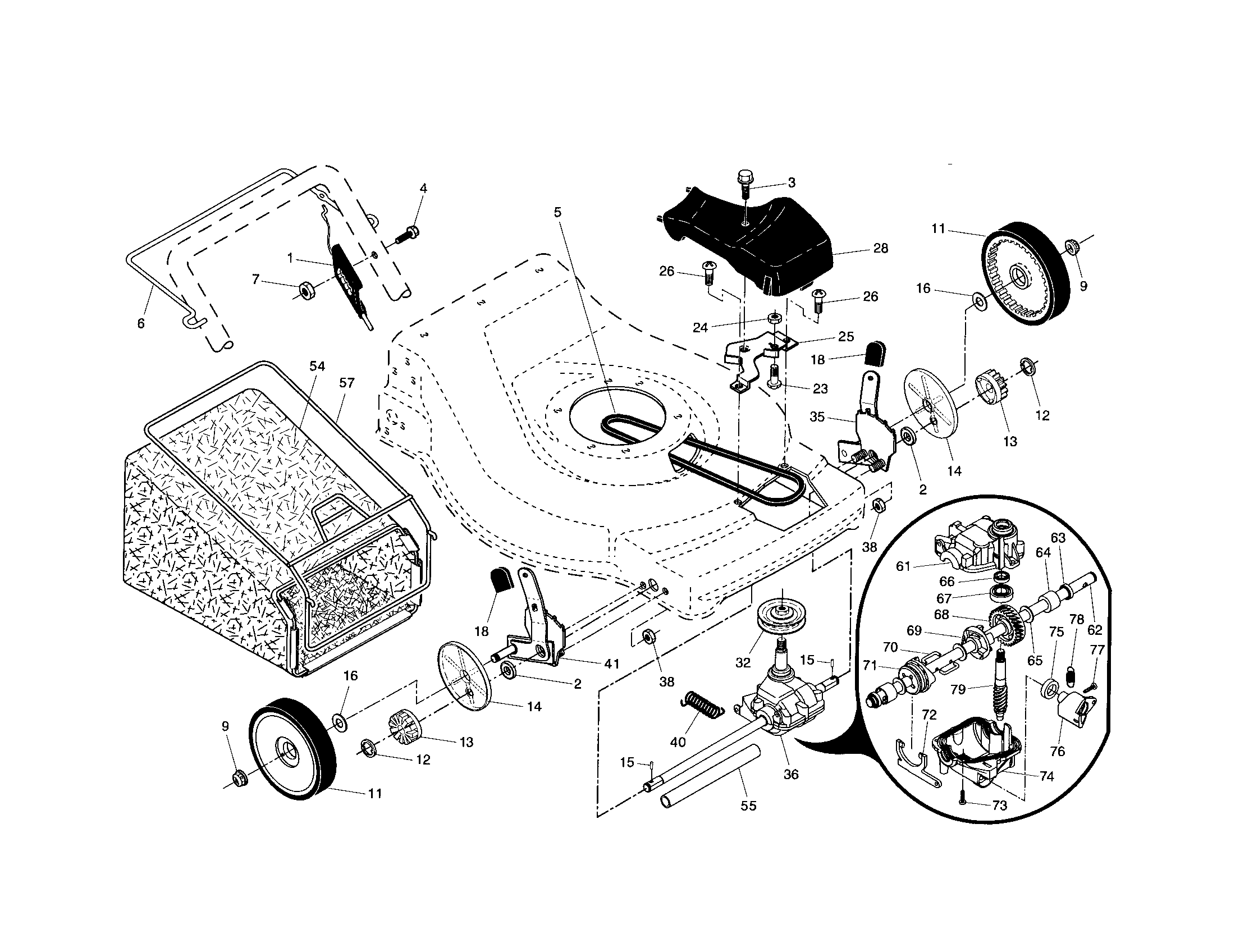

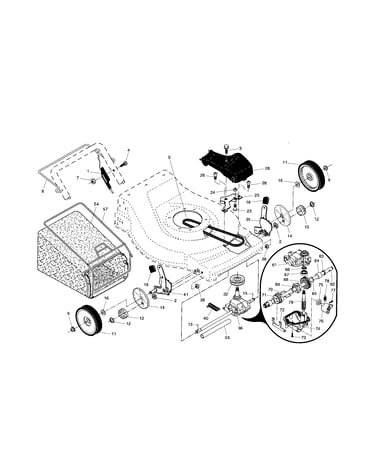

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
Back Order
Poulan Lawn Mower Ground Drive Belt, 3/8 X 33-3/16-in (replaces 532196857, 5321968-57) 196857
#5

Drive control/gear case/wheels diagram

Poulan lawn mower ground drive belt, 3/8 x 33-3/16-in (replaces 532196857, 5321968-57)

Part #196857

BEST SELLER

Get free shipping with Automatic Reorder

$18.92 |
10% OFF Phone Price : $20.92
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Drive Pawl 404845
#15

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Drive Control Cable 400292
#1

Drive control/gear case/wheels diagram

Lawn mower drive control cable

Part #400292

Replaced by #583261801

?
Manufacturer substitution
This part replaces 400292. Substitute parts can look different from the original.
BEST SELLER
$27.98 |
18% OFF Phone Price : $33.98
In Stock
Lawn Mower Deflector Shield Torsion Spring (replaces 175285, 532193000, 5321930-00) 193000
#42

Engine/housing/handle diagram

Lawn mower deflector shield torsion spring (replaces 175285, 532193000, 5321930-00)

Part #193000

BEST SELLER
This item is not returnable
$5.49 |
15% OFF Phone Price : $6.49
In Stock
Washer 67725
#16

Drive control/gear case/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
Back Order
Nut 132004
#18

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
